Intermittent Metallic Rattle or Scratching Type Noise – 2011-2012 Ford F-150, Mustang

“This site contains affiliate links for which OEMDTC may be compensated”
TSB 14-0156 5.0L – INTERMITTENT METALLIC RATTLE OR SCRATCHING TYPE NOISE – WARM ENGINE AT IDLE



FORD: 2011-2012 F-150, Mustang



This article supersedes TSBs 12-3-1 and 11-9-15 to consolidate information and update the Service Procedure.



ISSUE:

Some 2011-2012 F-150 and Mustang vehicles (excluding Boss) equipped with a 5.0L engine may exhibit an intermittent metallic rattle or scratching type noise in the area at the front of the left hand (LH) or driver side cylinder head at idle with the engine at operating temperature.



ACTION:

Follow the Service Procedure steps to correct the condition.



SERVICE PROCEDURE

  1. Determine engine build date. Refer to Workshop Manual (WSM), Section 303-01.
    1. If engine build date is on or before 11/10/2011, proceed to Step 2.
    1. If engine build date is on or after 11/11/2011, this article does not apply. Refer to the WSM, Section 303-00 for normal diagnostics.
  1. Warm the engine to operating temperature.
  1. Using a mechanic’s stethoscope or EngineEAR, listen for a metallic type rattle or scratching type noise at the front of LH cylinder head. Is the noise heard in areas shown? (Figures 1 and 2)
    1. Yes – proceed to Step 4.
    1. No – this article does not apply. Refer to WSM, Section 303-00 for normal diagnostics.
  1. Remove accessory drive belt, refer to WSM, Section 303-05. Is the noise still present?
    1. Yes – proceed to Step 5.
    1. No – replace the coolant pump. Refer to WSM, Section 303-03. Repair is complete.
  1. Is the noise heard in the areas shown? (Figures 1 and 2)
    1. Yes – replace the left hand primary tensioner and timing chain tensioner arm using the kit part number provided in this article. Refer to WSM, Section 303-01.
    1. No – this article does not apply. Refer to WSM, Section 303-00 for normal diagnostics.

LH cylinder headFigure 1 – 14-0156

LH cylinder headFigure 2 – 14-0156



PART NUMBER PART NAME
DU7Z-6L266-A Chain Tensioner Kit
ZC-30-A Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Motorcraft Silicone Gasket Remover
ZC-31-B Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Motorcraft Metal Surface Prep Wipes
TA-30 Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Motorcraft Silicone Gasket And Sealant
BR3Z-8255-A Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Thermostat Seal
F1VY-8507-A Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Water Pump Gasket
BR3Z-6A340-A Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Bolt – Crankshaft
BR3Z-6020-B Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Front Cover Gasket – Left
BR3Z-6020-C Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Front Cover Gasket – Center
BR3Z-6020-D Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Front Cover Gasket – Right
BR3Z-6584-A Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Valve Cover Gasket – Left
BR3Z-6584-D Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Valve Cover Gasket – Right
BR3Z-8620-R A/C Stretchy Belt

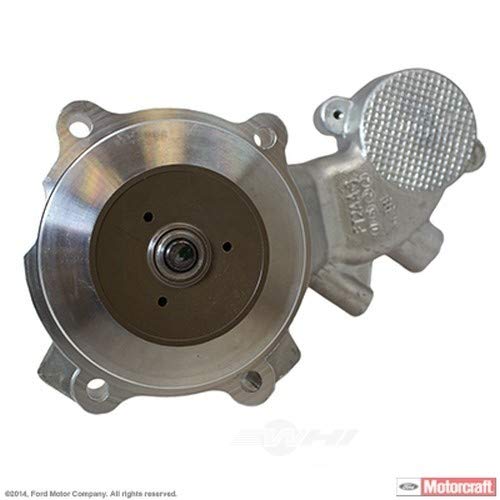

BR3Z-8501-H Intermittent Metallic Rattle or Scratching Type Noise - 2011-2012 Ford F-150, Mustang | small light Water Pump



OPERATION DESCRIPTION TIME
140156A 2011-2012 F-150 5.0L: Replace The Coolant Pump Includes Time To Diagnose (Do Not Use With Any Other Labor Operations) 1.5 Hrs.
140156A 2011-2012 Mustang 5.0L: Replace The Coolant Pump Includes Time To Diagnose (Do Not Use With Any Other Labor Operations) 1.7 Hrs.
140156B 2011-2012 F-150 5.0L: Replace The LH Timing Chain Tensioner And Tensioner Arm Includes Time To Diagnose (Do Not Use With Any Other Labor Operations) 5.3 Hrs.
140156B 2011-2012 Mustang 5.0L: Replace The LH Timing Chain Tensioner And Tensioner Arm Includes Time To Diagnose (Do Not Use With Any Other Labor Operations) 5.4 Hrs.



WARRANTY STATUS

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.



DEALER CODING

BASIC PART NO. CONDITION CODE
8501 42
