NHTSA ID Number: 10144182
Manufacturer Communication Number: tsb18-2185
Summary
This article supersedes TSB 18-2024 to update the model years. Some 2011-2018 Fiesta vehicles may exhibit a lack of heat resulting from a frozen blower motor. This may be caused by snow entering through the cowl panel grille and screen assemblies. Snow may melt in the heating, ventilation and air conditioning (HVAC) case allowing water to enter the blower motor and freeze during a below freezing overnight soak. Blower motor fuse F4 in the battery junction box (BJB) may also be open and the cabin air filter may be saturated. Follow the Service Procedure steps to correct the condition.
This bulletin supersedes 18-2024. Reason for update: Concern Carryover to New Model
Model:
| Ford |
| 2011-2018 Fiesta |
Summary
This article supersedes TSB 18-2024 to update the vehicles affected.
Issue: Some 2011-2018 Fiesta vehicles may exhibit a lack of heat resulting from a frozen blower motor. This may be caused by snow entering through the cowl panel grille and screen assemblies. Snow may melt in the heating, ventilation and air conditioning (HVAC) case allowing water to enter the blower motor and freeze during a below freezing overnight soak. Blower motor fuse F4 in the battery junction box (BJB) may also be open and the cabin air filter may be saturated.
Action: Follow the Service Procedure steps to correct the condition.
Parts

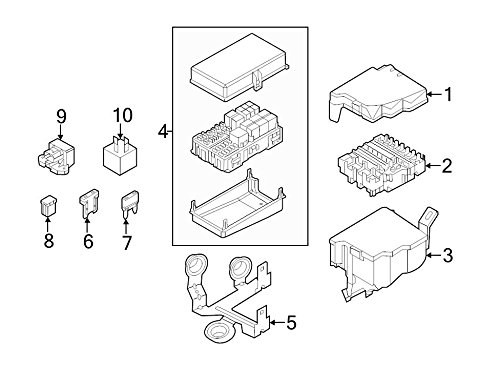

| Description | Part Number | Quantity |
| Fuse | 6E5Z-14526-CA  |
1 |
| Screen Assembly | D2BZ-18D395-B | 1 |
| Upper Cowl Panel To Lower Cowl Panel Clip | BE8Z-14197-A |
6 |

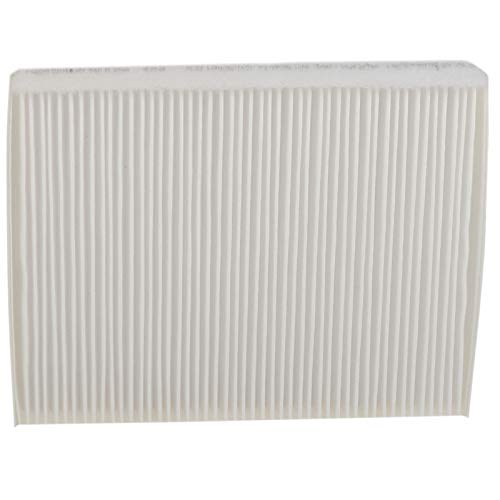

| Cabin Air Filter | BE8Z-19N619-A |
1 |
Service Procedure
- Does the vehicle have an engine block heater and heated seats?
(1). Yes – refer to Workshop Manual (WSM), Section 412-00 for normal diagnostics.
(2). No – proceed to Step 2.
- Replace the cabin air filter. Refer to WSM, Section 412-00.
- Open the hood and inspect for the presence of foam deflectors on the air inlet openings of the cowl opening Are foam deflectors present? (Figure 1)
(1). Yes – remove and discard the foam deflectors. Proceed to Step 4.
(2). No – proceed to Step 4.
Figure 1
- Remove the cowl panel grille. Refer to WSM, Section 501-02.
- Remove all screen assemblies from the bulkhead.
- Install the new screen assembly. (Figure 2)
(1). Position fingers at the horizontal locator tabs and place the screen into position.
(2). Feel the opening in the sheet metal with the back of your fingernails and move the screen left and right until you feel it is centered in opening.
(3). Seat the bottom tabs first, remove your fingers and pivot the top towards the opening to seat the upper The screen does not make a sound to indicate it is seated in position. Slightly pull on the screen to verify it is properly seated.
Figure 2
- Install the cowl panel grille. Refer to WSM, Section 501-02.
(1). Position the cowl panel grille upper rubber strip below the witness line on the windshield.
(2). Push the cowl panel grille against the windshield and press into the windshield moulding grooves. Push down on the cowl panel grille to snap into position.
(3). Install cowl panel grille clips.
- Verify blower motor operation. Does the blower motor operate properly?
(1). Yes – run the climate control system in high heat and high blower speed for 10 minutes to clear residual moisture from the blower motor cooling tube. Repair is complete.
(2). No – proceed to Step Step 9.
(1). Yes – proceed to Step 10.
(2). No – refer to WSM, Section 412-00 for normal diagnostics.
- Replace the fuse. Does the blower motor function properly?
(1). Yes – run the climate control system in high heat and high blower speed for 10 minutes to clear residual moisture from the blower motor cooling tube. Repair is complete.
(2). No – refer to WSM, Section 412-00 for normal diagnostics.
8 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| FORD | FIESTA | 2011-2018 |
1 Associated Document
Manufacturer Communications
18-2185
02 July 2018
https://www.nhtsa.gov/recalls?nhtsaId=10144182
MC-10144182-9999.pdf 151.552KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10140309
Manufacturer Communication Number: TSB18-2024
Summary
Some 2011-2017 Fiesta vehicles may exhibit a lack of heat resulting from a frozen blower motor. This may be caused by snow entering through the cowl panel grille and prior screen assemblies. Snow may melt in the heating, ventilation and air conditioning (HVAC) case allowing water to enter the blower motor and freeze during a below freezing overnight soak. The blower motor fuse at location F4 in the power distribution box may also be open and the cabin air filter may be water saturated. Follow the Service Procedure steps to correct the condition.
1 Associated Document
Manufacturer Communications
18-2024
25 January 2018
https://www.nhtsa.gov/recalls?nhtsaId=10140309
MC-10140309-9999.pdf 115.242KB
Loading...
NHTSA ID Number: 10138510
Manufacturer Communication Number: TSB18-2024
Summary
Some 2011-2017 Fiesta vehicles may exhibit a lack of heat resulting from a frozen blower motor. This may be caused by snow entering through the cowl panel grille and prior screen assemblies. Snow may melt in the heating, ventilation and air conditioning (HVAC) case allowing water to enter the blower motor and freeze during a below freezing overnight soak. The blower motor fuse at location F4 in the power distribution box may also be open and the cabin air filter may be water saturated. Follow the Service Procedure steps to correct the condition.
1 Associated Document
Manufacturer Communications
18-2024
25 January 2018
https://www.nhtsa.gov/recalls?nhtsaId=10138510
MC-10138510-9999.pdf 115.242KB
Loading...
NHTSA ID Number: 10055017
Manufacturer Communication Number: TSB-14-0021
Summary
FORD: DUE TO SNOW ENTERING THROUGH COWL TOP AREA AND MELTING, ALLOWING THE WATER TO ENTER BLOWER MOTOR AND WHEN ITS BELOW FREEZE OVERNIGHT, REFREEZES, CAUSING A LACK OF HEAT RESULTING FROM FROZEN BLOWER MOTOR. MODEL 2011-2014 FIESTA. *PE
1 Associated Document
Service Bulletin Document
TSB 14-0021
https://www.nhtsa.gov/recalls?nhtsaId=10055017
SB-10055017-4010.pdf 446.094KB
Loading...
