TSB 14-0084 | MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATED – DIAGNOSTIC TROUBLE CODE (DTC) P2270 OR P2272 – BUILT ON OR BEFORE 12/31/2012 |
FORD![]() | 2010-2011 Ranger 2010-2012 E-Series, Expedition, F-150, F-Super Duty |
LINCOLN![]() | 2010-2012 Navigator |
This article supersedes TSB 12-7-9 to update the production fix date and Issue Statement.
ISSUE:
Some 2010 F-150 vehicles equipped with 4.6L and 5.4L engine, 2011-2012 F-150 vehicles equipped with 5.0L engine, 2010-2011 Ranger, 2010-2012 F-Super Duty vehicles equipped with a 5.4L, 6.2L, or 6.8L engine, 2010-2012 Expedition, Navigator and Econoline (excluding Ambulance Package) vehicles built on or before 12/31/2012 may exhibit diagnostic trouble code (DTC) P2270 or P2272.
ACTION:
Follow the Service Procedure steps to correct the condition
SERVICE PROCEDURE
- Using the Ford
Integrated Diagnostic System (IDS) scan tool or equivalent, retrieve all continuous memory DTC (CMDTC). Are DTC P2270 or P2272 present?
- Yes – proceed to Step 2.
- No – this article does not apply. Refer to the Powertrain Control/Emission Diagnosis (PC/ED) manual for normal diagnosis.
- Replace only the affected catalyst monitor sensor as indicated by the DTC observed P2270 – Bank 1 or P2272 – Bank 2. Refer to Workshop Manual (WSM), Section 303-14.

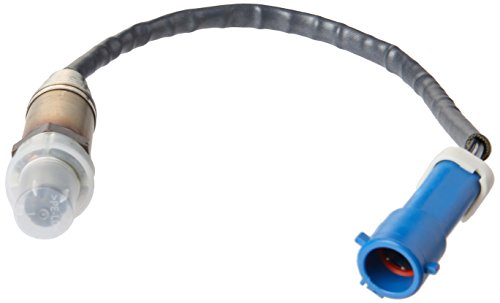

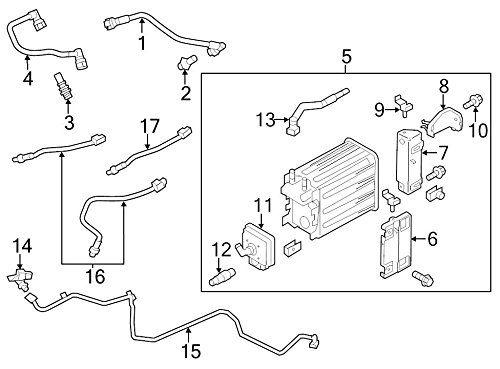

F85Z-9G444-BA ![]() | Catalyst Monitor Sensor (2010-2011 Expedition/Navigator/E-Series/2011 F-SuperDuty 6.2L/ 2010-2012 F-Super Duty 5.4L/6.8L – LH/RH) |
F85Z-9G444-F ![]() | Catalyst Monitor Sensor (2010 F-150 4.6L 2V, 4.6L 3V, 5.4L – RH/LH Bank for 4X2 and Electric Transfer Case 4×4 And RH Only Manual Transfer Case 4×4) / 2010-2011 Ranger 4.0L R |
F85Z-9G444-E | Catalyst Monitor Sensor (2010-2011 Ranger 2.3L – LH/RH / 2010-2011 Ranger 4.0L LH) |

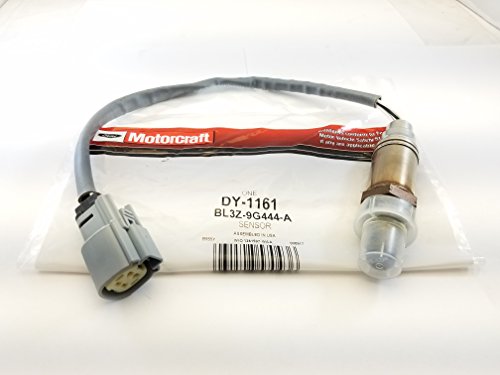

BL3Z-9G444-A ![]() | Catalyst Monitor Sensor – 2011-2012 F150 5.0L (RH/LH) |
BL3Z-9G444-B ![]() | Catalyst Monitor Sensor (2012 Expedition/Navigator/F-SuperDuty 6.2L – LH/RH) |
9L3Z-9G444-B ![]() | Catalyst Monitor Sensor (2010 F150 4.6L 2V, 4.6L 3V, 5.4L LH Only – Manual Transfer Case 4×4) |
OPERATION | DESCRIPTION | TIME |
---|---|---|
140084A | 2010-2011 Ranger 2.3L: Check DTCs, Replace One (1) Catalyst Monitor Sensor (Do Not Use With Any Other Labor Operations) | 0.4 Hr. |
140084A | 2010-2012 Expedition, Navigator, 2010 F-150, 2011-2012 F150 5.0L, 2010-2012 Ranger 4.0L, 2011-2012 F-Super Duty 5.4L, 6.2L, 6.8L: Check DTCs, Replace One (1) Catalyst Monitor Sensor (Do Not Use With Any Other Labor Operations) | 0.5 Hr. |
140084A | 2010-2012 Econoline 4.6L, 5.4L, 6.8L: Check DTCs, Replace One (1) Catalyst Monitor Sensor (Do Not Use With Any Other Labor Operations) | 0.6 Hr. |
WARRANTY STATUS
Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
DEALER CODING
BASIC PART NO. | CONDITION CODE |
9g444 | 01 |
