| WINDSHIELD WIPERS CONTINUE TO OPERATE IN LOW INTERMITTENT WHEN THE SWITCH IS IN THE OFF POSITION |
| FORD: | 2011-2014 Edge, Explorer, F-150, F-Super Duty |
| LINCOLN: | 2011-2014 MKX |
2011-2014 Explorer, F-150, Edge, MKX and F-Super Duty vehicles may experience windshield wipers that continue to operate in low intermittent speed when the multifunction switch is turned to the off position.
SERVICE PROCEDURE
- Does the windshield wipers continue to operate in low / intermittent speed only when the wiper switch is in the off position?

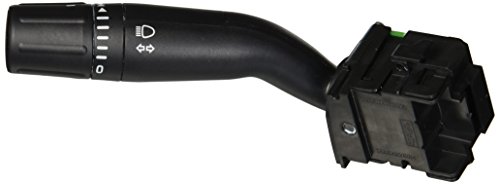

- Yes – install a new wiper/multifunction switch.
- No – this article does not apply. Refer to WSM.
| PART NUMBER | PART NAME |
|---|---|
BC3Z-13K359-BA  |
Switch Assembly – 150, F-Super Duty – 2011-2013 Black, From: 05/17/2011 To: 10/28/2013 2011/2013 ; Less Camera, With Variable Int. Windshield Wipe | From: 05/17/2011 To: 10/28/2013 2011/2013 ; Rear View Camera-Fixed, With Variable Int. Windshield Wipe |
| BL3Z-13K359-BA |
Switch Assembly – F150 – Black, From: 10/24/2011 To: 10/28/2013 2012/2013 ; Rain Sensitive Windshield Wipers |
| CL3Z-13K359-AA | Switch Assembly – F150 – Black, From: 10/24/2011 To: 10/28/2013 2012/2013 ; Front Camera/Rear View Camera, With Variable Int. Windshield Wipe |
| EL3Z-13K359-AA | Switch Assembly – F150 – Black, From: 10/28/2013 To: 12/23/2014 2014/ ; Front Camera/Rear View Camera, With Variable Int. Windshield Wipe |
| EC3Z-13K359-AA |
Switch Assembly – F150, F-Super Duty – Black, From: 10/28/2013 To: 12/23/2014 2014/ ; Less Camera, With Variable Int. Windshield Wipe | From: 10/28/2013 To: 12/23/2014 2014/ ; Rear View Camera-Fixed, With Variable Int. Windshield Wipe |
| EL3Z-13K359-BA | Switch Assembly – F150 – Black, From: 10/28/2013 To: 12/23/2014 2014/ ; Rain Sensitive Windshield Wipers |
| DB5Z-17A553-AA |
Switch Assembly – Explorer, Edge/MKX – Black, From: 06/03/2013 2014/ ; Less Rain Sensitive Windshield Wipers |
| DB5Z-17A553-BA | Switch Assembly – Explorer, Edge/MKX – Black, From: 06/03/2013 2014/ ; With Rain Sensitive Windshield Wipers |
