NHTSA ID Number: 10218621
Manufacturer Communication Number: TSB 22-2322
Summary
Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, follow the Service Procedure to replace the short block and head gasket.
This bulletin supersedes 22-2134.
Model:
Ford
2017-2019 Escape |
Built on or before 08-Apr-2019
|
| 2014-2019 Fusion |
Built on or before 10-Jun-2019
|
Summary
This article supersedes TSB 22-2134 to add a labor operation.
Issue: Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, follow the Service Procedure to replace the short block and head gasket.
Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:
- One of the following vehicles:
- 2017-2019 Escape built on or before 08-Apr-2019
- 2014-2019 Fusion built on or before 10-Jun-2019
- 1.5L EcoBoost engine
- At least one of the following conditions:
Parts
Escape – Required Parts
| Service Part Number | Quantity | Description |
| 6009 | 1 | Engine Short Block – Refer To The Parts Catalog For The VIN Specific Application |
| DS7Z-6079-G | 1 | Engine Short Block Service Kit |
| XO-5W20-Q1SP | As Needed | Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil (All Markets Except Canada) |
| CXO-5W20-LSP6 | As Needed | Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada Only) |
TA-26  | As Needed | Motorcraft® Threadlock 262 |
| TA-357 | As Needed | Motorcraft® High Performance Engine RTV Silicone |
| ZC-30-A | As Needed | Motorcraft® Gasket Remover |
| CU7Z-19B508-A | As Needed | Flange Sealant |
| Obtain Locally | As Needed | Loctite® Anaerobic Flange Sealant 51031 |
| ZC-31-B | As Needed | Motorcraft® Metal Surface Prep Wipes |
| ZC-20 | As Needed | Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada) |
| CXC-66-A | As Needed | Motorcraft® Engine Shampoo (Canada Only) |
| PM-4-A | As Needed | Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) |
| PM-4-B | As Needed | Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) |
| XL-2 | As Needed | Motorcraft® High Temperature Nickel Anti-Seize Lubricant |
| XL-5-A | As Needed | Motorcraft® Multi-Purpose Grease Spray |
| TA-25-B | As Needed | Motorcraft® Threadlock and Sealer |
| XT-10-QLVC | As Needed | Motorcraft® MERCON® LV Automatic Transmission Fluid (All Markets Except Canada) |
| CXT-10-LV6 | As Needed | Motorcraft® MERCON® LV Automatic Transmission Fluid (Canada Only) |
| YN-35 | As Needed | Motorcraft® R-1234yf Refrigerant PAG Oil (R-1234yf vehicles) |
| YN-12-D | As Needed | Motorcraft® PAG Refrigerant Compressor Oil (R-134a vehicles) |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) |
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) |
Parts
Escape – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| BE8Z-6268-C | If Needed | Timing Belt | 1 |

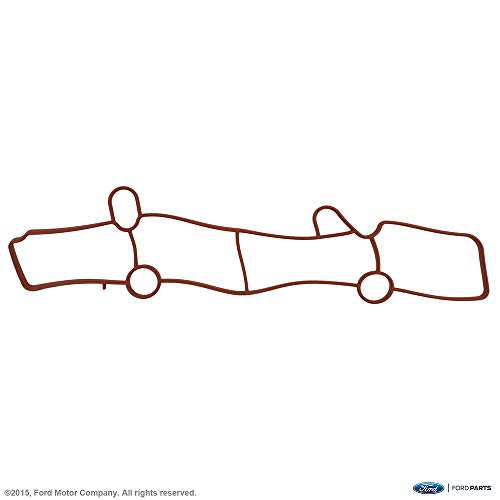

| DS7Z-9439-A | If Needed | Intake Manifold Gasket | 1 |
| DS7Z-9L438-A | If Needed | Intercooler Gasket | 1 |
| DS7Z-9P867-A | If Needed | Intercooler Seal | 1 |
| HYFS-094-YEC | If Needed | Spark Plugs | 1 |
| F2GZ-63600A58-A | If Needed | Intermediate Shaft Bushing (AWD) | 1 |
| DS7Z-9E936-A | If Needed | Throttle Body Gasket | 1 |
| 8W9Z-6C287-A | If Needed | High Pressure Fuel Pump Tappet | 1 |

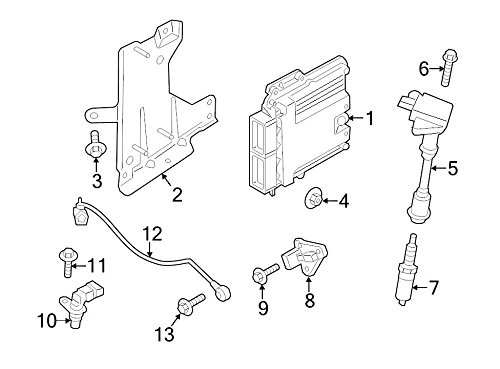

| DS7Z-12029-B | If Needed | Ignition Coil-On-Plug | 1 |
| XS6E-6626-AA | If Needed | Oil Pickup Tube O-ring Seal | 1 |
| DS7Z-9346-B | If Needed | Bracket | 1 |
| BM5Z-6L092-C | If Needed | Crankcase Vent Oil Drain Tube | 1 |
| CV6Z-6375-E | If Needed | Flexplate | 1 |
| W500215-S437 | If Needed | Oil Pump Bolts M6 X 25 mm | 4 |
| W500301-S437 | If Needed | Oil Pump Bolts M6 x 35 mm | 4 |
| W500305-S437 | If Needed | Oil Pump Bolts M6 x 55 mm | 4 |
| W714789-S300 | If Needed | Coolant Outlet O-ring Seal | 1 |
| W706722-S300 | If Needed | Thermostat Ring | 4 |
| 6M5Z-6B752-A | If Needed | Oil Separator Gasket | 1 |
| BM5Z-8527-A | If Needed | Oil Separator O-Ring | 1 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
NOTE: In the event that an Engine Short Block Service Kit is not available or temporarily on backorder, refer to the applicable Short Block Service Kit parts list in this article to order parts individually.
Parts
Escape – Information Only – The Following Individual Parts Are Contained In Short Block Service Kit DS7Z-6079-G
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity | Note |
| DS7Z-9E583-A | – | High Pressure Fuel Pump O-ring Seal | 1 | 1 | |
| W505584-S436 | – | High Pressure Fuel Pump Bolts | 4 | 2 | |
| DS7Z-9D354-B | – | High Pressure Fuel Tube | 1 | 1 | |

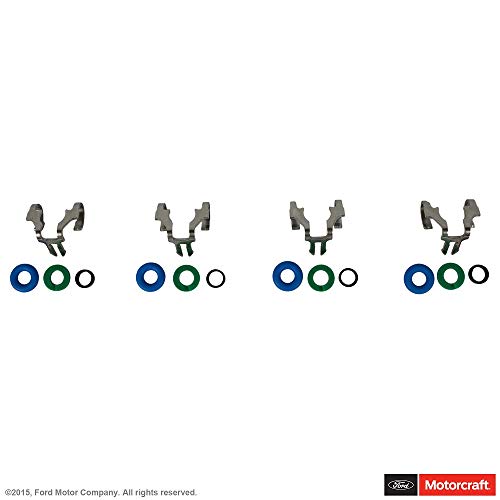

| DS7Z-9229-B | – | Fuel Injector O-ring Kit | 1 | Part number will service 4 fuel injectors | |
| DL3Z-19B596-B | – | A/C Compressor O-ring And Gasket | 1 | 1 | |
| DS7Z-19B596-A | – | A/C Line Gaskets | 1 | 1 | |
| W500213-S437 | – | Turbocharger Oil Supply Tube Bolt | 4 | 1 | |
| 4R8Z-6N652-A | – | Turbocharger Oil Return Tube Gasket | 1 | 1 | |

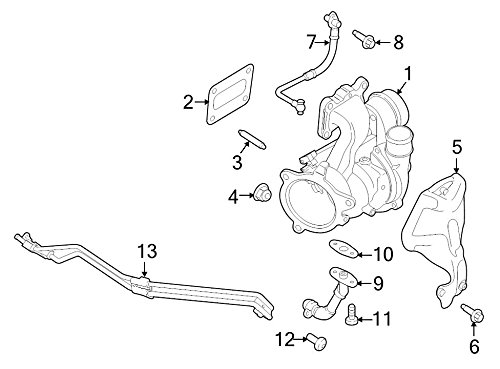

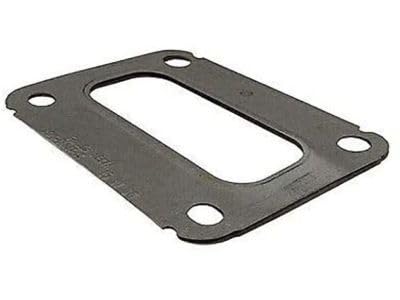

| DS7Z-9450-A | – | Turbocharger Gasket | 1 | 1 | |
| W716271-S437 | – | Turbocharger Nuts | 4 | 4 | |
| DS7Z-8527-A | – | Turbocharger Coolant Tube O-ring Seals | 1 | 2 | |
| DS7Z-6K679-C | – | Turbocharger Oil Supply Tube Assembly | 1 | 1 | |
| W715309-S300 | – | Turbocharger Mounting Studs | 4 | 4 | |
| DS7Z-6L092-A | – | Turbocharger Oil Return Tube Assembly | 1 | 1 | |
| W715681-S900 | – | Catalytic Converter To Turbocharger Bolts | 4 | 3 | |

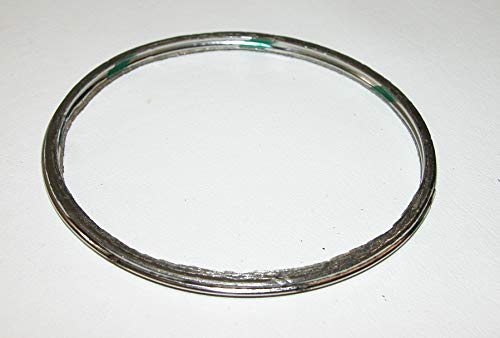

| AM5Z-9450-A | – | Catalytic Converter To Turbocharger Gasket | 1 | 1 | |
| F1EZ-8620-A | – | Stretchy Belt | 1 | 1 | |
| 7N5Z-00812-A | – | Rearward Subframe Bolts | 1 | 2 | |
| W715618-S437 | – | Torque Converter Nuts | 4 | 4 | |
| BE8Z-6379-AB | – | Flexplate Bolts | 1 | 6 | |
| W711137-S442 | – | Steering Column Bolt | 4 | 1 | |
| W715490-S442 | – | Wheel Knuckle To Strut Bolt | 4 | 2 | |
| BE8Z-6731-AB | – | Oil Filter | 1 | 1 | |
| CV6Z-9450-E | – | Muffler Inlet Pipe Gasket | 1 | 1 | |
| W520103-S403 | – | Muffler Inlet Pipe Nuts | 4 | 2 | |
| W715135-S440 | – | Stabilizer Bar Nut, M10 x 1.25 mm | 4 | 2 | |
| W520214-S440 | – | Engine Mount To Engine Nuts | 2 | 3 | |
| W716136-S442 | – | Engine Mount To Frame Bolts | 4 | 2 | |
| W714753-S442 | – | Brake Caliper Bolts | 4 | 4 | |
| W710294-S437 | – | Camshaft Mega Cap Bolts M7 x 59mm | 4 | 2 | |
| W715449-S437 | – | Camshaft Bearing Cap Bolts M6 x 35 mm | 4 | 16 | |
| W716307-S442 | – | Camshaft Mega Cap Bolts M7 x 38 mm | 4 | 2 | |
| BE8Z-6K292-C | – | Camshaft Front Seals | 1 | 2 | |
| 4M5Z-6M282-A | – | VCT Bolts | 1 | 2 | |
| BE8Z-6065-B | – | Cylinder Head Bolts | 10 | 10 | |
| DS7Z-6051-L | – | Cylinder Head Gasket | 1 | 1 | |
| W708317-S300 | – | Cylinder Head O-ring Seal, 18.3 x 2.4 mm | 4 | 1 | |
| W717236-S300 | – | Cylinder Head Fuel Drive O-ring Seal, 8.8 x 2.62 | 4 | 1 | |
| W717166-S300 | – | Cylinder Head Fuel Drive O-ring Seal, 7.65 x 1.78 | 4 | 1 | |
| BE8Z-6A340-A | – | Crankshaft Pulley Bolt | 1 | 1 | |
| BE8Z-6700-B | – | Crankshaft Front Oil Seal | 1 | 1 | |
| BM5Z-6K301-B | – | Crankshaft Rear Oil Seal | 1 | 1 | |
| DS7Z-6584-B | – | Valve Cover Gasket | 1 | 1 | |
| BM5Z-6659-B | – | Oil Pump Gasket | 1 | 1 | |
| DS7Z-6B856-A | – | Oil Cooler Assembly | 1 | 1 | |
| BE8Z-8507-A | – | Coolant Pump Gasket | 1 | 1 | |
| BE8Z-9278-A | – | Oil Pressure Switch | 1 | 1 | |
| W713043-S437 | – | Coolant Pump Bolts | 4 | 6 | |
| W716038-S437 | – | Vacuum Pump Stud Bolts | 4 | 3 | |
| BM5Z-2A572-A | – | Vacuum Pump Gasket | 1 | 1 | |
| W701350-S437 | – | Cylinder Block To Transmission Dowels | 4 | 2 | |
| W701183-S300 | – | Cylinder Block To Cylinder Head Dowels | 4 | 2 | |
| W520415-S442 | – | Lower Ball Joint Nut (AWD Only) | 4 | 1 | |
| W520113-S442 | – | Lower Ball Joint Nut, M10 x 1.5 mm (AWD Only) | 4 | 2 | |
| W716075-S442 | – | Lower Ball Joint Bolt (AWD Only) | 4 | 1 | |
| CCPZ-3B477-C | – | Wheel Hub Nut (AWD Only) | 1 | 1 | |
| CN1Z-7H424-B | – | Intermediate Shaft Seal (AWD Only) | 1 | 1 | |
| YS4Z-3N324-AA | – | Halfshaft Bearing Retaining Strap (AWD Only) | 1 | 1 | |
| W520102-S442 | – | Halfshaft Bearing Retaining Nuts (AWD Only) | 4 | 2 | |
| 5F9Z-4682-AA | – | Driveshaft-To-Pinion Flange Bolts (AWD Only) | 1 | 3 | |
| W718250-S439 | – | Upper/Lower PTU Bolts (AWD Only) | 5 | 5 | |
| CV6Z-7086-B | – | PTU Compression Seal (AWD Only) | 1 | 1 |
Unit of Issue in the above section refers to the number of individual pieces included if ordering a service part number package (not applicable to the contents of the long block service kit).
Piece Quantity refers to the total number of individual pieces required to repair the vehicle (what is included in the long block service kit)
Parts
Fusion – Required Parts
| Service Part Number | Quantity | Description |
| 6009 | 1 | Engine Short Block – Refer To The Parts Catalog For The VIN Specific Application |
| DS7Z-6079-H | 1 | Engine Short Block Service Kit |
| XO-5W20-Q1SP | As Needed | Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil (All Markets Except Canada) |
| CXO-5W20-LSP6 | As Needed | Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada Only) |
| TA-26 | As Needed | Motorcraft® Threadlock 262 |
| TA-357 | As Needed | Motorcraft® High Performance Engine RTV Silicone |
| ZC-30-A | As Needed | Motorcraft® Gasket Remover |
| CU7Z-19B508-A | As Needed | Flange Sealant |
| Obtain Locally | As Needed | Loctite® Anaerobic Flange Sealant 51031 |
| ZC-31-B | As Needed | Motorcraft® Metal Surface Prep Wipes |
| ZC-20 | As Needed | Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada) |
| CXC-66-A | As Needed | Motorcraft® Engine Shampoo (Canada Only) |
| PM-4-A | As Needed | Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) |
| PM-4-B | As Needed | Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) |
| XL-2 | As Needed | Motorcraft® High Temperature Nickel Anti-Seize Lubricant |
| XL-5-A | As Needed | Motorcraft® Multi-Purpose Grease Spray |
| TA-25-B | As Needed | Motorcraft® Threadlock and Sealer |
| XT-10-QLVC | As Needed | Motorcraft® MERCON® LV Automatic Transmission Fluid (All Markets Except Canada) |
| CXT-10-LV6 | As Needed | Motorcraft® MERCON® LV Automatic Transmission Fluid (Canada Only) |
| YN-35 | As Needed | Motorcraft® R-1234yf Refrigerant PAG Oil (R-1234yf vehicles) |
| YN-12-D | As Needed | Motorcraft® PAG Refrigerant Compressor Oil (R-134a vehicles) |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) |
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) |
Parts
Fusion – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| BE8Z-6268-C | If Needed | Timing Belt | 1 |
| DS7Z-9439-A | If Needed | Intake Manifold Gasket | 1 |
| DS7Z-9L438-A | If Needed | Intercooler Gasket | 1 |
| DS7Z-9P867-A | If Needed | Intercooler Seal | 1 |
| HYFS-094-YEC | If Needed | Spark Plugs | 1 |
| DS7Z-9E936-A | If Needed | Throttle Body Gasket | 1 |
| CV6Z-6375-E | If Needed | Flexplate | 1 |
| 8W9Z-6C287-A | If Needed | High Pressure Fuel Pump Tappet | 1 |
| DS7Z-12029-B | If Needed | Ignition Coil-On-Plug | 1 |
| XS6E-6626-AA | If Needed | Oil Pickup Tube O-ring Seal | 1 |
| DS7Z-9346-B | If Needed | Bracket | 1 |
| BM5Z-6L092-C | If Needed | Crankcase Vent Oil Drain Tube | 1 |
| W500215-S437 | If Needed | Oil Pump Bolts M6 X 25 mm | 4 |
| W500301-S437 | If Needed | Oil Pump Bolts M6 x 35 mm | 4 |
| W500305-S437 | If Needed | Oil Pump Bolts M6 x 55 mm | 4 |
| W714789-S300 | If Needed | Coolant Outlet O-ring Seal | 1 |
| W706722-S300 | If Needed | Thermostat Ring | 4 |
| 6M5Z-6B752-A | If Needed | Oil Separator Gasket | 1 |
| BM5Z-8527-A | If Needed | Oil Separator O-Ring | 1 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
NOTE: In the event that an Engine Short Block Service Kit is not available or temporarily on backorder, refer to the applicable Short Block Service Kit parts list in this article to order parts individually.
Parts
Fusion – Information Only – The Following Individual Parts Are Contained In Short Block Service Kit DS7Z-6079-H
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity | Note |
| DS7Z-9D354-B | – | High Pressure Fuel Tube | 1 | 1 | |
| W505584-S436 | – | High Pressure Fuel Pump Bolts | 4 | 2 | |
| DS7Z-9E583-A | – | High Pressure Fuel Pump O-ring Seal | 1 | 1 | |
| DS7Z-9229-B | – | Fuel Injector O-ring Kit | 1 | 1 | Part number will service 4 fuel injectors |
| DL3Z-19B596-B | – | A/C Compressor O-ring And Gasket | 1 | 1 | |
| DS7Z-19B596-A | – | A/C Line Gaskets | 1 | 1 | |
| DS7Z-6K679-C | – | Turbocharger Oil Supply Tube Assembly | 1 | 1 | |
| W500213-S442 | – | Turbocharger Oil Supply Tube Bolt | 10 | 1 | |
| DS7Z-6L092-A | – | Turbocharger Oil Return Tube Assembly | 1 | 1 | |
| 4R8Z-6N652-A | – | Turbocharger Oil Return Tube Gasket | 1 | 1 | |
| W716271-S437 | – | Turbocharger Nuts | 4 | 4 | |
| DS7Z-8527-A | – | Turbocharger Coolant Tube O-ring Seals | 1 | 2 | |
| DS7Z-9450-A | – | Turbocharger Gasket | 1 | 1 | |
| W715309-S300 | – | Turbocharger Mounting Studs | 4 | 4 | |
| AM5Z-9450-A | – | Catalytic Converter Gasket | 1 | 1 | |
| GS7Z-8620-A | – | Stretchy Belt (2017-2019 Fusion Without Belt Tensioner) | 1 | 1 | |
| W715618-S437 | – | Torque Converter Nuts | 4 | 4 | |
| BE8Z-6379-AB | – | Flexplate Bolts | 1 | 6 | |
| W520214-S442 | – | Engine Mount To Engine Nuts | 1 | 3 | |
| W708728-S442 | – | Engine Mount To Frame Bolts | 4 | 2 | |
| W712961-S450B | – | Steering Column Bolt (2017-2019 Fusion) | 1 | 1 | |
| W714878-S439 | – | Steering Column Bolt (2013-2016 Fusion) | 4 | 1 | |
| W715681-S900 | – | Catalytic Converter Bolts | 4 | 3 | |
| BE8Z-6731-AB | – | Oil Filter | 1 | 1 | |
| CV6Z-9450-E | – | Muffler Inlet Pipe Gasket | 1 | 1 | |
| W520103-S442 | – | Muffler Inlet Pipe Nuts | 4 | 2 | |
| W715623-S439 | – | Brake Caliper Bolts | 4 | 4 | |
| W716457-S439 | – | Subframe Mounting Bolts | 4 | 4 | |
| W710294-S437 | – | Camshaft Mega Cap Bolts M7 x 59 mm | 4 | 2 | |
| W716307-S442 | – | Camshaft Mega Cap Bolts M7 x 38 mm | 4 | 2 | |
| W715449-S437 | – | Camshaft Bearing Cap Bolts M6 x 35 mm | 4 | 16 | |
| BE8Z-6K292-C | – | Camshaft Front Seals | 1 | 2 | |
| 4M5Z-6M282-A | – | VCT Bolts | 1 | 2 | |
| BE8Z-6065-B | – | Cylinder Head Bolts | 10 | 10 | |
| DS7Z-6051-L | – | Cylinder Head Gasket | 1 | 1 | |
| W708317-S300 | – | Cylinder Head O-ring Seal, 18.3 x 2.4 mm | 4 | 1 | |
| W717236-S300 | – | Cylinder Head Fuel Drive O-ring Seal, 8.8 x 2.62 | 4 | 1 | |
| W717166-S300 | – | Cylinder Head Fuel Drive O-ring Seal, 7.65 x 1.78 | 4 | 1 | |
| BE8Z-6A340-A Coolant, White Exhaust Smoke And/Or Illuminated MIL - 2014-2019 Ford Fusion & 2017-2019 Escape | small light" title="1.5L EcoBoost - Low Coolant, White Exhaust Smoke And/Or Illuminated MIL - 2014-2019 Ford Fusion & 2017-2019 Escape 2"> | – | Crankshaft Pulley Bolt | 1 | 1 | |
| BE8Z-6700-B | – | Crankshaft Front Oil Seal | 1 | 1 | |
| BM5Z-6K301-B | – | Crankshaft Rear Oil Seal | 1 | 1 | |
| DS7Z-6584-A | – | Valve Cover Gasket | 1 | 1 | |
| BM5Z-6659-B | – | Oil Pump Gasket | 1 | 1 | |
| BE8Z-8507-A | – | Coolant Pump Gasket | 1 | 1 | |
| DS7Z-6B856-A | – | Oil Cooler Assembly | 1 | 1 | |
| W520202-S437 | – | Coolant Outlet Nut | 4 | 1 | |
| BE8Z-9278-A | – | Oil Pressure Switch | 1 | 1 | |
| W713043-S437 | – | Coolant Pump Bolts | 4 | 6 | |
| BM5Z-2A572-A | – | Vacuum Pump Gasket | 1 | 1 | |
| W716038-S437 | – | Vacuum Pump Stud Bolts | 4 | 3 | |
| W701183-S300 | – | Cylinder Block To Cylinder Head Dowels | 4 | 2 | |
| W701350-S437 | – | Cylinder Block-To-Transmission Dowels | 4 | 2 | |
| W520101-S437 | – | Vacuum Control Regulator Nuts (2014-2016 Fusion) | 4 | 2 |
Service Procedure
For repairs covered by the New Vehicle Limited Warranty, completion of the procedure outlined in this TSB does not require completion of a Cost Cap.
NOTE: In the event that an Engine Short Block Service Kit is not available or temporarily on backorder, refer to the applicable Short Block Service Kit parts list in this article to order parts individually.
1. With the engine at normal operating temperature, pressurize the cooling system to 138 kPa (20 psi) and hold for 5 hours. Refer to the Cooling System Pressure Test in Workshop Manual (WSM), Section 303-03, Diagnosis and Testing.
2. Did the coolant system pressure drop more than 27.57 kPa (4 psi) after 5 hours?
(1). Yes – proceed to Step 3.
(2). No – this article does not apply. Refer to the Powertrain Control/Emission Diagnosis (PC/ED) Manual for normal diagnostics.
3. Remove the spark plugs. Refer to WSM, Section 303-07.
4. Inspect for coolant in the cylinders due to an erosion, corrosion, pitting and flatness of the engine block surface. Is coolant present in any cylinders?
(1). Yes – proceed to Step 5.
(2). No – this article does not apply. Refer to WSM, Section 303-01A for normal diagnostics.
5. Remove the engine and replace the engine short block. Refer to WSM, Section 303-01A.
(1). Inspect the flexplate at the flexplate bolt holes. If cracks are detected, replace the flexplate.
(2). For Escape AWD vehicles, the driveshaft is only disconnected at the PTU pinion flange for this procedure.
NOTE: Advise the customer that some odor may be present after the repair has been completed until the residual coolant dissipates from the exhaust.
NOTE: The head gasket required for this repair may differ from the parts catalog. This is due to the fact that the parts catalog contains the information of the vehicle as it was originally built with a saw-cut short block. The replacement short block used in this article is a cross-drilled design.
NOTE: If the crankshaft front seal is rolled during positioning, remove and reposition the seal or an oil leak will occur. Use the crankshaft front oil seal installer to seat the new crankshaft front seal.
NOTE: Make sure to install the oil pump bolts in their correct location and follow the appropriate tighten procedure. Refer WSM, Section 303-01A.
NOTE: Fusion vehicles equipped with the accessory drive belt tensioner do not use a stretchy belt.
21 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| FORD | ESCAPE | 2017-2019 |
| FORD | FUSION | 2014-2019 |
| FORD | FUSION ENERGI | 2014-2019 |
| FORD | FUSION HYBRID | 2014-2019 |
1 Associated Document
Manufacturer Communications
22-2322
12 August 2022
MC-10218621-0001.pdf 135.929KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10210392
Manufacturer Communication Number: TSB 22-2134
Summary
Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, follow the Service Procedure to replace the short block and head gasket.
1 Associated Document
Manufacturer Communications
22-2134
14 April 2022
MC-10210392-0001.pdf 135.619KB
Loading...
NHTSA ID Number: 10201614
Manufacturer Communication Number: TSB 21-2269
Summary
Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, follow the Service Procedure to replace the short block and head gasket.
1 Associated Document
Manufacturer Communications
21-2269
08 September 2021
MC-10201614-0001.pdf 108.148KB
Loading...
NHTSA ID Number: 10174400
Manufacturer Communication Number: TSB 20-2100
Summary
Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, follow the Service Procedure to replace the short block and head gasket.
1 Associated Document
Manufacturer Communications
20-2100
01 April 2020
MC-10174400-0001.pdf 139.564KB
Loading...
NHTSA ID Number: 10169884
Manufacturer Communication Number: TSB 19-2375
Summary
This article supersedes TSB 19-2139 to update the production fix date. Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, replace the short block and head gasket.
1 Associated Document
Manufacturer Communications
19-2375
10 December 2019
MC-10169884-0001.pdf 140.259KB
Loading...
NHTSA ID Number: 10168739
Manufacturer Communication Number: TSB 19-2139
Summary
Some 2014-2019 Fusion vehicles built on or before 21-Feb-2019 and 2017-2019 Escape vehicles built on or before 06-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, replace the short block and head gasket.
1 Associated Document
Manufacturer Communications
19-2139
21 November 2019
MC-10168739-0001.pdf 140.271KB
Loading...
18-2353
NHTSA ID Number: 10099073
Manufacturer Communication Number: TSB 17-0028
Summary
SOME 2014-2017 FUSION AND 2017 ESCAPE VEHICLES EQUIPPED WITH A 1.5L GASOLINE TURBOCHARGED DIRECT INJECTION (GTDI) ENGINE AND AN ODOMETER READING 16,000 KM (10,000 MILES) OR ABOVE MAY EXHIBIT LOW COOLANT, WHITE EXHAUST SMOKE AND MAY ALSO EXHIBIT AN ILLUMINATED MIL WITH DIAGNOSTIC TROUBLE CODES (DTCS) P0217, P0300, P0301, P0302, P0303, P0304, P0316 AND/OR P1299. THIS CONDITION MAY BE DUE TO AN INTAKE MANIFOLD BOLT BACKING OUT CAUSING DAMAGE TO THE CHARGE AIR COOLER (CAC). FOLLOW THE SERVICE PROCEDURE STEPS TO CORRECT THE CONDITION
1 Associated Document
Service Bulletin Document
TSB 17-0028
Loading...
NHTSA ID Number: 10095958
Manufacturer Communication Number: TSB 16-0150
Summary
SOME 2014-2017 FUSION AND 2017 ESCAPE VEHICLES EQUIPPED WITH A 1.5L GASOLINE TURBOCHARGED DIRECT INJECTION (GTDI) ENGINE MAY EXHIBIT LOW COOLANT, WHITE EXHAUST SMOKE AND AN ILLUMINATED MIL IF DIAGNOSTIC TROUBLE CODES (DTCS) P0217, P300, P0301, P0302, P0303, P0304, P0316 AND/OR P1299 ARE PRESENT. THIS CONDITION MAY BE DUE TO AN INTAKE MANIFOLD BOLT BACKING OUT CAUSING DAMAGE TO THE CHARGE AIR COOLER (CAC). FOLLOW THE SERVICE PROCEDURE STEPS TO CORRECT THE CONDITION
1 Associated Document
Service Bulletin Document
TSB 16-0150
SB-10095958-2532.pdf 162.854KB
Loading...
- Yellow-colored, longer-life, ethylene glycol-based antifreeze/coolant for use in gasoline and diesel engines
- Provides year-round antifreeze, anti-boil and corrosion protection
- Ready-to-use; no need to add water - the 50/50 mixture of coolant and treated (purified) water provides freeze protection down to -34°F (-37°C) and boiling protection up to 265°F (129°C)
- Do not mix different colors or types of coolant in your vehicle
- Contains a bittering agent
- Yellow-colored, longer-life, ethylene glycol-based antifreeze/coolant for use in gasoline and diesel engines
- Provides year-round antifreeze, anti-boil and corrosion protection
- 50/50 mixture of coolant and distilled water provides freeze protection down to -34°F (-37°C) and boiling protection up to 265°F (129°C)
- Do not mix different colors or types of coolant in your vehicle
- Contains a bittering agent
- Yellow-colored, longer-life, ethylene glycol-based antifreeze/coolant for use in gasoline and diesel engines
- Provides year-round antifreeze, anti-boil and corrosion protection
- A 50/50 mixture of coolant and distilled water provides freeze protection down to -34°F (-37°C) and boiling protection up to 265°F (129°C)
- Do not mix different colors or types of coolant in your vehicle
- Contains a bittering agent
- 1 GALLON ENGINE ANTIFREEZE/COOLANT: Fully compatible with other extended life antifreeze/coolants. This item contains a bittering agent called Denatonium Benzoate.
- PROTECTS: Advanced formulation prevents rust & corrosion protecting all engine cooling system components
- DESIGNED FOR NORTH AMERICAN VEHICLES: Recommended for use with Ford, Chrysler, and GM vehicles that require an orange organic acid technology formula
- GUARANTEED: When installed as part of a complete flush and fill, PEAK guarantees this coolant will provide service life protection of up to 400,000 miles or 15 years.
- 50/50 PREDILUTED FOR QUICK TOP OFFS: Already prediluted to make topping off your cooling system a breeze
- PREDILUTED ANTIFREEZE AND COOLANT: Engineered to support any vehicle's engine cooling system to enhance performance and provide protection. This item contains a bittering agent called Denatonium Benzoate.
- PROPRIETARY BLEND: Contains 10X the scale-fighting inhibitors to ensure maximum cooling performance while protecting against scale, corrosion, and other damage
- SUPERIOR CHEMISTRY: Free from 2-EHA, silicate, nitrite, borate, and amines to keep your vehicle functioning in prime condition
- UNIVERSAL FORMULA: Compatible with any color or type of existing antifreeze and coolant in your car's system
- LONG-LASTING: Offers 2X the average warranty coverage, cooling your engine system for over 10 years or 300,000 miles of service
- Unsurpassed freeze protection and anti-boil performance outperforms industry standards
- Organic acid technology resists rust, scale & corrosion while protecting all cooling system metals (including aluminum)
- High-quality additives protect against leaks and won’t harm gaskets, hoses, plastics or original vehicle finish
- Orange concentrate formula should be mixed with clean tap water or demineralized water at 50/50 ratio for temperatures -34 to 265F; 60/40 for -62 to 270F; and 70/30 for -84 to 267F
- 5 year/150,000 mile guarantee protects against engine failure caused by freeze-ups or boil-overs
- Unsurpassed freeze protection and anti-boil performance outperforms industry standards
- Hybrid organic acid technology fights rust, scale & corrosion while protecting all cooling system metals (including aluminum)
- High-quality additives protect against leaks and won’t harm gaskets, hoses, plastics or original vehicle finish
- Yellow concentrate formula should be mixed with clean tap water or demineralized water at 50/50 ratio for temperatures -34 to 265F; 60/40 for -62 to 270F; and 70/30 for -84 to 267F
- 5 year/150,000 mile guarantee protects against engine failure caused by freeze-ups or boil-overs
- Contains Alugard Plus for compatibility with all ethylene glycol-based coolants in automobiles and light duty trucks
- Fights corrosion, scaling and rust while protecting all cooling system metals (including aluminum)
- High-quality additives protect against leaks and won’t harm gaskets, hoses, plastics or original vehicle finish
- Pre-mixed yellow formula is ready-to-use in a 50/50 ratio with deionized water to protect all modern engine components from winter freezing (-34F) and summer boiling (265F).
- Contains 30 – 50 ppm of denatonium benzoate as a bittering agent
- Part number: VC5DIL
- Country of Origin: United States
- Package Weight: 4.15 kilograms
- "This product contains bittering agent"
SEOCONTENT-START
TECHNICAL SERVICE BULLETIN 1.5L EcoBoost – Low Coolant, White Exhaust Smoke And/Or Illuminated MIL – Built On Or Before 10-Jun-2019 22-2322 12 August 2022 This bulletin supersedes 22-2134. Model: Ford 2017-2019 Escape 2014-2019 Fusion Built on or before 08-Apr-2019 Built on or before 10-Jun-2019 Summary This article supersedes TSB 22-2134 to add a labor operation. Issue: Some 2014-2019 Fusion vehicles built on or before 10-Jun-2019 and 2017-2019 Escape vehicles built on or before 08-Apr-2019 equipped with a 1.5L EcoBoost engine may exhibit low coolant level, white exhaust smoke and/or runs rough condition with or without an illuminated malfunction indicator light (MIL) with only diagnostic trouble codes (DTCs) P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To resolve the condition, follow the Service Procedure to replace the short block and head gasket. Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria: • One of the following vehicles: – 2017-2019 Escape built on or before 08-Apr-2019 – 2014-2019 Fusion built on or before 10-Jun-2019 • 1.5L EcoBoost engine • At least one of the following conditions: – Low coolant level – White exhaust smoke – Runs rough condition with or without an illuminated MIL with only DTCs P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in PCM Parts Escape – Required Parts Service Part Number 6009 DS7Z-6079-G XO-5W20- Q1SP CXO-5W20- LSP6 TA-26 TA-357 ZC-30-A Quantity 1 1 As Needed As Needed As Needed As Needed As Needed Description Engine Short Block – Refer To The Parts Catalog For The VIN Specific Application Engine Short Block Service Kit Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil (All Markets Except Canada) Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada Only) Motorcraft® Threadlock 262 Motorcraft® High Performance Engine RTV Silicone CU7Z-19B508- A Obtain Locally ZC-31-B ZC-20 CXC-66-A PM-4-A PM-4-B XL-2 XL-5-A TA-25-B XT-10-QLVC CXT-10-LV6 YN-35 YN-12-D VC-13-G CVC-13-G As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed Flange Sealant Loctite® Anaerobic Flange Sealant 51031 Motorcraft® Metal Surface Prep Wipes Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada) Motorcraft® Engine Shampoo (Canada Only) Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) Motorcraft® High Temperature Nickel Anti-Seize Lubricant Motorcraft® Multi-Purpose Grease Spray Motorcraft® Threadlock and Sealer Motorcraft® MERCON® LV Automatic Transmission Fluid (All Markets Except Canada) Motorcraft® MERCON® LV Automatic Transmission Fluid (Canada Only) Motorcraft® R-1234yf Refrigerant PAG Oil (R-1234yf vehicles) Motorcraft® PAG Refrigerant Compressor Oil (R-134a vehicles) Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) Parts Escape – Parts To Inspect And Replace Only If Necessary Service Part Number Quantity Description Unit of Issue BE8Z-6268-C If Needed Timing Belt 1 DS7Z-9439-A If Needed Intake Manifold Gasket 1 DS7Z-9L438-A If Needed Intercooler Gasket 1 DS7Z-9P867-A If Needed Intercooler Seal 1 HYFS-094-YEC If Needed Spark Plugs 1 F2GZ-63600A58-A If Needed Intermediate Shaft Bushing (AWD) 1 DS7Z-9E936-A If Needed Throttle Body Gasket 1 8W9Z-6C287-A If Needed High Pressure Fuel Pump Tappet 1 DS7Z-12029-B If Needed Ignition Coil-On-Plug 1 XS6E-6626-AA If Needed Oil Pickup Tube O-ring Seal 1 DS7Z-9346-B If Needed Bracket 1 BM5Z-6L092-C If Needed Crankcase Vent Oil Drain Tube 1 CV6Z-6375-E W500215-S437 W500301-S437 W500305-S437 W714789-S300 W706722-S300 6M5Z-6B752-A BM5Z-8527-A If Needed If Needed If Needed If Needed If Needed If Needed If Needed If Needed Flexplate 1 Oil Pump Bolts M6 X 25 mm 4 Oil Pump Bolts M6 x 35 mm 4 Oil Pump Bolts M6 x 55 mm 4 Coolant Outlet O-ring Seal 1 Thermostat Ring 4 Oil Separator Gasket 1 Oil Separator O-Ring 1 Quantity refers to the amount of the service part number required to repair the vehicle. Unit of Issue refers to the number of individual pieces included in a service part number package. Piece Quantity refers to the total number of individual pieces required to repair the vehicle. As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non- whole numbers, including less than 1. If Needed indicates the part is not mandatory. NOTE: In the event that an Engine Short Block Service Kit is not available or temporarily on backorder, refer to the applicable Short Block Service Kit parts list in this article to order parts individually. Parts Escape – Information Only – The Following Individual Parts Are Contained In Short Block Service Kit DS7Z- 6079-G Service Part Number DS7Z-9E583-A W505584-S436 DS7Z-9D354-B DS7Z-9229-B DL3Z-19B596-B DS7Z-19B596-A W500213-S437 4R8Z-6N652-A DS7Z-9450-A W716271-S437 DS7Z-8527-A DS7Z-6K679-C W715309-S300 DS7Z-6L092-A W715681-S900 AM5Z-9450-A Quantity – – – – – – – – – – – – – – – – Description High Pressure Fuel Pump O-ring Seal High Pressure Fuel Pump Bolts High Pressure Fuel Tube Fuel Injector O-ring Kit A/C Compressor O-ring And Gasket A/C Line Gaskets Turbocharger Oil Supply Tube Bolt Turbocharger Oil Return Tube Gasket Turbocharger Gasket Turbocharger Nuts Turbocharger Coolant Tube O- ring Seals Turbocharger Oil Supply Tube Assembly Turbocharger Mounting Studs Turbocharger Oil Return Tube Assembly Catalytic Converter To Turbocharger Bolts Catalytic Converter To Unit of Issue 1 4 1 1 1 4 1 1 4 1 1 4 1 4 1 Piece Quantity 1 2 1 1 1 1 1 1 1 4 2 1 4 1 3 1 Note Part number will service 4 fuel injectors F1EZ-8620-A 7N5Z-00812-A W715618-S437 BE8Z-6379-AB W711137-S442 W715490-S442 BE8Z-6731-AB CV6Z-9450-E W520103-S403 W715135-S440 W520214-S440 W716136-S442 W714753-S442 W710294-S437 W715449-S437 W716307-S442 BE8Z-6K292-C 4M5Z-6M282-A BE8Z-6065-B DS7Z-6051-L W708317-S300 W717236-S300 W717166-S300 BE8Z-6A340-A BE8Z-6700-B BM5Z-6K301-B DS7Z-6584-B BM5Z-6659-B DS7Z-6B856-A BE8Z-8507-A BE8Z-9278-A W713043-S437 W716038-S437 BM5Z-2A572-A W701350-S437 W701183-S300 Turbocharger Gasket – Stretchy Belt 1 1 – Rearward Subframe Bolts 1 2 – Torque Converter Nuts 4 4 – Flexplate Bolts 1 6 – Steering Column Bolt 4 1 – Wheel Knuckle To Strut Bolt 4 2 – Oil Filter 1 1 – Muffler Inlet Pipe Gasket 1 1 – Muffler Inlet Pipe Nuts 4 2 – Stabilizer Bar Nut, M10 x 1.25 4 2 mm – Engine Mount To Engine Nuts 2 3 – Engine Mount To Frame Bolts 4 2 – Brake Caliper Bolts 4 4 – Camshaft Mega Cap Bolts M7 x 4 2 59mm – Camshaft Bearing Cap Bolts M6 4 16 x 35 mm – Camshaft Mega Cap Bolts M7 x 4 2 38 mm – Camshaft Front Seals 1 2 – VCT Bolts 1 2 – Cylinder Head Bolts 10 10 – Cylinder Head Gasket 1 1 – Cylinder Head O-ring Seal, 18.3 4 1 x 2.4 mm – Cylinder Head Fuel Drive O-ring 4 1 Seal, 8.8 x 2.62 – Cylinder Head Fuel Drive O-ring 4 1 Seal, 7.65 x 1.78 – Crankshaft Pulley Bolt 1 1 – Crankshaft Front Oil Seal 1 1 – Crankshaft Rear Oil Seal 1 1 – Valve Cover Gasket 1 1 – Oil Pump Gasket 1 1 – Oil Cooler Assembly 1 1 – Coolant Pump Gasket 1 1 – Oil Pressure Switch 1 1 – Coolant Pump Bolts 4 6 – Vacuum Pump Stud Bolts 4 3 – Vacuum Pump Gasket 1 1 – Cylinder Block To Transmission 4 2 Dowels – Cylinder Block To Cylinder Head 4 2 W520415-S442 W520113-S442 W716075-S442 CCPZ-3B477-C CN1Z-7H424-B YS4Z-3N324-AA W520102-S442 5F9Z-4682-AA W718250-S439 CV6Z-7086-B Dowels – Lower Ball Joint Nut (AWD Only) 4 1 – Lower Ball Joint Nut, M10 x 1.5 4 2 mm (AWD Only) – Lower Ball Joint Bolt (AWD Only) 4 1 – Wheel Hub Nut (AWD Only) 1 1 – Intermediate Shaft Seal (AWD 1 1 Only) – Halfshaft Bearing Retaining Strap 1 1 (AWD Only) – Halfshaft Bearing Retaining Nuts 4 2 (AWD Only) – Driveshaft-To-Pinion Flange Bolts 1 3 (AWD Only) – Upper/Lower PTU Bolts (AWD 5 5 Only) – PTU Compression Seal (AWD 1 1 Only) Unit of Issue in the above section refers to the number of individual pieces included if ordering a service part number package (not applicable to the contents of the long block service kit). Piece Quantity refers to the total number of individual pieces required to repair the vehicle (what is included in the long block service kit) Parts Fusion – Required Parts Service Part Number 6009 DS7Z-6079-H XO-5W20- Q1SP CXO-5W20- LSP6 TA-26 TA-357 ZC-30-A CU7Z-19B508- A Obtain Locally ZC-31-B ZC-20 CXC-66-A Quantity 1 1 As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed Description Engine Short Block – Refer To The Parts Catalog For The VIN Specific Application Engine Short Block Service Kit Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil (All Markets Except Canada) Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada Only) Motorcraft® Threadlock 262 Motorcraft® High Performance Engine RTV Silicone Motorcraft® Gasket Remover Flange Sealant Loctite® Anaerobic Flange Sealant 51031 Motorcraft® Metal Surface Prep Wipes Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada) Motorcraft® Engine Shampoo (Canada Only) PM-4-A PM-4-B XL-2 XL-5-A TA-25-B XT-10-QLVC CXT-10-LV6 YN-35 YN-12-D VC-13-G CVC-13-G As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) Motorcraft® High Temperature Nickel Anti-Seize Lubricant Motorcraft® Multi-Purpose Grease Spray Motorcraft® Threadlock and Sealer Motorcraft® MERCON® LV Automatic Transmission Fluid (All Markets Except Canada) Motorcraft® MERCON® LV Automatic Transmission Fluid (Canada Only) Motorcraft® R-1234yf Refrigerant PAG Oil (R-1234yf vehicles) Motorcraft® PAG Refrigerant Compressor Oil (R-134a vehicles) Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) Parts Fusion – Parts To Inspect And Replace Only If Necessary Service Part Number Quantity Description Unit of Issue BE8Z-6268-C If Needed Timing Belt 1 DS7Z-9439-A If Needed Intake Manifold Gasket 1 DS7Z-9L438-A If Needed Intercooler Gasket 1 DS7Z-9P867-A If Needed Intercooler Seal 1 HYFS-094-YEC If Needed Spark Plugs 1 DS7Z-9E936-A If Needed Throttle Body Gasket 1 CV6Z-6375-E If Needed Flexplate 1 8W9Z-6C287-A If Needed High Pressure Fuel Pump Tappet 1 DS7Z-12029-B If Needed Ignition Coil-On-Plug 1 XS6E-6626-AA If Needed Oil Pickup Tube O-ring Seal 1 DS7Z-9346-B If Needed Bracket 1 BM5Z-6L092-C If Needed Crankcase Vent Oil Drain Tube 1 W500215-S437 If Needed Oil Pump Bolts M6 X 25 mm 4 W500301-S437 If Needed Oil Pump Bolts M6 x 35 mm 4 W500305-S437 If Needed Oil Pump Bolts M6 x 55 mm 4 W714789-S300 If Needed Coolant Outlet O-ring Seal 1 W706722-S300 If Needed Thermostat Ring 4 6M5Z-6B752-A If Needed Oil Separator Gasket 1 BM5Z-8527-A If Needed Oil Separator O-Ring 1 Quantity refers to the amount of the service part number required to repair the vehicle. Unit of Issue refers to the number of individual pieces included in a service part number package. Piece Quantity refers to the total number of individual pieces required to repair the vehicle. As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non- whole numbers, including less than 1. If Needed indicates the part is not mandatory. NOTE: In the event that an Engine Short Block Service Kit is not available or temporarily on backorder, refer to the applicable Short Block Service Kit parts list in this article to order parts individually. Parts Fusion – Information Only – The Following Individual Parts Are Contained In Short Block Service Kit DS7Z- 6079-H Service Part Number DS7Z-9D354-B W505584-S436 DS7Z-9E583-A DS7Z-9229-B DL3Z-19B596-B DS7Z-19B596-A DS7Z-6K679-C W500213-S442 DS7Z-6L092-A 4R8Z-6N652-A W716271-S437 DS7Z-8527-A DS7Z-9450-A W715309-S300 AM5Z-9450-A GS7Z-8620-A W715618-S437 BE8Z-6379-AB W520214-S442 W708728-S442 W712961- S450B W714878-S439 W715681-S900 BE8Z-6731-AB CV6Z-9450-E Quantity – – – – – – – – – – – – – – – – – – – – – – – – – Description High Pressure Fuel Tube High Pressure Fuel Pump Bolts High Pressure Fuel Pump O-ring Seal Fuel Injector O-ring Kit A/C Compressor O-ring And Gasket A/C Line Gaskets Turbocharger Oil Supply Tube Assembly Turbocharger Oil Supply Tube Bolt Turbocharger Oil Return Tube Assembly Turbocharger Oil Return Tube Gasket Turbocharger Nuts Turbocharger Coolant Tube O-ring Seals Turbocharger Gasket Turbocharger Mounting Studs Catalytic Converter Gasket Stretchy Belt (2017-2019 Fusion Without Belt Tensioner) Torque Converter Nuts Flexplate Bolts Engine Mount To Engine Nuts Engine Mount To Frame Bolts Steering Column Bolt (2017-2019 Fusion) Steering Column Bolt (2013-2016 Fusion) Catalytic Converter Bolts Oil Filter Muffler Inlet Pipe Gasket Unit of Issue 1 4 1 1 1 1 1 10 1 1 4 1 1 4 1 1 4 1 1 4 1 4 4 1 1 Piece Quantity 1 2 1 1 1 1 1 1 1 1 4 2 1 4 1 1 4 6 3 2 1 1 3 1 1 Note Part number will service 4 fuel injectors W520103-S442 W715623-S439 W716457-S439 W710294-S437 W716307-S442 W715449-S437 BE8Z-6K292-C 4M5Z-6M282-A BE8Z-6065-B DS7Z-6051-L W708317-S300 W717236-S300 W717166-S300 BE8Z-6A340-A BE8Z-6700-B BM5Z-6K301-B DS7Z-6584-A BM5Z-6659-B BE8Z-8507-A DS7Z-6B856-A W520202-S437 BE8Z-9278-A W713043-S437 BM5Z-2A572-A W716038-S437 W701183-S300 W701350-S437 W520101-S437 – Muffler Inlet Pipe Nuts 4 2 – Brake Caliper Bolts 4 4 – Subframe Mounting Bolts 4 4 – Camshaft Mega Cap Bolts M7 x 59 4 2 mm – Camshaft Mega Cap Bolts M7 x 38 4 2 mm – Camshaft Bearing Cap Bolts M6 x 4 16 35 mm – Camshaft Front Seals 1 2 – VCT Bolts 1 2 – Cylinder Head Bolts 10 10 – Cylinder Head Gasket 1 1 – Cylinder Head O-ring Seal, 18.3 x 4 1 2.4 mm – Cylinder Head Fuel Drive O-ring 4 1 Seal, 8.8 x 2.62 – Cylinder Head Fuel Drive O-ring 4 1 Seal, 7.65 x 1.78 – Crankshaft Pulley Bolt 1 1 – Crankshaft Front Oil Seal 1 1 – Crankshaft Rear Oil Seal 1 1 – Valve Cover Gasket 1 1 – Oil Pump Gasket 1 1 – Coolant Pump Gasket 1 1 – Oil Cooler Assembly 1 1 – Coolant Outlet Nut 4 1 – Oil Pressure Switch 1 1 – Coolant Pump Bolts 4 6 – Vacuum Pump Gasket 1 1 – Vacuum Pump Stud Bolts 4 3 – Cylinder Block To Cylinder Head 4 2 Dowels – Cylinder Block-To-Transmission 4 2 Dowels – Vacuum Control Regulator Nuts 4 2 (2014-2016 Fusion) Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Emissions Warranty/Service Part Warranty (SPW)/Special Service Part (SSP)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/Emissions Warranty/SPW/SSP/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool. For repairs covered by the NVLW, completion of the procedure outlined in this TSB does not require obtaining Prior Approval or completion of a Cost Cap. Labor Times Description Operation No. Time 2017-2019 Escape Front Wheel Drive (FWD) 1.5L: Retrieve DTCs, Diagnose And Replace The Short Block (Can Be Claimed With Labor Operation D Or E) 2017-2019 Escape All Wheel Drive (AWD) 1.5L: Retrieve DTCs, Diagnose And Replace The Short Block (Can Be Claimed With Labor Operation D Or E) 2014-2019 Fusion 1.5L: Retrieve DTCs, Diagnose And Replace The Short Block (Can Be Claimed With Labor Operation D Or E) 2014-2019 Fusion, 2017-2019 Escape Without Lane Departure: Additional Time To Check And Correct Front Toe (Can be Claimed With Labor Operations A-C) 2014-2019 Fusion, 2017-2019 Escape With Lane Departure: Additional Time To Check And Correct Front Toe (Can be Claimed With Labor Operation A-C) 222322A 222322B 222322C 222322D 222322E 20.0 Hrs. 21.5 Hrs. 19.5 Hrs. 0.6 Hrs. 0.8 Hrs. Repair/Claim Coding Causal Part: 6009 Condition Code: D8 Service Procedure For repairs covered by the New Vehicle Limited Warranty, completion of the procedure outlined in this TSB does not require completion of a Cost Cap. NOTE: In the event that an Engine Short Block Service Kit is not available or temporarily on backorder, refer to the applicable Short Block Service Kit parts list in this article to order parts individually. 1. With the engine at normal operating temperature, pressurize the cooling system to 138 kPa (20 psi) and hold for 5 hours. Refer to the Cooling System Pressure Test in Workshop Manual (WSM), Section 303-03, Diagnosis and Testing. 2. Did the coolant system pressure drop more than 27.57 kPa (4 psi) after 5 hours? (1). Yes – proceed to Step 3. (2). No – this article does not apply. Refer to the Powertrain Control/Emission Diagnosis (PC/ED) Manual for normal diagnostics. 3. Remove the spark plugs. Refer to WSM, Section 303-07. 4. Inspect for coolant in the cylinders due to an erosion, corrosion, pitting and flatness of the engine block surface. Is coolant present in any cylinders? (1). Yes – proceed to Step 5. (2). No – this article does not apply. Refer to WSM, Section 303-01A for normal diagnostics. 5. Remove the engine and replace the engine short block. Refer to WSM, Section 303-01A. (1). Inspect the flexplate at the flexplate bolt holes. If cracks are detected, replace the flexplate. (2). For Escape AWD vehicles, the driveshaft is only disconnected at the PTU pinion flange for this procedure. NOTE: Advise the customer that some odor may be present after the repair has been completed until the residual coolant dissipates from the exhaust. NOTE: The head gasket required for this repair may differ from the parts catalog. This is due to the fact that the parts catalog contains the information of the vehicle as it was originally built with a saw-cut short block. The replacement short block used in this article is a cross-drilled design. NOTE: If the crankshaft front seal is rolled during positioning, remove and reposition the seal or an oil leak will occur. Use the crankshaft front oil seal installer to seat the new crankshaft front seal. NOTE: Make sure to install the oil pump bolts in their correct location and follow the appropriate tighten procedure. Refer WSM, Section 303-01A. NOTE: Fusion vehicles equipped with the accessory drive belt tensioner do not use a stretchy belt. © 2022 Ford Motor Company All rights reserved. NOTE: The information in Technical Service Bulletins is intended for use by trained, professional technicians with the knowledge, tools, and equipment to do the job properly and safely. It informs these technicians of conditions that may occur on some vehicles, or provides informa that could assist in proper vehicle service. The procedures should not be performed by “do-it-yourselfers”. Do not assume that a condition described affects your car or truck. Contact a Ford or Lincoln dealership to determine whether the Bulletin applies to your vehicle. Warranty Policy and Extended Service Plan documentation determine Warranty and/or Extended Service Plan coverage unless stated otherwise in the TSB article. The information in this Technical Service Bulletin (TSB) was current at the time of printing. Ford Motor Company reserves the right de this information with updates. The most recent information is available through Ford Motor Company’s on-line technical resources.
SEOCONTENT-END
Last update on 2025-04-26 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
