Lack of Air Conditioning (AC) Performance, Overheat – 2011-2012 Ford & Lincoln

TSB 14-0019

LACK OF AIR CONDITIONING AND/OR ENGINE OVERHEAT CONDITION – BUILT ON OR AFTER 9/1/2010



FORD:	2011-2012 Taurus
LINCOLN:	2011-2012 MKS
FORD:	2011-2012 Explorer, Flex
LINCOLN:	2011-2012 MKT



This article supersedes TSB 13-12-21 to update the vehicle application.



ISSUE:

Some 2011 and 2012 Explorer, Taurus, Flex, MKS and MKT vehicles built on or after 9/1/2010 and equipped with dual engine cooling fans may exhibit a lack of air conditioning (AC) performance while the vehicle is stationary or moving at slow speeds, and/or an overheat condition.

Diagnostic trouble codes (DTCs) P0217, P1299 and P1285 may be present.



ACTION:

Follow the Service Procedure steps to correct the condition.



SERVICE PROCEDURE

1. Using the Integrated Diagnostic System (IDS) with a release of 87.05 and higher or Scan Tool, check the powertrain control module (PCM) for a later calibration. Is a later calibration available for the PCM?
   1. No – proceed to Step 2.
   2. Yes – reprogram the PCM to the latest calibration using IDS or Ford J2534 release 87.05 and higher. Calibration files may also be obtained at www.motorcraft.com. Proceed to Step 2.
2. Using IDS or Scan Tool, select Data Logger, select Output State Control, command the Cooling Fan Speed Desired PID to High speed (FAN_CTRL# or FAN_DSD# – above 90%) for 1 minute and verify cooling fan operation. Are the cooling fans operating?
   1. No – please be sure to check the fan assembly for being original equipment manufacturer (OEM). (Figure 1)





      Figure 1 – 14-0019
      1. For Taurus and MKS vehicles, replace the cooling fan motor and control module assembly. Refer to Workshop Manual (WSM), Section 303-03 and then proceed to Step 5.
      2. For Explorer, Flex and MKT vehicles, proceed to Step 3.
   2. Yes – this article does not apply. Refer to WSM, Section 303-03 for normal diagnostics.
3. Remove the cooling fan motor and control module assembly. Refer to WSM, Section 303-03.
4. Remove the cooling fan control module from the original cooling fan motor assembly and transfer onto the new cooling fan motor assembly. Tighten screw to 7 Nm (60 lb-in).
5. Install the new cooling fan motor assembly. Refer to WSM, Section 303-03.
6. Check coolant level and top off as necessary using the correct coolant type. Refer to WSM, Section 303-03.



BA8Z-8C607-D	Cooling Fan (Explorer, Flex and MKT)
BA5Z-8C607-C	Cooling Fan and Module (Taurus and MKS)

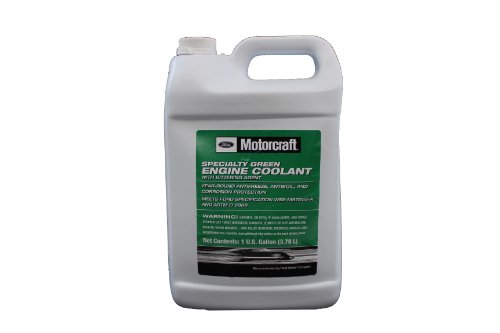

VC-10-A2	Motorcraft Specialty Green Engine Coolant (Concentrated)
VC-3-B	Motorcraft Orange Antifreeze/Coolant Concentrated



OPERATION	DESCRIPTION	TIME
140019A	2011-2012 Explorer, MKT, Flex: Inspect Cooling Fan Operation, Replace Cooling Fan, Transfer Electronic Module, And Reprogram The PCM If Necessary (Do Not Use With Any Other Labor Operations)	0.8 Hr.
140019A	2011-2012 Taurus, MKS, Flex, MKT 3.5L GTDI: Inspect Cooling Fan Operation, Replace Cooling Fan, Transfer Electronic Module, And Reprogram The PCM If Necessary (Do Not Use With Any Other Labor Operations)	1.4 Hrs.



WARRANTY STATUS

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.



DEALER CODING

BASIC PART NO.	CONDITION CODE
8C607	42







---
