| HEADLINER RATTLE OR SAG AROUND THE ROOF OPENING PANEL |
| FORD: | 2012-2015 Focus |
Some 2012-2015 Focus vehicles may exhibit a headliner rattle or sagging condition around the roof opening panel.
SERVICE PROCEDURE
- Remove the headliner.
- Using 3M Super-Fast Repair Adhesive or equivalent, lift the section of the plastic trim ring that has separated and apply a bead of adhesive underneath down the center of the trim ring. After applying the glue for no longer than 10 seconds or about a 25 cm (10 inch) long of a section, hold the trim ring to the headliner until the glue sets. (Figures 1 and 2)
- 3M Super-Fast Repair Adhesive or equivalent has a work time of 20 seconds. If 25 cm (10 inches) or more of the trim ring has separated from the headliner, requiring 10 seconds or more of glue application, do a section at a time and proceed to Step 3 on the opposite side of the trim ring. Return to gluing under the separated section after 1 minute of hold time.
- The adhesive inside the mixing nozzle will harden after 20 seconds of idle time without use. A new mixing nozzle will be needed if additional glue application is required.
Figure 1
Figure 2
- Apply a dab of adhesive in each hole around the trim ring to ensure complete bonding. (Figures 3 and 4)
Figure 3
Figure 4
- Apply a bead of adhesive around the entire outer edge of the trim ring.
- Reinstall the headliner.
| Obtain Locally | |
| Part Number | Part Description |
|---|---|
08190  |

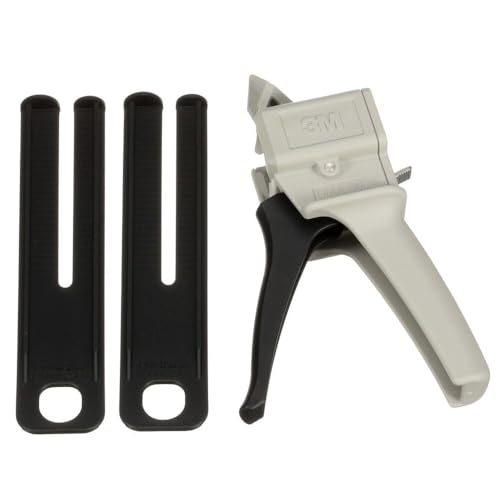

3M Performance Manual Applicator – 50 mL |
| 38191 |
3M Static Mixing Nozzle – 50 mL (1 pkg. of 12) |
| 04747 |
3M Super-Fast Repair Adhesive – 50 mL (3 Req) |
| PART NUMBER | PART NAME |
|---|---|
| CV6Z-00817-C | A-Pillar Clip (2 Req) |
| CV6Z-58519A16-AB | Floor Console Clip – Black (2 Req) |
| CV6Z-58519A16-AA | Floor Console Clip – Stone (2 Req) |
