NHTSA ID Number: 10219060
Manufacturer Communication Number: 21N01 S2
Summary
Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay; Reason for supplement: Vehicles Covered by this Program: all open / unrepaired vehicles from 21B05 (Police Interceptor Utility Vehicles) have been added to 21N01 as 21B05 expires August 31, 2022. Owner Notification: Police Interceptor Utility owners who have not completed 21B05 will be mailed a letter describing this change.
August 31, 2022
Customer Satisfaction Program 21N01 – Supplement #2
Certain 2016-2018 Model Year Explorer Vehicles
High-Speed Cooling Fan Motor Relay
REASON FOR THIS SUPPLEMENT
- Vehicles Covered by this Program: all open / unrepaired vehicles from 21B05 (Police Interceptor Utility Vehicles) have been added to 21N01 as 21B05 expires August 31, 2022.
- Owner Notification: Police Interceptor Utility owners who have not completed 21B05 will be mailed a letter describing this change.
- Claims Preparation And Submission: removed provision for Locally Obtained Supply.
- Parts Requirements / Ordering Information: Part kit update – each kit will repair two (2) vehicles. Part order quantity updated. Claim quantity has not changed.
- Technical Information: added warning – cover the battery before splicing to prevent powertrain control module (PCM) damage.
PROGRAM TERMS
This program provides a no-cost, one-time repair (if needed) to the high-speed cooling fan relay and respective electrical terminals, if affected, to ten (10) years of service or 150,000 miles from the warranty start date of the vehicle, whichever occurs first.
This is a one-time repair program.
If a vehicle has already exceeded either the time or mileage limits, this no-cost, one-time repair will last through August 31, 2022.
Program eligibility is automatically transferred to subsequent owners.
VEHICLES COVERED BY THIS PROGRAM
Vehicle | Model Year | Assembly Plant | Build Dates |
Explorer | 2016-2018 | Chicago | September 19, 2014 through September 16, 2018 |
Police Interceptor Utility | 2016-2018 | Chicago | October 1, 2014 through September 16, 2018 |
REASON FOR PROVIDING A NO-COST, ONE TIME REPAIR
After extended idling, the high-speed cooling fan relay may fail in some of the affected vehicles. A failure will cause the fan to either continuously run or never turn on. A continuously running fan will increase the temperature of the relay’s connections (terminals) to beyond their design maximum. This may eventually create an electrical arc which heats and damages the relay terminals. Customers may experience a drained battery and a non-functional or even a melted/burned high-speed cooling fan relay inside the battery junction box (BJB). A damaged non-functional relay, causing the fan to never turn on may lead to engine overheating at idle.
SERVICE ACTION
Dealers are to replace (splice) the four affected high-speed cooling fan relay terminals in the BJB and reroute the new terminals to a new larger relay. This service must be performed on all affected vehicles at no charge to the vehicle owner.
OWNER NOTIFICATION AND MAILING SCHEDULE
Owner Letters for Explorer non-police vehicles were mailed the week of September 06, 2021. Owner Letters for Police Interceptor Utility vehicles are expected to be mailed the week of September 19, 2022. Dealers should repair any affected vehicles that experience high-speed cooling fan relay issues, whether or not the customer has received a letter.
SOLD VEHICLES
- Only owners with affected vehicles that exhibit the covered condition will be directed to dealers for repairs.
- Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.
STOCK VEHICLES
- Do not perform this program unless the affected vehicle exhibits the covered condition.
TITLE BRANDED / SALVAGED VEHICLES
Vehicles with cancelled warranties are not eligible for this service action.
OWNER REFUNDS
- Ford Motor Company offered a refund for owner-paid repairs covered by this program if the repair was performed before the date of the Owner Notification Letter. This refund offer expired March 31, 2022.
- Dealers are also pre-approved to refund owner-paid emergency repairs that were performed away from an authorized servicing dealer after the date of the Owner Notification Letter. Noncovered repairs, or those judged by Ford to be excessive, will not be reimbursed.
- Refunds were only provided for the cost associated with a high-speed cooling fan relay issue.
RENTAL VEHICLES
The use of rental vehicles is not approved for this program.
PARTS REQUIREMENTS
Part Number | Description | Order Quantity |
JU2Z-14474-BC | Wire Circuit kit – Repair for Blue/Red and Green/Orange Wires with Terminals, Crimp Tubes, and Heat Shrink
(2 sets per pkg, 2 req’d) |
1 |
KU2Z-14474-EB | Wire Circuit kit – Repair for Grey and Brown Wires with Terminals, Crimp Tubes, and Heat Shrink
(2 sets per pkg, 2 req’d) |
1 |
F8OZ-14N089-AA | Relay – Full Iso, for High-Speed Cooling Fan | 1 |
NOTE: Locally obtained 3/8 Inch heat shrink tubing has been removed from the part table above since it is now part of the large terminal kit. Local supply should no longer be needed.
NOTE: Wire circuit part set quantity per package has been reduced to 2 sets per package.
CERTAIN 2016-2018 MODEL YEAR EXPLORER VEHICLES — HIGH SPEED COOLING FAN MOTOR RELAY
SERVICE PROCEDURE
NOTE: The high speed cooling fan relay (R11) will be relocated to the (R24) position in the Battery Junction Box (BJB) as shown in Figures 1 and 2.
1. Disconnect the positive and negative battery cables and position the cables and harness aside. Please follow the Workshop Manual (WSM) procedures in Section 414-01.
2. Remove the Battery Junction Box (BJB) cover. See Figure 3.
3. Remove the nuts and power feed cables from the BJB studs and position aside both power feed cables. See Figure 4.
4. Record the amperage and location of the fuses and location of the relay’s in the area shown in Figure 5.
Then, remove all of the fuses and relay’s within the red boxed area shown. See Figure 5.
NOTE: It is recommended to take a close up picture, of your particular vehicles BJB fuse and relay population, which will also aid in the reinstallation later in this procedure.
NOTE: The BJB has been removed in some of the following Figures for clarity.
5. Using a pair of needle nose pliers, pull straight up to remove the Terminal Position Assurance (TPA) plastic insert from the BJB as shown in Figure 6.
6. Using a pocket screwdriver, release the four (4) BJB tabs (two (2) on each side) and separate the upper half of the BJB from the lower half. See Figures 7 and 8.
7. Using a terminal removal tool, remove the wire terminal from the R11 relay cavity 11-3 (blue/red wire).
See Figure 9.
– From the top side of the BJB, insert the tip of the terminal removal tool into the terminal cavity until it stops.
– Holding the release tool in place, gently push the wire of the terminal to be removed toward the housing until it stops.
– Rotate the release tool toward the terminal to unlock the latch beam from the terminal. While holding the tool in position, gently pull the wire until the terminal is released, then pull it straight out from the bottom side of the BJB.
NOTE: Refer to the Workshop Manual (WSM) procedure in Section 100-00 – General Procedures for additional terminal removal information.
8. Using the terminal removal tool, remove the remaining three (3) wire terminals (noted below) from the R11 relay cavities, in the same manner as the previous Step, and position the wire terminals out from under the BJB. See Figure 10.
– Cavity 11-1 gray wire.
– Cavity 11-2 brown wire.
– Cavity 11-5 green/orange wire.
NOTE: Refer to the Workshop Manual (WSM) procedure in Section 100-00 – General Procedures for additional terminal removal information.
9. Replace the terminal ends on the four (4) R11 wire terminals that were removed in Steps 7 and 8 using the directions below:
WARNING: Cover battery to avoid contact to terminals which could damage the Powertrain Control Module (PCM).
NOTE: The pigtail terminals supplied in the designated repair kits are of like wire gauge but are different colors and have larger terminals ends.
NOTE: There are two (2) different gauge wires for this repair. The two (2) smaller gauge wires will use the pigtail terminals supplied in the repair kit Part Number KU2Z-14474-EB. The two (2) larger gauge wires will use the pigtail terminals, supplied in the repair kit Part Number JU2Z-14474-BC.
a. Cut off and discard the four (4) wire terminal ends, terminals just removed from the R11 cavities, at the base of the terminal (where the wire meets the metal terminal end).
b. Size and cut the new wires to the length of approximately 6 in. (150 mm) including the female terminal end:
1. Two (2) of the new smaller gauge pigtail terminals (Part Number KU2Z-14474-EB).
2. Two (2) of the new larger gauge pigtail terminals (Part Number JU2Z-14474-BC).
c. Strip 0.38 in (9.53 mm) of the insulation from the two (2), in vehicle, smaller gauge wires of the terminals just removed (from the grey and the brown wires) and two (2) new smaller gauge wires that were just cut to length (Part Number KU2Z-14474-EB).
d. Strip 0.5 in (12.7 mm) of the insulation from the two (2), in vehicle, larger gauge wires of the terminals just removed (from the blue/red and the green/orange) and the two (2) new larger gauge wires that were just cut to length (Part Number JU2Z-14474-BC).
e. Install heat shrink with lined adhesive:
1. On the harness side, install a piece of two inch long, 0.38 in. (9.53 mm) diameter, heat shrink tubing over both larger 8 AWG wires.
2. Then, install a piece of heat shrink tubing, supplied with Part Number KU2Z-14474-EB, over both smaller 10-12 AWG wires.
3. Slide all four (4) heat shrink tubes away from the heat while soldering. See Figure 11.
f. Crimp – Blue/Red and Green/Orange Wires:
1. Make 4 crimps using the Rotunda/Motorcraft Wiring Pro – NAIAT-RACT-NI or equivalent to crimp the 8 AWG crimp tubes per the kit.
2. Crimp one (1) of the new 8 AWG 6 inch pigtail terminals with an 8 AWG crimp tube.
3. Then, crimp the other side to the Blue/Red wire where the terminal was removed from in the BJB.
4. Repeat this step for the Green/Orange wire. See Figure 12.
g. Crimp – Gray and Brown Wires:
1. Make 4 crimps using the Rotunda/Motorcraft Wiring Pro – NAIAT-RACT-NI or equivalent to crimp the 10-12 AWG crimp tubes per the kit.
2. Crimp one (1) of the new 10-12 AWG 6 inch pigtail terminals with an 10-12 AWG crimp tube.
3. Then, crimp the other side to the Gray wire where the terminal was removed from in the BJB.
4. Repeat this step for the Brown wire. See Figure 12.
h. NOTE: Use Rosin Mildly Activated (RMA) solder. Do Not use acid core solder.
• Using the solder hole in the center of the crimp, solder the wires together.
i. Slide the piece of heat shrink tubing evenly over the soldered repair on all four (4) repaired wires.
j. Use a suitable heat gun, such as Rotunda Shielded Flameless Heat Gun with Heat Deflector (NAIAT-R5902) that is equipped with a shrink tubing attachment, to heat the heat shrink tubing until the adhesive comes out of both ends on all four (4) repaired wires. See Figure 13.
WARNING: Cover battery before splicing.
10. Install the four (4) wires, removed from the original relay with new terminal ends, into the new relay R24 cavities as noted below. See Figures 14 and 15.
– Install what was the original gray wire into cavity 24-1.
– Install what was the original brown wire into cavity 24-2.
– Install what was the original blue/red wire into cavity 24-3.
– Install what was the original green/orange wire into cavity 24-5.
NOTE: When installing the terminal, gently insert the terminal end straight into the cavity until you hear, or feel, a click. When the terminal end is fully inserted, softly pull on the terminated lead to insure the terminal is locked into place.
11. Position all wiring into the lower BJB half. Then, align the upper BJB half with the lower BJB half.
Push straight down to seat the clips on the side. Audible clicks can be heard as the clips correctly seat.
12. Reinstall the TPA plastic lock by aligning all of the male terminals in the BJB with the TPA lock and gently push straight down. As the TPA is installed, it can be felt as it passes by the lobes and properly seats. See Figure 6.
– Inspect all four (4) corners of the TPA insert to ensure it is flush with the BJB housing.
13. Install the new larger high speed cooling fan relay into the new location, R24. See Figures 1 and 16.
14. Install the remaining fuses and relays with the exception of the original cooling fan relay R11 location, which should have been discarded. The original relay location (R11) will stay empty. See Figure 16.
15. Position back both of the BJB’s power feed cables and install the nuts. See Figure 17.
• Tighten to 80 lb in (9 Nm).
16. Install the BJB cover. See Figure 3.
17. Position back the battery cable harness and connect the positive and negitive battery cables. Please follow the WSM procedures in Section 414-01.
18. Ensure the high speed cooling fan motor is operational.
IMPORTANT NOTE: Federal law prohibits selling motor vehicle parts or components that are under safety, compliance, or emissions recall. Unless a part is requested to be returned to Ford, all parts replaced under this FSA must be scrapped in accordance with all applicable local, state and federal environmental protection and hazardous material regulations. Refer to the Parts Retention, Return, & Scrapping section of the FSA dealer bulletin for further information.
6 Affected Products
Vehicles
MAKE | MODEL | YEAR |
FORD | EXPLORER | 2016-2018 |
FORD | EXPLORER POLICE INTERCEPT | 2016-2018 |
1 Associated Document
Manufacturer Communications
August 31, 2022
Customer Satisfaction Program 21N01 – Supplement #2
https://www.nhtsa.gov/recalls?nhtsaId=10219060
MC-10219060-0001.pdf 6129.645KB
NHTSA ID Number: 10205725
Manufacturer Communication Number: 21N01-S1
Summary
Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay ; Reason for supplement: Vehicle Build Date: Ending build date for Chicago Assembly built vehicles has been updated
1 Associated Document
Manufacturer Communications
Customer Satisfaction Program 21N01 – Supplement #1
December 16, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10205725
MC-10205725-0001.pdf 5873.247KB
NHTSA ID Number: 10201085
Manufacturer Communication Number: 21N01
Summary
This program provides a no-cost, one-time repair (if needed) to the high-speed cooling fan relay and respective electrical terminals, if affected, to ten (10) years of service or 150,000 miles from the warranty start date of the vehicle, whichever occurs first.
1 Associated Document
Manufacturer Communications
Customer Satisfaction Program 21N01
August 19, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10201085
MC-10201085-0001.pdf 5838.146KB
- Made To Withstand Even The Toughest Jobs
- Designed With The User In Mind
- Fit To Match The Needs In The Shop, At Home Or In The Field
- Proven And Tested For Durability And Function In Real-World Conditions
- Crafted With The User In Mind Using The High-Quality Materials And World-Class Craftsmanship
- 【Package Include】Offers single, double pin extractors and casting tool of different sizes to fit most terminals. 82 Pieces electrical pin removal tool kit includes 28Pcs Single Pin Extractor, 30Pcs Double Pin Extractor, 24Pcs Casing Tool and 1 Protective Case.
- 【Depinning Tool with Protective Case】This terminal tool removal kit set is sharp, so we provide a protective case for you. You can keep your depinning tools in it to make it more portable and prevent children from playing with them.
- 【High Quality】Our pin removal tool set is made of high-quality stainless steel and plastic with high hardness. It is not easy to deform and can be used repeatedly for a long time. The pin headers are available in different specifications and are suitable for most electronic equipment maintenance, making your work more convenient.
- 【Wide Application】The terminal extractor tool kit are common tools for most connector terminals, suitable for most cars, motorcycles and other electronic devices like household appliances.
- 【Easy to Use】The terminal pin removal tool is easy to use, just push and pull the terminal pins with connector removal tool for removal effortlessly from the wire harness connectors without any damage. Kindly Note: Most of the wire harnesses are held in place with barb clips. You can use a tool to lift or flatten the barbs, and then gently pull out the wire ends. Pay special attention to strength and direction.

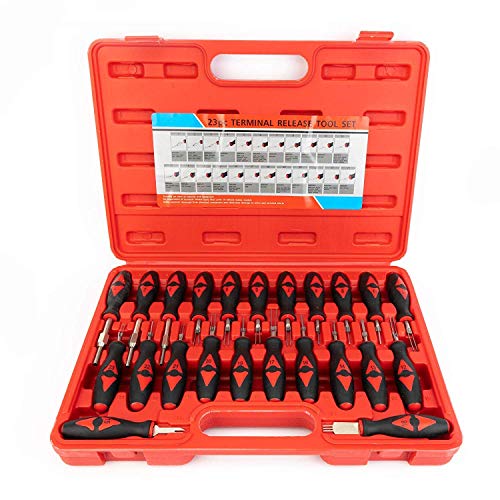

- ◇ Practical - Contains 23 PCS terminal release tools for most domestic, European and Japanese cars and trucks
- ◇ Durable - Constructed with high-strength steel with a chrome finish for longevity and rust-resistance
- ◇ Comfortable & Convenient Grip - Handles designed for extra grip and comfort; Each handle is individually marked for quick reference to included application chart
- ◇ Convenient Storage - Easily accessed and organized in a heavy-duty mold-blown plastic carrying case that can easily go anywhere with you or fit on any shelf or storage area; Case includes a fitment application chart for quick and easy reference
- ◇ Fitment - for BMW, Mercedes, Opel, VW, Jaguar, Porsche, Saab, Seat, Skoda, Ford, Renault, Citroen, Chrysler, Fiat, Honda, Mazda, Mitsubishi, and Toyota vehicles
- Main Usage: It can remove a wire intact from a donor harness and add a new wire - very easily. so you can maintain the factory original harness and plug in your own electronic device without any damage.
- Compatibility: The tool kit is a universal tool suitable for most connector terminal, it can be used for almost all brands of cars and other electronic devices, include GM ( Chevy, Buick, Cadillac ), Ford, Toyota, Volkswagen, Benz, BMW, Mazda, Honda, Nissan, Hyundai ,etc. and household appliances.
- Various specifications: This item include 11 pcs different types car plug terminal extraction repair tools. 4*Single Pin Extractor + 4*Double Pin Extractor + 3*Casing Tool, For detail size and quantity, please refer to the picture of the upper left corner.
- Easy to use: No need to pry open the terminals, just push and pull the terminal pins. It provide extra leverage, you can easily take out the wire.
- Material: Made of steel spring plate + plastic. It is flexible resilient and durable. If necessary, you can manually change the width of the pin, and it can be restore the original shape without be damaged.
- Please note: If you have any questions, please feel free to contact us (please attach product pictures), and we will provide you with a satisfactory after-sales solution. We hope to establish communication with you and provide you with a good shopping experience.
- DRK-DWP01: 16-18awg gauge Weather Pack terminals
- DRK-DMP280: GT 150; GT 280; 150 Metri-Pack; 280 Metri-Pack; 280 Tangless & 280 Bus Bar; 630 Pull-To-Seat; Lamp Socket Bases, B-1 & W-3; 800 Metri-Pack Female
- DRK-DMP630: 56 Series; 280 Metri-Pack; 480 MetriPack; 630 Metri-Pack; 800 Metri-Pack Male Tangless; Lamp Socket Bases, W-2 & C-2
- DRK-785084: AMP Superseal 1.5mm Series, Insertion & Extraction Tools, Secondary Housing Lock
- ★High-performance multi-type design- Offers single, double,Three pin extractors and casting tool of different sizes to fit most terminal. 41 Pieces electrical pin removal tool kit includes 15Pcs Single Pin Extractor, 19Pcs Double Pin Extractor,1Pcs Three Pin Extractor,6Pcs Casing Tool
- ★High quality- Our pin removal tool set is made of high-quality stainless steel and plastic with high hardness. It is not easy to deform and can be used repeatedly for a long time. The pin headers are available in different specifications and are suitable for most electronic equipment maintenance, making your work more convenient
- ★Easy to Use - No need to pry open the terminals, just push and pull the terminal pins. The automotive terminal removal tools can effortlessly removing terminal wires from the wire harness connector and add a new wire, so you can maintain the factory original harness and plug in your own electronic device without any damage
- ★Wide Application- The terminal extractor kit are common tools for most connector terminals, can be widely used for most of the connector terminal removal, picker harness terminals and connector crimp pin removal (such as cars ,wiring harness and household appliances)
- ★Portable and convenient- Electric pin remover tool is light weight and compact shape, coming with 3 pieces of stainless steel beaded ball chain, easy to use and carry
- Terminal release kit provides all the tools necessary for the damage-free releasing work of plug type connectors. Includes 23pcs release tools of various shapes and sizes to help remove terminals from electrical connectors and eliminates damage to wires or terminal blocks. Makes it safer and more efficient.
- This kit fits for a wide range of models from home and abroad. Suitable for most American, European and Japanese cars and trucks which has electrical terminal and cables. Widely fits Ford, BMW, Mercedes, Opel, Porsche, Audi, Jaguar, etc. Ideal addition to your garage.
- Tools come packed in a heavy-duty plastic blow-molded carrying case for easy transportation, simple storage, and quick organization; Each handle of pin extractors is identified with numbers for quick reference to the well-illustrated application chart
- Constructed of alloy steel, these extractors are designed for maximum strength and longevity. Has rustproof surface and some adjustable pins. Rubber handle applies ergonomics, providing comfortable & non-slip grip, and insulating performance.
- 【Package Include】The terminal removal tool kit is a professional universal automotive maintenance tool,including DRK-HK01P 1PCS(Wedgelock Removal),DRK-MX150 1PCS(MOLEX 63813-1500 Equivalent),double pin extractor DRK-D230P 1PCS(TE 539960-1 Equivalent),DRK-D310P 1PCS(TE 1-1579007-6 Equivalent) and sigle pin extractor DRK-N1010P 1PCS(TE 2-1579008-1 Equivalent).
- 【Excellent Performance of Needle Head】Electrical terminal release tool kit is made of high-quality alloy steel with quenching process,higher strength,not easy to deform,anti-corrosive.Correct operation of the pin retractor is not easy to break.
- 【Professional Technology】After magnetic deburring and polishing,the surface of the needle extraction tool can be smoothly without being sharp,which ensures the safety of use and does not damage the terminal wiring harness.
- 【Premium Hexagonal Handle】Rubber hexagonal handle ergonomic design makes them easy to hold in hand,comfortable non-slip grip (tips: MX150 is a metal handle).They're very sturdy and should last for a long time.
- 【Quality & Service Commitment】JRready is dedicated to offering high-quality products and unparalleled customer service. Should you encounter any issues concerning the product, shipping, or usage, please contact us immediately for guaranteed satisfactory after-sales support. Follow our clear guidelines for easy and safe use of our wire terminal removal tool, saving you valuable time and repair costs.
- 【Universal 】- Use the Terminal Release/Remover Set to release the terminals from plastic connector housings on American, European and Japanese vehicles
- 【Durable】- Tips of the tools are made from stainless steel with chrome-plated hollow brass shafts for longevity and rust-resistance
- 【Convenient Grip】- Handles designed for extra grip and comfort; Each handle is individually marked for quick reference to the included application chart
- 【Easy Storage】All the tools are well organized in a storage case for easy transportation, simple storage, and quick identification
- 【Compatible】 - Fit for BMW, for Mercedes, for Opel, for VW, for Audi, for Jaguar, for Porsche, for Saab, for Seat, for Skoda, for Ford, for Renault, for Citroen, for Chrysler, for Fiat, for Honda, for Mazda, for Mitsubishi, and fit for Toyota vehicles (The fitment application chart included for quick and easy reference)
- Terminal Release Kit: The terminal release kit provides all the tools necessary for the damage-free releasing work of plug type connectors. Includes 23pcs release tools of various shapes and sizes to help remove terminals from electrical connectors and eliminates damage to wires or terminal blocks. Makes it safer and more efficient. Additionally, this comprehensive terminal pin removal set can be utilized for disassembling various other plug terminals.
- Constructed of alloy steel: these extractors are designed for maximum strength and longevity. Has rustproof surface and some adjustable pins. Rubber handle applies ergonomics, providing comfortable & non-slip grip, and insulating performance.
- Blow Case: The pin extractor release tools come packed in a heavy-duty plastic blow-molded carrying case for easy transportation, simple storage, and quick organization; Each handle of pin extractors is identified with numbers for quick reference to the well-illustrated application chart
- Wide Fitment: The terminal ejector kit tool comprises a comprehensive selection of 23 terminal release tools, featuring a range of shapes and sizes meticulously designed to accommodate the electrical terminals and cables found in a wide array of cars and trucks. Fit for BMW, Mercedes, Opel, VW, Audi, Jaguar, Porsche, Saab, Seat, Skoda, Ford, Renault, Citroen, Chrysler, Fiat, Honda, Mazda, Mitsubishi, and Toyota vehicles, etc.
- Package Included: 23-piece terminal release tool set; 1-piece blow carry case
Last update on 2024-04-05 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
© David J. Johnson Ford Motor Company Director P. O. Box 1904 Service Engineering Operations Dearborn, Michigan 48121 Ford Customer Service Division August 31, 2022 TO: All U.S. Ford and Lincoln Dealers SUBJECT: Customer Satisfaction Program 21N01 – Supplement #2 Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay REF: Customer Satisfaction Program 21N01 – Supplement #1 Dated: December 16, 2021 REF: Customer Satisfaction Program 21B05 Dated: August 19, 2021 New! REASON FOR THIS SUPPLEMENT • Vehicles Covered by this Program: all open / unrepaired vehicles from 21B05 (Police Interceptor Utility Vehicles) have been added to 21N01 as 21B05 expires August 31, 2022. • Owner Notification: Police Interceptor Utility owners who have not completed 21B05 will be mailed a letter describing this change. • Claims Preparation And Submission: removed provision for Locally Obtained Supply. • Parts Requirements / Ordering Information: Part kit update – each kit will repair two (2) vehicles. Part order quantity updated. Claim quantity has not changed. • Technical Information: added warning – cover the battery before splicing to prevent powertrain control module (PCM) damage. PROGRAM TERMS This program provides a no-cost, one-time repair (if needed) to the high-speed cooling fan relay and respective electrical terminals, if affected, for ten (10) years of service or 150,000 miles from the warranty start date of the vehicle, whichever occurs first. This is a one-time repair program. If a vehicle has already exceeded either the time or mileage limits, this no-cost, one-time repair will last through August 31, 2022. Program eligibility is automatically transferred to subsequent owners. New! VEHICLES COVERED BY THIS PROGRAM Vehicle Model Year Assembly Plant Build Dates Explorer 2016-2018 Chicago September 19, 2014 through September 16, 2018 Police Interceptor Utility 2016-2018 Chicago October 1, 2014 through September 16, 2018 Affected vehicles are identified in OASIS. REASON FOR PROVIDING A NO-COST, ONE TIME REPAIR After extended idling, the high-speed cooling fan relay may fail in some of the affected vehicles. A failure will cause the fan to either continuously run or never turn on. A continuously running fan will increase the temperature of the relay’s connections (terminals) to beyond their design maximum. This may eventually create an electrical arc which heats and damages the relay terminals. Customers may experience a drained battery and a non-functional or even a melted/burned high-speed cooling fan relay inside the battery junction box (BJB). A damaged non-functional relay, causing the fan to never turn on may lead to engine overheating at idle. SERVICE ACTION If an affected vehicle has exhibited high-speed cooling fan relay issues, dealers are to replace (splice) the four affected high-speed cooling fan relay terminals in the BJB and reroute the new terminals to a new larger relay. This service must be performed on all affected vehicles at no charge to the vehicle owner. New! OWNER NOTIFICATION MAILING SCHEDULE Owner Letters for Explorer non-police vehicles were mailed the week of September 06, 2021. Owner Letters for Police Interceptor Utility vehicles are expected to be mailed the week of September 19, 2022. Dealers should repair any affected vehicles that experience high-speed cooling fan relay issues, whether or not the customer has received a letter. ATTACHMENTS Attachment I: Administrative Information Attachment II: Labor Allowances and Parts Ordering Information Attachment III: Technical Information Owner Notification Letter QUESTIONS & ASSISTANCE For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web Contact Site. The SSSC Web Contact Site can be accessed through the Professional Technician System (PTS) website using the SSSC link listed at the bottom of the OASIS VIN report screen or listed under the SSSC tab. Sincerely, David J. Johnson © Copyright 2022 Ford Motor Company Customer Satisfaction Program 21N01 – Supplement #2 Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay ATTACHMENT I Page 1 of 2 OASIS ACTIVATION OASIS will be activated on August 19, 2021. FSA VIN LISTS ACTIVATION FSA VIN Lists will not be activated for this service action. SOLD VEHICLES • Only owners with affected vehicles that exhibit the covered condition will be directed to dealers for repairs. • Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory. STOCK VEHICLES • Do not perform this program unless the affected vehicle exhibits the covered condition. TITLE BRANDED / SALVAGED VEHICLES Vehicles with cancelled warranties are not eligible for this service action. OWNER REFUNDS • Ford Motor Company offered a refund for owner-paid repairs covered by this program if the repair was performed before the date of the Owner Notification Letter. This refund offer expired March 31, 2022. • Dealers are also pre-approved to refund owner-paid emergency repairs that were performed away from an authorized servicing dealer after the date of the Owner Notification Letter. Non- covered repairs, or those judged by Ford to be excessive, will not be reimbursed. • Refunds were only provided for the cost associated with a high-speed cooling fan relay issue. RENTAL VEHICLES The use of rental vehicles is not approved for this program. ADDITIONAL REPAIR (LABOR TIME AND/OR PARTS) Additional repairs identified as necessary to complete the FSA should be managed as follows: • For related damage and access time requirements, refer to the Warranty and Policy Manual – Section 6 – Ford & Lincoln Program Policies / General Information & Special Circumstances for FSA’s / Related Damage. • For vehicles within new vehicle bumper-to-bumper warranty coverage, no SSSC approval is required, although related damage must be on a separate repair line with the Related Damage radio button checked. o Ford vehicles – 3 years or 36,000 miles • For vehicles outside new vehicle bumper-to-bumper warranty coverage, submit an Approval Request to the SSSC Web Contact Site prior to completing the repair. © Copyright 2022 Ford Motor Company Customer Satisfaction Program 21N01 – Supplement #2 Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay ATTACHMENT I Page 2 of 2 New! CLAIMS PREPARATION AND SUBMISSION • Note: All repairs for this program should be claimed using the claim entry direction below regardless if the vehicle is still under the New Vehicle Limited Warranty. o Service Part Warranty (SPW) and/or Ford/Lincoln Loyalty Plans (ESP) eligible vehicles – Claim repairs to FSA 21N01 if vehicle is still within time and mileage limits. o Claim Entry: Enter claims using Dealer Management System (DMS) or One Warranty Solution (OWS) online. Description When Entering Claims Enter Value: Claim Type 31-Field Service Action Sub Code 21N01 Customer Concern Code (CCC) A91 – EDS Electrical Components Condition Code (CC) 46 – Burned Out Causal Part Number 14B192 QTY: 0 o For additional claims preparation and submission information, refer to the Recall and Customer Satisfaction Program (CSP) Repairs in the OWS User Guide. • Related Damage/Additional labor and/or parts: Must be claimed as Related Damage on a separate repair line from the FSA with same claim type and sub code as described in Claim Entry above. IMPORTANT: Click the Related Damage Indicator radio button. • Provision for Locally Obtained Supply: o NOTE: Locally obtained 3/8 Inch heat shrink tubing has been removed since it is now part of the large terminal kit. • Refunds: Submit refunds on a separate repair line. – Program Code: 21N01 – Misc. Expense: ADMIN – Misc. Expense: REFUND – Misc. Expense: 0.2 Hrs. o Multiple refunds should be submitted on one repair line and the invoice details for each repair should be detailed in the comments section of the claim. © Copyright 2022 Ford Motor Company Customer Satisfaction Program 21N01 – Supplement #2 Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay ATTACHMENT II Page 1 of 2 LABOR ALLOWANCES Description Labor Operation Labor Time Splice Four (4) New Terminals in the Battery Junction Box and Reroute the New Terminals to a New Larger Relay New! PARTS REQUIREMENTS / ORDERING INFORMATION Part Number Description 21N01B Order 0.6 Hours Claim JU2Z-14474-BC KU2Z-14474-EB F8OZ-14N089-AA Wire Circuit kit – Repair for Blue/Red and Green/Orange Wires with Terminals, Crimp Tubes, and Heat Shrink (2 sets per pkg, 2 req’d) Wire Circuit kit – Repair for Grey and Brown Wires with Terminals, Crimp Tubes, and Heat Shrink (2 sets per pkg, 2 req’d) Relay – Full Iso, for High-Speed Cooling Fan Quantity 1 1 1 Quantity 2 2 1 NOTE: Locally obtained 3/8 Inch heat shrink tubing has been removed from the part table above since it is now part of the large terminal kit. Local supply should no longer be needed. NOTE: Wire circuit part set quantity per package has been reduced to 2 sets per package. Order your parts requirements through normal order processing channels. To guarantee the shortest delivery time, an emergency order for parts must be placed. DEALER PRICE For latest prices, refer to DOES II. PARTS RETENTION, RETURN, & SCRAPPING Follow the provisions of the Warranty and Policy Manual, Section 1 – WARRANTY PARTS RETENTION AND RETURN POLICIES. If a replaced part receives a scrap disposition, the part must be scrapped in accordance with all applicable local, state and federal environmental protection and hazardous material regulations. EXCESS STOCK RETURN Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000. ATTACHMENT II Page 2 of 2 © Copyright 2022 Ford Motor Company Customer Satisfaction Program 21N01 – Supplement #2 Certain 2016-2018 Model Year Explorer Vehicles High-Speed Cooling Fan Motor Relay REPLACED FSA PARTS INSPECTION AND SIGN OFF Effective March 1ˢᵗ 2021 all parts replaced as part of an FSA repair with a repair order open date of March 1ˢᵗ 2021 or later must be inspected and signed off on the repair order by a member of your dealers fixed operations management team or an employee the task has been delegated to. If the task is to be delegated to a non-management employee, the employee needs to be someone other than the technician who completed the repair and needs to understand the importance of completing this task consistently and accurately. • All parts replaced as part of an FSA repair should be returned to the parts department following the Warranty Parts Retention and Return Policies. • Inspect the replaced parts to verify the FSA repair was completed. • If the FSA repair is found to be complete, the designated employee signs the repair order line or parts return stamp area (electronic or hand signed) for the FSA repair indicating the parts were inspected and validated to have been replaced. • After the parts have been inspected, they should be handled based on the guidance in the parts status report in the Online Warranty System (Hold, Return, CORE, Scrap, etc.). • This process is subject to review during warranty audits for FSA repairs with a repair order open date of March 1ˢᵗ 2021 or later. Any eligible FSA claims requiring parts replacement, found not to have been inspected and signed off during a warranty audit will be subject to chargeback and consideration for enrollment into the Dealer Incomplete Recall Repair Process. Note: Other approvals (electronic or handwritten) for add-on repair lines, dealer owned vehicle repairs, and repeat repairs do not qualify as FSA parts inspection approvals. The post repair FSA parts inspection process (electronic or handwritten) is independent from other warranty approval requirements. The approval by the designated employee implies that the FSA parts were found to be replaced and must be able to be clearly identified on the Repair Order. If multiple FSA’s require approval on a single Repair Order, each applicable occurrence will require individual post repair approval by the designated employee. © Copyright 2022 Ford Motor Company ATTACHMENT III PAGE 1 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 CERTAIN 2016-2018 MODEL YEAR EXPLORER VEHICLES — HIGH SPEED COOLING FAN MOTOR RELAY SERVICE PROCEDURE NOTE: The high speed cooling fan relay (R11) will be relocated to the (R24) position in the Battery Junction Box (BJB) as shown in Figures 1 and 2. TOP VIEW OF BJB FIGURE 1 2039Q BOTTOM VIEW OF BJB 2039P FIGURE 2 CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 2 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 1. Disconnect the positive and negative battery cables and position the cables and harness aside. Please follow the Workshop Manual (WSM) procedures in Section 414-01. 2. Remove the Battery Junction Box (BJB) cover. See Figure 3. 2039E FIGURE 3 3. Remove the nuts and power feed cables from the BJB studs and position aside both power feed cables. See Figure 4. x2 FIGURE 4 2039D CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 3 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 4. Record the amperage and location of the fuses and location of the relay’s in the area shown in Figure 5. Then, remove all of the fuses and relay’s within the red boxed area shown. See Figure 5. NOTE: It is recommended to take a close up picture, of your particular vehicles BJB fuse and relay population, which will also aid in the reinstallation later in this procedure. NOTE: The BJB has been removed in some of the following Figures for clarity. NEW RELAY LOCATION R24 ORIGINAL RELAY LOCATION R11 BJB ASSEMBLY BJB POWER FEED CABLE CONNECTIONS FIGURE 5 2039F CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 4 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 5. Using a pair of needle nose pliers, pull straight up to remove the Terminal Position Assurance (TPA) plastic insert from the BJB as shown in Figure 6. TPA PLASTIC INSERT FIGURE 6 2039G CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 5 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 6. Using a pocket screwdriver, release the four (4) BJB tabs (two (2) on each side) and separate the upper half of the BJB from the lower half. See Figures 7 and 8. FIGURE 7 2039H FIGURE 8 2039U CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 6 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 7. Using a terminal removal tool, remove the wire terminal from the R11 relay cavity 11-3 (blue/red wire). See Figure 9. – From the top side of the BJB, insert the tip of the terminal removal tool into the terminal cavity until it stops. – Holding the release tool in place, gently push the wire of the terminal to be removed toward the housing until it stops. – Rotate the release tool toward the terminal to unlock the latch beam from the terminal. While holding the tool in position, gently pull the wire until the terminal is released, then pull it straight out from the bottom side of the BJB. NOTE: Refer to the Workshop Manual (WSM) procedure in Section 100-00 – General Procedures for additional terminal removal information. 11-2 11-1 11-5 11-3 FIGURE 9 2039L CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 7 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 8. Using the terminal removal tool, remove the remaining three (3) wire terminals (noted below) from the R11 relay cavities, in the same manner as the previous Step, and position the wire terminals out from under the BJB. See Figure 10. – Cavity 11-1 gray wire. – Cavity 11-2 brown wire. – Cavity 11-5 green/orange wire. NOTE: Refer to the Workshop Manual (WSM) procedure in Section 100-00 – General Procedures for additional terminal removal information. 11-1 11-2 11-5 FIGURE 10 2039M CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 8 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 9. Replace the terminal ends on the four (4) R11 wire terminals that were removed in Steps 7 and 8 using the directions below: WARNING: Cover battery to avoid contact to terminals which could damage the Powertrain Control Module (PCM). NOTE: The pigtail terminals supplied in the designated repair kits are of like wire gauge but are different colors and have larger terminals ends. NOTE: There are two (2) different gauge wires for this repair. The two (2) smaller gauge wires will use the pigtail terminals supplied in the repair kit Part Number KU2Z-14474-EB. The two (2) larger gauge wires will use the pigtail terminals, supplied in the repair kit Part Number JU2Z-14474-BC. a. Cut off and discard the four (4) wire terminal ends, terminals just removed from the R11 cavities, at the base of the terminal (where the wire meets the metal terminal end). b. Size and cut the new wires to the length of approximately 6 in. (150 mm) including the female terminal end: 1. Two (2) of the new smaller gauge pigtail terminals (Part Number KU2Z-14474-EB). 2. Two (2) of the new larger gauge pigtail terminals (Part Number JU2Z-14474-BC). c. Strip 0.38 in (9.53 mm) of the insulation from the two (2), in vehicle, smaller gauge wires of the terminals just removed (from the grey and the brown wires) and two (2) new smaller gauge wires that were just cut to length (Part Number KU2Z-14474-EB). d. Strip 0.5 in (12.7 mm) of the insulation from the two (2), in vehicle, larger gauge wires of the terminals just removed (from the blue/red and the green/orange) and the two (2) new larger gauge wires that were just cut to length (Part Number JU2Z-14474-BC). e. Install heat shrink with lined adhesive: 1. On the harness side, install a piece of two inch long, 0.38 in. (9.53 mm) diameter, heat shrink tubing over both larger 8 AWG wires. 2.Then, install a piece of heat shrink tubing, supplied with Part Number KU2Z-14474-EB, over both smaller 10-12 AWG wires. 3. Slide all four (4) heat shrink tubes away from the heat while soldering. See Figure 11. f. Crimp – Blue/Red and Green/Orange Wires: 1. Make 4 crimps using the Rotunda/Motorcraft Wiring Pro – NAIAT-RACT-NI or equivalent to crimp the 8 AWG crimp tubes per the kit. 2. Crimp one (1) of the new 8 AWG 6 inch pigtail terminals with an 8 AWG crimp tube. 3. Then, crimp the other side to the Blue/Red wire where the terminal was removed from in the BJB. 4. Repeat this step for the Green/Orange wire. See Figure 12. g. Crimp – Gray and Brown Wires: 1. Make 4 crimps using the Rotunda/Motorcraft Wiring Pro – NAIAT-RACT-NI or equivalent to crimp the 10-12 AWG crimp tubes per the kit. 2. Crimp one (1) of the new 10-12 AWG 6 inch pigtail terminals with an 10-12 AWG crimp tube. 3. Then, crimp the other side to the Gray wire where the terminal was removed from in the BJB. 4. Repeat this step for the Brown wire. See Figure 12. h. NOTE: Use Rosin Mildly Activated (RMA) solder. Do Not use acid core solder. • Using the solder hole in the center of the crimp, solder the wires together. i. Slide the piece of heat shrink tubing evenly over the soldered repair on all four (4) repaired wires. j. Use a suitable heat gun, such as Rotunda Shielded Flameless Heat Gun with Heat Deflector (NAIAT-R5902) that is equipped with a shrink tubing attachment, to heat the heat shrink tubing until the adhesive comes out of both ends on all four (4) repaired wires. See Figure 13. CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 9 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 USE THE HEAT SHRINK SUPPLIED IN PART KIT KU2Z-14474-EB FOR THE SMALLER 10-12 AWG WIRES USE 3/8 INCH DIAMETER HEAT SHRINK SUPPLIED IN PART KIT JU2Z-14474-BC FOR THE LARGER 8 AWG WIRES 2039V WARNING: Cover battery before splicing. FIGURE 11 10-12 AWG WIRE CRIMPED TO THE GRAY AND THE BROWN WIRES FIGURE 12 8 AWG WIRE CRIMPED TO THE BLUE/RED AND THE GREEN/ORANGE WIRES 2039W CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 10 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 HEAT SHRINK TUBES CENTERED OVER SOLDERED CRIMP FIGURE 13 2039Y CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 11 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 10. Install the four (4) wires, removed from the original relay with new terminal ends, into the new relay R24 cavities as noted below. See Figures 14 and 15. – Install what was the original gray wire into cavity 24-1. – Install what was the original brown wire into cavity 24-2. – Install what was the original blue/red wire into cavity 24-3. – Install what was the original green/orange wire into cavity 24-5. NOTE: When installing the terminal, gently insert the terminal end straight into the cavity until you hear, or feel, a click. When the terminal end is fully inserted, softly pull on the terminated lead to insure the terminal is locked into place. BLUE/RED WIRE 24-3 GRAY WIRE 24-1 BROWN WIRE 24-2 24-5 GREEN/ORANGE WIRE PREVIOUS WIRE COLOR GRAY WIRE – 24-1 BLUE/RED WIRE – 24-3 TOP VIEW OF BJB FIGURE 14 PREVIOUS WIRE COLOR BROWN WIRE – 24-2 GREEN/ORANGE WIRE – 24-5 2039T CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 BOTTOM VIEW OF BJB 2039S FIGURE 15 ATTACHMENT III PAGE 12 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 11. Position all wiring into the lower BJB half. Then, align the upper BJB half with the lower BJB half. Push straight down to seat the clips on the side. Audible clicks can be heard as the clips correctly seat. 12. Reinstall the TPA plastic lock by aligning all of the male terminals in the BJB with the TPA lock and gently push straight down. As the TPA is installed, it can be felt as it passes by the lobes and properly seats. See Figure 6. – Inspect all four (4) corners of the TPA insert to ensure it is flush with the BJB housing. 13. Install the new larger high speed cooling fan relay into the new location, R24. See Figures 1 and 16. 14. Install the remaining fuses and relays with the exception of the original cooling fan relay R11 location, which should have been discarded. The original relay location (R11) will stay empty. See Figure 16. R11 NEW RELAY LOCATION FIGURE 16 2039X CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 ATTACHMENT III PAGE 13 OF 13 CUSTOMER SATISFACTION PROGRAM 21N01-S2 15. Position back both of the BJB’s power feed cables and install the nuts. See Figure 17. • Tighten to 80 lb in (9 Nm). x2 16. Install the BJB cover. See Figure 3. FIGURE 17 2039D 17. Position back the battery cable harness and connect the positive and negitive battery cables. Please follow the WSM procedures in Section 414-01. 18. Ensure the high speed cooling fan motor is operational. IMPORTANT NOTE: Federal law prohibits selling motor vehicle parts or components that are under safety, compliance, or emissions recall. Unless a part is requested to be returned to Ford, all parts replaced under this FSA must be scrapped in accordance with all applicable local, state and federal environmental protection and hazardous material regulations. Refer to the Parts Retention, Return, & Scrapping section of the FSA dealer bulletin for further information. CPR © 2022 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 08/2022 Ford Motor Company Ford Customer Service Division P. O. Box 1904 Dearborn, Michigan 48121 Customer Satisfaction Program 21N01 Mr. John Sample 123 Main Street Anywhere, USA 12345 Your Vehicle Identification Number (VIN): 12345678901234567 September 2022 At Ford Motor Company, we are committed not only to building high quality, dependable products, but also to building a community of happy, satisfied customers. To demonstrate that commitment, we are providing a no-charge Customer Satisfaction Program for your vehicle with the VIN shown above. Why are you receiving this notice? Your vehicle is equipped with a high-speed engine compartment cooling fan that is designed to turn on during long periods of idling to cool the engine. The engine cooling fan relay may fail after extended idling. A relay failure may cause the fan to remain on even when the engine is turned off or the fan may never turn on. A continuously running fan will increase the temperature of the relay’s connections (terminals) to beyond their design maximum. Excess temperature may eventually damage the relay. Our records indicate this vehicle has not had Customer Satisfaction Program 21B05 completed yet. We are pleased to let you know that, for your peace of mind, Ford Motor Company will provide a one-time repair to the high-speed cooling fan relay, if needed, at no cost to you. Note, this is the same repair as 21B05, only with different terms and conditions as described below. What is the effect? You may experience the engine compartment fan always on which may result in a drained battery, or in rare circumstances a melted/burned relay inside the fuse box. A damaged non-functional relay with the engine cooling fan always off may lead to engine overheating at idle. If your vehicle has already exceeded either time or mileage limits listed above, this no-cost, one-time repair will last through August 31, 2023. Program eligibility is automatically transferred to subsequent owners. This program provides a no-cost, one-time repair (if needed) to the high- speed cooling fan relay for 10 years or 150,000 miles from the warranty start date, whichever occurs first. © Copyright 2022 Ford Motor Company What will Ford and your dealer do? If your vehicle’s high-speed cooling fan relay requires replacement due to non-function or overheating and your vehicle is within the indicated time/mileage limitations, Ford Motor Company has authorized your dealer to upgrade the current high-speed cooling fan relay with a larger more effective relay and the related wiring connections free of charge (parts and labor). This is a one-time repair program. How long will it take? If the component mentioned above requires replacement, the time needed for this repair is less than one-half day. However, due to service scheduling requirements, your dealer may need your vehicle for a longer period of time. In addition, your vehicle may require an inspection to determine if parts need to be ordered. What should you do? You do not need to return to your dealer for this repair unless you have experienced engine cooling fan related issues including fan relay replacement, drained battery, or overheating caused by the relay. Please keep this letter as a reminder of the program terms if a repair of the high- speed engine cooling fan relay is needed. If relay requires replacement, and your vehicle is within the indicated time/mileage limitations, contact your dealer to schedule a service appointment. Provide the dealer with the VIN of your vehicle to schedule a service appointment for Customer Satisfaction Program 21N01. The VIN is printed near your name at the beginning of this letter. Your dealer will replace the part at no charge. If you do not already have a servicing dealer, you can access ford.com/support for dealer addresses, maps, and driving instructions. NOTE: You can receive information about Recalls and Customer Satisfaction Programs through our FordPass App. The app can be downloaded through the App Store or Google Play. In addition there are other features such as reserving parking in certain locations and controlling certain functions on your vehicle (lock or unlock doors, remote start) if it is equipped to allow control. Have you previously paid for this repair? If you paid to have this service done before the date of this letter, you may be eligible for a refund. Refunds will only be provided for service related to repair description. To verify eligibility and expedite reimbursement, give your paid original receipt to your dealer before March 31, 2023. To avoid delays, do not send receipts to Ford Motor Company. What if you no longer own this vehicle? If you no longer own this vehicle, and have an address for the current owner, please forward this letter to the new owner. You received this notice because our records indicate that you are the current owner. Can we assist you further? If you have difficulties getting your vehicle repaired promptly and without charge, please contact your dealership’s Service Manager for assistance. RETAIL OWNERS: If you have questions or concerns, please contact our Ford Customer Relationship Center at 1-866-436-7332 and one of our representatives will be happy to assist you. If you wish to contact us through the Internet, our address is: ford.com/support © Copyright 2022 Ford Motor Company © Company Can we assist you further? (continued) For the hearing impaired, call 1-800-232-5952 (TDD). Representatives are available Monday through Friday: 8:00AM – 8:00PM (Eastern Time). FLEET OWNERS: If you have questions or concerns, please contact our Ford Pro Contact Center at 1-800-34-FLEET, choose Option #1, and one of our representatives will be happy to assist you. If you wish to contact us through the Internet, our address is: fleet.ford.com. Representatives are available Monday through Friday: 7:00AM – 11:00PM and Saturday 7:00AM – 5:00PM (Eastern Time). MOTORHOME OWNERS: If you have questions or concerns, please contact our Motorhome Customer Assistance Center toll free at 1-866-906-9811. Representatives are available 24 hours a day. As part of the Ford community, we appreciate your attention to this important matter and your continued loyalty. Ford Customer Service Division
SEOCONTENT-END
