Coolant Consumption Information – 2014-2019 Ford

“This site contains affiliate links for which OEMDTC may be compensated”

NHTSA ID Number: 10163592

Manufacturer Communication Number: SSM 48106

Summary

Some 2014-2019 Fusion and 2017-2019 Escape vehicles with 1.5L Ecoboost engine exhibiting coolant consumption and white smoke from the exhaust. Follow Cooling System Pressure Test procedure in WSM, Section 303-03, and pressurize system to 138kPa(20 psi) and hold for 5 hours. If system pressure drops 27.57kPa (4psi) after 5 hours and borescopeeBay inspection through spark plug holes confirms coolant intrusion into the cylinders, short block replacement is required. Further teardown inspection is not required. Reuse the original cylinder head for the repair. Ford has found all returned 1.5L cylinder heads pass inspection and replacement was not required. Follow WSM, Section 303-01A procedures for repairs and refer the parts catalog as needed. Short block availability may be limited and temporary backorders will be filled as quickly as possible.



9 Affected Products

Vehicles

MAKE MODEL YEAR
FORD ESCAPE 2017-2019
FORD FUSION 2014-2019




SSM 48106

https://www.nhtsa.gov/recalls?nhtsaId=10163592

https://static.nhtsa.gov/odi/tsbs/2019/MC-10163592-0001.pdf

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [33.63 KB]




SSM 48150

https://www.nhtsa.gov/recalls?nhtsaId=10164599

https://static.nhtsa.gov/odi/tsbs/2019/MC-10164599-0001.pdf

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [110.59 KB]




SSM 47849

https://www.nhtsa.gov/recalls?nhtsaId=10156569

https://static.nhtsa.gov/odi/tsbs/2019/MC-10156569-0001.pdf

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [9.92 KB]




SSM 47625

https://www.nhtsa.gov/recalls?nhtsaId=10148741

https://static.nhtsa.gov/odi/tsbs/2018/MC-10148741-9999.pdf

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [38.04 KB]

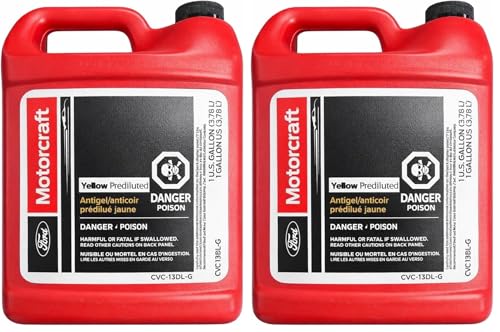

Bestseller No. 1
