Crank No-Start, Stalling – 2009-2014 Ford F-150

TSB 15-0137 BATTERY JUNCTION BOX FUSE 27 – CRANK NO START, LOSS OF RPM AND/OR MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATED WITH MULTIPLE DTCS



FORD: 2009-2014 F-150



ISSUE:

Some 2009-2014 F-150 vehicles may exhibit a crank no-start, stalling and/or a malfunction indictor lamp (MIL) illuminated with diagnostic trouble codes (DTCs) P0230, P025A, P0627, U0109, P0201, P0202, P0203, P0204, P0205, P0206, P0207 and/or P0208.



ACTION:

Follow the Service Procedure steps to correct this condition.



SERVICE PROCEDURE

  1. Does this vehicle exhibit a crank no-start, loss of RPM and/or a MIL illuminated with DTCs P0230, P025A, P0627, U0109, P0201, P0202, P0203, P0204, P0205, P0206, P0207 and/or P0208?
    1. Yes – proceed to Step 2.
    1. No – this article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnostics.
  1. Does the battery junction box (BJB) exhibit signs of excessive heat at fuse F27 (20 amp) terminal location?
    1. Yes – install a BJB fuse F27 relocation kit. Refer to the instructions in the kit.
    1. No – this article does not apply. Refer to the PC/ED manual for normal diagnostics.



PART NUMBER PART NAME

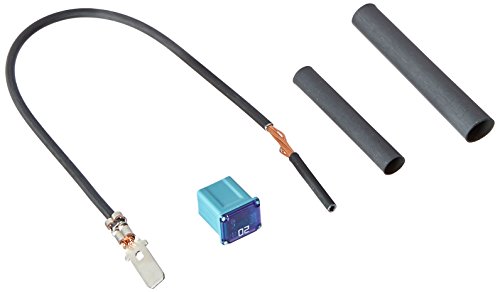

EL3Z-14293-A Crank No-Start, Stalling - 2009-2014 Ford F-150 » small light Fuse Relocation Kit



OPERATION DESCRIPTION TIME
150137A 2009-2014 F-150: Inspect And Relocate Fuse Following The Service Procedure And Kit Instructions (Do Not Use With Any Other Labor Operations) 0.6 Hr.



WARRANTY STATUS

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.



DEALER CODING

BASIC PART NO. CONDITION CODE
14A067 42



15-0137
