NHTSA ID Number: 10244797
Manufacturer Communication Number: TSB 23-2334
Summary
This article supersedes TSB 21-2220 to update the model years affected and part list. Some 2018-2024 Mustang
coupe vehicles may exhibit a sagging headliner or gap where the headliner meets the upper door weatherstrip. This may be due to an outward bent door frame moulding not allowing the weatherstrip to overlap the headliner properly. To correct this condition, follow the Service Procedure to replace the door frame moulding.
This bulletin supersedes 21-2220.
Model:
Summary
This article supersedes TSB 21-2220 to update the vehicle model years affected and part list.
Issue: Some 2018-2024 Mustang coupe vehicles may exhibit a sagging headliner or gap where the headliner meets the upper door weatherstrip. This may be due to an outward bent door frame moulding not allowing the weatherstrip to overlap the headliner properly. To correct this condition, follow the Service Procedure to replace the door frame moulding.
Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:
- 2018-2024 Mustang coupe
- Sagging headliner or gap where the upper door weatherstrip overlaps the headliner
Parts – 2018-2023 Mustang
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| FR3Z-6302565-D | 1 | Left Black Door Frame Moulding | 1 | 1 |
| FR3Z-6302565-E | 1 | Left Bright Door Frame Moulding | 1 | 1 |
| FR3Z-6302564-D | 1 | Right Bright Door Frame Moulding | 1 | 1 |
| FR3Z-6302564-E | 1 | Right Black Door Frame Moulding | 1 | 1 |
Parts – 2024 Mustang
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| PR3Z-6302564-A | 1 | Right Door Frame Moulding | 1 | 1 |
| PR3Z-6302565-A | 1 | Left Door Frame Moulding | 1 | 1 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
Service Procedure
1. Partially remove the upper door weatherstrip from the door frame moulding. (Figure 1)
Figure 1
2. Remove the 8 retaining screws securing the door frame moulding. (Figure 2)
(1). Tighten to 1 Nm (8.85 lb/in.).
Figure 2
3. Remove and discard the door frame moulding.
4. To install the new door frame moulding, reverse the removal procedure.
6 Affected Products
Vehicle
1 Associated Document
Manufacturer Communications
23-2334
26 October 2023
MC-10244797-0001.pdf 112.484KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10199522
Manufacturer Communication Number: TSB 21-2220
Summary
Some 2018-2021 Mustang coupe vehicles may exhibit a sagging headliner or gap where the headliner meets the upper door weatherstrip. This may be due to an outward bent door frame moulding not allowing the weatherstrip to overlap the headliner properly. To correct this condition, follow the Service Procedure to replace the door frame moulding.
1 Associated Document
Manufacturer Communications
21-2220
12 July 2021
MC-10199522-0001.pdf 108.259KB
Loading...

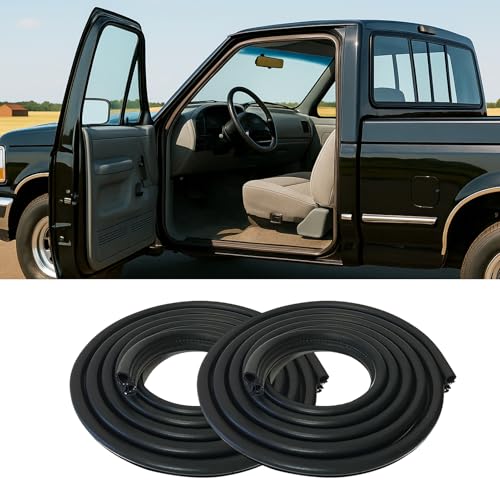

- Excellent Sealing Effect: Door seals weatherstrip has good sealing performance, which can effectively prevent rainwater, dust and other impurities from entering the car, and can also block the penetration of cold air and hot air, making the temperature inside the car more stable and controllable, allowing you to enjoy comfort driving experience
- Noise Isolation: Weatherstrips are also effective at isolating external noise, including road noise, traffic sounds, and other ambient noise. This will enhance the driving and riding experience inside the car, creating a more tranquil environment
- Long-lasting Use: Made of high-quality durable rubber, it has good durability and anti-aging performance. With good elasticity and resistance to compression deformation, it can withstand different environmental and service conditions, ensuring long-term performance and protection
- Perfect Compatibility: Fit for Ford Bronco 1980-1996, fit for Ford F100 1980-1983, fit for Ford F150 1980-1996, fit for Ford F250 1980-1996 F250 HD 1997, fit for Ford F350 1980-1997. Ensure perfect fit to the contour of the door, seamless connection, and effectively seal the gap between the door and the body
- Simple Installation, Zero Damage to the Body: The installation process is simple, just snap the sealing strip in without any modification to the body. Ensure that the installation will not damage the appearance of the vehicle, you can easily complete the installation without professional skills

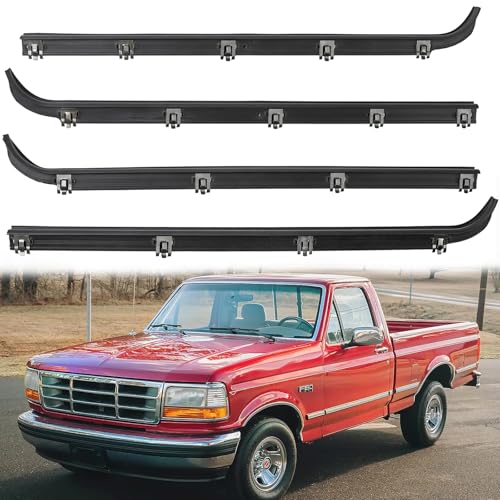

- 【Vehicle Compatibility】4PCS Weather Stripping Window Trim Seal Set Includes Front Left & Right Inner & Outer, Compatible with 1987-1996 Ford F150 | 1987-1997 Ford F250 | 1987-1997 Ford F350 | 1987-1996 Ford Bronco.
- 【Replacement Part Number】E7TZ1521453A,E7TZ1521452A,F2TZ1521457A, F2TZ1521456A.Before placing your order, Please verify that these part numbers match your vehicle before purchasing.
- 【High Quality】Made of high-quality materials, the weather stripping provides excellent wear and impact resistance, ensuring a long service life. The built-in metal layer enhances the felt’s strength, allowing for cleaner window sweep，when the window moves up and down.
- 【Easy To Install】Install the trim seal belt easily with its metal buckle design—just align and insert for a secure fit. It offers strong waterproof, dustproof, and rainproof protection, and can be warped without distortion to improve sealing and reduce noise from bumps. Note: For curved parts, use a rubber hammer or towel-wrapped wooden stick for adjustments.
- 【Support】If you have concerns about the window trim, contact us,we will deal with it as soon as possible! We offer 12-month warranty for a hassle-free experience.
- 【Easy Installation】This front & rear lower door rubber weather strip seal set is manufactured to the OE specification to provide factory appearance and direct-fit, just takes 15 minutes to replace the old door trim rain seal.
- 【Premium Quality】Long life-span matters, that is why our weatherstrip seal is made of high-quality rubber, ensures the accuracy of size matching, and achieve the functions of sealing, leakage prevention and sound insulation.
- 【Fit For】1999-2016 Ford F-250, 1999-2016 Ford F-350, 1999-2016 Ford F-450, 1999-2016 Ford F-550 Super Duty Crew Cab, 2000-2005 Ford Excursion. Our door weather stripping assembly remains soft at extremely low temperatures, and it also maintains elastic properties at extremely high temperatures.
- 【Replace OE NUMBER】F81Z-2520758-AA, F81Z2520758AA, 1C3Z-26253A24-A, 1C3Z26253A24A. The weather sealing has went through vehicle try-on testing, means you will get a fairly reliable door trim seal. Works just like OEM, half the price.
- 【24-Month Warranty】If for any reason at all, you are not satisfied with the weatherstrip adhesive, you can contact us through amazon message to apply the service of carefree REPLACEMENT or REFUND.
- 【Replacement Part Number】 - E7TZ1521452A, E7TZ1521453A, F2TZ1521456A, F2TZ1521457, F2TZ1521457A, E7TZ152153, E7TZ1521452, F2TZ1521456, . ordering please confirm whether the accessories are suitable for your car
- 【FIT FOR】 - Compatible With Ford Vehicle Excursion 2000-2005, F-250 Super Duty 1999-2017, F-350 Super Duty 1999-2017, F-450 Super Duty 1999-2017, F-550 Super Duty 1999-2017, F-650 2016-2017, F-750 2016-2017
- 【Perfect function】 - The use of enhanced high-quality materials, wear resistance, impact resistance and long service life. The built-in metal interlayer greatly enhances the strength of the window felt. When the window moves up and down, they will sweep the window cleaner
- 【High Performance & Easy to Install】 - 100% New and high quality material. With the passage of time, the window felt will gradually be worn and then broken. At this time, harmful water and debris will enter the door. Replace the new window felt to prevent the occurrence of water accumulation, avoid the noise of car windows knocking, and provide you with long-term stable and excellent performance. Can be installed directly
- 【Friendly Serves】 - Please buy it confidence! This Weatherstrip Seal is 100% Brand New . All Products Shipped Are Tested And Easy To Install. We can provide 1 years quality support for this!
- 【Door Weatherstrip Seal for Ford】: Compatible with Ford F-250 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016, 99-16 Ford F-350, 99-16 Ford F-450, 99-16 Ford F-550 Super Duty Crew Cab, 2000-2005 Ford Excursion
- 【Replace Window Seal Trim Kit fit for Ford F250 】: Designed according to OE Style whose OEM Numer Repalce: F81Z-2520758-AA, F81Z2520758AA, 1C3Z-26253A24-A, 1C3Z26253A24A
- 【Quality Material】：ACLONG Door Rubber Weather Strip Made of high-quality rubber, which is flexible and durable in use. It has also went through the strict Quality Control and has long lifespan
- 【Reduce Wind Noise】: F250 door seal ist designed to make the door close more tightly, thus reduce the wind noise, stop Vehicle Leadking and improve your driving experience
- 【Easy to Install】: This F250 Door Trim is direct replacment, just spend you 15 minutes in Pressing and Pushing along the along the lower Car Door
- 【Vehicle Compatibility】6PCS Weather Strip Kit. Compatible with 1987-1996 Ford F150 | 1987-1997 Ford F250 | 1987-1997 Ford F350 | 1987-1996 Ford Bronco｜1997 Ford F250 HD. Replacement Part Number:E7TZ1521452A E7TZ1521453A F2TZ1521456A F2TZ1521457A E9TZ1521563A
- 【Seal Kit Includes】 (4PCS)Driver & Passenger Side Inner & Outer Window Felt Seal Belt,(2PCS)Driver & Passenger Side Window Glass Run Channel Rubber Seals,(2PCS)Front Door to Body Weather stripping Seals on the Driver & Passenger Side .
- 【High Quality】Made of high-quality materials, the weather stripping provides excellent wear and impact resistance, ensuring a long service life. The built-in metal layer enhances the felt’s strength, allowing for cleaner window sweep，when the window moves up and down.
- 【Easy To Install】Install the trim seal belt easily with its metal buckle design—just align and insert for a secure fit. It offers strong waterproof, dustproof, and rainproof protection, and can be warped without distortion to improve sealing and reduce noise from bumps. Note: For curved parts, use a rubber hammer or towel-wrapped wooden stick for adjustments.
- 【Support】If you have concerns about the window trim, contact us,we will deal with it as soon as possible! We offer 12-month warranty for a hassle-free experience.

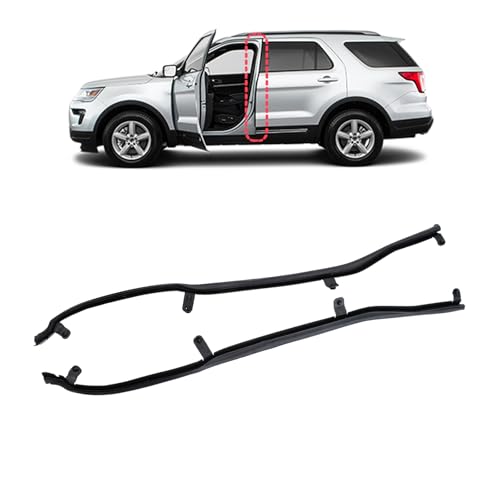

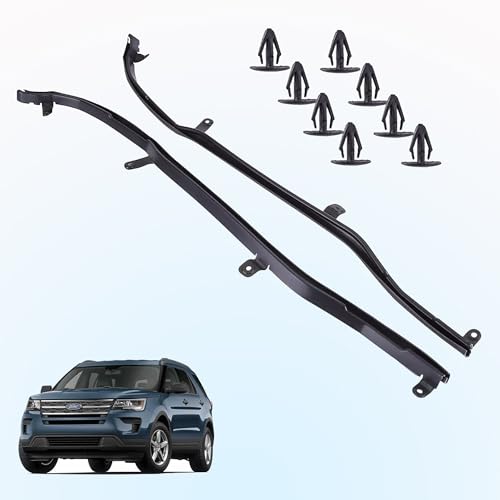

- Fitment:For Ford Explorer 2011 2012 2013 2014 2015 2016 2017 2018 2019
