NHTSA ID Number: 10181869
Manufacturer Communication Number: SSM 49099
Summary
2019-2020 F-150 vehicles equipped with four-wheel drive (4WD) have a revised transfer case control module (TCCM) strategy that will affect integrated wheel end (IWE) operation after initial start-up. The TCCM will not energize the solenoid to supply vacuum to the IWEs after the initial key cycle and a driven gear is selected. The IWEs will remain engaged for 0.8 km (0.5 mi) when the temperature is above 0 deg C (32 deg F) and 3 km (2 mi) when below 0 deg C (32 deg F). The strategy changes were implemented to improve vacuum supply management and axle warm up in cold temperatures. The engine must run for a minimum of 5 minutes to build sufficient vacuum before performing any vacuum related testing. Refer to the Workshop Manual (WSM) Section, 307-08A > Four-Wheel Drive Systems > System Operation and Component Description for additional information.
2 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| FORD | F-150 | 2019-2020 |
Vehicles:
2019-2020 F-150 (P552) (FC)
Symptom Code:
400000 ENGINE
497000 ENGINE NOISE CONCERNS
499000 ENGINE BASIC ENGINE
500000 DRIVELINE
508000 DRIVELINE TRANSFER CASE CONCERNS
597997 DRIVELINE NOISE CONCERNS
700000 NOISE AND VIBRATION
702000 NVH OTHER NOISE CONCERNS
702100 NVH NOISE CONCERN — FRONT
702300 NVH NOISE CONCERN — PASSENGER COMPARTMENT
1 Associated Document
Manufacturer Communications
SSM 49099: 2019-2020 F-150 – 4WD – Electronic Shift On-The-Fly (ESOF) Diagnostic Tips
https://www.nhtsa.gov/recalls?nhtsaId=10181869
MC-10181869-0001.pdf 161.589KB
Loading...
Reload document
Open in new tab
Bestseller No. 1

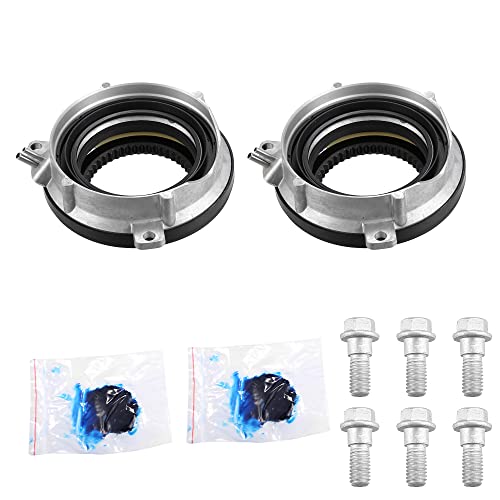

X AUTOHAUX 2Pcs Front 4x4 4WD Locking Hub Actuator for Ford F150 4WD 2004-2016 for Ford Expedition 4WD 2003-2015 7L1Z3C247A 4WD Hub Auto Locking Actuator
- [ Fitment ] for Ford Expedition 2003-2015,for Ford F-150 2004-2016,for Ford F-150 Heritage 2004,for Lincoln Mark LT 2006-2008.Fits 4WD (Four Wheel Drive) Models Only.
- [ OE Number ] 7L1Z3C247A,7L1Z-3C247-A.This actuator is suitable for front left (driver side) or front right (passenger side).
- [ Function ] Suitable for 4WD system vehicles, help to solve the problem that the front wheel cannot be locked, the hub makes noise, the hub is locked and fails or cannot be driven.
- [ Feature ] Made of durable material, sealed and leak-proof design to prevent water intrusion, with some grease, the internal diaphragm is not easy to wear or break, and has a long service life.
- [ Package Include ] 2Pcs Front Locking Hub Actuator, 6Pcs Screw.
Bestseller No. 2
X AUTOHAUX 2 Pcs 4x4 Auto Locking Hub 4WD Locking Hub Actuator for Ford F-150 2004-2016 for Ford Expedition 2003-2015 for Lincoln Navigator 2003-2017 7L1Z3C247A 4 Wheel Drive
- Fitment: The Auto Locking Hub fit for Ford Expedition 2003-2015, for Ford F-150 2004-2016, for Ford F-150 Heritage 2004, for Lincoln Mark LT 2006-2008, for Lincoln Mark LT 2010-2014, for Lincoln Navigator 2003-2017. For 4WD (Four Wheel Drive) Models Only.
- OE Number: 4 Wheel Drive Locking Hubs replace number is 7L1Z-3C247-A, 7L1Z3C247A
- Function: The 4WD Auto Locking Hub is suitable for 4WD system vehicles, fits both front left or front right wheel hubs, help to solve the problem that the front wheel cannot be locked, the hub makes noise, the hub is locked and fails or cannot be driven.
- Feature: Hub actuators connect the axle shaft to the wheel hub and control power transferred from the axle assembly to the front wheels. Lock Hub Assembly is made of durable material, sealed and leak-proof design to prevent water intrusion, with some grease, the internal diaphragm is not easy to wear or break, and has a long service life.
- Package Include: 2 x Hub Actuator
Bestseller No. 4

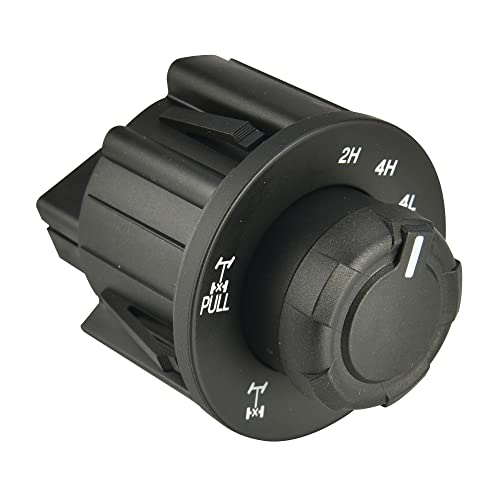

4x4 4WD E-Locker Override Control Switch Knob Compatible with 2009-2014 Ford F-150 Replacement for AL3Z-14B166-BA
