NHTSA ID Number: 10241524
Manufacturer Communication Number: TSB 23-2251
Summary
Some 2019-2023 Ranger (non-Tremor) vehicles may exhibit a shudder/vibration when accelerating. This may be due to an excessive rear axle pinion angle (rear wheel drive (RWD) vehicles) or the pinion and driveshaft assemblies (four-wheel drive (4WD) non-Tremor vehicles). To correct the condition, follow the Service Procedure steps to adjust the rear axle pinion angle on 4×2 vehicles or replace the rear axle pinion and driveshaft on 4×4 non-Tremor vehicles.
This bulletin supersedes 23-2078.
Model:
Ford
2019-2023 Ranger |
Summary
This article supersedes TSB 23-2078 to update the service procedure.
Issue: Some 2019-2023 Ranger (non-Tremor) vehicles may exhibit a shudder/vibration when accelerating. This may be due to an excessive rear axle pinion flange angle (rear wheel drive (RWD) vehicles) or the driveshaft assembly (four-wheel drive (4WD) non-Tremor vehicles). To correct the condition, follow the Service Procedure steps to adjust the rear axle pinion angle on RWD vehicles or replace the rear axle pinion and driveshaft on 4WD non-Tremor vehicles.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- 2019-2023 Ranger (non-Tremor)
- Shudder/vibration when accelerating
Parts
Parts Required For RWD Equipped Vehicles
Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
KB3Z-4C088-B | 1 | Shim Kit | 1 | 1 |
Parts
Parts Required For 4WD Equipped Vehicles (Non Tremor)
Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
MB3Z-4851-L | 1 | Rear Axle Flange Kit | 1 | 1 |
LB3Z-4R602-E | 1 | Rear Driveshaft Assembly | 1 | 1 |
W714780-S439 | 1 | Bolts – Center Bearing | 4 | 2 |
W716344-S437 | 4 | Bolts – Driveshaft to Transfer Case | 1 | 4 |
W717938-S439 | 4 | Bolts – Rear Brake Caliper | 1 | 4 |
E8UZ-4N282-A | 1 | Fill Plug – Rear Axle | 3 | 1 |

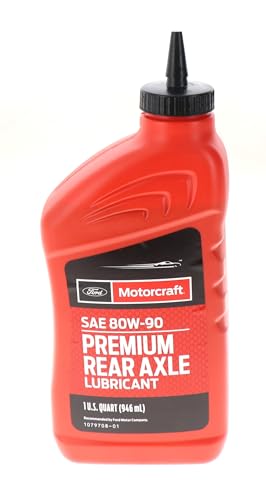

XY-80W90-QL | As Needed | Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant |
Service Procedure
1. Proceed to the appropriate procedure based on how the vehicle is equipped.
(1). If the vehicle is equipped with four-wheel drive (4WD), complete Procedure A.
(2). If the vehicle is equipped with rear wheel drive (RWD), complete Procedure B.
Procedure A: Driveline Vibration Diagnosis – Vehicles Equipped With 4WD
1. Remove the rear drive axle pinion flange and driveshaft assemblies. Refer to the Workshop Manual (WSM), Section 205-02, Removal and Installation, Drive Pinion Flange and follow only the removal instructions.
CAUTION: During installation of the new driveshaft, do not allow it to overextend. Overextending the driveshaft may create a vacuum causing the protective boot to collapse.
2. Install the new drive axle pinion flange and driveshaft assemblies. Refer to the WSM, Section 205-02, Removal and Installation, Drive Pinion Flange – Tremor and follow only the installation instructions.
Procedure B: Driveline Vibration Diagnosis – Vehicles Equipped With RWD
1. Park the vehicle on a level surface such as a drive-on hoist or alignment rack.
2. Verify the front and rear ride height is within specification. Refer to Workshop Manual (WSM), Section 204-00. Is the ride height within specification?
(1). Yes – proceed to Step 3.
(2). No – this article does not apply. Refer to WSM, Section 204-00 for further diagnostics.
3. Calibrate the digital inclinometer by placing it on a clean, flat and level section of the vehicle frame rail as indicated in Figure 1. Zero the tool.
NOTE: Do not use an analog dial gauge angle/finder protractor to measure rear axle pinion angle; an accurate reading will not be obtained. (Figure 1)
Figure 1
4. To simplify taking the measurements, rotate the driveshaft until the rear axle pinion flange yoke is parallel with the floor.
5. Take the rear axle pinion angle measurement from the horizontal face of the rear axle flange yoke and record as Angle A. (Figure 2)
Figure 2
6. Does the measurement read between 5.00 – 6.00 degrees?
(1). Yes – this article does not apply. Refer to WSM section 205-01 for further diagnostics.
(2). No – proceed to Step 7.
7. Support the front of the vehicle. Use the General Equipment: Vehicle/Axle Stands.
8. Support the rear axle assembly. Use the General Equipment: Transmission Jack.
9. On both sides, remove and discard the rear shock absorber lower bolt and nut.
NOTE: Support the rear axle before removing the rear leaf spring U-bolts.
10. On both sides:
(1). Remove and discard the rear leaf spring U-bolt nuts.
(2). Remove the rear leaf spring U-bolt plates.
(3). Remove and discard the U-bolts.
11. Lower the axle assembly to gain access to the 1/4 in. (6 mm) spacer on the left side.
12. Remove and discard the 1/4 in. (6 mm) spacer on the left side.
NOTE: The service kit contains all of the parts necessary for the adjustment procedure. The rear axle pinion angle can be changed by adding a 0.5, 1, 1.5, or 2 degree rear axle pinion angle shims.
NOTE: Rear axle pinion shims provided in the kit are marked as LH and RH to identify the side of vehicle they are to be used. The thicker rear axle pinion shims are to only be used on the left side of the vehicle, and the thinner rear axle pinion shims on the right side.
NOTE: Only use 1 rear axle pinion shim per side.
NOTE: Make sure the rear axle pinion angle is between 5.00 – 6.00 degrees.
13. Install the desired rear axle pinion shims on the axle spring seats based on the calculation from Step 6.
(1). To decrease rear axle pinion angle, the thick edge of the rear axle pinion shim should be facing forward.
(2). To increase rear axle pinion angle, the thick edge of the rear axle pinion shim should be facing rearward.
NOTE: Make sure the word FRONT stamped on the part is facing rearward when increasing rear axle pinion angle.
14. Position and raise the rear axle.
NOTE: Tighten the rear spring U-bolts in a cross pattern with the vehicle resting on the wheels and tires (curb height).
15. On both sides:
(1). Position the new U-bolts onto the rear axle.
(2). Install the rear leaf spring U-bolt plates.
(3). Install the new rear leaf spring U-bolt nuts and tighten to 98 lb-ft (133 Nm) (Figure 3)
16. Position the rear shock absorber and install a new lower bolt and nut. Remove the transmission jack and tighten to 52 lb-ft (70 Nm).
17. Remove the support from the front of the vehicle.
NOTE: For additional information, refer to WSM Section 205-02.
NOTE: If the concern is still present, continue with normal diagnosis and repair.
5 Affected Products
Vehicle
MAKE | MODEL | YEAR |
FORD | RANGER | 2019-2023 |
1 Associated Document
Manufacturer Communications
23-2251
10 August 2023
https://www.nhtsa.gov/recalls?nhtsaId=10241524
MC-10241524-0001.pdf 134.072KB
NHTSA ID Number: 10233590
Manufacturer Communication Number: TSB 23-2078
Summary
Some 2019-2023 Ranger vehicles may exhibit a shudder/vibration when accelerating from a stop. This may be due to an excessive rear axle pinion angle. To correct the condition, follow the Service Procedure steps to adjust the rear axle pinion angle.
1 Associated Document
Manufacturer Communications
23-2078
17 March 2023
https://www.nhtsa.gov/recalls?nhtsaId=10233590
4 Affected Products
Vehicle
MAKE | MODEL | YEAR |
FORD | RANGER | 2019-2022 |
NHTSA ID Number: 10208143
Manufacturer Communication Number: TSB 22-2051
Summary
Some 2019-2022 Ranger vehicles may exhibit a shudder/vibration when accelerating from a stop. This may be due to an excessive rear axle pinion angle. To correct the condition, follow the Service Procedure steps to adjust the rear axle pinion angle.
1 Associated Document
Manufacturer Communications
22-2051
18 February 2022
https://www.nhtsa.gov/recalls?nhtsaId=10208143
MC-10208143-0001.pdf 155.971KB
NHTSA ID Number: 10194430
Manufacturer Communication Number: TSB 21-2136
Summary
Some 2019-2021 Ranger vehicles may exhibit a shudder/vibration when accelerating from a stop. This may be due to an excessive rear axle pinion angle. To correct the condition, follow the Service Procedure steps to adjust the rear axle pinion angle. This article supersedes TSB 20-2277 to update the vehicle model years affected.
1 Associated Document
Manufacturer Communications
21-2136
30 April 2021
https://www.nhtsa.gov/recalls?nhtsaId=10194430
MC-10194430-0001.pdf 184.184KB
NHTSA ID Number: 10179150
Manufacturer Communication Number: TSB 20-2277
Summary
Some 2019-2020 Ranger vehicles may exhibit a shudder/vibration when accelerating from a stop. This may be due to an excessive rear axle pinion angle. To correct the condition, follow the Service Procedure steps to adjust the rear axle pinion angle.
1 Associated Document
Manufacturer Communications
20-2277
19 August 2020
https://www.nhtsa.gov/recalls?nhtsaId=10179150
MC-10179150-0001.pdf 173.422KB
