NHTSA ID Number: 10146050
Manufacturer Communication Number: COD-F6M2T-12
Summary
Advises distributors of availability of a redesigned mounting system for Code 3ยฎ Citadel LED Lighting Systems installed on Ford Police Interceptor Utilities (PIUs)
1 Affected Product
Equipment
BRAND | PART NO. | PRODUCTION DATES |
CODE 3 | CODE 3 |
PRODUCT INFORMATION BULLETIN
November 1, 2017
SUBJECT: | Availability of Redesigned Mounting System for Code 3ยฎ Citadel LED Lighting Systems Installed on Ford![]() |
PRODUCT: | Code 3ยฎ Citadel LED Lighting Series Product Numbers: |
CITEXI-BA-CB
CITEXI-RABA-CB
CITEXI-RA-CB
CITEXI-RB-CB
CITADEL-EXI
CITADEL-EXI-CB
CITADEL-PIU
CITEXI-AA
CITEXI-BB
CITEXI-RB
CITEXI-RR
CIT-EXI-UPGKIT
CELS
Dear Code 3ยฎ Customer:
We want to communicate an important update regarding our Citadel LED Lighting Series. You may be aware that there have been reports by law enforcement professionals of exhaust containing carbon monoxide (CO) entering the cabin of some Ford Police Interceptor Utility (PIU) vehicles. While our investigation indicates that the Code 3ยฎ Citadel LED Lighting Series does not contribute to this issue if properly installed, we will soon make available a new mounting system for use with the Citadel LED Lighting Series. The new mounting kit is designed to mitigate the risk of elevated CO in the PIU cabin due to improper installation of the Citadel LED Lighting Series.
Customer satisfaction is of critical importance to Code 3ยฎ, therefore (1) all Citadel LED light kits we supply going forward will include the new mounting system and (2) the new mounting system will be made available to you free of charge for each previously purchased Citadel LED light kit.
What is the Reason for the Redesign?
Ford has indicated it believes that certain aftermarket upfit modifications located at the rear of the vehicle (such as around the tail light or rear lift gate) may be contributing to elevated CO levels in the cabin if certain seals are not properly repaired or re-sealed during the installation. Ford
described its concern in Ford
Customer Satisfaction Program 17B25 as follows: โWhen an up-fitter installs customized emergency lighting, radios and other equipment, they may damage vehicle sealing systems and/or drill holes into the rear of the vehicle. This creates an opening where exhaust could enter the cabin if the sealing system is not properly repaired and holes are not properly sealed.โ As part of its campaign, Ford
dealers have been instructed to inspect the rear of PIU vehicles and repair damage to body seals, grommets and liftgate spoiler sealing systems, seal the liftgate interior trim panel, install new muffler tips, seal certain body plugs in the floor pan, reprogram the Climate Control (HVAC) module, and check the Powertrain Control Module (PCM) for diagnostic trouble code (DTC) P0420 and/or P0430 following the technical instructions.
Due to its concerns regarding damaged seals during the upfitter installation process, Ford has also recommended the removal of aftermarket lighting and/or equipment mounted to the spoiler. Because of Ford
โs recommendation and our commitment to customer satisfaction, Code 3ยฎ developed the new mounting system for the Citadel LED Lighting Series so that it does not require removal of the spoiler and, therefore, addresses Ford
โs concern regarding damaged seals.
What Steps Should You Take?
Code 3ยฎ recommends that you promptly take the following steps:
- Check Your Inventory. If you have any Code 3ยฎ Citadel LED light kits in your inventory, please contact your Code 3ยฎ representative to order new mounting system kits (see product numbers below) for use in connection with the installation of those Citadel LED light kits in your inventory.ย We will provide these new kits free of charge (one per Citadel LED light kit) through September 30, 2018, and we ask that you do not install any further Citadel LED light kits until you have received the new mounting system kits from us.ย All Citadel LED light kits should be installed using the new mounting system in accordance with the installation instructions accompanying the new kit.
- Contact Known End-Users. We request that you transmit copies of the attached End-User Letter to any known end-users (or alternatively, you may provide enduser contact information to us and we will notify them).ย It advises end-users to have a Ford
dealer perform Customer Satisfaction Campaign 17B25 to covered PIU vehicles.ย Among other things, Ford
dealers will remove end-user Citadel LED Lighting Systems, repair damage to body seals, grommets and liftgate spoiler sealing systems, and seal the liftgate interior trim panel.ย Ford
will return the Citadel LED Lighting System to the end-user upon completion, after which end-users should bring their PIU vehicles and Citadel LED light kits to you for re-installation using the new mounting system.
- Order New Mounting System. Upon making arrangements with end-users to reinstall their Citadel LED light kits using the new mounting system, contact your Code 3ยฎ representative to order the new mounting kits (see product numbers below). Again, we will provide new kits free of charge (one per vehicle in which a Citadel LED light kit was previously installed) through September 30, 2018.
- Re-Installation for End-Users. Re-install the Citadel LED light kits using the new mounting system in accordance with the installation instructions accompanying the new kits.
- The product numbers for the new mounting system kit are:
If the wire powering your Citadel looks like this (indicating an independent flashing version):
use product number CITRTF-IF
If the wire powering your Citadel looks like this (indicating a controller version โ CEL or CB):
use product number CITRTF-CB
Questions?
If you have any questions, please contact:
Email: C3_tech_support@code3esg.com
Phone: 314-996-2800
* * *
We appreciate your cooperation and prompt attention to this important matter.
Sincerely,
John Ducharme
President, Americas Code 3, Inc.
Enclosure:
End-User Communication
1 Associated Document
Manufacturer Communications
MC-10146050-9999.pdf 1952.313KB
- Voltage 12-24 V
- Stop-Tail-Turn-Reverse and Warning Light Combo
- These low-profile, multifunctional lights maximize visibility on the back of the vehicle
- Use them to indicate stop-turn-tail-reverse with steady burn red and white colors
- When warning lights are activated, the dual-color lights provide 69 attention-grabbing flash patterns
- Long lasting and durable material
- Easy and flexible to use
- Manufactured in China
- Amber LEDs
- Vibration and Shock-Resistant Construction
- Ultrasonically Sealed Housing
- Sync-capable with additional 3811s
- Certified SAE Class 1 and California Title 13
- ECO-3920A 12 Vdc 0.8
- Made in United States
- Package Dimensions : 6.5 L x 0.57 H x 2.0 W (inches)
- Package Weight : 0.5 pounds
- SAE CLASS 1 SURFACE MOUNT LED
- AMBER, 3. 3IN X 1. 1IN X . 4IN
- This amber led warning light produces vibrant 12 flash patterns flashes
- LED (6), Flood Beam, Round, 10-30VDC
- Aluminum heatsink housing
- Polycarbonate lens
- Steel mounting bracket
- Package Dimensions: 5.0 L x 14.7 H x 5.8 W (centimeters)
- Made in China
- Package Weight : 0.55 pounds

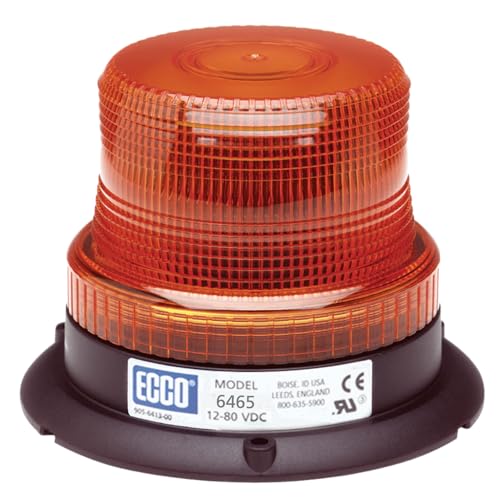

- Pulse 8 Flash Pattern
