NHTSA ID Number: 10177856
Manufacturer Communication Number: TSB 20-2216
Summary
Some 2020 Escape vehicles equipped with heated front seats built on or before 14-Feb-2020 may exhibit a bulge in the front seat cushion that the customer describes as uncomfortable. This may be due to wiring for the heated seat. To correct the condition, follow the Service Procedure to replace the heated seat mat on the affected front seat.
1 Affected Product
Vehicle
| MAKE | MODEL | YEAR |
FORD | ESCAPE | 2020 |
TECHNICAL SERVICE BULLETINFront Seat Cushion Uncomfortable – Heated Seats – Built On Or Before 14-Feb-2020 | 20-2216 09 July 2020 |
Model:
Ford
2020 Escape
Issue: Some 2020 Escape vehicles equipped with heated front seats built on or before 14-Feb-2020 may exhibit a bulge in the front seat cushion that the customer describes as uncomfortable. This may be due to wiring for the heated seat. To correct the condition, follow the Service Procedure to replace the heated seat mat on the affected front seat.
Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:
- 2020 Escape
- Built on or before 14-Feb-2020
- Equipped with heated seats
- Bulge in front seat cushion
Parts
| Part Number | Description | Quantity | |
| LJ6Z- 14D696-J | – | Front Seat Mat | 1 Per Affected Seat |
| W719675- S451 | Package Contains 4 Pieces, 4 Pieces Required Per Affected Seat | Seat Bolts | 1 Per Affected Seat |
Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Service Part Warranty (SPW)/Special Service Part (SSP)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/SPW/SSP/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
Labor Times
| Description | Operation No. | Time |
| 2020 Escape: Replace The Heated Seat Mat On The Passenger Front Seat Includes Time To Remove And Install Seat (Do Not Use With Any Other Labor Operations) | 202216A | 1.2
Hrs. |
| 2020 Escape: Replace The Heated Seat Mat On The Driver Front Seat Includes Time To Remove And Install Seat (Do Not Use With Any Other Labor Operations) | 202216B | 1.0
Hrs. |
| 2020 Escape: Replace The Heated Seat Mat On Both The Driver And Passenger Front Seats Includes Time To Remove And Install Seats (Do Not Use With Any Other Labor Operations) | 202216C | 2.0
Hrs. |
Repair/Claim Coding
| Causal Part: | 14D698 |
| Condition Code | 43 |
Service Procedure
- Replace the heated seat mat on the affected front seat. Refer to Workshop Manual, Section 501-10A.
1 Associated Document
Manufacturer Communications
20-2216
09 July 2020
MC-10177856-0001.pdf 106.278KB
Loading...
Reload document
Open in new tab
Bestseller No. 1
AUTOKAY Driver or Passenger Side Seat Heater Control Module Fits for Ford F250 F350 F450 Super Duty Edge Explorer Flex Fusion Taurus 2011-2019 for Lincoln MKS MKT MKZ 2013-2019
- Part Number: BU5Z-14C724-A
- Fits for Ford Edge 2011 2012 2013 2014 2015 2016 2017 2018 Explorer 2011 2012 2013 2014 2015 Flex 2013 2014 2015 2016 2017 2018 2019 Fusion 2014
- Fits for Ford F-250 Super Duty 2011 2012 2013 2014 2015 2018 F-350 Super Duty 2011 2012 2013 2014 2015 2016 2017 2018 F-450 Super Duty 2011 2012 2013 2014 2015 2016 Taurus 2013 2014 2015 2016 2017 2018
- Fits for Lincoln MKS 2013 2014 2015 2016 MKT 2013 2014 2015 2016 2017 2018 2019 MKZ 2013 2014
- Package Included: 1x Seat Heater Switch
Bestseller No. 2
Lizixny Driver Seat Bottom Heated Pad, FB5Z-14D696-A Replacement Seat Cushion Heater for Ford Explorer 2016-2019 Left Right Front Heated Seat Pad
- Fitment๏ผThe seat bottom heated pad fits for Ford Explorer 2016-2019. with heated seats only! Does not fit models with cooled seats!
- OE/OEM Part Number: FB5Z-14D696-A
- Custom Comfort Control: Enjoy personalized heating settings. this seat heating technology ensures your seats stay warm, ensuring a comfortable and soothing ride no matter how cold it gets outside
- Premium Quality & Durability: Crafted from quality materials that endure rigorous daily use, our seat heaters are built to last. ensures comfort during extended periods of sitting, while the reliable heating elements guarantee years of dependable warmth
- The heater pad is installed between the seat interior and the padding underneath. The installation requires the removal and reinstallation of the seat and seat cover, and the basic knowledge of the vehicle wiring.
Bestseller No. 3
Anina WPT928 Wiring Kit Heated/Cooled Seat Module Connector Wire Assembly for 2003-2019 Ford F150 F250 Explorer Mustang Fusion Lincoln MKS Mercury Milan 12 Leads Wiring Harness 3U2Z-14S411-ZMB WPT-928
- Replacement Part Number: WPT928, WPT-928, 3U2Z-14S411-ZMB pigtail wires; The OEM part fix connector wire harness is perfectly solve your heated and cooled seats climate control module problem, easily replace the melted plug
- Compatible with Lincoln and Mercury: Replacement wiring kit for Lincoln 2015-2019 MKC; 2009-2016 MKS; 2010-2019 MKT; 2007-2015 MKX; 2007-2017 MKZ; 2003-2017 Navigator, and 2006-2011 Mercury Milan heated/cooled seat module
- Compatible with Ford Series: Replacement wiring kit for Ford 2010-2017 F150; 2011-2019 F250 super duty, F350 super duty, F450 super duty, F550 super duty; 2013-2019 Police Interceptor Sedan, Police Interceptor Utility; 2014-2017 Special Service Police Sedan;2011-2018 Explorer; 2005-2017 Expedition; 2013-2019 Flexs; 2010-2019 Taurus; 2015-2017 Mustang; 2007-2018 Edge; 2006-2012 Fusion heated/cooled seat module
- Quality Wiring Kit for OEM Part: Solid connector made of high quality ABS plastic and pure copper wires, sturdy repleacement wire on vehicle for car seat warmer and cooler; 12.36 inch cable length, long enough and thick wire
- Easy Installation: The WPT928 wire assembly can be installed within 1 hour; For the color code issue, please refer to the relevant installation video on YouTube
Bestseller No. 4
Dorman 601-704 Seat Heater Control Module with Pigtail Kit Compatible with Select Ford/Lincoln/Mercury Models
- Convenient solution - this cost-effective seat heater control module with pigtail kit includes a replacement module and pigtail, saving hassle and expense of buying the two components separately from the dealer
- Restores functionality - when the original ground pin or pigtail connector fails, this direct replacement kit restores the comfort and convenience of heated seats to original standards
- Seamless replacement - module designed and tested to work exactly like the factory components for millions of select Ford and Lincoln vehicles
- Trustworthy quality - backed by a team of electrical engineers and product experts in the United States and more than a century of automotive experience
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
Bestseller No. 5
GIANT PANDA Front Car Seat Cover for Ford, Leather Bucket Seat Covers Custom Fit Ford Escape Explorer Edge Mustang Bronco Sport 2-Pack (Beige+Black)
- ใCompatibilityใFront Car Seat Covers Include 2 front seat covers with matching headrest covers, designed to fit models like Ford Escape, Explorer, Mustang, Bronco Sport, and Edge
- ใDesignใWith a two-tone design and oem style, these seat covers refresh your front seats with a modern look while maintaining their shape and preventing deformation over time
- ใMaterialsใThe back material is made from stretchable polyester fiber for a snug fit, while the front surface uses faux leather, serving as a reliable bucket seat protector
- ใProtectionใThese covers shield your seats from wear, stains, and pet hair, while enhancing your carโs interior. Breakaway seams ensure compatibility with side-impact airbags
- ใInstallationใQuick and easy to installโjust follow the instructions to fit them in minutes without tools. For additional guidance, refer to the installation video on the product page
Bestseller No. 6

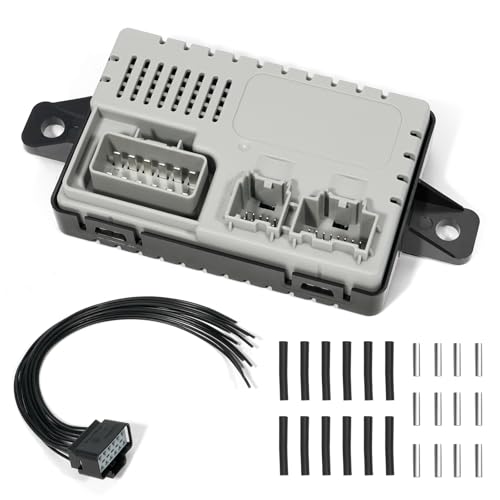

601-704 Seat Heater Control Module w/Pigtail Kit Compatible with Ford Edge Explorer F150 F250 F350 F450 F550 Super Duty Lincoln MKS MKZ MKT, Replace BU5Z14C724A
