| EXHAUST SULFUR ODOR AFTER HARD ACCELERATION – CLIMATE CONTROL IN RECIRCULATION MODE ONLY |
| FORD: | 2011-2014 Edge |
| LINCOLN: | 2011-2015 MKX |
2011-2014 Edge and 2011-2015 MKX vehicles may exhibit an exhaust odor in the vehicle while the climate control system is in recirculation mode only.
This may be more noticeable after hard acceleration, driving in hilly conditions and/or towing a trailer.
Customers may indicate the odor smells like sulfur.
SERVICE PROCEDURE
- Remove the rear bumper.
- Replace the four (4) air extractors.
- Lower and support the rear section of the exhaust system.
- Clean the areas on the underside of vehicle where seam sealer and expandable foam will be applied. (Figures 1-6)
- Cover the exhaust system.
- Apply a generous amount of Motorcraft Seam Sealer to the rear horizontal sheet metal lap joints on the left and right sides of the vehicle and the rear sheet metal overlap flange across the rear of the vehicle. (Figures 1-6)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
- Fill crush cans with Lord Fusor 130 or 3M 08458 expandable foam. Follow the instructions on the can for application. (Figure 7)
- Install foam from the Rotunda Squeak and Rattle Repair Kit (164-R4901) around the bumper beam attachment studs. (Figure 8)
- Some vehicle configurations may have unused bumper attachment studs on each side of the vehicle. Apply Motorcraft Seam Sealer around unused studs. (Figure 8)
Figure 8
- Reinstall the rear exhaust system.
- Reinstall the rear bumper cover.
- Reprogram the heating ventilation air conditioning (HVAC) module to the latest calibration using IDS or Ford J2534 release 92.04 or higher. Make sure you are connected to the internet when entering module programming to obtain the latest updates. Calibration files may also be obtained at www.motorcraftservice.com.
| Obtain Locally | |
|---|---|
| Part Number | Part Description |
130  |
Lord Corporation Fusor Rigid Foam (Super Fast) |
| 08458 |

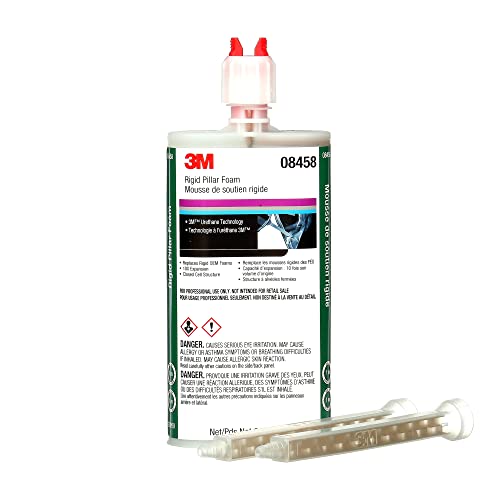

3M Rigid Pillar Foam |
| PART NUMBER | PART NAME |
|---|---|
| AL2Z-61280B62-A |
Grille – Air Inlet |
| TA-2-B |
Motorcraft Seam Sealer |
Service Information & Reprogramming
Software necessary to program electronic modules to the latest calibration level, perform module initialization (PATS), and set Programmable Parameters on Ford, Lincoln and Mercury vehicles.
Ford Module Programming (FMP) is a software application that allows subscribers to program electronic modules on Ford, Lincoln and Mercury vehicles. It can be used for:
- Reprogramming emission-related (OBDII) modules on some vehicles manufactured in 1995 and all vehicles manufactured from 1996 to the present
- Reprogramming or reconfiguring non-emission-related modules on many vehicles (UBP and MS-CAN not supported)
In addition, module initialization (PATS) functions such as Keycode Erase/Reprogram and PCM Parameter Reset can be done using this application.
J2534 Device using Ford Module Programming (FMP) can Reprogram and Configure most Modules.
Latest Calibration Information
Module Build Data (As-Built)
Use VIN to obtain As-Built data
