| TSB 16-0004 | 6.7L DIESEL – LOSS OF POWER – AIR FILTER SNOW PACK |
| FORD: | 2011-2016 F-Super Duty |
This article supersedes TSB 14-0232 to update vehicle model years.
ISSUE:
Some 2011-2016 F-Super Duty vehicles equipped with a 6.7L engine may exhibit a loss of power due to snow packing in or around the engine air cleaner (ACL) when operated in extreme snow conditions or when equipped with a snowplow. This concern may result in diagnostic trouble codes (DTCs) P0299 and P1247.
A low restriction secondary foam filter is now available to resolve this concern.
ACTION:
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
- Remove the ACL cover and element. Refer to Workshop Manual (WSM), Section 303-12.
- Clear any snow and/or ice from the ACL housing inlet.
- Remove and discard the foam ACL filter element.

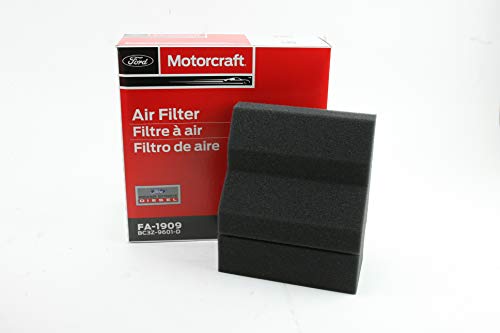

- Install the new low restriction secondary foam filter.
- Install the ACL element, cover and reset the restriction gauge. Refer to WSM, Section 303-12.
| PART NUMBER | PART NAME |
|---|---|
BC3Z-9601-D  |
Secondary Foam Filter |
| OPERATION | DESCRIPTION | TIME |
|---|---|---|
| 160004A | 2011-2016 F-Super Duty 6.7L: Check DTCs And Replace The Secondary Foam Filter Includes Time To Clear DTCs (Do Not Use With Any Other Labor Operation) | 0.4 Hr. |
WARRANTY STATUS
Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
DEALER CODING
| BASIC PART NO. | CONDITION CODE |
| 9601 | 55 |
