| 6.7L WITH 6R140 TRANSMISSION – 2-3 SHIFT FLARE AND/OR MIL ON WITH DTC P0733 AND/OR DELAYED REVERSE ENGAGEMENT — BUILT ON OR BEFORE 11/19/2010 |
| FORD: | 2011 F-Super Duty |
2011 F-Super Duty vehicles equipped with 6.7L engines and 6R140 transmission built on or before 11/19/2010 may exhibit a 2-3 shift flare and/or malfunction indicator light (MIL) on with diagnostic trouble code (DTC) P0733 and/or delayed reverse engagement.
Symptoms may be more evident or seem worse after an extended soak.
SERVICE PROCEDURE
- Inspect the vehicle build date. Was the vehicle built on or before 11/19/2010?
- Yes – proceed to Step 2.
- No – this article does not apply. Refer to Powertrain Control/Emissions Diagnostics (PC/ED) manual for normal diagnostics.
- Replace the three (3) normally high solenoids.
- Removal of the main control is not required for this procedure.
| PART NUMBER | PART NAME |
|---|---|
| BC3Z-7G383-J | Solenoid Band Number 1 |

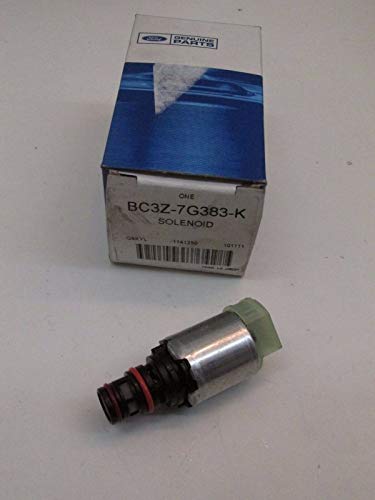

BC3Z-7G383-K  |
Solenoid Band Number 2 |
| BC3Z-7G383-L |
Solenoid Band Number 3 |
| BC3Z-7G383-M |
Solenoid Band Number 4 |

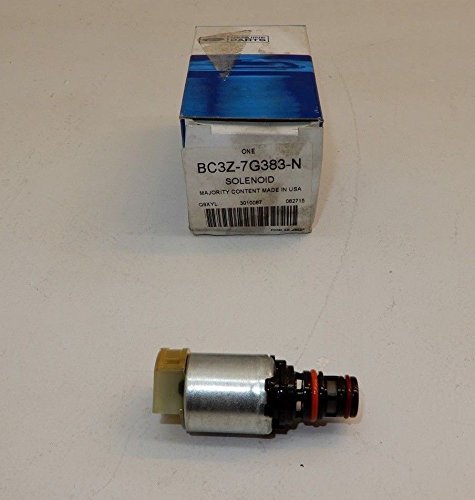

| BC3Z-7G383-N |
Solenoid Band Number 5 |
| XT-10-QLVC |
Motorcraft MERCON LV Automatic Transmission Fluid |
