Clicking Rubbing Noise from Front Wheel Speed Sensors, ABS Light – 2009 Ford & Mercury

LEFT FRONT ABS SENSOR CONTACTING TONE RING – VEHICLES BUILT 10/21/2008-10/31/2008



FORD:	2009 Escape Hybrid, Escape
MERCURY:	2009 Mariner Hybrid, Mariner



2009 Escape, Mariner, Escape Hybrid and Mariner Hybrid vehicles built from 10/21/2008 to 10/31/2008 may exhibit a clicking or rubbing noise from the left front wheel speed sensor and/or exhibit ABS warning light activation.



The left front wheel knuckle may have been machined incorrectly allowing the wheel speed sensor to contact the tone ring.



SERVICE PROCEDURE

1. Measure the air gap between the left front wheel speed sensor and tone ring with a feeler gage.
2. If 0.02″ (0.50 mm) or more – this procedure does not apply. Continue with normal diagnostics.
3. If less than 0.02″ (0.5 mm) or evidence of contact – replace the left front wheel knuckle per Workshop Manual (WSM).



PART NUMBER	PART NAME

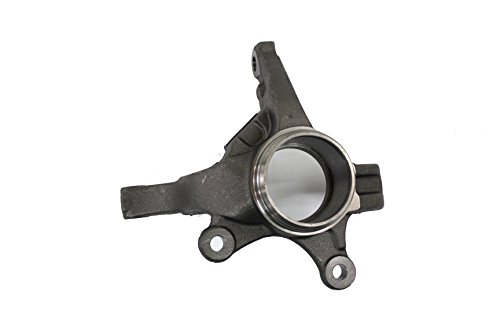

5L8Z-3K186-BA	Front Knuckle – Left Hand

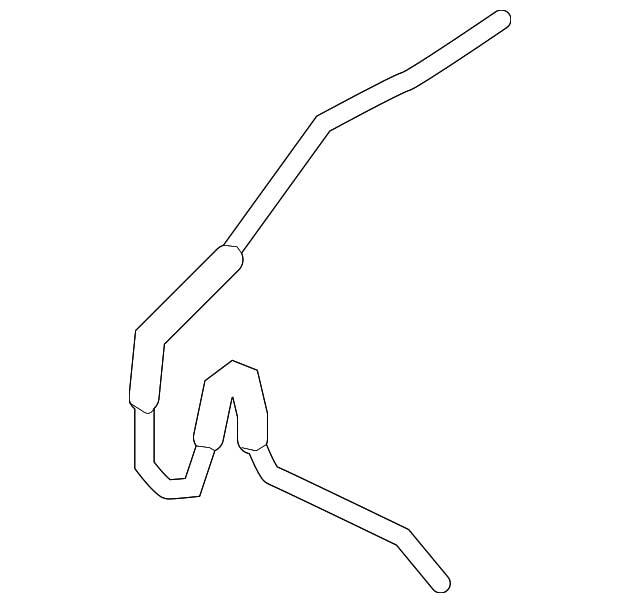

9L8Z-2C205-A	Wheel Speed Sensor – Left Hand
