16C10 - Hydraulic Control Unit Replacement

“This site contains affiliate links for which OEMDTC may be compensated”

NHTSA Campaign Number: 16V482
Component(s): ELECTRONIC STABILITY CONTROL , SERVICE BRAKES, HYDRAULIC
Potential Number of Units Affected: 1,895

Manufacturer: Ford Motor Company

SUMMARY:

Ford Motor Company (Ford) is recalling certain model year 2016 Transit Connect vehicles manufactured February 22, 2016, through June 16, 2016.

The brake Hydraulic Control Unit (HCU) pump may be contaminated with metallic debris. As such, these vehicles fail to conform to Federal Motor Vehicle Safety Standard (FMVSS) number 126, “Electronic Stability Control Systems.”

CONSEQUENCE:

If the brake HCU pump is contaminated, the performance of the electronic stability control and related brake systems may degrade, increasing the risk of a crash.

REMEDY:

Ford will notify owners and dealers will replace the brake HCU pump, free of charge.

The recall began on August 22, 2016.

Owners may contact Ford customer service at 1-800-392-3673.

Ford’s number for this recall is 16C10.

NOTES:

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Check if your Vehicle has a Recall

August 17, 2016

TO: All U.S. Ford and Lincoln Dealers

SUBJECT: DEMONSTRATION / DELIVERY HOLD – Compliance Recall 16C10
Certain 2016 Model Year Transit Connect Vehicles
Hydraulic Control Unit Replacement

AFFECTED VEHICLES

Vehicle	Model Year	Assembly Plant	Build Dates
Transit Connect	2016	Valencia	February 22, 2016 through June 16, 2016

Affected vehicles are identified in OASIS and FSA VIN Lists.

REASON FOR THIS COMPLIANCE RECALL

Some of the affected vehicles may fail to conform to Federal Motor Vehicle Safety Standard (FMVSS) 126: Electronic Stability Control Systems. The hydraulic control unit (HCU) may contain debris from the manufacturing process, resulting in the potential for valve blockage. Valve blockage within the HCU can degrade the performance of electronic stability control and related systems without warning, potentially resulting in rear wheel lock up while braking. This could result in a loss of vehicle control, increasing the risk of crash. These systems include, but are not limited to, anti-lock brakes, rollover protection, automatic braking, and traction control.

SERVICE ACTION

Before demonstrating or delivering any new in-stock vehicles involved in this recall, dealers are to replace the HCU. This service must be performed on all affected vehicles at no charge to the vehicle owner.

NOTE: Parts to repair all vehicles are expected to be available the week of September 5, 2016.

OWNER NOTIFICATION MAILING SCHEDULE

Owner letters are expected to be mailed the week of August 22, 2016. Owners will be advised that they should schedule service for their vehicle beginning the week of September 5, 2016, when parts are expected to be available. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.

PLEASE NOTE:

Federal law requires dealers to complete this recall service before a new vehicle is delivered to the buyer or lessee. Violation of this requirement by a dealer could result in a civil penalty of up to $21,000 per vehicle. Correct all vehicles in your new vehicle inventory before delivery.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information
Owner Notification Letter

QUESTIONS & ASSISTANCE

For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web

Contact Site. The SSSC Web Contact Site can be accessed through the Professional Technician Society (PTS) website using the SSSC link listed at the bottom of the OASIS VIN report screen or listed under the SSSC tab.

Sincerely,

Michael A. Berardi

ATTACHMENT I

DEMONSTRATION / DELIVERY HOLD – Compliance Recall 16C10
Certain 2016 Model Year Transit Connect Vehicles
Hydraulic Control Unit Replacement

OASIS ACTIVATION

OASIS was activated on July 20, 2016.

FSA VIN LISTS ACTIVATION

FSA VIN Lists were available through https://web.fsavinlists.dealerconnection.com on July 20, 2016. Owner names and addresses will be available by September 16, 2016.

NOTE: Your FSA VIN Lists may contain owner names and addresses obtained from motor vehicle registration records. The use of such motor vehicle registration data for any purpose other than in connection with this recall is a violation of law in several states, provinces, and countries.

Accordingly, you must limit the use of this listing to the follow-up necessary to complete this recall.

STOCK VEHICLES

Correct all affected units in your new vehicle inventory before delivery.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs beginning the week of September 5, 2016.
Beginning the week of September 5, 2016, contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.

DEALER-OPERATED RENTAL VEHICLES

A new law prohibits a Rental Company from selling, renting or leasing vehicles subject to a safety recall. This could impact dealer-operated rental fleets of 35 vehicles or more, including FRAC, LRAC, and DDR vehicles. Please see EFC04833 for details and consult your legal counsel for legal advice.

TITLE BRANDED / SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this recall.

ADDITIONAL REPAIR (LABOR TIME AND/OR PARTS)

Additional repairs identified as necessary to complete the FSA should be managed as follows:

For vehicles within new vehicle bumper-to-bumper warranty coverage, follow existing warranty and policy guidelines for related damage claims. No SSSC approval is required for these vehicles:
- Ford vehicles – 3 years or 36,000 miles
For vehicles outside new vehicle bumper-to-bumper warranty coverage, submit an Approval Request to the SSSC Web Contact Site prior to completing the repair.

OWNER REFUNDS

Refunds are not approved for this program.

RENTAL VEHICLES

Dealers are pre-approved for up to 1 day for a comparable rental vehicle. Follow Extended Service Plan (ESP) guidelines for dollar amounts. Rentals will only be reimbursed for the day the vehicle is at the dealership for part replacement. Prior approval for more than 1 rental day is required from the SSSC via the SSSC Web Contact Site.

CLAIMS PREPARATION AND SUBMISSION

Enter claims using Direct Warranty Entry (DWE) or One Warranty Solution (OWS).
- DWE: refer to ACESII manual for claims preparation and submission information.
- OWS: when entering claims in DMS software, select claim type 31: Field Service Action. The FSA number (16C10) is the sub code.
Additional labor and/or parts must be claimed as related damage on a separate repair line from the FSA.
For rental vehicle claiming, follow Extended Service Plan (ESP) guidelines for dollar amounts. Enter the total amount of the rental expense under Miscellaneous Expense code RENTAL.

ATTACHMENT II

DEMONSTRATION / DELIVERY HOLD – Compliance Recall 16C10
Certain 2016 Model Year Transit Connect Vehicles
Hydraulic Control Unit Replacement

LABOR ALLOWANCES

Description	Labor Operation	Labor Time
Replace HCU (includes time to bleed brakes)	16C10B	2.0 Hours

PARTS REQUIREMENTS / ORDERING INFORMATION

Part Number	Description	Order Quantity
GV6Z-2C405-C	HCU	1

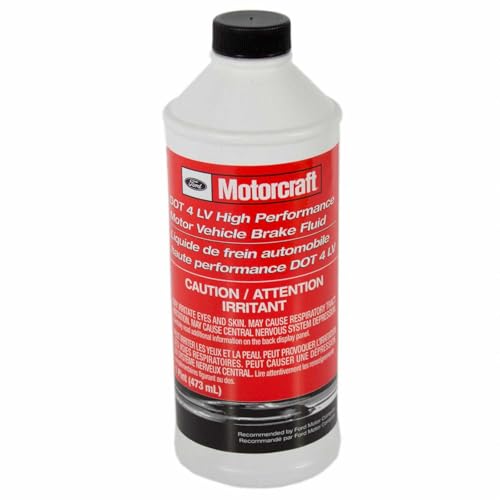

PM-20	DOT 4 brake fluid (1 pint)	3

The DOR/COR number for this recall is 51050.

Order your parts through normal order processing channels beginning the week of September 5, 2016. To guarantee the shortest delivery time, an emergency order for parts must be placed.

DEALER PRICE

For latest prices, refer to DOES II.

PARTS RETENTION AND RETURN

Follow the provisions of the Warranty and Policy Manual, Section 1 – WARRANTY PARTS RETENTION AND RETURN POLICIES.

EXCESS STOCK RETURN

Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.

ATTACHMENT III

Certain 2016 Model Year Transit Connect Vehicles — Hydraulic
Control Unit Replacement

OVERVIEW

SERVICE PROCEDURE

Replace the HCU. Please follow the Workshop Manual (WSM) procedures in Section 206-09.

August 2016

* * * IMPORTANT SAFETY RECALL * * *
(PROGRAMA DE SEGURIDAD IMPORTANTE)

Compliance Recall Notice 16C10 / NHTSA Recall 16V-482
Aviso de Revisión de Cumplimiento 16C10

Mr. John Sample
123 Main Street
Anywhere, USA 12345

Your Vehicle Identification Number (VIN): 12345678901234567

This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.

Ford Motor Company has decided that your vehicle, with the VIN shown above, fails to conform to Federal Motor Vehicle Safety Standard (FMVSS) 126: Electronic Stability Control Systems.

We apologize for this situation and want to assure you that, with your assistance, we will correct this condition. Our commitment, together with your dealer, is to provide you with the highest level of service and support.

What is the issue?	The hydraulic control unit (HCU) on your vehicle may contain debris from the manufacturing process, which can degrade the performance of electronic stability control and related systems* without warning, potentially resulting in rear wheel lock up while braking. This could result in a loss of vehicle control, increasing the risk of crash. These systems include, but are not limited to, anti-lock brakes, rollover protection, automatic braking, and traction control. NOTE:* Parts are expected to be available to repair your vehicle the week of September 5, 2016.
What will Ford and your dealer do?	Ford Motor Company has authorized your dealer to replace your vehicle’s HCU free of charge (parts and labor).
How long will it take?	The time needed for this repair is less than one-half day. However, due to service scheduling requirements, your dealer may need your vehicle for a longer period of time.
What should you do?	Please call your dealer to request service for Recall 16C10 beginning the week of September 5, 2016. Provide the dealer with your VIN, which is printed near your name at the beginning of this letter. If you do not already have a servicing dealer, you can access www.Fordowner.com for dealer addresses, maps, and driving instructions. Ford Motor Company wants you to have this recall completed on your vehicle. The vehicle owner is responsible for making arrangements to have the work completed. Please note: Federal law requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within ten days. Your vehicle may be equipped with a diagnostic feature called the Vehicle Health Report which can inform you about all available recalls, as well as other key vehicle health information. Please see https://owner.ford.com/vehicle-health for more information.
Do you need a rental vehicle?	Your dealer is authorized to provide a rental vehicle for your personal transportation at no charge (except for fuel and insurance) while your vehicle is at the dealership for repairs. Please see your dealer for guidelines and limitations.
What if you no longer own this vehicle?	If you no longer own this vehicle, and have an address for the current owner, please forward this letter to the new owner. You received this notice because government regulations require that notification be sent to the last known owner of record. Our records are based primarily on state registration and title data, which indicate that you are the current owner.
Can we assist you further?	If you have difficulties getting your vehicle repaired promptly and without charge, please contact your dealership’s Service Manager for assistance. RETAIL OWNERS: If you have questions or concerns, please contact our Ford Customer Relationship Center at 1-866-436-7332 and one of our representatives will be happy to assist you. If you wish to contact us through the Internet, our address is: www.Fordowner.com. For the hearing impaired call 1-800-232-5952 (TDD). Representatives are available Monday through Friday: 8:00AM – 8:00PM(Eastern Time). FLEET OWNERS: If you have questions or concerns, please contact our Fleet Customer Information Center at 1-800-34-FLEET, choose Option #3, and one of our representatives will be happy to assist you. If you wish to contact us through the Internet, our address is: www.fleet.ford.com. Representatives are available Monday through Friday: 8:00AM – 8:00PM(Eastern Time). If you are still having difficulty getting your vehicle repaired in a reasonable time or without charge, you may write the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Ave. S.E., Washington, D.C. 20590 or call the toll free Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1800-424-9153) or go to www.safercar.gov. Reference NHTSA Safety Recall 16V-482.
Para asistencia en Español	Visite nuestro sitio web para ver este anuncio en Español al siguiente dirección: https://es.owner.ford.com/recall. Si necesita ayuda o tiene alguna pregunta, por favor llame al Centro de Relación con Clientes al 1-866-436-7332 y presione 2 para Español.
