NHTSA ID Number: 10225445
Manufacturer Communication Number: TSB 22-2377
Summary
Some 2020-2022 Explorer/Aviator vehicles equipped with a 3.0L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure to replace the VCT units.
Model:
| Ford
2020-2022 Explorer |
|
| Lincoln
2020-2022 Aviator |
Issue: Some 2020-2022 Explorer/Aviator vehicles equipped with a 3.0L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure to replace the VCT units.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- 2020-2022 Explorer/Aviator
- 3.0L EcoBoost engine
- Customer symptom of ticking/tapping or rattle noise from the front cover area after a cold start
NOTE: Dealers should only order parts for customer vehicles that require repairs. Because of part constraints, dealers may experience situational short-term backorders on some parts. Customers should continue to drive vehicles while parts are on order.
Parts
Required For All Vehicles
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| L1MZ-6C525-A | 2 | VCT Unit – Exhaust | 1 | 2 |
| L1MZ-6256-A | 2 | VCT Unit – Intake | 1 | 2 |
| BB5Z-4B422-A | 2 | Front Axle Pinion Stem Circlip | 1 | 2 |
| CN1Z-7H424-B | 2 | Halfshaft Seal | 1 | 2 |
| CP9Z-6279-C | 4 | VCT Unit Bolts | 1 | 4 |

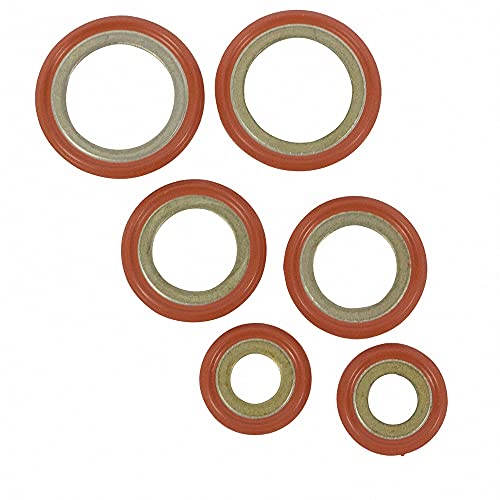

DS7Z-19B596-A  |
1 | A/C Line-Compressor O-ring Seal | 1 | 1 |
| FT4Z-00815-A | 1 | Oil Gallery Seal | 1 | 1 |
| FT4Z-6020-A | 1 | Oil Cooler Gasket | 1 | 1 |
| FT4Z-6020-J | 1 | Engine Front Cover Gasket | 1 | 1 |
| FT4Z-6840-B | 1 | Oil Filter O-ring Seals | 2 | 2 |
| FT4Z-6840-C | 1 | Stem-To-Oil Drain Port Seal | 1 | 1 |
| FT4Z-6N652-D | 1 | Oil Pump Return Tube O-ring Seals | 1 | 1 |
| FT4Z-6N652-G | 4 | Turbocharger Oil Return Tube O-ring Seal | 1 | 4 |
| FT4Z-6N652-F | 1 | Turbocharger Oil Return Tube-To-Engine Block Gasket | 1 | 1 |
| FT4Z-8507-C | 1 | Coolant Pump Seal | 1 | 1 |
| JR3Z-6701-A | 1 | Crankshaft Front Oil Seal | 1 | 1 |
| JT4Z-6020-A | 1 | Coolant Pump Gasket | 1 | 1 |
| JT4Z-6584-B | 1 | Valve Cover Gasket | 1 | 1 |
| JT4Z-6584-D | 1 | Valve Cover Gasket | 1 | 1 |
| JT4Z-6C683-A | 2 | Turbocharger Oil Supply Tube Filter | 1 | 2 |
| JT4Z-6N652-A | 1 | Turbocharger Oil Supply O-ring Seal | 1 | 1 |
| JT4Z-6N652-B | 1 | Turbocharger Oil Supply O-ring Seal | 1 | 1 |
| JT4Z-9E583-A | 1 | High Pressure Fuel Pump O-ring Seal | 1 | 1 |
| K2GZ-9440-A | 1 | Engine Front Cover Gasket | 1 | 1 |
KU2Z-6731-A |
1 | Oil Filter Element | 1 | 1 |
| L1MZ-00815-A | 2 | Front Axle Pinion Stem O-ring | 1 | 2 |
| L1MZ-4382-A | 4 | Engine Mount Bolts | 1 | 4 |
| L1MZ-4382-B | 4 | Engine Mount Bolts | 1 | 4 |
| L1MZ-4421-B | 1 | Front Slip Yoke Boot Clamp Assembly | 1 | 1 |
| L1MZ-6584-A | 1 | Valve Cover Gasket, Left | 1 | 1 |
| L1MZ-6584-B | 1 | Valve Cover Gasket, Right | 1 | 1 |
| L1MZ-6584-C | 1 | Valve Cover Rocker Arm Gasket | 1 | 1 |
| L1MZ-6710-A | 1 | Oil Pan Gasket | 1 | 1 |
| L1MZ-6L612-B |
2 | Catalytic Converter Gasket | 1 | 2 |
| L1MZ-9448-A | 2 | Turbocharger Gasket | 1 | 2 |
| L1MZ-9J323-A | 1 | High Pressure Fuel Tube | 1 | 1 |
| LB5Z-3B477-A | 2 | Wheel Hub Nut (AWD) | 1 | 2 |
| N1MZ-4A015-B | 1 | Front Actuator Seal | 1 | 1 |
| W520517-S440 | 1 | Lower Strut-to-Wheel Knuckle Nuts (AWD) | 4 | 4 |
| W712961-S439 | 1 | Steering Shaft Bolt | 2 | 1 |
| W714870-S430 | 1 | Turbocharger Nuts | 4 | 4 |
| W715131-S442 |
1 | Cable Assembly Bolts (10R60 Transmission) | 4 | 2 |
| W715564-S442 | 1 | Turbocharger Oil Supply Bolt | 4 | 3 |
| W715618-S437 |
2 | Torque Converter Nuts | 4 | 6 |
| W715932-S439 | 1 | Lower Strut-to-Wheel Knuckle Bolts (AWD) | 4 | 4 |
| W716117-S437 | 2 | Turbocharger Bolt | 1 | 2 |
| W716979-S439 |
1 | Rear Subframe Bolts | 4 | 2 |
| W719413-S439 |
1 | Middle and Front Subframe Bolts | 4 | 4 |
| W719431-S439 |
1 | Transmission Bolts | 4 | 3 |
| W719511-S439 |
2 | Transfer Case Flange Bolts (4WD) | 4 | 6 |
| W719699-S442 |
4 | Catalytic Converter Nuts | 1 | 4 |
| W721083-S439 |
4 | Transmission Support Insulator Bolts | 1 | 4 |
| L1MZ-3B478-A |
1 | Halfshaft Boot Clamp | 1 | 1 |
| BR3Z-6A340-A |
1 | Crankshaft Pulley Bolt | 1 | 1 |
| 5L7Z-7D285-A |
1 | Transmission Cooler Line Seal | 2 | 2 |
| 5L7Z-7J324-A |
1 | Ring Seal | 2 | 2 |
| KX6Z-9C587-A | 1 | High Pressure Fuel Pump Roller Tappet | 1 | 1 |
| FT4Z-12A227-A | 1 | Crankshaft Ring | 1 | 1 |
| L1MZ-4676-C | 1 | Oil Seal Assembly | 1 | 1 |
| XW4Z-6700-B | 1 | Front Main Oil Seal | 1 | 1 |
| FL3Z-9439-A | 1 | Intake Manifold Gaskets | 6 | 6 |
| W520216-S440 | 4 | Sway Bar Linkage Nut | 1 | 4 |
| W716383-S437 | 4 | Turbo Stud | 1 | 4 |
| W718758-S300 |
4 | Block Dowel Pin | 1 | 4 |
| W719326-S439 | 1 | Engine Mount Bolts | 4 | 4 |
| W721083-S439 |
1 | Transmission Bracket Bolts | 4 | 4 |
| XL-5-A |
As Needed | Motorcraft® Multi-Purpose Grease Spray | ||
| XO-5W30-Q1SP |
As Needed | Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil (All Markets Except Canada) | ||
| CXO-5W30-LSP6 |
As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | ||
| XT-12-QULV |
As Needed | Motorcraft® MERCON® ULV Automatic Transmission Fluid | ||
| ZC-30-A |
As Needed | Motorcraft® Gasket Remover | ||
| ZC-31-B |
As Needed | Motorcraft® Metal Surface Prep Wipes | ||
| ZC-37-A |
As Needed | Motorcraft® Wheel and Tire Cleaner | ||
| PM-4-A |
As Needed | Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) | ||
| PM-4-B |
As Needed | Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) | ||
| TA-357 |
As Needed | Motorcraft® High Performance Engine RTV Silicone | ||
| ZC-20 |
As Needed | Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada) | ||
| CXC-66-A | As Needed | Motorcraft® Engine Shampoo (Canada Only) | ||
| YN-35 |
As Needed | Motorcraft® R-1234yf Refrigerant PAG Oil |
Parts
Aviator Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| W711310-S440 | 1 | Lower Arm Bracket Nut (RWD) | 4 | 2 |
| W719503-S439 | 1 | Lower Arm Bracket Bolt (RWD) | 4 | 2 |
| W719506-S440 | 1 | Sway Bar Link Nut | 4 | 2 |
| W720050-S440 | 1 | Tie Rod End Nut (RWD) | 4 | 2 |
| W716375-S900 |
2 | Transfer Case Mounting Bolts | 5 | 8 |
| W716300-S450B | 1 | Engine Mount Nuts | 4 | 4 |
| W520214-S440 |
1 | Transmission Nut | 2 | 1 |
| XG-11 |
As Needed | Motorcraft® High Temperature 4X4 Front Axle and Wheel Bearing Grease | ||
| XL-2 |
As Needed | Motorcraft® High Temperature Nickel Anti-Seize Lubricant (Hybrid) | ||
| XY-75W140-QL |
As Needed | Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant |
Parts
Explorer Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| KR3Z-6A666-A | 1 | PCV Valve | 1 | 1 |
| W714660-S439 | 1 | Anchor Plate Bolts | 4 | 2 |
| W720782-S439 | 1 | Rear Subframe Bolts | 4 | 2 |
| W713714-S439 | 1 | Rear Subframe Bolts | 4 | 2 |
| W710726-S442 |
1 | Cable Assembly Bolts (10R80 Transmission) | 4 | 2 |
| W717521-S440 | 2 | Engine Mount Nuts, Left and Right | 1 | 2 |

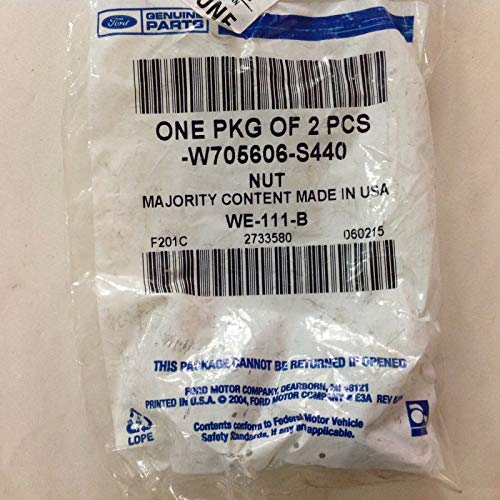

| W705606-S440 |
2 | Sway Bar Link Nuts | 2 | 4 |
| W525174-S300 | 1 | Skid Bar Rivets (Police Only) | 10 | 1 |
Parts
Parts To Inspect And Replace Only If Necessary (Explorer/Aviator)
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| FT4Z-6A832-C |
1 | Oil Filter Housing | 1 | 1 |
| FT4Z-8C387-A | 1 | Air Cleaner Outlet Pipe O-ring Seal | 1 | 1 |
| L1MZ-8527-A | 1 | Coolant Pipe O-ring | 1 | 1 |
| W719698-S900 |
4 | Catalytic Converter Stud | 1 | 4 |
| BR3Z-6C535-B |
6 | Spark Plug Seals | 1 | 6 |
| 7T4Z-6379-AA | 2 | Turbocharger Studs | 4 | 8 |
| W719485-S450 | 1 | Fuel Pump Studs | 4 | 2 |
| VC-13-G |
As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G |
As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) | ||
| VC-1 |
As Needed | Motorcraft® Premium Cooling System Flush | ||
| YN-23 | As Needed | Motorcraft® A/C System Flushing Solvent |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
Service Procedure
1. Replace all 4 VCT units. Refer to Workshop Manual (WSM), Section 303-01. Do not replace any additional VCT or engine timing related components not included in the Parts List.
(1). It is not necessary to remove the 2 left valve cover cam sensors.
(2). All the VCT solenoid and spark plug tube seals require inspection, but not all require replacement.
6 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| FORD | EXPLORER | 2020-2022 |
| LINCOLN | AVIATOR | 2020-2022 |
1 Associated Document
Manufacturer Communications
22-2377
17 October 2022
https://www.nhtsa.gov/recalls?nhtsaId=10225445
Loading...
Reload document
Open in new tab
- MaxLife Technology prevents engine breakdown with 40% better wear protection than the industry standard
- Includes seal conditioners to reduce oil consumption and oil leaks in high mileage engines.
- Added detergents reduce sludge, corrosion, rust and deposits to help keep motors clean inside and ensure a smooth-running engine.
- Advanced friction-fighting additives help maximize performance and improve fuel efficiency.
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN
- Full synthetic 5W-30 motor oil provides strong engine performance and protection against deposits between oil changes
- Ideal for use in modern turbocharged engines and high-performance vehicles like sports cars, SUVs, trucks, and minivans
- Designed to deliver more power and less friction, reducing friction to maximize horsepower
- Provides improved fuel economy (based on the latest industry standard)
- Excellent protection against formation of sludge and other harmful deposits
- Superior wear protection on critical engine parts
- 6X better wear protection than industry standards, as measured in the latest Sequence IVA test
- Superior sludge cleaning and protection against new formation
- 1.3X better sludge protection than industry standards, as measured in Sequence VH sludge test vs. API SP limits
- Full synthetic formula provides thermal and oxidation stability
- Advanced protection against the four main causes of engine breakdown: wear friction heat and deposits
- 40% better wear protection vs. industry standards as tested in the Sequence IVB engine test
- 25% better deposit protection with superior engine cleaning detergents as tested in the GMOD engine test
- Full synthetic formula offers 24X stronger protection against engine-killing contaminants than the leading full synthetic motor oil
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN, GM dexos 1 Gen 9
- Mobil 1 advanced full-synthetic motor oil 5W-30 utilizes Mobil 1’s signature Triple Action Formula to deliver outstanding engine performance, protection, and cleanliness.
- Helps protect critical engine parts for up to 10,000 miles between oil changes,* controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
- Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean and helping to improve your fuel economy
- Mobil 1 is specially formulated to help remove sludge and lower engine temperatures
- Provides excellent internal engine heat protection (up to 500 degrees F) and low temperature protection (to -30 degrees F)
- Full synthetic 5W-30 engine oil that is made with natural gas and designed for complete protection for top engine performance
- Helps extend engine life and protects for up to 15 years or 500,000 miles, whichever comes first. Guaranteed* (see Warranty Information in Product Description).
- Provides better fuel economy (based on the latest industry standards)
- Pennzoil Platinum 5W-30 keeps pistons up to 45% cleaner than the toughest industry standard (Based on Sequence IIIH results)
- Provides unsurpassed wear protection (compared to industry standard Sequence IVA test)
- Full synthetic 5W-20 engine oil with PurePlus Technology that is race-trusted for unbeatable engine protection*
- Pennzoil Ultra Platinum helps extend engine life and protects for up to 20 years or 750,000 miles, whichever comes first** (see warranty information in Product Description)
- No other leading motor oil provides better wear protection from friction (based on Sequence IVA wear test using SAE 5W-30)
- Helps protect engines from loss of power and provides better fuel economy (based on the latest industry standard)
- Keeps pistons dramatically cleaner than required by the toughest industry standards (based on ILSAC GF-6 and Sequence IIIH piston deposit test using SAE 5W-30)
- Ultimate protection against wear, friction, heat and deposits, the main reasons for engine breakdown
- 24x stronger protection against engine-killing contaminants than the industry-leading full synthetic
- Dual Defense Additive Technology helps keep your engine clean and running at peak performance for optimal fuel economy and performance
- 10X stronger against oil breakdown and 50% greater wear protection than industry standards
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN, dexos 1 Gen 12
- Titanium Strong For Maximum Engine Performance In Vehicles With Over 75,000 Miles
- Maximizes Short And Long Term Engine Performance On High Mileage Engines
- Boosted With Extra Fluid Titanium Technology To Increase Oil Film Strength And Reduce Film Breakdown
- Reduces Leaks, Oil Burn Off And Power-Robbing Deposits
- Full synthetic 5W-30 engine oil designed for vehicles with over 70,000 miles that is made with natural gas
- Helps extend engine life and protects for up to 15 years or 500,000 miles, whichever comes first. Guaranteed* (see Warranty Information in Product Description).
- Keeps pistons up to 45% cleaner than the toughest industry standard (based on Sequence IIIH results)
- Provides unsurpassed wear protection for your engine (based on Sequence IVA wear test using SAE 5W-30)
- Formulated to deliver less oil burn off than high mileage motor oils made from crude oil
Last update on 2024-07-01 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
TECHNICAL SERVICE BULLETIN 3.0L EcoBoost – Cold Start Ticking/Tapping Or Rattle Type Noise 22-2377 17 October 2022 Model: Ford 2020-2022 Explorer Lincoln 2020-2022 Aviator Engine: 3.0L EcoBoost Engine: 3.0L EcoBoost Issue: Some 2020-2022 Explorer/Aviator vehicles equipped with a 3.0L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure to replace the VCT units. Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria: • 2020-2022 Explorer/Aviator • 3.0L EcoBoost engine • Customer symptom of ticking/tapping or rattle noise from the front cover area after a cold start NOTE: Dealers should only order parts for customer vehicles that require repairs. Because of part constraints, dealers may experience situational short-term backorders on some parts. Customers should continue to drive vehicles while parts are on order. Parts Required For All Vehicles Service Part Number L1MZ-6C525- A L1MZ-6256-A BB5Z-4B422- A CN1Z-7H424- B CP9Z-6279-C DS7Z-19B596- A FT4Z-00815-A FT4Z-6020-A FT4Z-6020-J FT4Z-6840-B FT4Z-6840-C FT4Z-6N652- D FT4Z-6N652- G Quantity 2 2 2 2 4 1 1 1 1 1 1 1 4 Description VCT Unit – Exhaust VCT Unit – Intake Front Axle Pinion Stem Circlip Halfshaft Seal VCT Unit Bolts A/C Line-Compressor O-ring Seal Oil Gallery Seal Oil Cooler Gasket Engine Front Cover Gasket Oil Filter O-ring Seals Stem-To-Oil Drain Port Seal Oil Pump Return Tube O-ring Seals Turbocharger Oil Return Tube O-ring Seal Unit of Issue 1 1 1 1 1 1 1 1 1 2 1 1 1 Piece Quantity 2 2 2 2 4 1 1 1 1 2 1 1 4 FT4Z-6N652-F FT4Z-8507-C JR3Z-6701-A JT4Z-6020-A JT4Z-6584-B JT4Z-6584-D JT4Z-6C683-A JT4Z-6N652-A JT4Z-6N652-B JT4Z-9E583-A K2GZ-9440-A KU2Z-6731-A L1MZ-00815-A L1MZ-4382-A L1MZ-4382-B L1MZ-4421-B L1MZ-6584-A L1MZ-6584-B L1MZ-6584-C L1MZ-6710-A L1MZ-6L612-B L1MZ-9448-A L1MZ-9J323-A LB5Z-3B477-A N1MZ-4A015- B W520517- S440 W712961- S439 W714870- S430 W715131- S442 W715564- S442 W715618- S437 W715932- S439 W716117- S437 W716979- S439 W719413- S439 1 Turbocharger Oil Return Tube-To-Engine Block Gasket 1 1 1 Coolant Pump Seal 1 1 1 Crankshaft Front Oil Seal 1 1 1 Coolant Pump Gasket 1 1 1 Valve Cover Gasket 1 1 1 Valve Cover Gasket 1 1 2 Turbocharger Oil Supply Tube Filter 1 2 1 Turbocharger Oil Supply O-ring Seal 1 1 1 Turbocharger Oil Supply O-ring Seal 1 1 1 High Pressure Fuel Pump O-ring Seal 1 1 1 Engine Front Cover Gasket 1 1 1 Oil Filter Element 1 1 2 Front Axle Pinion Stem O-ring 1 2 4 Engine Mount Bolts 1 4 4 Engine Mount Bolts 1 4 1 Front Slip Yoke Boot Clamp Assembly 1 1 1 Valve Cover Gasket, Left 1 1 1 Valve Cover Gasket, Right 1 1 1 Valve Cover Rocker Arm Gasket 1 1 1 Oil Pan Gasket 1 1 2 Catalytic Converter Gasket 1 2 2 Turbocharger Gasket 1 2 1 High Pressure Fuel Tube 1 1 2 Wheel Hub Nut (AWD) 1 2 1 Front Actuator Seal 1 1 1 Lower Strut-to-Wheel Knuckle Nuts (AWD) 4 4 1 Steering Shaft Bolt 2 1 1 Turbocharger Nuts 4 4 1 Cable Assembly Bolts (10R60 Transmission) 4 2 1 Turbocharger Oil Supply Bolt 4 3 2 Torque Converter Nuts 4 6 1 Lower Strut-to-Wheel Knuckle Bolts (AWD) 4 4 2 Turbocharger Bolt 1 2 1 Rear Subframe Bolts 4 2 1 Middle and Front Subframe Bolts 4 4 W719431- S439 W719511- S439 W719699- S442 W721083- S439 L1MZ-3B478- A BR3Z-6A340- A 5L7Z-7D285-A 5L7Z-7J324-A KX6Z-9C587- A FT4Z-12A227- A L1MZ-4676-C XW4Z-6700-B FL3Z-9439-A W520216- S440 W716383- S437 W718758- S300 W719326- S439 W721083- S439 XL-5-A XO-5W30- Q1SP CXO-5W30- LSP6 XT-12-QULV ZC-30-A ZC-31-B ZC-37-A PM-4-A PM-4-B 1 2 4 4 1 1 1 1 1 1 1 1 1 4 4 4 1 1 As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed As Needed Transmission Bolts 4 3 Transfer Case Flange Bolts (4WD) 4 6 Catalytic Converter Nuts 1 4 Transmission Support Insulator Bolts 1 4 Halfshaft Boot Clamp 1 1 Crankshaft Pulley Bolt 1 1 Transmission Cooler Line Seal 2 2 Ring Seal 2 2 High Pressure Fuel Pump Roller Tappet 1 1 Crankshaft Ring 1 1 Oil Seal Assembly 1 1 Front Main Oil Seal 1 1 Intake Manifold Gaskets 6 6 Sway Bar Linkage Nut 1 4 Turbo Stud 1 4 Block Dowel Pin 1 4 Engine Mount Bolts 4 4 Transmission Bracket Bolts 4 4 Motorcraft® Multi-Purpose Grease Spray Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil (All Markets Except Canada) Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) Motorcraft® MERCON® ULV Automatic Transmission Fluid Motorcraft® Gasket Remover Motorcraft® Metal Surface Prep Wipes Motorcraft® Wheel and Tire Cleaner Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) TA-357 ZC-20 CXC-66-A YN-35 As Needed As Needed As Needed As Needed Motorcraft® High Performance Engine RTV Silicone Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada) Motorcraft® Engine Shampoo (Canada Only) Motorcraft® R-1234yf Refrigerant PAG Oil Parts Aviator Required Parts Service Part Number W711310-S440 W719503-S439 W719506-S440 W720050-S440 W716375-S900 W716300-S450B W520214-S440 XG-11 XL-2 XY-75W140-QL Quantity 1 1 1 1 2 1 1 As Needed As Needed As Needed Description Lower Arm Bracket Nut (RWD) Lower Arm Bracket Bolt (RWD) Sway Bar Link Nut Tie Rod End Nut (RWD) Transfer Case Mounting Bolts Engine Mount Nuts Transmission Nut Motorcraft® High Temperature 4X4 Front Axle and Wheel Bearing Grease Motorcraft® High Temperature Nickel Anti-Seize Lubricant (Hybrid) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant Unit of Issue 4 4 4 4 5 4 2 Piece Quantity 2 2 2 2 8 4 1 Parts Explorer Required Parts Service Part Number Quantity Description Unit of Issue Piece Quantity KR3Z-6A666-A 1 PCV Valve 1 1 W714660-S439 1 Anchor Plate Bolts 4 2 W720782-S439 1 Rear Subframe Bolts 4 2 W713714-S439 1 Rear Subframe Bolts 4 2 W710726-S442 1 Cable Assembly Bolts (10R80 Transmission) 4 2 W717521-S440 2 Engine Mount Nuts, Left and Right 1 2 W705606-S440 2 Sway Bar Link Nuts 2 4 W525174-S300 1 Skid Bar Rivets (Police Only) 10 1 Parts Parts To Inspect And Replace Only If Necessary (Explorer/Aviator) Service Part Number FT4Z-6A832-C FT4Z-8C387-A L1MZ-8527-A Quantity 1 1 1 Description Oil Filter Housing Air Cleaner Outlet Pipe O-ring Seal Coolant Pipe O-ring Unit of Issue 1 1 1 Piece Quantity 1 1 1 W719698-S900 BR3Z-6C535-B 7T4Z-6379-AA W719485-S450 VC-13-G CVC-13-G VC-1 YN-23 4 6 2 1 As Needed As Needed As Needed As Needed Catalytic Converter Stud 1 4 Spark Plug Seals 1 6 Turbocharger Studs 4 8 Fuel Pump Studs 4 2 Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) Motorcraft® Premium Cooling System Flush Motorcraft® A/C System Flushing Solvent Quantity refers to the amount of the service part number required to repair the vehicle. Unit of Issue refers to the number of individual pieces included in a service part number package. Piece Quantity refers to the total number of individual pieces required to repair the vehicle. As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non- whole numbers, including less than 1. Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Emissions Warranty/Service Part Warranty (SPW)/Special Service Part (SSP)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/Emissions Warranty/SPW/SSP/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool. Labor Times Description 2020-2022 Explorer RWD 3.0L EcoBoost: Replace All 4 VCT Units (Can Be Claimed With Operation E Or F) 2020-2022 Explorer 4WD 3.0L EcoBoost: Replace All 4 VCT Units (Can Be Claimed With Operation E Or F) 2020-2022 Aviator RWD 3.0L EcoBoost: Replace All 4 VCT Units (Can Be Claimed With Operation E Or F) 2020-2022 Aviator AWD 3.0L EcoBoost: Replace All 4 VCT Units (Can Be Claimed With Operation E Or F) Additional Time To Check And Correct Caster/Camber And Front Toe (Can Be Claimed With Operation A, B, C Or D) Additional Time To Check And Correct Caster/Camber And Front Toe For Vehicles With Lane Departure (Can Be Claimed With Operation A, B, C Or D) Operation No. 222377A 222377B 222377C 222377D 222377E 222377F Time 21.6 Hrs. 23.4 Hrs. 22.4 Hrs. 23.7 Hrs. 1.1 Hrs. 1.3 Hrs. Repair/Claim Coding Causal Part: 6C525 Condition Code: 42 Service Procedure 1. Replace all 4 VCT units. Refer to Workshop Manual (WSM), Section 303-01. Do not replace any additional VCT or engine timing related components not included in the Parts List. (1). It is not necessary to remove the 2 left valve cover cam sensors. (2). All the VCT solenoid and spark plug tube seals require inspection, but not all require replacement. © 2022 Ford Motor Company All rights reserved. NOTE: The information in Technical Service Bulletins is intended for use by trained, professional technicians with the knowledge, tools, and equipment to do the job properly and safely. It informs these technicians of conditions that may occur on some vehicles, or provides information that could assist in proper vehicle service. The procedures should not be performed by “do-it-yourselfers”. Do not assume that a condition described affects your car or truck. Contact a Ford or Lincoln dealership to determine whether the Bulletin applies to your vehicle. Warranty Policy and Extended Service Plan documentation determine Warranty and/or Extended Service Plan coverage unless stated otherwise in the TSB article. The information in this Technical Service Bulletin (TSB) was current at the time of printing. Ford Motor Company reserves the right de this information with updates. The most recent information is available through Ford Motor Company’s on-line technical resources.
SEOCONTENT-END
