Malfunction Indicator Lamp (MIL) with Diagnostic Trouble Code DTC P0430 – 2011 Ford Ranger

4.0L ENGINE – DTC P0430 – BUILT ON 1/3/2011 AND THROUGH 5/3/2011



FORD:

2011 Ranger



2011 Ranger vehicles equipped with a 4.0L engine and built on 1/3/2011 and through 5/3/2011 may exhibit a Malfunction Indicator Lamp (MIL) with diagnostic trouble codes DTC P0430 set in the powertrain control module (PCM).



SERVICE PROCEDURE

1. Using the Integrated Diagnostic System (IDS) scan tool, retrieve continuous memory DTCs. Is DTC P0430 the only DTC present in the PCM?
   1. No – this article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnostics.
   2. Yes – proceed to Step 2.

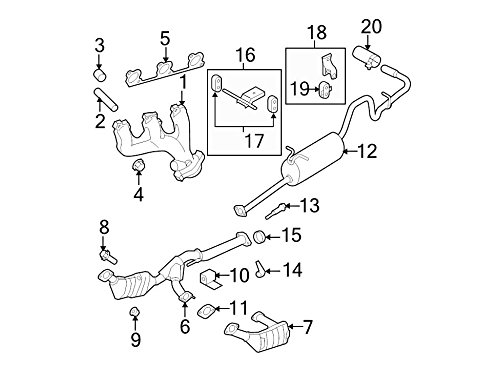

2. Replace the left side of the exhaust y-pipe.



AL5Z-5E212-A	Left Side Catalyst
7L5Z-5B266-A	Y-Pipe Gasket
W705443-S900	Nut
