| RATTLE NOISE UNDER VEHICLE – HEAT SHIELD CONTACT TO FLOOR PAN – VEHICLES BUILT ON OR BEFORE 8/7/2007 |
:
2006-2007 Front Wheel Drive (FWD) Fusion, Milan, 2007 MKZ vehicles built on or before 8/7/2007 and 2006 Zephyr vehicles may exhibit a customer concern of a rattle/vibration noise perceived to be coming from the console area or under the vehicle.
The rattle/vibration noise is most prominent during windy days where a crosswind is present and commonly occurs at approximate vehicle speeds between 50-70 MPH (80-116 Km/h).
SERVICE PROCEDURE
- Raise the vehicle on a hoist.
- Inspect the heat shield wings positioned in the rear portion of the exhaust shield, above the muffler. (Figure 1)
Figure 1
- Verify that the two (2) wings are not touching the floor pan tunnel (Figure 2). If they are, proceed to Step 4. If not, follow the normal service diagnostic procedures.
Figure 2
- Pull the wings down vertically to achieve a minimum clearance of 3/4″ (20 mm). (Figures 3 and 4)
Figure 3
Figure 4
Bestseller No. 1
Exhaust Heat Shield Automotive 16" x 39", Embossed Aluminum Heat Shield Kit with 20PCS Cable Metal Ties for Muffler Exhaust Wrap, Heat Barrier,Car Exhaust Sheet
- PRODUCT SIZE: Heat shield automotive's size is 16“ x 39”, which is made of high quality heavy-duty embossed aluminum material, the thickness is 0.5 mm, it is flexible and can be bent at will, easy to cut and use.
- GOOD HEAT RESISTANCE: Aluminum heat shield is a material with good heat resistance and can withstand sustained high temperatures up to 1022°F. Ideal for use in automobile chassis, muffler exhaust ducts, and automobile exhaust hoods for thermal protection.
- RELIABLE MATERIAL: Made of insulated aluminum sheet material, car heat shield has good thermal insulation, effective protection of parts and components, suitable for mufflers, chassis, fuel tanks, catalytic converters and so on. More durable and better heat insulation compared to ordinary heat shield cloth.
- ALL IN ONE KIT: Aluminum heat shield kit includes one roll of heat shield, 20PCS metal stainless steel ties - 12 inches long. NOTE: Please pay attention to the sharp edges of the product when removing or installing, it is better to wear gloves.
- MULTIPLE APPLICATIONS: Exhaust heat shield are perfect for motorcycle mufflers, car undercarriages, fuel tank insulation, heavy duty industrial piping, firewalls and more. All you need to do is trim the aluminum sheet to the desired size and hammer it into shape to meet your various needs.
Bestseller No. 2
SunplusTrade 2" x 50' Black Exhaust Heat Wrap Roll for Motorcycle Fiberglass Heat Shield Tape with Stainless Ties
- Package includes one 2 inch X 50 feet Heat Wrap with (pack of 6) 12" Stainless Steel (304) Locking Zip Ties.
- The exhaust heat wrap tape can withstand 1400F direct/2000F radiant heat.
- High resistance to abrasions, oil spills, temperatures and vibration breakdown
- The thermal heat wrap can reduce heat under hood up to 50%
- Universal fitment for cars and motorcycles performance parts
Bestseller No. 3
Coloch Exhaust Heat Shield Automotive,15”x 39” Embossed Aluminum Heat Shield Muffler Exhaust Wrap with Two Cable Metal Zip Ties High Temp Thermal Barrier for Car, Muffler, Battery
- Dimension: Coloch automotive exhaust heat shield measures 15 inches in width and 39 inches in length, providing ample coverage around the exhaust system. Its dimensions ensure a snug fit, preventing heat from entering vulnerable areas of the vehicle.
- Heat Tolerance: The heat shield muffler is made of premium aluminum, known for its excellent heat conductivity and durability. It has a high heat tolerance and can defend against continuous temperatures up to 1022 ℉/ 550 ℃.
- Thickness: The thickness of high temp thermal barrier is 0.38 millimeters, providing adequate protection. This thickness allows for effective insulation while still maintaining structural integrity and durability.
- Easy to Cut: The exhaust wrap is easy to cut to the length and shape you need, to fit different car parts. It can easily flex to be installed on the intake, mufflers, fuel tank, battery, chassis, catalytic converters, engine compartments, etc.
- Embossed Design: The embossing process involves creating a raised or indented pattern on the surface of the shield, giving it a textured appearance. This embossing enhances the heat dissipating properties of the shield, as it allows for better airflow and increased contact with the surrounding air.
Bestseller No. 4
Peastorm Exhaust Wrap Heat Shield Automotive Aluminum Material Muffler Wrap Insulation Armor, 12" x 24"
- Dimensions: 12" x 24", 1/2″ thick, heavy duty embossed aluminum.
- This heat shield is constructed from 10 mil aluminum bonded to heat-resistant glass fiber, can withstand continuous high temperatures of 1000°F.
- Easy to cut and shape, suitable for mufflers, chassis, fuel tank, engine compartments, battery, intake, etc.
- Compared with ordinary heat insulation cloth, it will be more durable and better heat insulation effect.
- Kit includes a heat shield, two 39" long stainless steel ties. Please pay attention to the sharp edge of the product when disassembling.
Bestseller No. 5

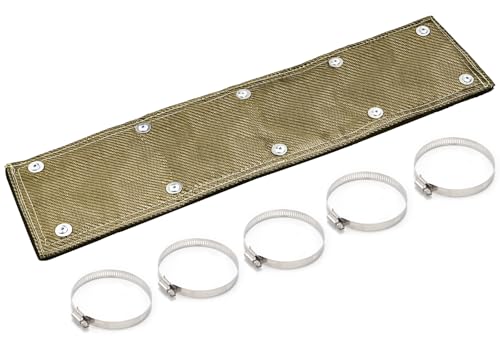

Racewill Titanium Pipe Shield 6" x 12" Exhaust Heat Shield, Two-layer Material Design Heat Protection up to 1350°F, Protects Heat Sensitive Components, Hoses, Lines, and Electrical Wiring
- [Advanced Heat Protection] Advanced double-layer material design, outer layer-titanium material, Inside Inside-temp silica fabricc. Heat protection up to 1350°F.
- [Easy Installation] Our unique rivet-based pipe standoff brackets and pipe clamps make installation a breeze.
- [Reduce Heat] Unique shield bracket design provides an air gap between shield and ducting, which together provide maximum cooling and heat dissipation potential.
- [Flexible Positioning] The easy-to-remove 3.5" hose clamp allows you to adjust it to your needs and preferences.
- [Universal Fit] Flexible shields can be installed on almost any shape of pipe. Due to the special material, we would like to remind you to wear gloves during installation.
SaleBestseller No. 6
PLOZANO Titanium Pipe Shield with Gloves, Exhaust Heat Shield 12" x 6", 2 Layer Motorcycle Exhaust Heat Shield, Muffler Heat Shield Exhaust Wrap Pipe Heat Insulation Protection up to 1350°F
- Heat Resistant: The motorcycle exhaust heat shield's 2 layer insulation consisting of titanium and silica fabricc effectively reduces exhaust pipe temperatures, minimizing the risk of feet burns, and can withstand temperatures up to 1,350°F, making it safer and more reliable than all-stainless steel motorcycle heat shield.
- Humanization: The exhaust wrap heat shield matching gloves protect against fiberglass, providing a more comfortable use experience. The muffler heat shield uses directly stamped square holes to avoid tearing and breaking like rivets, ensuring durability and ensures that the exhaust surroundings remain within a safe temperature range.
- Heat Insulation: Titanium Pipe Shield features stainless steel adjustable ties to ensure that the ties will not loosen once tightened. The gap between the heat shield and the tie improves heat dissipation and cooling, nice addition to any motorcycle or fourwheeler.
- Superior Protection: The pipe heat insulation shield measuring 12" x 6" inches and customized for exhausts, it also protects exhausts from moisture and rust, solves contact problems between exhausts and legs, and reliably protects spare tires at the same time.
- Easy Installation: The installation process is simple and quick, bend the heat shield according to the exhaust pipe shape and tighten the straps with a wrench. Ensure the exhaust pipe diameter is within the 3.5" range for optimal effectiveness.
Bestseller No. 7
Embossed Aluminum Heat Shield Automotive 12'' x 20'' High Temperature Thermal Barrier Exhaust Electrical For Cars/Turbo Manifold
- This heat shielding is ready to defend against continuous temperatures up to 1100°F
- RELIABLE MATERIAL: Made of insulated aluminum sheet material, car heat shield has good thermal insulation, effective protection of parts and components, suitable for mufflers, chassis, fuel tanks, catalytic converters and so on. More durable and better heat insulation compared to ordinary exhaust heat shield cloth( 15 mil thickness).
- Easy to cut with tin snips, simply fold and form edges with a hammer on a square edge.
- Perfect for use on fire wall, General underfloor, transmission tunnel, Spare wheel wells, Exhaust hangers, floor pan or fuel tank
- Compared with ordinary heat insulation cloth, it will be more durable and better heat insulation effect
Bestseller No. 8

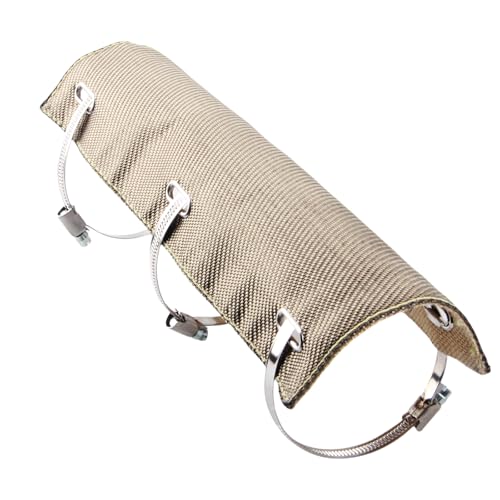

weideer 6" x 12" Exhaust Heat Shield,Titanium Pipe Shield, 2 layer Material Heat Protection Up to 1350° with Gloves for Motorcycle Exhaust Pipe,Muffler,Electrical Wiring K-164
- The outer layer of Titanium Pipe Shield is made of titanium and the inner layer is made of silicon dioxide fabric.Silicon dioxide fabric has excellent heat insulation, high temperature resistance and corrosion resistance. Can withstand heat up to 1350 degrees Fahrenheit.
- The Exhaust Heat Shield is equipped with three 304 stainless steel adjustable Hose Clamps.Hose Clamps will not be loosened when tightened. Hose Clamps will form a small gap between the heat shield and the exhaust pipe, which is beneficial to heat dissipation and cooling.
- Due to the particularity of the Exhaust Heat Shield material, we have a pair of gloves for the exhaust heat shield, which is safe to use. Note: Please do not touch it directly.
- The size of Exhaust Heat Shield is 12" x 6 "inches. Widely used in motorcycles, ATVs, cars and boats. It can provide protection for exhaust pipes, wires, hoses and sensitive electrical components from high temperature.
- Easy to install, Titanium Pipe Shield is covered on the exhaust pipe, just tighten the Hose Clamps with a wrench. Hose Clamps has a maximum diameter of 3.5 inches, so make sure that the diameter of the exhaust pipe is within 3.5 inches.
Bestseller No. 9

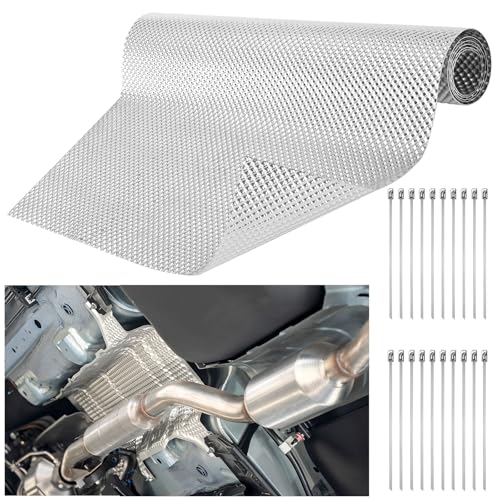

UNIFAMILY Embossed Exhaust Heat Shield Automotive, 12" x 39" Aluminum Exhaust Heat Wrap with 20 Pcs Cable Metal Zip Ties, Exhaust Wrap Heat Barrier Shield, Heat Wrap for Exhaust pipes
