1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 – 2013-2015 Ford Escape

“This site contains affiliate links for which OEMDTC may be compensated”

NHTSA ID Number: 10159457

Manufacturer Communication Number: TSB 19-2100

Summary

Some 2013-2015 Escape vehicles equipped with a 1.6L EcoBoost engine may exhibit an illuminated malfunction indicator lamp (MIL) and/or a transmission malfunction service now warning with only diagnostic trouble codes (DTCs) P0741 and/or P1744 stored in the powertrain control module (PCM). This may be due to internal damage to the torque converter. To resolve the condition, repair or replace the affected internal transmission components as directed by the Service Procedure.



3 Affected Products

Vehicle

MAKE MODEL YEAR
FORD ESCAPE 2013-2015




Model:

Ford

2013-2015 Escape



Issue: Some 2013-2015 Escape vehicles equipped with a 1.6L EcoBoost engine may exhibit an illuminated malfunction indicator lamp (MIL) and/or a transmission malfunction service now warning with only diagnostic trouble codes (DTCs) P0741 and/or P1744 stored in the powertrain control module (PCM). This may be due to internal damage to the torque converter. To resolve the condition, repair or replace the affected internal transmission components as directed by the Service Procedure.

Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:



Parts

Description Quantity Part Number
Torque Converter 1 CV6Z-7902-G
Torque Converter Nuts 4 W715618-S437eBay

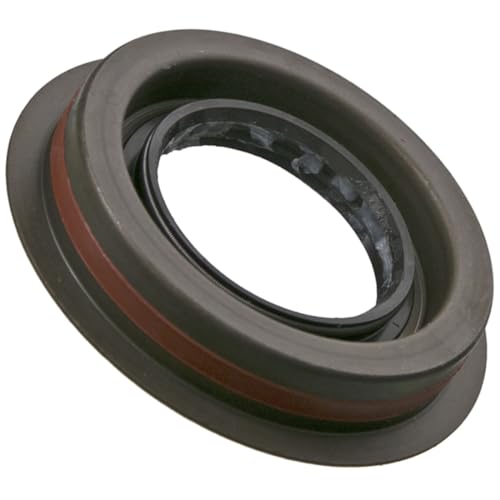

Converter Side Halfshaft Seal, 2-Wheel Drive (2WD) 1 BB5Z-1S177-C 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Converter Side Halfshaft Seal, 4-Wheel Drive (4WD) 1 9L8Z-1177-C
Case Side Halfshaft Seal 1 9L8Z-1177-G
Fluid Pump To Housing Seals-Small 4 9L8Z-7A248-B
Fluid Pump To Housing Seals-Large 1 9L8Z-7A248-C 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Transmission Fluid Pump Assembly 1 9L8Z-7A103-J
Pump Assembly to Converter Housing Seal 1 9L8Z-7A248-A 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Transmission Input Shaft Seal 1 9L8Z-7048-A
Converter Hub Seal 1 9L8Z-7A248-F 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Separator Plate, Main Control To Case 1 DV6Z-7Z490-A
Separator Plate, Solenoid Module To Main Control 1 DV6Z-7Z490-B
Line Pressure Control Solenoid Band 1 1 CV6Z-7G383-B

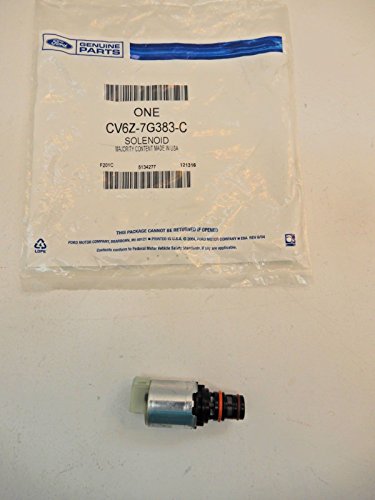

Line Pressure Control Solenoid Band 2 1 CV6Z-7G383-C 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Line Pressure Control Solenoid Band 3 1 CV6Z-7G383-D 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light

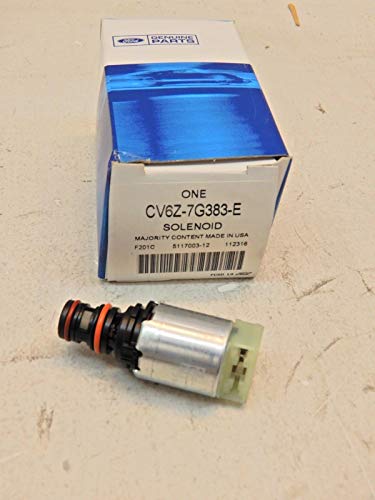

Line Pressure Control Solenoid Band 4 1 CV6Z-7G383-E 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Line Pressure Control Solenoid Band 5 1 CV6Z-7G383-F
Torque Converter Clutch Solenoid Band 1 1 CV6Z-7G136-B
Torque Converter Clutch Solenoid Band 2 1 CV6Z-7G136-C 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Torque Converter Clutch Solenoid Band 3 1 CV6Z-7G136-D 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Torque Converter Clutch Solenoid Band 4 1 CV6Z-7G136-E 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Torque Converter Clutch Solenoid Band 5 1 CV6Z-7G136-F
Tube Assembly 2 BL8Z-7G199-AeBay

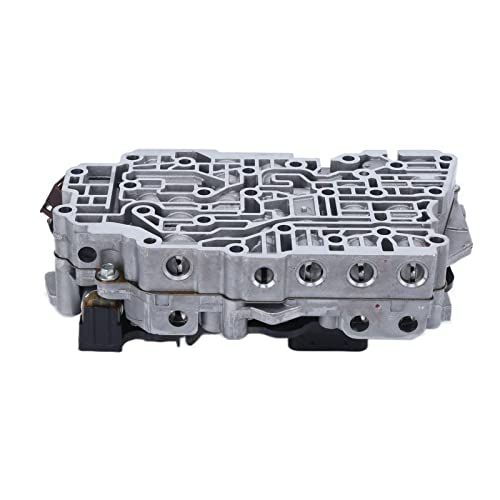

Transmission Main Control Assembly 1 CV6Z-7A100-B
Solenoid Body 1 CV6Z-7G391-A 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Wheel Hub Nut 1 CCPZ-3B477-GeBay
Halfshaft Bearing Retainer 1 YS4Z-3N324-AA
Halfshaft Bearing Retainer Nuts 2 W520102-S442
Halfshaft Retaining Circlip 1 AE5Z-4B422-A 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Ball Joint Pinch Bolts 2 W716075-S442
Ball Joint Pinch Bolt Nuts 2 W520415-S442
Tie Rod End Nuts 2 W520203-S442 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Driveshaft Bolts 12 5F9Z-4682-AA 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Cooler Line Bolts 2 W712146-S437
Transmission Filter 1 BB5Z-7A098-E
Engine Oil Filter 1 BE8Z-6731-AB 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Transmission Fluid (All Markets Except Canada) 12 XT-10-QLV 1.6L EcoBoost – Illuminated MIL And/Or Transmission Malfunction Service Now Warning With Only DTCs P0741 And/Or P1744 - 2013-2015 Ford Escape | small light
Transmission Fluid (Canada Only) 12 CXT-10-LV6eBay
Engine Oil (All Markets Except Canada) 1 XO-5W20-Q1SP
Engine Oil (Canada Only) 1 CXO-5W20-LSP6



Service Procedure

  1. Remove the transmission. Refer to Workshop Manual (WSM), Section 307-01.
  2. Remove and discard the torque converter.
  3. Remove the transmission fluid pump assembly for inspection. Remove and discard the fluid filter. Follow the transmission fluid pump assembly inspection procedure. Refer to WSM, Section 307-01 > Overhaul > Transmission > Steps 126-133. Does the transmission fluid pump assembly pass inspection criteria?

(1). Yes – proceed to Step 4.

(2). No – replace the transmission fluid pump assembly. Proceed to Step 4.

  1. Remove the main control and solenoid body assembly. Refer to WSM, Section 307-01.
  2. Separate the main control from the solenoid body.
  3. Overhaul the solenoid body assembly. Refer to WSM, Section 307-01. Do all the valves move freely?

(1). Yes – proceed to Step 7.

(2). No – replace the solenoid body. Proceed to Step 8.

  1. Replace the line pressure control (LPC) solenoid (high variable bleed) and the torque converter clutch (TCC) solenoid (low variable bleed). Refer to WSM, Section 307-01.
  2. Replace the main control.
  3. Reassemble the transmission with a new torque converter and fluid filter. Refer to WSM, Section 30701.
  4. Reinstall the transmission. Refer to WSM, Section 307-01.
