Safety Recall 18S19 – Brake Line Replacement – 2018 Ford F-650 & F-750

NHTSA Campaign Number: 18V389
Manufacturer Ford Motor Company
Components SERVICE BRAKES, HYDRAULIC
Potential Number of Units Affected 1,474



Brake Hose Corrosion May Cause Brake Fluid Leak

A brake fluid leak can reduce brake effectiveness, increasing the risk of a crash.



Summary

Ford Motor Company (Ford) is recalling certain 2018 Ford F-650 and F-750 trucks. The brake circuit hose assemblies located between the master cylinder and the hydraulic control unit, may have been manufactured without anti-corrosion plating on the coupling fittings, or “ferrules,” of the hoses. This can lead to premature corrosion, and result in a brake fluid leak.



Remedy

Ford will notify owners, and dealers will replace the brake hose assemblies, free of charge. The recall is expected to begin July 9, 2018. Owners may contact Ford customer service at 1-866-436-7332. Ford’s number for this recall is 18S19.



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.



Check if you Vehicle has a Recall


June 21, 2018

TO: All U.S. Ford and Lincoln Dealers

SUBJECT: NEW VEHICLE DEMONSTRATION / DELIVERY HOLD Safety Recall 18S19
Certain 2018 Model Year F-650 and F-750 Vehicles  Brake Line Replacement

REF : NEW VEHICLE DEMONSTRATION / DELIVERY HOLD – Advance Notice Safety Recall 18S19
Dated June 12, 2018



AFFECTED VEHICLES

Vehicle Model Year Assembly Plant Build Dates
F-650 / F-750 2018 Ohio January 26, 2018 through March 13, 2018

Affected vehicles are identified in OASIS and FSA VIN Lists.



REASON FOR THIS SAFETY RECALL

The affected vehicles may contain flexible brake line assemblies, located between the master cylinder and the Hydraulic Control Unit (HCU), that do not have the specified anti-corrosion plating on the metal ferrules.  A lack of anti-corrosion plating can lead to premature corrosion of the brake line ferrules.  This can subsequently result in brake fluid leakage, and reduced brake function, increasing the risk of a crash.



SERVICE ACTION

Before demonstrating or delivering any new in-stock vehicles involved in this recall, dealers are to replace both flexible brake line assemblies on suspect vehicles.  This service must be performed on all affected vehicles at no charge to the vehicle owner.



OWNER NOTIFICATION MAILING SCHEDULE

Owner letters are expected to be mailed the week of July 09, 2018.  Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.

PLEASE NOTE:

Federal law requires dealers to complete this recall service before a new vehicle is delivered to the buyer or lessee.  Violation of this requirement by a dealer could result in a civil penalty of up to $21,000 per vehicle.  Correct all vehicles in your new vehicle inventory before delivery.



ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information
Owner Notification Letter



QUESTIONS & ASSISTANCE

For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web Contact Site.  The SSSC Web Contact Site can be accessed through the Professional Technician Society (PTS) website using the SSSC link listed at the bottom of the OASIS VIN report screen or listed under the SSSC tab.

Sincerely,



David J. Johnson


ATTACHMENT I

NEW VEHICLE DEMONSTRATION / DELIVERY HOLD
Safety Recall 18S19
Certain 2018 Model Year F-650 and F-750 Vehicles
Brake Line Replacement



OASIS ACTIVATION

OASIS was activated on June 12, 2018.



FSA VIN LISTS ACTIVATION

FSA VIN Lists have been available through https://web.fsavinlists.dealerconnection.com on June 12, 2018.  Owner names and addresses will be available by July 24, 2018.

NOTE:  Your FSA VIN Lists may contain owner names and addresses obtained from motor vehicle registration records.  The use of such motor vehicle registration data for any purpose other than in connection with this recall is a violation of law in several states, provinces, and countries.

Accordingly, you must limit the use of this listing to the follow-up necessary to complete this recall.



SOLD VEHICLES

  • Owners of affected vehicles will be directed to dealers for repairs.
  • Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
  • Correct other affected vehicles identified in OASIS which are brought to your dealership.
  • Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.



STOCK VEHICLES

  • Correct all affected units in your new vehicle inventory before delivery.
  • Use OASIS to identify any affected vehicles in your used vehicle inventory.



DEALER-OPERATED RENTAL VEHICLES

The Fixing America’s Surface Transportation (FAST) Act law effective June 2016 prohibits a rental company from selling, renting or leasing vehicles subject to a safety or compliance recall.  Please consult your legal counsel for legal advice.



TITLE BRANDED / SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this recall.



OWNER REFUNDS

Refunds are not approved for this program.



ADDITIONAL REPAIR (LABOR TIME AND/OR PARTS)

Additional repairs identified as necessary to complete the FSA should be managed as follows:

  • For related damage and access time requirements, refer to the Warranty and Policy Manual – Section 6 – Ford/Lincoln Program Policies – Field Service Actions (FSA) – Related Damage.
  • For vehicles within new vehicle bumper-to-bumper warranty coverage, no SSSC approval is required.
    • F-650/F-750 trucks – 2 years, regardless of miles driven
  • For vehicles outside new vehicle bumper-to-bumper warranty coverage, submit an Approval Request to the SSSC Web Contact Site prior to completing the repair.



CLAIMS PREPARATION AND SUBMISSION

  • Enter claims using Dealer Management System (DMS) or One Warranty Solution (OWS) online.
    • When entering claims, select claim type 31: Field Service Action. The FSA number (18S19) is the sub code.
    • For additional claims preparation and submission information, refer to the Recall and Customer Satisfaction Program (CSP) Repairs in the OWS User Guide.
  • Additional labor and/or parts must be claimed as related damage on a separate repair line from the FSA. IMPORTANT: Click the radio button on the Related Damage Indicator.

ATTACHMENT II

NEW VEHICLE DEMONSTRATION / DELIVERY HOLD
Safety Recall 18S19
Certain 2018 Model Year F-650 and F-750 Vehicles
Brake Line Replacement



LABOR ALLOWANCES

Description Engine Labor Operation Labor Time
Replace both flexible brake line assemblies 6.8L Gas 18S19B 2.4 Hours
6.7L Diesel 18S19C 2.8 Hours



PARTS REQUIREMENTS / ORDERING INFORMATION

Description Part Number Order Quantity Claim Quantity
Brake Line Assembly FC4Z-2234-A 1 1
Brake Line Assembly FC4Z-2A040-A 1 1

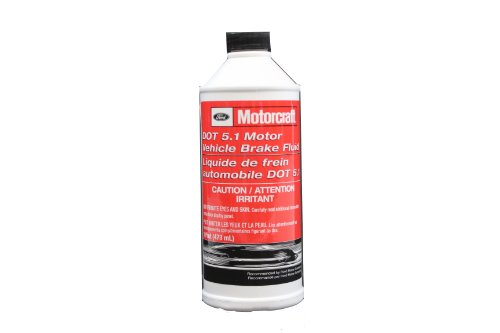

Motorcraft® DOT 5.1 Motor Vehicle Brake Fluid PM-21 9 9

Order your parts through normal order processing channels.  To guarantee the shortest delivery time, an emergency order for parts must be placed.



DEALER PRICE

For latest prices, refer to DOES II.



PARTS RETENTION AND RETURN

Follow the provisions of the Warranty and Policy Manual, Section 1 – WARRANTY PARTS RETENTION AND RETURN POLICIES.



EXCESS STOCK RETURN

Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.


ATTACHMENT III

CERTAIN 2018 MODEL YEAR F-650 and F-750 VEHICLES – BRAKE LINE REPLACEMENT



OVERVIEW

The affected vehicles may contain flexible brake line assemblies, located between the master cylinder and the Hydraulic Control Unit (HCU), that do not have the specified anti-corrosion plating on the metal ferrules. A lack of anti-corrosion plating can lead to premature corrosion of the brake line ferrules. This can subsequently result in brake fluid leakage, and reduced brake function, increasing the risk of a crash.



SERVICE PROCEDURE

Recommended Tool List:

Recommended Tool List: General Equipment:
1/4″ Ratchet (Power and Hand Tool) Heavy Duty Jack
1/4″ Drive 7mm, 8mm And 10mm Shallow Socket Heavy Duty Jack Stands
1/4″ Drive Torque Wrench Heavy Duty Wheel Dolly
3/8″ Drive Ratchet (Power and Hand Tool) Brake/Clutch System Pressure Bleeder/Filler
3/8″ Drive 14mm and 15mm Crows Feet
3/8″ Drive Torque Wrench
1″ Drive 33mm Deep Impact Socket
1″ Drive 6″ Impact Extension
1″ Drive Torque Wrench
11, 14 and 15mm Line Wrenches
Trim Tool
Wire Brush



NOTICE: Make sure that all brake system openings are sealed.

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.



All Vehicles

  1. Open the hood. See Figure 1.

Open the hoodFIGURE 1



Vehicles Equipped With A Diesel Engine

  1. Remove the pin-type retainers from the driver side fender rear splash shield. See Figure 2.

pin-type retainersFIGURE 2



  1. Remove the three retainers from the driver side fender rear splash shield. See Figure 3.
    • Torque to 93 lb.in (10.5 Nm).

retainers from the driver side fender rear splash shieldFIGURE 3



  1. Remove the pin-type retainers from the driver side fender rear splash shield. See Figure 4.

pin-type retainers from the driver side fender rear splash shieldFIGURE 4



  1. Remove the pin-type retainers from the driver side fender rear splash shield. See Figure 5.

pin-type retainers from the driver side fender rear splash shieldFIGURE 5



  1. Position down the driver side fender rear splash shield. See Figure 6.

driver side fender rear splash shieldFIGURE 6



  1. Remove the two retainers and position aside the fender support bracket. See Figure 7.
    • Torque to 93 lb.in (10.5 Nm).

fender support bracketFIGURE 7



  1. Loosen the clamp and position the charge air cooler tube aside. See Figure 8.
    • Torque: 106 lb.in (12 Nm).

charge air cooler tubeFIGURE 8



All Vehicles

NOTE: Be prepared to capture escaping fluid.

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTICE: Do not allow grease, oil, brake fluid or other contaminants to contact the brake pad lining or brake disc. If contamination is on the brake pad lining or brake disc surface, do not clean with metal brake parts cleaner and/or shop towels. Clean the surface using isopropyl alcohol wipes.

  1. Disconnect both brake lines at the master cylinder and position aside. See Figure 9.
    • Torque: 20 lb.ft (27.5 Nm).

brake lines at the master cylinderFIGURE 9



  1. Disconnect the brake line from the hydraulic control unit, detach the brake line from the routing clip
    and remove and discard the brake line. See Figure 10.

NOTICE: Care should be taken not to damage or break the routing clip.

  • Torque: 22 lb.ft (30 Nm).

brake line from the hydraulic control unitFIGURE 10



  1. Release the pin-type retainer and position aside the power fluid steering lines. See Figure 11.

pin-type retainerFIGURE 11



  1. Disconnect the brake line from the hydraulic control unit, detach the brake line from the routing clip
    and remove and discard the brake line. See Figure 12.

NOTICE: Care should be taken not to damage or break the routing clip.

  • Torque: 22 lb.ft (30 Nm).

brake line from the hydraulic control unitFIGURE 12



  1. To install, reverse the removal procedure.
  2. Bleed the brake system. Refer to: Brake System Pressure Bleeding (206-00A Brake System – General Information – Vehicles With: Hydraulic Brakes, General Procedures).
