| General Service Bulletin (GSB): | Hybrid and Energi vehicle Fuel Opening Operation |
| GSB Overview: | Information on delayed opening of the fuel door after button press in Hybrid and Energi vehicles |
| NOTE: This information is not intended to replace or supersede any warranty, parts and service policy, Work Shop Manual (WSM) procedures or technical training or wiring diagram information. | |
This GSB includes information on the following topics:
- Refueling Mechanism
- Refueling Video
Refueling Mechanism
- Fuel Door operation for 2013 and Newer Energi (PHEV) and 2017 & beyond Full Hybrid Vehicles (FHEV) including Lincoln
MKZ is performed via a dedicated button located inside the car. See Ownerโs Guide for vehicle specific location. - In PARK, once the button is pressed, the Powertrain Control module (PCM) gets a wake-up signal from the Body Control Module (BCM).
- The PCM processes this signal from the BCM to open the Fuel Vapor Vent Valve (FVVV) also known as a refueling valve to relieve tank pressure.
- The depressurizing action can take up to 15 seconds depending on tank pressure. This delay is normal behavior and does not indicate a defect.
- When fuel tank pressure is close to atmospheric, the fuel door solenoid unlocks the fuel door to allow refueling.
Refueling Video
For information on how to refuel your Ford or Lincoln Hybrid or Energi, please refer the customer to the following Video:
Note: If a Windows Security โpop-upโ displays Select โCANCELโ to proceed to the video.
- 2013 and newer CMAX Energi (PHEV) and 2017 and newer Hybrid and Energi Vehicles
- 2013 and newer FUSION Energi PHEV & 2017 and newer Hybrid including MKZ and Energi Vehicles
Loading...
Reload document
Open in new tab
Bestseller No. 1

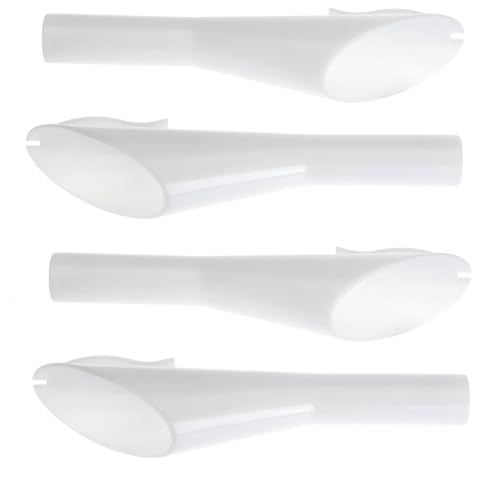

Fuel Filler Gas Tank Funnel Tube Replace 8U5A17B068AD 8U5Z17B068A 8U5Z17B068B for Ford F150 for Lincoln for Mercury Mountaineer Mariner Milan Fuel Tank Filler Tube Neck Sleeve 2PCS
