| AWD – DRIVELINE VIBRATION – HOWL NOISE AT HIGHWAY SPEEDS IN COLD TEMPERATURES – BUILT ON OR BEFORE 8/13/2010 |
:
2007-2011 Fusion, Milan and MKZ vehicles equipped with all-wheel-drive (AWD) systems and built on or before 8/13/2010 may exhibit a driveline vibration or a howl noise at highway speeds in cold temperatures.
SERVICE PROCEDURE
- Place the vehicle in neutral, position it on a hoist.
- Index-mark both the driveshaft flanges at the power transfer unit (PTU) and rear differential unit (RDU).
- Disconnect the rear driveshaft from the PTU and from the RDU assembly.
- Leave the driveshaft attached to the vehicle.
- Rotate the driveshaft by hand, and check for any roughness feel to both the front and rear driveshaft bearings.
- If no roughness is felt from either bearing, do not continue with this article. Re-index the driveshaft.
- If any roughness is felt from either bearing, replace the driveshaft assembly.
| PART NUMBER | PART NAME |
|---|---|
| AE5Z-4R602-A | Rear Driveshaft Assembly |
W520113-S440  | Center Bearing Support Nut |

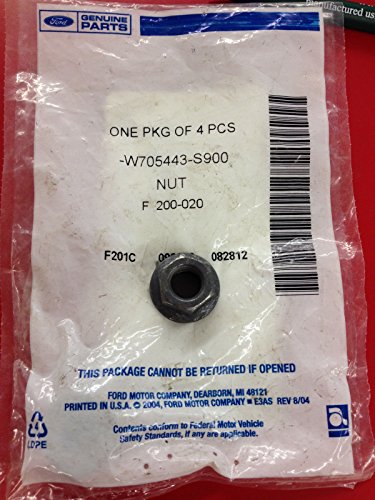

| W705443-S900 | Exhaust Flex Pipe Flange Nut |
| W711960-S439 | Rear Driveshaft-To-Pinion Flange Bolt |
