NHTSA ID Number: 10205001
Manufacturer Communication Number: TSB160036
Summary
Panoramic roof panel blind inoperative, buckled and/or stuck
FORD:
2014-2016 Transit Connect
ISSUE:
Some 2014-2016 Transit Connect vehicles may exhibit a condition in which the panoramic roof panel blind moves and stops 150 mm (6 inches) from the full open position or does not move at all. The blind may be buckled and/or stuck.
ACTION:
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
- Is the panoramic roof panel blind inoperative, buckled and/or stuck?
- Yes – proceed to Step 2.
- No – this article does not apply. Refer to Workshop Manual (WSM), Section 501-05 for normal diagnosis.
- Replace the panoramic roof panel blind assembly. Refer to WSM, Section 501-05.
| PART NUMBER | PART NAME |
| DT1Z-17519A02-AB | Panoramic Roof Panel Blind Assembly |
3 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| FORD | TRANSIT CONNECT | 2014-2016 |
1 Associated Document
Manufacturer Communications
TSB 16-0036
https://www.nhtsa.gov/recalls?nhtsaId=10205001
Loading...
Reload document
Open in new tab
Bestseller No. 1
Rimamoka Sunroof Glass Cable Compatible with 2015-2020 Ford F150 2017-2019 Ford F250 F350 F450 Replace# FL3Z16502C22
- [REPLACE PART NUMBER] FL3Z16502C22.
- [FITMENT VEHICLE MODEL] Compatible with 2015-2020 Ford F150, compatible with 2017-2019 Ford F250, compatible with 2017-2019 Ford F350, compatible with 2017-2019 Ford F450.
- [HIGH QUALITY] Made of high-quality plastic and metal, durable and anticorrosive. It is a good substitute for the original factory.
- [EASY TO INSTALL] Easy to install. Simply replace the old product to use it.
- [NOTICE] For any reason, if you are not satisfied with your purchase, contact us directly.
Bestseller No. 2
Sunroof Repair Kit Sunroof Track Assembly for Ford F150 F250 F350 F450 Expedition Lincoln Navigator Mark LT Replaces # 02ESR1201ABK
- High Quality.
- Easy Installation.
- Fitment Info In The Product description.
- Thank you!
- If you have any questions, please tell us .
Bestseller No. 3
Dorman 926-550 Sunroof Track Guide Repair Kit Compatible with Select Ford/Lincoln Models
- Direct replacement - the components in this sunroof frame repair kit are designed to match the fit of the original components required to service or repair the sunroof frame on specified vehicles
- Ideal solution - engineered to ensure the smooth operation of the sunroof when the sunroof frame is serviced or repaired
- Durable construction - manufactured from quality materials for reliable performance and long service life
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
Bestseller No. 4
Misakomo Sunroof Repair Kit, CNC Milled Aluminum Sunroof Kit Compatible with Ford Edge/Lincoln MKT MKX, Replace 7T4Z78502C06A & B and 7T4Z78502C07A & B, Sunroof Track Guide Rails Assembly Repair Kit
- 【Upgraded Material】Our sunroof track guide rails repair kit is made of CNC-milled aluminum, which is more stronger and durable for longer life than plastic.
- 【Restore Functionality】Our sunroof guide repair kit is a perfect replacement for OEM parts to fix jamming, misalignment, and difficulty opening/closing the sunroof.
- 【Easy to Install】The sunroof track repair kit includes all the necessary components and hardware required for installation and comes with built-in instructions. No need to remove the roof lining, saving you time and money on costly repairs at a local auto shop.
- 【Perfect Fit】Compatible with 2007-2014 Ford Edge, 2007-2015 Lincoln MKX, and 2010-2018 Lincoln MKT models - replaces OEM part numbers 7T4Z78502C06A and B & 7T4Z78502C07A&B - our sunroof track kit is perfect for reviving your sunroof's function.
- 【Satisfaction Guaranteed】We offer a 12-month warranty and a 30-day money-back guarantee. If you have any questions about our sunroof kit, please don't hesitate to contact us. Please confirm the OE of your model and parts before buying to ensure a perfect fit.
SaleBestseller No. 5

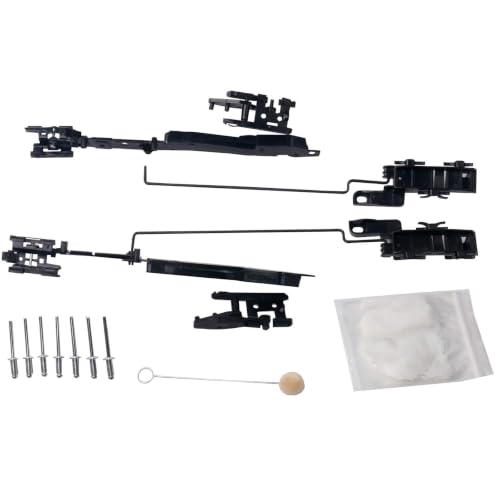

Sunroof Track Assembly Repair Kit for Ford F150 F250 F350 F450 Expedition Lincoln Navigator Mark LT 2000-2016 | Best Sun Roof Replacement Track Parts for F-150 Truck | Premium Car Accessories
