NHTSA ID Number: 10244657
Manufacturer Communication Number: TSB 23-2282
Summary
Some 2021-2022 Bronco vehicles built on or before 31-Mar-2022 and equipped with a factory hard top roof may have an older style latch decal installed that is no longer available to order. Replacement hard top roof panels will come with a newer style latch decal. This will create an appearance mismatch condition with the original roof panels that will still have the older style decals installed. To correct this condition, follow the Service Procedure to install newer style latch decals on all original hard top roof panels.
Model:
| Ford
2021-2022 Bronco |
Built on or before 31-Mar-2022 |
Issue: Some 2021-2022 Bronco vehicles built on or before 31-Mar-2022 and equipped with a factory hard top roof may have an older style latch decal installed that is no longer available to order. Replacement hard top roof panels will come with a newer style latch decal. This will create an appearance mismatch condition with the original roof panels that will still have the older style decals installed. To correct this condition, follow the Service Procedure to install newer style latch decals on all original hard top roof panels.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- 2021-2022 Bronco
- Built on or before 31-Mar-2022
- Equipped with a factory hard top roof
- Vehicle had a hard top roof panel(s) replaced and the latch decals on the new roof panel(s) does not match the latch decals from the original roof panel(s)
Parts – All Vehicles When Reattaching A Section Of The Headliner
| Service Part Number | Quantity | Description |
| Obtain Locally | If Needed | 3M™ 4298UV Adhesion Promoter |
| Obtain Locally | If Needed | Disposable Gloves |
| Obtain Locally | If Needed | Sponge |
Parts – 3-Door Vehicles – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description |
| M2DZ-98502H97-A | If Needed | Latch Decal Kit – 3 Door – Left Front Panel |
| M2DZ-98502H96-A | If Needed | Latch Decal Kit – 3 Door – Right Front Panel |
| M2DZ-9854310-A | If Needed | Headliner – 3 Door – Left Front Panel |
| M2DZ-9854310-B | If Needed | Headliner – 3 Door – Right Front Panel |
Parts – 5-Door Vehicles – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description |
| M2DZ-78502H95-A | If Needed | Latch Decal Kit – 5 Door – Left Front Panel |
| M2DZ-78502H94-A | If Needed | Latch Decal Kit – 5 Door – Right Front Panel |
| M2DZ-78502H98-A | If Needed | Latch Decal Kit – 5 Door – Middle Panel |
| M2DZ-7854310-D | If Needed | Headliner – 5 Door – Left Front Panel |
| M2DZ-7854310-A | If Needed | Headliner – 5 Door – Right Front Panel |
| M2DZ-7854310-E | If Needed | Headliner – 5 Door – Middle Panel |
If Needed indicates the part is not mandatory.
Service Procedure
1. Do the vehicle’s new roof panel(s) have latch decals that do not match the original roof panel(s)? Refer to Figure 1 for an image of the new latch decal (Figure 1, Callout 1) and an image of the old latch decal (Figure 1, Callout 2). Refer to Figures 2-3 for latch decal locations.
(1). Yes – proceed to Step 2.
(2). No – this article does not apply.
Figure 1 – View of the new and latch decals on a hard top roof panel
Figure 2 – View of the latch decal locations on the Bronco 3-door hard top roof
Figure 3 – View of the latch decal locations on the Bronco 5-door hard top roof
2. Remove the affected roof panels and place them upside down on a flat clean work surface. Refer to the Workshop Manual (WSM), Section 501-18B.
3. Remove the affected hard top flip latches and/or hard top turn handles. Refer to the WSM, Section 501-18B.
4. For vehicles equipped with a headliner, carefully peel back the edges of the headliner(s) located around the decals to gain access to the latch decal(s). If the headliner adhesive separates from the headliner, the headliner must be replaced.
5. Use a plastic scraper and fingers to remove all older style latch decal(s). Make sure the older latch decal(s) are completely removed from the roof panel component(s).
6. Install the new style latch decal(s). The new latch decals are a peel and stick design.
7. When reusing the existing headliner(s), use gloves and a sponge to apply 3M™ 4298UV Adhesion Promoter on the areas where the headliner will reattach to the bare roof and/or latch decal(s). Make sure to not extend the adhesion promoter outside of the contact area on the latch decal(s).
8. Use firm pressure to secure the headliner back into place on top of the latch decals.
9. Reinstall the affected hard top flip latches and/or hard top turn handles. Refer to the WSM, Section 501-18B.
10. Reinstall the affected roof panels back onto the vehicle. Refer to the WSM, Section 501-18B.
2 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| FORD | BRONCO | 2021-2022 |
1 Associated Document
Manufacturer Communications
23-2282
16 October 2023
https://www.nhtsa.gov/recalls?nhtsaId=10244657
Loading...
Reload document
Open in new tab
- Convenient Roof Panel Storage: The hard Top storage bag designed for Bronco 2-door and 4-door, this bag stores the roof panels above the first row of seats. Provides a convenient solution for storing your roof panels.
- Ideal for Off-Roading: When you're hitting the trails in the summer and decide to remove the hardtop, our storage bag becomes a must-have accessory. It solves the problem of finding a secure storage space, allowing you to enjoy the open-air experience without worrying about the roof panels.
- Zipper Design and Oxford Fabric: Designed with a reliable zipper closure. The bag is made from durable Oxford fabric, providing long-lasting protection against dust, dirt, and other environmental elements.
- Scratch-Prevention Lining: We understand the importance of preserving the pristine condition of your hardtop. Our storage bag features a soft cotton fabric lining, preventing scratches and scuffs.
- Trunk-Friendly Storage: Our hard top storage bag is designed for maximum convenience. It allows you to store the roof panels directly in the trunk, saving valuable space in your vehicle.
- [Overview] Transform your rear doors and maximize every inch of storage space in your van with our premium quality, durable storage panels. This product comes in a set of two.
- [Dimensions] Left panel: 8.1” tall x 25.2” wide x 0.4” deep. Right panel: 8.1” tall x 22.4” wide x 0.4” deep. Each Ford Transit Rear Door Upper Storage Panel’s volume is 1.4 liters.
- [Design] Constructed with rigid honeycomb board and made from recycled materials, these panels are designed specifically for precision fit in the rear door on Ford Transit high roof van models built from 2015 to current.
- [Installation] This product requires drilling into your van’s rear door. Installation instructions and hardware included.
- [Features] Each panel features a single mesh stretch pocket with hook closure and daisy chain storage.
- 【Compatible With】Van Partition fits for Full-Size Ford Transit 150 250 350 2015-2024 Mid-Roof. WARM NOTE: The product doesn’t come with door handle but there is a hole reserved for door handle so that you can choose any kind of door handle you like. It also doesn't fit for ford transit low roof and high roof.
- 【Premium Material】Bulkhead is made of heavy-duty gauge steel, sturdy and durable. Protect the driver and passenger from shifting cargo as a safety partition.
- 【Two Types of Installation】One way is fastening the three panels together, more stable and solid. Another way is using the hinges to connect the center door panel with left or right panel, can open or close the center door panel freely, more convenient and flexible.
- 【Unique Design】Diamond mesh screens mounted to the panels is designed for you to see through, convenient for you to know the condition of your cargo at the first time.
- 【Multi-functional】Not only keeping your tools and materials from shifting, but also increasing security by separating the vehicles cab from cargo area.
- 【Premium Quality】: This Sunroof Glass Seal is made of high-quality rubber, which has the advantages of corrosion resistance and oxidation resistance, which greatly increases service life.
- 【Replace Part Number】:5L1Z-7851884-AA, 5L1Z 7851884 AA, 5L1Z7851884AA
- 【Compatible with】: Ford Expedition 1997-2017 /F150 2001-2014/ F250 2003-2016 /F350 2003-2016 /F450 2003-2016/F550 2003-2007 /Lincoln Navigator 1998-2017.
- 【Function】: The aging or damage of the sunroof glass sealing strip will cause the sunroof to leak water and easily damage the internal parts of the car. Therefore, when the sunroof glass weatherstrip shows signs of aging, it is necessary to replace the spare part. This sunroof glass sealing strip is made in strict accordance with the standard size of the original parts, and continues the frosted surface of the original parts, which is a perfect substitute for the original parts.
- 【Installation】: The installation of this sealing strip is very simple, just remove the original skylight sealing strip, install the sealing strip at the corresponding position, insert the skylight glass into the sealing strip slot, and squeeze it firmly to make it installed firmly.
- 【Compatible With】Van Partition fits for Full-Size Ford Transit 150 250 350 2015-2024 Mid-Roof. WARM NOTE: The product doesn’t come with door handle but there is a hole reserved for door handle so that you can choose any kind of door handle you like. It also doesn't fit for ford transit low roof and high roof.
- 【Premium Material】Bulkhead is made of heavy-duty gauge steel, sturdy and durable. Protect the driver and passenger from shifting cargo as a safety partition.
- 【Two Types of Installation】One way is fastening the three panels together, more stable and solid. Another way is using the hinges to connect the center door panel with left or right panel, can open or close the center door panel freely, more convenient and flexible.
- 【Unique Design】Diamond mesh screens mounted to the panels is designed for you to see through, convenient for you to know the condition of your cargo at the first time.
- 【Multi-functional】Not only keeping your tools and materials from shifting, but also increasing security by separating the vehicles cab from cargo area.

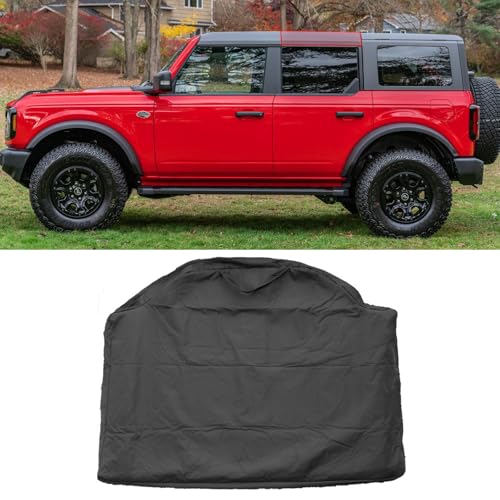

- Compatible Models: Hard top storage bag fit for Ford Bronco 2021 2022 2023 2/4-door, not for sports models
