FRONT SUSPENSION POPPING NOISE WHILE TURNING RIGHT OR LEFT – VEHICLES BUILT BEFORE 4/8/2005



FORD: 2005 Mustang



2005 Mustang vehicles built before 4/8/2005 may exhibit an intermittent popping noise from the front of the vehicle while turning left or right.

The noise will typically occur during low speed maneuvers and may occur multiple times while turning.



ACTION:

On both sides of the vehicle, install a revised upper strut bearing assembly.

If the vehicle was built before February 2005, it may also be necessary to install a lower spring seat isolator if one is not already present.



SERVICE PROCEDURE

  1. Remove the strut and spring assembly.
  2. Disassemble the strut and spring assembly.
  3. If the springs do not have a rubber isolator on the bottom spring coil, install isolators. Clean off any dirt prior to installing the isolator. The isolator should be installed 4″ (100 mm) from the end of the coil (Figure 1).

IsolatorFigure 1

  1. Reassemble the strut and spring. During reassembly, make sure the lower spring coil is butted up against the lower spring seat on the strut and the upper spring coil is butted up against the upper bearing assembly.

NOTE: INSTALL ALL NEW FASTENERS DURING REASSEMBLY.

NOTE: VEHICLE ALIGNMENT IS NOT REQUIRED AFTER THIS REPAIR.



PART NUMBER PART NAME

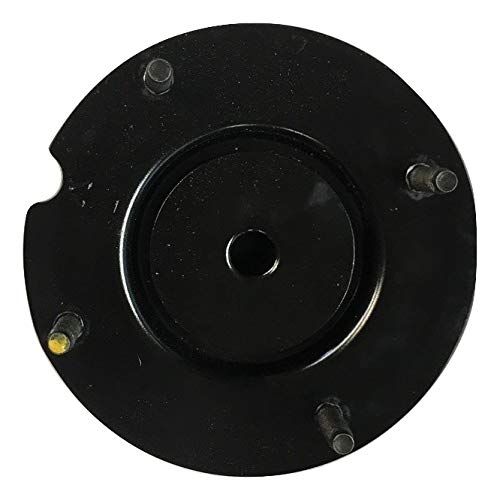

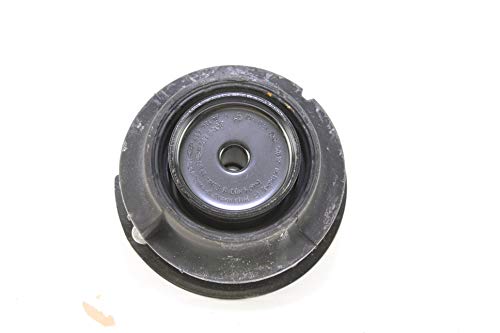

8R3Z-18183-B Front Suspension Popping Noise - 2005 Ford Mustang | small light Upper Strut Mount Assembly (Coupe)
5R3Z-18183-A Front Suspension Popping Noise - 2005 Ford Mustang | small light Upper Strut Mount Assembly (Convertible)
5R3Z-5L302-A Front Suspension Popping Noise - 2005 Ford Mustang | small light Spring Isolator
W520112-S440 Strut Upper Mount Nut
W520215-S440 Front Suspension Popping Noise - 2005 Ford Mustang | small light Strut Rod Nut and Washer
W709870-S439 Strut-To-Wheel Spindle Bolt
W711091-S900 Strut-To-Wheel Spindle Flag Nut

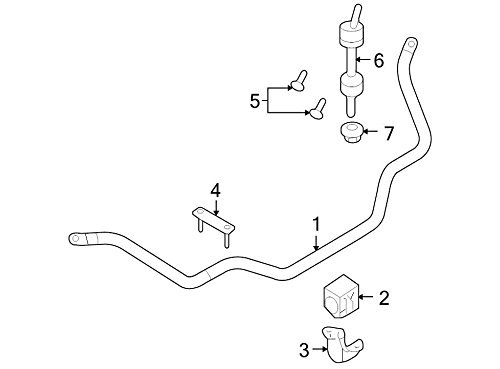

N807144-S440 Front Suspension Popping Noise - 2005 Ford Mustang | small light Stabilizer Bar Link Upper Nut
