NHTSA ID Number: 10225538
Manufacturer Communication Number: 22B27
Summary
Certain 2021 Model Year Bronco Vehicles Front Driveshaft Replacement. In the affected vehicles, the front driveshaft constant-velocity (CV) joint boot material is not robust for this application and may fail under normal vehicle usage. A failed CV joint boot may result in a loss of grease and the accumulation of debris in the CV joint, leading to noise and/or vibration while driving.
October 12, 2022
Customer Satisfaction Program 22B27
Certain 2021 Model Year Bronco Vehicles
Front Driveshaft Replacement
PROGRAM TERMS
This program will be in effect through October 12, 2023. There is no mileage limit for this program.
AFFECTED VEHICLES
Vehicle | Model Year | Assembly Plant | Build Dates |
Bronco | 2021 | Michigan | September 23, 2020 through September 17, 2021 |
Affected vehicles are identified in OASIS and FSA VIN Lists.
REASON FOR THIS PROGRAM
In the affected vehicles, the front driveshaft constant-velocity (CV) joint boot material is not robust for this application and may fail under normal vehicle usage. A failed CV joint boot may result in a loss of grease and the accumulation of debris in the CV joint, leading to noise and/or vibration while driving.
SERVICE ACTION
Dealers are to replace the front driveshaft. This service must be performed on all affected vehicles at no charge to the vehicle owner.
OWNER NOTIFICATION AND MAILING SCHEDULE
Owner letters are expected to be mailed the week of October 24, 2022. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.
SOLD VEHICLES
- Owners of affected vehicles will be directed to dealers for repairs.
- Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
- Correct other affected vehicles identified in OASIS which are brought to your dealership.
- Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.
STOCK VEHICLES
- Correct all affected units in your new vehicle inventory before delivery.
- Use OASIS to identify any affected vehicles in your used vehicle inventory.
TITLE BRANDED / SALVAGED VEHICLES
Affected title branded and salvaged vehicles are eligible for this service action.
OWNER REFUNDS
Refunds are not approved for this program.
RENTAL VEHICLES
Rental vehicles are not approved for this program.
PARTS REQUIREMENTS
Part Number | Description | Order Quantity |
MB3Z-4A376-U | Front Driveshaft (Please refer to the Ford Parts Catalog for correct driveshaft ordering) | As Needed |
MB3Z-4A376-V | Front Driveshaft (Please refer to the Ford Parts Catalog for correct driveshaft ordering) | As Needed |
MB3Z-4A376-W | Front Driveshaft (Please refer to the Ford Parts Catalog for correct driveshaft ordering) | As Needed |
MB3Z-4A376-X | Front Driveshaft (Please refer to the Ford Parts Catalog for correct driveshaft ordering) | As Needed |
MB3Z-4A376-Y | Front Driveshaft (Please refer to the Ford Parts Catalog for correct driveshaft ordering) | As Needed |
W721449-S439 | Front Stabilizer Bar Bracket Bolts (4 in Pkg, 2 Needed Per Repair) | 1 Pkg |
W520214-S440 | Front Stabilizer Bar Bracket Nuts (2 in Pkg, 2 Needed Per Repair) | 1 Pkg |
W721041-S439 | Front Stabilizer Bar Bracket Studs (4 in Pkg, 2 Needed Per Repair) | 1 Pkg |
W717376-S439-B | Front Stabilizer Bar Disconnect Shield Bolts
– Only used on vehicles equipped with an electronic front stabilizer disconnect (4 in Pkg, Up to 4 Needed Per Repair) |
Up to 1 Pkg |
CERTAIN 2021 MODEL YEAR BRONCO VEHICLES – FRONT DRIVESHAFT REPLACEMENT
SERVICE PROCEDURE
1. With the vehicle in NEUTRAL, position it on a hoist. Please follow Workshop Manual (WSM) procedures in Section 100-02.
2. Is the vehicle equipped with a Front Stabilizer Bar Disconnect?
Yes – Proceed to step 3.
No – Proceed to step 5.
3. Remove and discard the bolts and remove the stabilizer bar undershield. See Figure 1.
- Torque: 22 lb.ft (30 Nm)
4. Disconnect the stabilizer bar disconnect assembly electrical connectors. See Figure 2.
NOTE: Position aside any loose wires or connectors to prevent any possible damage.
5. Using a jack stand, support the stabilizer bar. See Figure 3.
NOTE: For vehicles equipped with a front stabilizer bar disconnect, make sure the jack stand does not make contact with any pressure lines or connectors or damage may occur.
6. On both sides, remove and discard the front stabilizer bar bracket nut and bolt. See Figure 4 for vehicles equipped with a sway bar disconnect and Figure 5 for vehicles not equipped.
- Torque: 66 lb.ft (90 Nm)
NOTICE: Take extra care when handling the components.
NOTE: Note the position of each component before removal.
NOTE: Make sure that the stabilizer bar arms do not rotate.
7. While continuing to use the jack stand for support, allow the stabilizer bar to swing downward.
8. On both sides, remove and discard the front stabilizer bar bracket mounting stud and inspect and thoroughly clean both sides of the frame bracket mounting surfaces. See Figure 7.
- Torque: 177 lb.in (20 Nm)
9. Remove and discard the CV joint-to-transfer case flange cup bolts and retaining straps. See Figure 8.
- Torque:
Stage 1: 21 lb.ft (28 Nm)
Stage 2: 120°
NOTE: Make sure that new bolts are installed.
10. Remove and discard the CV joint-to-the pinion flange bolts and retaining straps. See Figure 9.
- Torque:
Stage 1: 21 lb.ft (28 Nm)
Stage 2: 120°
NOTE: Make sure that new bolts are installed.
11. Remove the front driveshaft. See Figure 10.
12. Install the new front driveshaft by reversing steps 1 through 11 as required.
NOTE: When installing the new front driveshaft, make sure the alignment dots on both the flange and the driveshaft line up or driveshaft vibrations post repair may occur. See Figure 11.
1 Affected Product
Vehicle
MAKE | MODEL | YEAR |
FORD | BRONCO | 2021 |
1 Associated Document
Manufacturer Communications
October 12, 2022
Customer Satisfaction Program 22B27
https://www.nhtsa.gov/recalls?nhtsaId=10225538
MC-10225538-0001.pdf 2851.357KB
- Replacement for 2007-2008 Ford Edge AWD / Lincoln MKX AWD
- Kit Includes: 1x Driveshaft Assembly/Prop Shaft
- Driveshaft Specifications: Drive Shaft Length (In): 79 15/16| Drive Shaft Material: Steel| Drive Shaft Diameter (In): 3| Drive Shaft Wall Thickness (In): 0.083| End Type: 2 U-Joint| Driveshaft Type: 3 Piece| Drive Type: AWD
- Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars, trucks, and SUVs
- Undergo impact, wear, and fatigue testing to help ensure quality and durability

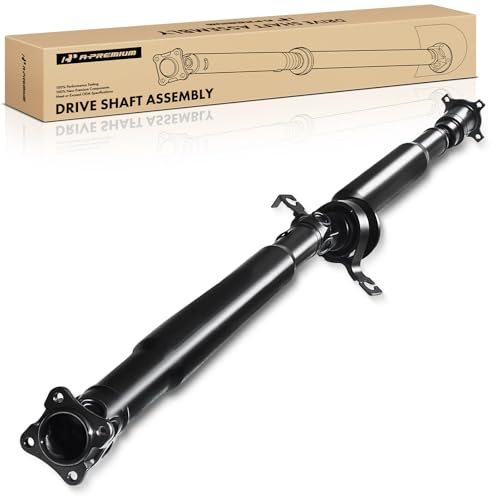

- [Vehicle Fitment-1]: Compatible with Ford Edge 2007-2014; Compatible with Lincoln MKX 2007-2014 --- Rear, AWD(All Wheel Drive) only
- [Reference Number]: DT4Z-4R602-A, DT4Z4R602A, 7T4Z4R602A, SK936846, 936-846, 65-2027, 936846, 652027
- [Product Description]: ①Shaft Length: 80.5 inch; ②Position: Rear; ③Shaft Wall Thickness: 0.083 inch; ④Shaft Material: Steel
- [Directly Fit]: This drive shaft is made to the original equipment dimensions for dependable fit and performance
- [Buy with Confidence]: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted drive shaft. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.

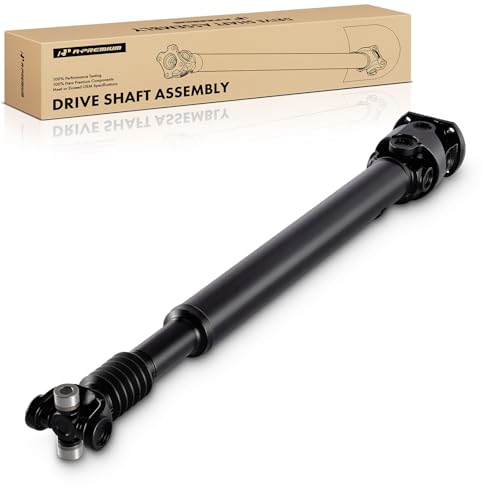

- [Vehicle Fitment]: Compatible with Ford Excursion 2000(From 10/99), Excursion 2001-2003, F-250 Super Duty 1999-2001, F-350 Super Duty 1999-2001(with Single Rear Wheel SRW) --- 4WD(Four Wheel Drive)
- [Reference Number]: 938-305, 65-9303, 938305, 659303, 5C3Z4A376D, F81Z4A376MA, YC3Z4A376EA
- [Product Description]: ①Position: Front; ②Shaft Length: 43.25 inch; ③Shaft Material: Steel; ④Shaft Diameter: 2.75 inch; ⑤Shaft Wall Thickness: 0.83 inch
- [Directly Fit]: This drive shaft is made to the original equipment dimensions for dependable fit and performance
- [Buy with Confidence]: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted drive shaft. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.
- [Vehicle Fitment-1]: Compatible with Ford Explorer 2011-2015(Sport Utility, AWD),Explorer 2016 V6 3.5L(Sport Utility, AWD), Explorer 2017-2018 V6 3.5L(Sport Utility, 4WD/AWD), Police Interceptor Sedan 2013-2018 V6 3.5L/V6 3.7L(Sedan, AWD), Police Interceptor Utility 2014-2018 V6 3.5L(Sport Utility, AWD), Police Interceptor Utility 2013-2018 V6 3.7L(Sport Utility, AWD), Taurus 2013-2017 L4 2.0L(Sedan, AWD), Taurus 2008-2018 V6 3.5L(Sedan, AWD), Taurus X 2008-2009 V6 3.5L(Wagon, AWD)---Auto Trans
- [Vehicle Fitment-2]: Compatible with Lincoln MKS 2010-2016 V6 3.5L(Sedan, AWD), MKS 2009-2016 V6 3.7L(Sedan, AWD); Compatible with Mercury Sable 2008-2009 V6 3.5L(Sedan, AWD)---Auto Trans
- [Reference Number]: 8G1Z-4R602-B, 8G1Z4R602A, 8G1Z4R602B, FG1Z4R602A, 936-847, 936847
- [Product Description]: ①Shaft Length: 84.5 inch; ②Shaft Diameter: 2.5 inch; ③Shaft Material: Steel; ④Packaging Type: Box
- [Buy with Confidence]: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted drive shaft. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.

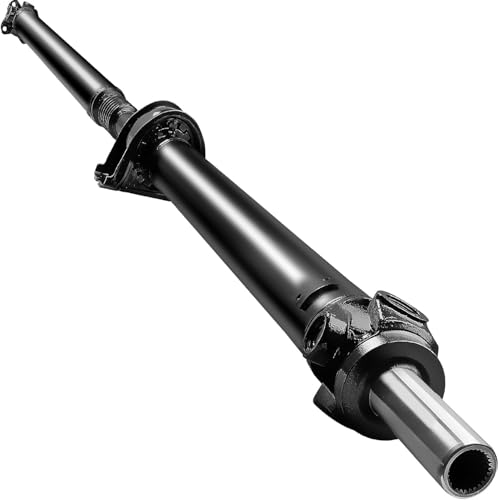

- 【Vehicle Fitment】 Compatible with Ford F-150 2006-2008 V6 4.2L [Rear; RWD, Automatic Trans., 144.5" WheelBase] // Compatible with F-150 2004-2005 V8 4.6L [Rear; RWD, 144.7" WheelBase; 2 Piece Shaft] // Compatible with F-150 2006-2008 V8 4.6L [Rear; RWD, Automatic Trans., 144.5" WheelBase]
