NHTSA ID Number: 10228751
Manufacturer Communication Number: TSB 22-2413
Summary
Some 2022 Bronco Sport vehicles built on 04-Aug-2022 and through 05-Aug-2022 may exhibit an ABS warning indicator with diagnostic trouble code (DTC) C0030:07 stored in the ABS module. The vehicle may also exhibit a squeal noise from the left front wheel area. This may be due to a condition where the wheel bearing and snap ring are not fully seated in the left wheel knuckle causing contact between the front halfshaft and wheel knuckle. To correct this condition, follow the Service Procedure to diagnose and replace the wheel knuckle, hub, bearing and front halfshaft.
Model:
Ford
2022 Bronco Sport |
Built on 04-Aug-2022 and through 05-Aug-2022
|
Issue: Some 2022 Bronco Sport vehicles built on 04-Aug-2022 and through 05-Aug-2022 may exhibit an illuminated anti-lock brake system (ABS) warning indicator with diagnostic trouble code (DTC) C0030:07 stored in the ABS module. The vehicle may also exhibit a squeal noise from the left front wheel area. This may be due to a condition where the wheel bearing and snap ring are not fully seated in the left wheel knuckle causing contact between the front halfshaft and wheel knuckle. To correct this condition, follow the Service Procedure to diagnose and replace the wheel knuckle, hub, bearing and front halfshaft.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all the following criteria:
- 2022 Bronco Sport
- Built on 04-Aug-2022 and through 05-Aug-2022
- Illuminated ABS warning indicator with DTC C0030:07
Parts
Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
CCPZ-3B477-G | 1 | Retainer Nut | 1 | 1 |
LX6Z-1104-B | 1 | Wheel Hub Assembly | 1 | 1 |
LX6Z-1215-A | 1 | Wheel Bearing | 1 | 1 |
LX6Z-3K186-A | 1 | Left Wheel Knuckle | 1 | 1 |
CV6Z-7059-A | 1 | Snap Ring | 1 | 1 |
W520203-S440 | 1 | Left Tie Rod Bolt | 1 | 1 |
W719924-S439 | 1 | Left Ball Joint Pinch Bolt | 4 | 1 |
W520515-S442 | 1 | Left Ball Joint Pinch Nut | 4 | 1 |
W719460-S439 | 1 | Strut To Wheel Knuckle Bolts | 4 | 2 |
W520516-S442 | 1 | Strut To Wheel Knuckle Nuts | 4 | 2 |
W715624-S439 | 1 | Brake Caliper Bolts | 4 | 2 |
LX6Z-3B437-B | 1 | Left Front Drive Halfshaft (Part Time 4WD) | 1 | 1 |
LX6Z-3B437-N | 1 | Left Front Drive Halfshaft (Full Time 4WD) | 1 | 1 |
JM5Z-1S177-A | 1 | Left Halfshaft Seal | 1 | 1 |

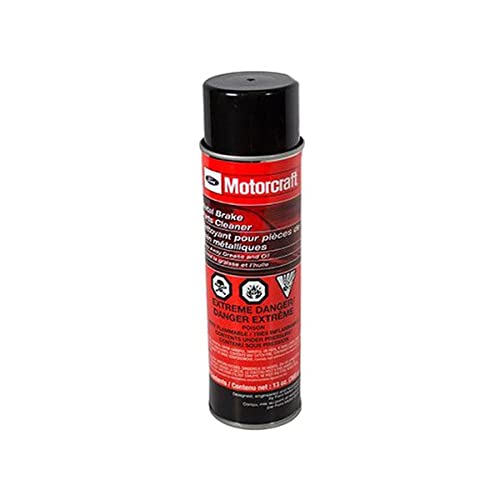

PM-4-A | As Needed | Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) | ||
PM-4-B | As Needed | Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) | ||
XL-2 | As Needed | Motorcraft® High Temperature Nickel Anti-Seize Lubricant |
Parts
Parts To Inspect And Replace Only If Necessary
Service Part Number | Quantity | Description |
XT-12-QULV | If Needed | Motorcraft® MERCON® ULV Automatic Transmission Fluid |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
Service Procedure
1. Remove the left front wheel hub assembly. Refer to the Workshop Manual (WSM), Section 204-01 Front Wheel Bearing and Wheel Hub > Removal and Installation.
2. Inspect if the wheel bearing and snap ring are fully seated with metallic particles in the bearing surface. Does the vehicle exhibit a wheel bearing snap ring and/or wheel bearing not fully seated in the left front wheel knuckle with metallic particles in the bearing surface?
(1). Yes – proceed to Step 3.
(2). No – reinstall the left front wheel knuckle assembly with a new wheel bearing and snap ring. Road test at a speed greater than 12 mph (20 km/h) to clear DTC C0030:07. Repair is complete.
3. Replace the left front wheel knuckle, left front wheel hub and wheel bearing, and left front halfshaft.
(1). For left front wheel knuckle, refer to the WSM, Section 204-01 Front Suspension > Removal and Installation.
(2). For left front wheel hub and wheel bearing, refer to the WSM, Section 204-01 Front Wheel Bearing and Wheel Hub > Removal and Installation.
(3). For left front halfshaft, refer to the WSM, Section 205-04 Front Drive Halfshafts > Removal and Installation.
4. Road test at a speed greater than 12 mph (20 km/h) to clear DTC C0030:07.
1 Affected Product
Vehicle
MAKE | MODEL | YEAR |
FORD | BRONCO SPORT | 2022 |
1 Associated Document
Manufacturer Communications
22-2413
07 December 2022
https://www.nhtsa.gov/recalls?nhtsaId=10228751
MC-10228751-0001.pdf 145.706KB
