NHTSA ID Number: 10183415
Manufacturer Communication Number: TSB 20-2381
Summary
Some 2020 Escape/Corsair vehicles equipped with a roof opening panel may exhibit a bounce back when closing. This may be more noticeable when the engine is running. This may be due to the glass panel adjustment. To correct the condition, follow the Service Procedure steps to adjust the roof opening panel glass.
Model:
Ford
2020 Escape
2020 Corsair
Issue: Some 2020 Escape/Corsair vehicles equipped with a roof opening panel may exhibit a bounce back when closing. This may be more noticeable when the engine is running. This may be due to the glass panel adjustment. To correct the condition, follow the Service Procedure steps to adjust the roof opening panel glass.
Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:
- 2020 Escape/Corsair
- Roof opening panel bounces back when closing
Service Procedure
1. Adjust the roof opening panel glass by loosening the 6 set screws. Refer to Workshop Manual (WSM), Section 501-17.
2. Adjusting the glass so that the glass contacts both the front and rear seals.
3. Set the glass height/flushness on the right front corner and tighten the right front corresponding set screw to hold the glass in that position. Refer to WSM, Section 501-17 for proper height/flushness.
(1). Tighten the set screws to 6 Nm (53 lb-in).
4. Repeat the flushness adjustment for the right rear, left front and left rear and tighten the corresponding adjustment set screw.
(1). Tighten the set screws to 6 Nm (53 lb-in).
5. Tighten the 2 center adjustment set screws.
(1). Tighten the set screws to 6 Nm (53 lb-in).
6. Perform a power roof opening panel initialization. Refer to WSM, Section 501-17.
2 Affected Products
Vehicles
1 Associated Document
Manufacturer Communications
20-2381
02 November 2020
MC-10183415-0001.pdf 106.763KB
- Replace part number:FL3Z16502C22,FL3Z-1651071-A,FL3Z-1651071-B
- Applicable vehicles:Sunroof Glass Cables and Track Assembly Repair kit Fit for 2015-2020 Ford F150;2017-2019Ford F250 F350 F450 Super Duty ;2018-2020 Lincoln Navigator
- Function: This kit is used to repair the sunroof track to ensure that the sunroof will open and close smoothly. Designed to match the dimensions of the original components to ensure smooth operation of the sunroof once the sunroof frame has been properly repaired or replaced
- Material: Made of high quality materials to provide reliable performance and long service life for durability
- NOTE: Please check the model we listed in the description to confirm compatibility before purchasing
- High Quality.
- Easy Installation.
- Fitment Info In The Product description.
- Thank you!
- If you have any questions, please tell us .
- OE part number: Crew cab sunroof glass cables OE: FL3Z16502C22, AP363380, and sunroof track assembly OE: FL3Z1651071A, FL3Z1651071B

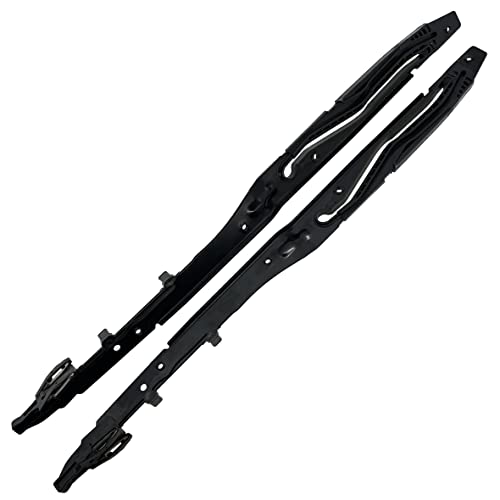

- Vehicle compatibility: Compatible with ford f-150 2015-2020, for ford f-250 super duty 2017 2018 2019, for ford f-350 super duty 2017 2018 2019,for f-450 super duty 2017 2018 2019, for ford expedition 2018 2019 2020, for lincoln navigator 2018 2019 2020, this sunroof track repair kit ensures a perfect fit for seamless repair
- Restore functionality: This assembly set restores the smooth operation of your sunroof by replacing damaged cables or faulty tracks, allowing you to enjoy a functional sunroof once again
- Durable construction: Made from robust metal and ABS plastic, this sunroof glass track cable repair kit is designed to operate under extreme weather conditions, providing long-lasting, corrosion-resistant performance
- Easy installation: Remove old parts, install the new cables and track assembly, align properly, and test the aunroof for smooth operation
- Compatible for Ford F-150 2015-2020，F-250/F-350/F-450 2017-2019.
- Replace No(OE Number Reference):FL3Z-1651071-A,FL3Z-1651071-B.
- Package:Left&Right Sunroof Tracks (2 Pack)
- Note:Please check the size carefully before buying.
- 18 Months Warranty will be provided with Customers.Please contact with us by Message if you have any problems.

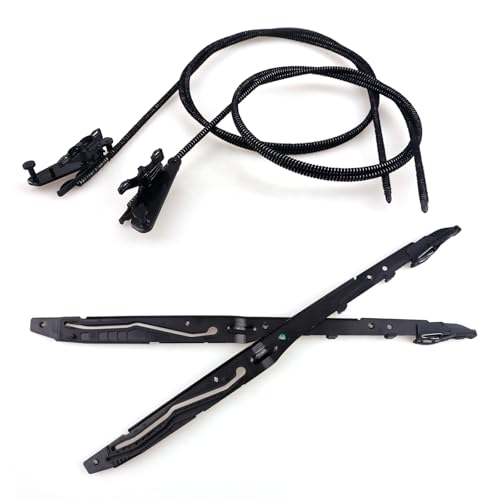

- Replacement Part Number: FL3Z16502C22, FL3Z-1651071-A, FL3Z-1651071-B, AP363380.
