NHTSA ID Number: 10236037
Manufacturer Communication Number: TSB 23-2143
Summary
Some 2017-2020 F-150 and 2018-2020 Expedition/Navigator vehicles built on or before 30-Nov-2019 and equipped with a 3.5L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. Some vehicles may also exhibit an intermittent condition with no auto restart during auto-start-stop operation with or without diagnostic trouble code (DTC) P164C present in the powertrain control module (PCM). This may be due to a worn variable camshaft timing (VCT) unit. To correct the condition, follow the Service Procedure to replace the VCT units.
This bulletin supersedes 22-2200.
Model:
Ford
2018-2020 Expedition |
Built on or before 30-Nov-2019
|
| 2017-2020 F-150 |
Built on or before 30-Nov-2019
|
| Lincoln
2018-2020 Navigator |
Built on or before 30-Nov-2019
|
Summary
This article supersedes TSB 22-2200 to update the production fix date, Action statement and customer symptom.
NOTE: Certain parts may now be reused for this repair. Refer to the Service Procedure for details.
Issue: Some 2017-2020 F-150 and 2018-2020 Expedition/Navigator vehicles built on or before 30-Nov-2019 and equipped with a 3.5L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. Some vehicles may also exhibit an intermittent condition with no auto restart during auto-start-stop operation with or without diagnostic trouble code (DTC) P164C present in the powertrain control module (PCM). This may be due to a worn variable camshaft timing (VCT) unit. To correct the condition, follow the Service Procedure to replace the VCT units.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- One of the following vehicle lines:
- 2017-2020 F-150
- 2018-2020 Expedition/Navigator
- Built on or before 30-Nov-2019
- 3.5L EcoBoost engine
- Customer symptom of ticking/tapping or rattle noise from the front cover area after a cold start
NOTE: Dealers should only order parts for customer vehicles that require repairs. Because of parts constraints, dealers may experience situational short-term backorders on some parts. Customers should continue to drive the vehicle while parts are on order.
Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity | Note |
| HL3Z-6256-CD | 2 | Intake VCT Unit | 1 | 2 | |
| HL3Z-6C525-CD | 2 | Exhaust VCT Unit | 1 | 2 | |
| HL3Z-6279-A | 4 | VCT Unit Bolt | 1 | 4 | |
| ML3Z-6584-G | 1 | Left Valve Cover Gasket | 1 | 1 | |
| HL3Z-6584-A | 1 | Right Valve Cover Gasket | 1 | 1 | |
| W503275-S437 | 1 | High Pressure Fuel Tube Retaining Bolt | 4 | 1 | |
| W503280-S437 | 1 | High Pressure Fuel Tube Retaining Bolt | 4 | 1 | |
| W714498-S900 | 1 | High Pressure Pump Mounting Bolt | 4 | 2 | |
AA5Z-9E583-A
Ford AA5Z-9E583-A, Fuel Pump Gasket
| 1 | High Pressure Pump O-ring | 1 | 1 | |
| HL3Z-8507-A | 1 | Coolant Pump Gasket | 1 | 1 | |

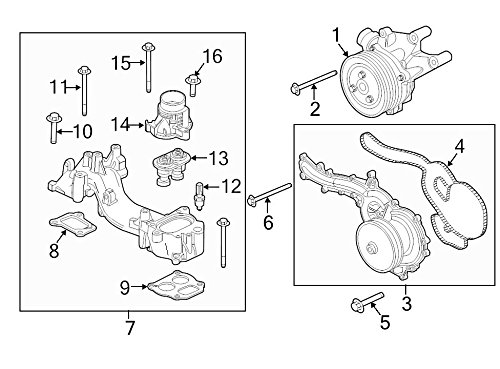

BR3Z-8527-A
Ford Seal
| 1 | Coolant Pump O-ring | 1 | 1 | |
| HL3Z-6A340-A | 1 | Crankshaft Pulley Shaft Bolt | 1 | 1 | |
XW4Z-6700-AA
Ford XW4Z-6700-AA Seal ASY - Cran
| 1 | Front Crankshaft Seal | 1 | 1 | |
BR3Z-6020-A
Ford Error:#N/A
| 1 | Front Cover Coolant Pipe Seal | 1 | 1 | |
BR3Z-6C535-A
Genuine Engine Valve Cover Washer Seal BR3Z-6C535-A
| 1 | Oil Pump Electrical Connector Seal | 1 | 1 | Oil Pump Electrical Connector Seal and VCT Oil Control Seal are the same service part number |
| AA5Z-6714-A
Sale
Genuine Ford Parts AA5Z-6714-A Oil Filter
| 1 | Oil Filter | 1 | 1 | |
TA-357
SEALANT - SILICONE
| As Needed | Motorcraft® High Performance Engine RTV Silicone | |||
ZC-30-A
Genuine Ford Fluid ZC-30 Silicone Gasket Remover - 12 oz.
| As Needed | Motorcraft® Silicone Gasket Remover | |||
ZC-31-B
Motorcraft - Towelette-Metal C (ZC31B)
| As Needed | Motorcraft® Metal Surface Cleaner | |||
VC-13-G
Ford Genuine Fluid VC-13-G Yellow Concentrated Antifreeze/Coolant - 1 Gallon
| As Needed | Motorcraft® Yellow Antifreeze/Coolant Concentrated (All Markets Except Canada) | |||
| CVC-13-G | As Needed | Motorcraft® Yellow Antifreeze/Coolant Concentrated (Canada Only) | |||
| XO-5W30-Q1SP | As Needed | Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada) | |||
| CXO-5W30-LSP6 | As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | |||
| ZC-20 | As Needed | Motorcraft® Engine Shampoo and Degreaser | |||
| PM-4-A | As Needed | Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States) | |||
PM-4-B
Motorcraft #PM4B Brake Cleaner (PM4B)
| As Needed | Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements) |
Parts
Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue | Note |
| HL3Z-9439-C | If Needed | Valve Cover Intake Port Gasket | 3 | |
| HL3Z-9H486-A | If Needed | Upper Intake Manifold Gaskets | 6 | |
| BR3Z-6C535-A
Genuine Engine Valve Cover Washer Seal BR3Z-6C535-A
| If Needed | VCT Oil Control Seal | 1 | Oil Pump Electrical Connector Seal and VCT Oil Control Seal are the same service part number |
BR3Z-6C535-B
Ford BR3Z-6C535-B - Seal - Valve
| If Needed | Spark Plug Tube Seal | 1 | |
| HL3Z-9417-A | If Needed | High Pressure Pump Mounting Plate Seal | 1 | |
| BL3Z-9374-A No products found. | If Needed | High Pressure Pump Mounting Plate O-ring | 1 | |
| HL3Z-8507-D | If Needed | Thermostat Housing O-ring | 1 | |
| HL3Z-8527-B | If Needed | Thermostat Housing O-ring | 1 | |
| HL3Z-8590-A | If Needed | Water Pump Outlet O-ring | 1 | |
| HL3Z-9J323-C | If Needed | High Pressure Pump to Rail Tube | 1 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
Service Procedure
NOTE: The following parts may be reused for this repair if no damage is present.
- Upper intake manifold gaskets (HL3Z-9H486-A)
- Valve cover intake port gaskets (HL3Z-9439-C)
- High pressure fuel tube (HL3Z-9J323-C) may be reused for this repair, if it has not been previously reused. Tighten the high-pressure fuel pump to fuel rail high-pressure fuel tube flare nuts to 32 Nm +/-2 Nm when reusing the fuel tube for this TSB.
- VCT solenoid seals (BR3Z-6C535-A) and spark plug tube seals (BR3Z-6C535-B) should continue to be reused if no damage is present.
1. Replace all 4 VCT units. Refer to Workshop Manual (WSM), Section 303-01. Do not replace any additional VCT or engine timing related components not included in the Parts List.
(1). It is not necessary to remove the 2 left valve cover camshaft position (CMP) sensors.
(2). All the VCT solenoid and spark plug tube seals require inspection, but not all require replacement.
10 Affected Products
Vehicles
1 Associated Document
Manufacturer Communications
23-2143
04 May 2023
MC-10236037-0001.pdf 195.209KB
NHTSA ID Number: 10212106
Manufacturer Communication Number: TSB 22-2200
Summary
Some 2017-2020 F-150 2018-2020 Expedition/Navigator vehicles built on or before 31-Oct-2019 and equipped with a 3.5L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure steps to replace the VCT units.
1 Associated Document
Manufacturer Communications
22-2200
20 May 2022
NHTSA ID Number: 10191176
Manufacturer Communication Number: TSB 21-2119
Summary
Some 2017-2020 F-150 2018-2020 Expedition/Navigator vehicles built on or before 31-Oct-2019 and equipped with a 3.5L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure steps to replace the VCT units.
1 Associated Document
Manufacturer Communications
21-2119
14 April 2021
NHTSA ID Number: 10180531
Manufacturer Communication Number: TSB 20-2315
Summary
Some 2017-2020 F-150 2018-2020 Expedition/Navigator vehicles built on or before 31-Oct-2019 and equipped with a 3.5L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure steps to replace the VCT units and update the powertrain control module (PCM) calibration with revised VCT parameters.
1 Associated Document
Manufacturer Communications
20-2315
14 September 2020
NHTSA ID Number: 10176838
Manufacturer Communication Number: TSB 20-2191
Summary
Some 2017-2018 F-150 vehicles built on or before 10-Jul-2018 and equipped with a 3.5L EcoBoost engine may exhibit a ticking/tapping or rattle type noise from the top front cover area of the engine on initial start-up after a cold soak of 6 hours or more that may last for 2-5 seconds. This may be due to a worn variable cam timing (VCT) unit. To correct the condition, follow the Service Procedure steps to replace the VCT units and update the powertrain control module (PCM) calibration with revised VCT parameters.
1 Associated Document
Manufacturer Communications
20-2191
04 June 2020
