SRW – Alloy Wheel Only – Broken Wheel Stud(s) – 2019 Ford Transit

“This site contains affiliate links for which OEMDTC may be compensated”

NHTSA ID Number: 10170898

Manufacturer Communication Number: TSB 19-2376

Summary

Some 2019 Transit vehicles built on 1-Oct-2018 and through 31-Jul-2019 with aluminum alloy single rear wheels (SRW) may exhibit broken rear wheel stud(s). This may be due to variation in the axle flange to wheel mating surface of the axle shafts. To correct the condition, follow the Service Procedure steps to replace both rear axle shafts and all rear lug nuts.



1 Affected Product

Vehicle

MAKE MODEL YEAR
FORD TRANSIT 2019




Model:

Ford
2019 Transit



Issue: Some 2019 Transit vehicles built on 1-Oct-2018 and through 31-Jul-2019 with aluminum alloy single rear wheels (SRW) may exhibit broken rear wheel stud(s). This may be due to variation in the axle flange to wheel mating surface of the axle shafts. To correct the condition, follow the Service Procedure steps to replace both rear axle shafts and all rear lug nuts.



Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:

  • 2019 Transit
  • Built on 1-Oct-2018 and through 31-Jul-2019
  • Equipped with aluminum alloy single rear wheels
  • Broken rear wheel studs

NOTE: Part quantity refers to the amount of the service part number required, which may be different than the number of individual pieces. Service part numbers contain 1 piece unless otherwise stated.



Parts

Description Quantity Part Number

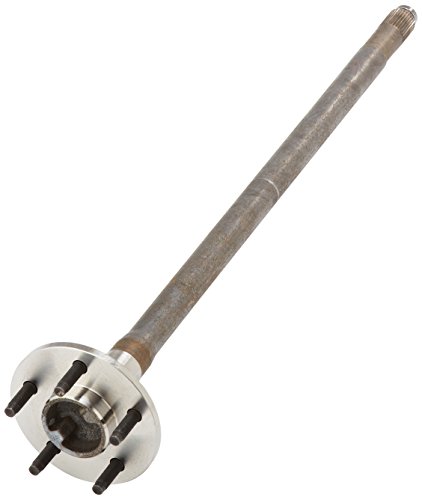

Package Contains 1 Piece, 2 Pieces Required Rear Axle Shaft 2 KK4Z-4234-B SRW - Alloy Wheel Only - Broken Wheel Stud(s) - 2019 Ford Transit | small light
Package Contains 4 Pieces, 10 Pieces Required Axle Shaft Mounting Bolts 3 W716084-S439
Package Contains 1 Piece, 16 Pieces Required Wheel Lug Nuts 16 ACPZ-1012-B SRW - Alloy Wheel Only - Broken Wheel Stud(s) - 2019 Ford Transit | small light
Package Contains 1 Piece Wheel Lock Nut As Needed HK2Z-1A043-A
Motorcraft® High Temperature Nickel Anti- Seize Lubricant As Needed XL-2 SRW - Alloy Wheel Only - Broken Wheel Stud(s) - 2019 Ford Transit | small light
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant As Needed XY-75W85-QL SRW - Alloy Wheel Only - Broken Wheel Stud(s) - 2019 Ford Transit | small light
INSPECT AND REPALCE ONLY IF NECESSARY
Package Contains 1 Piece O-ring Seal As Needed BK3Z-4A332-C







Service Procedure

  1. Inspect the rear wheel assemblies for any evidence of any customer abuse or tire/wheel contact damage that may contribute to broken wheel studs.
  2. Is customer abuse or tire or wheel damage identified?

(1). Yes – this article does not apply. Refer to Workshop Manual (WSM), Section 205-02B for normal diagnostics and repair procedures.

(2). No – replace both rear axle shaft assemblies and replace all rear wheel lug nuts. Refer to WSM, Section 205-02B. Retain the replaced axle shaft assemblies as they may be subject to the warranty parts return process.


19-2376
22 January 2020

https://www.nhtsa.gov/recalls?nhtsaId=10170898

https://static.nhtsa.gov/odi/tsbs/2020/MC-10170898-0001.pdf

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [110.96 KB]






Bestseller No. 1

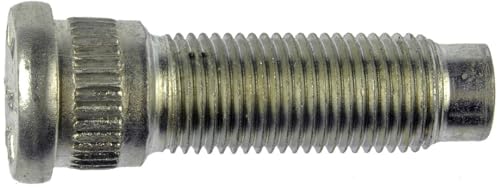

Dorman 610-260 Rear 1/2-20 Serrated Wheel Stud - .618 in. Knurl, 1-13/16 in. Length Compatible with Select Ford/Lincoln/Mercury Models, 10 Pack
  • Durable material - carbon steel meets SAE automotive industry standards for strength and hardness
  • Corrosion tested - 72-hour salt spray testing simulates three years of corrosion resistance
  • Tensile tested - lug studs undergo industry-standard proof-load testing to ensure strength
  • Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
  • Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
Bestseller No. 2

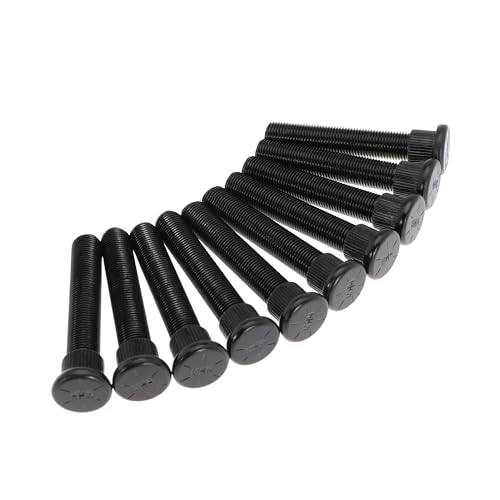

(Set of Ten Studs) 1" Longer Than Stock Wheel Stud Bolt for 1965-2004 Ford Mustang, 1973-1987 Chevy C10, Extended Extra Length, Grade 8
