FORD: | 2008 E-350 |
2008 E-Series vehicles built on or before 6/25/2008 may exhibit a anti-lock brake system (ABS)/roll stability control (RSC) light on with diagnostic trouble codes (DTCs) C1145, C1155, C1165 or C1175.
The cause may be related to moisture entering the sensor.
SERVICE PROCEDURE
- Verify DTCs C1145, C1155, C1165 or C1175 are present.
- If so, continue on to Step 2.
- For all other codes follow normal Workshop Manual (WSM) diagnostics.

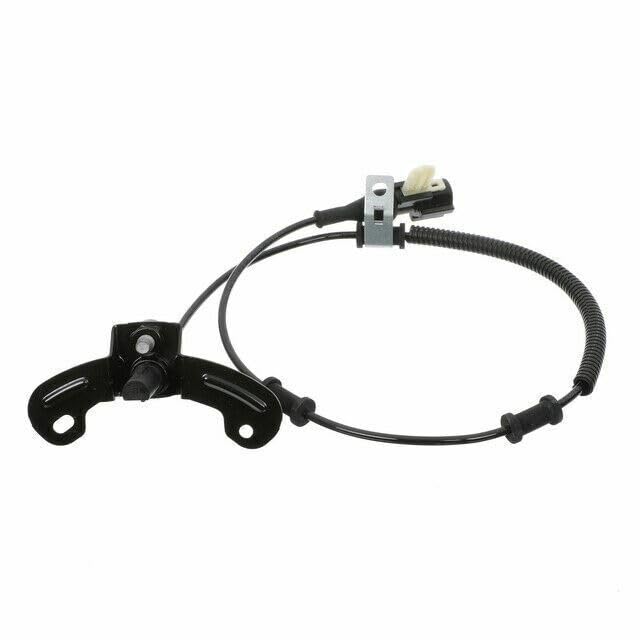

- With the ignition off, proceed with the replacement of the faulted wheel speed sensor using updated service parts.
PART NUMBERPART NAME | |
---|---|
8C2Z-2C190-B![]() |
Sensor Asy – Right Rear |
8C2Z-2C190-C | Sensor Asy – Left Rear |
8C2Z-2C204-B ![]() |
Sensor Asy – Right Front |
8C2Z-2C204-C ![]() |
Sensor Asy – Left Front |
