| TSB 12-10-9 |
|
| Publication Date: October 16, 2012 | |
FORD : | 2011-2012 Transit Connect |
ISSUE:
Some 2011-2012 Transit Connect vehicles built on or before 7/26/2011 may exhibit poor windshield wiping and require a new wiper blade and/or wiper pivot arm. The new improved wiper blade and pivot arm are not compatible with the old style wiper blade and pivot arm. New parts must be replaced as a set. The old style parts are no longer available.
ACTION:
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
- Identify the wiper pivot arm currently on the vehicle by lifting up each arm to check the engineering part number stamped on the inside of the arm near the top.
- Does the part number start with BT16?
- Yes – wiper pivot arm and wiper blade need to be replaced as a set. Proceed to Step 3.
- No – part number starts with 9T16, this article does not apply.
- Replace both the wiper pivot arm and wiper blade. Refer to Workshop Manual, Section 501-16.
NOTE:
THE WIPER PIVOT ARMS MUST BE IN THE FULLY PARKED POSITION BEFORE REMOVING. DO NOT MIX AND MATCH OLD WIPER PIVOT ARMS OR WIPER BLADES WITH NEW WIPER PIVOT ARMS OR WIPER BLADES.
| PART NUMBER | PART NAME |
BT1Z-17527-A
Ford BT1Z-17527-A, Windshield Wiper Arm
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | Wiper Pivot Arm – Left |
BT1Z-17526-A
Ford BT1Z-17526-A, Windshield Wiper Arm
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | Wiper Pivot Arm – Right |
BT1Z-17528-F

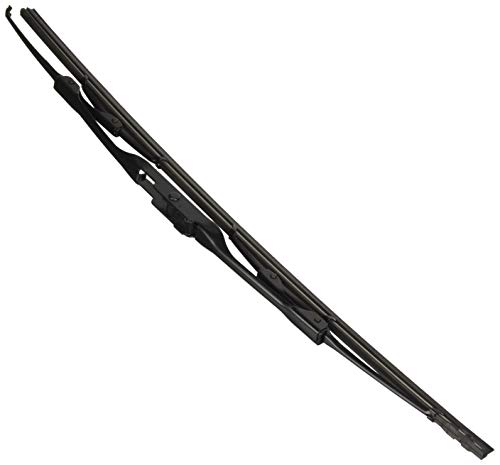

Motorcraft WW1701 Wiper Blade Assembly
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | Wiper Blade – Left |
| BT1Z-17528-G
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | Wiper Blade – Right |
WARRANTY STATUS:
Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
| OPERATION | DESCRIPTION | TIME |
| 121009A | 2011-2012 Transit Connect: Inspect And Replace Both Front Wiper Pivot Arms And Wiper Blades (Do Not Use With Any Other Labor Operations) | 0.4 Hr. |
DEALER CODING
| BASIC PART NO. | CONDITION CODE |
| 17527 | 42 |
