Situation: Auxiliary heater may blow fuse on main dash harness

Corrective Action Summary: Replace heater switch and route new power harness with inline fuse from battery

Range of Units Affected: 2015 Aeromaster on the FordeBay logo F59 chassis equipped with auxiliary cab heaters manufactured after January 1, 2016. Contact Utilimaster Warranty Department to verify chassis VIN.



 Parts Required:

KIT 23003824SK-Auxiliary Heater Harness Kit

Part NumberDescriptionQty
16303502WIRE SXL CRS/LNK POLY WHT 16GA2 ft
16511375-20000CONN BUTT H/S2
16511367-20250TERMINAL FEMALE SPADE1
16511367-64250TERMINAL FEMALE SPADE3
16511375-64000CONN BUTT H/S 16-142
16511375-28000CONN BUTT H/S 22-182
11300177SCREW STP PNH TX 1/4-20 x .75 ZN2
16514677RELAY 12V 60A1
16516418-1D1G66SW BODY CARLING 0N/OFF1
16516417-G2008ACTR SW CARLING GRN “AUX HTR”1
16512443-64312TERMINL RING H/S INSULATE2
16516872-00750BUSHING SNAP  .7501
16303200RED 10 GA WIRE19 ft
165100193/8” SPLIT LOOM19 ft
16605701STRAP WIRE TIE BLK 15.35”10
16514575-0015015A FUSE1
16512651FUSE HOLDER1
03104479DECAL SERVICED JOB CODE1
03103213-D002ENAUX HEATER HARNESS BULLETIN1




⬇ Download PDF (3.15 MB)





EPAuto 30/40 AMP Relay Harness Spdt 12V, 5-PIN SPDT Bosch Style - 5 Pack
EPAuto 30/40 AMP Relay Harness Spdt 12V, 5-PIN SPDT Bosch Style - 5 Pack
  • 40A/30A high switching capability.
  • Heavy-duty impact molded relay socket with 5 WIRES。White (common), Black (normally closed), and Yellow (normally open).
  • Package Include: 5 relays + 5 relay sockets with wires.
  • Safety UL Flame retardant 9" wires for the main contact.
$16.87
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2026-06-18 / Affiliate links / Images from Amazon Product Advertising API



True MODS 1 Pack 5-Pin 12V Bosch Style Waterproof Relay Kit [Harness Socket] [12 AWG Hot Wires] [SPDT] [30/40 Amp] 12 Volt Automotive Marine Relays for Boats Auto Fan Cars
True MODS 1 Pack 5-Pin 12V Bosch Style Waterproof Relay Kit [Harness Socket] [12 AWG Hot Wires] [SPDT] [30/40 Amp] 12 Volt Automotive Marine Relays for Boats Auto Fan Cars
  • User Manual available for download under Product Information Details
  • Waterproof construction & heavy duty 12AWG wires for the main contact.
  • Bosch style 5-Pin SPDT (Single Pole Double Throw) Relay.
  • 12VDC (14V Max) and 40A/30A High Switching Capability.
  • Wire Specifications: Black - Ground (85), Red - VDC (30), White - Trigger (86), Yellow - Output N/C (87a), and Blue - Output N/O (87).
$9.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2026-06-18 / Affiliate links / Images from Amazon Product Advertising API

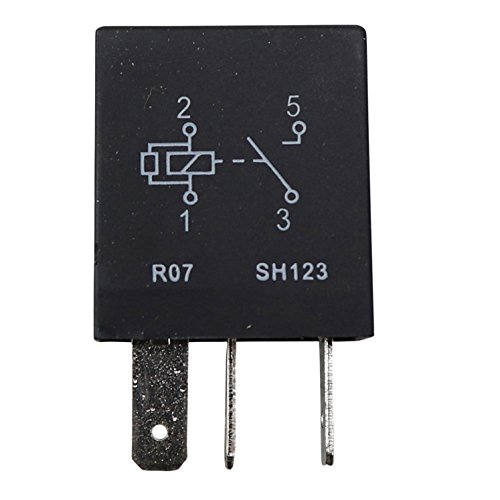

Beck/Arnley 203-0133 Relay
