| 6.2L ENGINE – EXCESSIVE ENGINE OIL CONSUMPTION – BUILT ON 3/1/2014 AND THROUGH 9/8/2015 |
| FORD: | 2015-2016 F-250, F-350 |
ISSUE:
Some 2015-2016 F-Super Duty 250/350 vehicles equipped with a 6.2L engine and built on 3/1/2014 and through 9/8/2015 may exhibit excessive oil consumption due to an internally leaking baffle in the right side valve cover.
ACTION:
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
- Replace the right side valve cover. Refer to Workshop Manual (WSM), Section 303-01.
- Install 16 new spark plugs. Refer to WSM, Section 303-07.
- Check and correct engine oil level as required.
| PART NAME | PART NUMBER |
| Right Side Valve Cover | CC3Z-6582-A |
| Motorcraft SAE 5W-30 Premium Synthetic Blend Motor Oil | XO-5W30-QSP  |
| Motorcraft Silicone Gasket and Sealant | TA-30 |
| Motorcraft Metal Surface Prep Wipes | ZC-31-B |
| Motorcraft Gasket Remover | ZC-30-A |

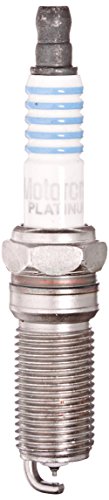

| Spark Plug (16 Req) | CYFS-12-FP |
SEOCONTENT-START
| OPERATION | DESCRIPTION | TIME |
| 150161A | 2015-2016 F-Super Duty 250/350 6.2L: Replace The Right Valve Cover And All (16) Spark Plugs. Includes Time To Check And Adjust Engine Oil Level (Do Not Use With Any Other Labor Operations) | 2.7 Hrs. |
WARRANTY STATUS
Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
DEALER CODING
| BASIC PART NO. | CONDITION CODE |
| 6582 | 42 |
SEOCONTENT-END
Bestseller No. 1
Valvoline High Mileage with MaxLife Technology SAE 5W-30 Synthetic Blend Motor Oil 5 QT
- MaxLife Technology prevents engine breakdown with 40% better wear protection than the industry standard
- Includes seal conditioners to reduce oil consumption and oil leaks in high mileage engines.
- Added detergents reduce sludge, corrosion, rust and deposits to help keep motors clean inside and ensure a smooth-running engine.
- Advanced friction-fighting additives help maximize performance and improve fuel efficiency.
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN
Bestseller No. 2
Quaker State Full Synthetic 5W-30 Motor Oil (5-Quart, Single Pack)
- Full synthetic 5W-30 motor oil provides strong engine performance and protection against deposits between oil changes
- Ideal for use in modern turbocharged engines and high-performance vehicles like sports cars, SUVs, trucks, and minivans
- Designed to deliver more power and less friction, reducing friction to maximize horsepower
- Provides improved fuel economy (based on the latest industry standard)
- Excellent protection against formation of sludge and other harmful deposits
Bestseller No. 3
Valvoline Advanced Full Synthetic SAE 5W-30 Motor Oil 5 QT
- Advanced protection against the four main causes of engine breakdown: wear friction heat and deposits
- 40% better wear protection vs. industry standards as tested in the Sequence IVB engine test
- 25% better deposit protection with superior engine cleaning detergents as tested in the GMOD engine test
- Full synthetic formula offers 24X stronger protection against engine-killing contaminants than the leading full synthetic motor oil
- Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN, GM dexos 1 Gen 9
Bestseller No. 4
Castrol GTX Full Synthetic 5W-30 Motor Oil, 5 Quarts
- Superior wear protection on critical engine parts
- 6X better wear protection than industry standards, as measured in the latest Sequence IVA test
- Superior sludge cleaning and protection against new formation
- 1.3X better sludge protection than industry standards, as measured in Sequence VH sludge test vs. API SP limits
- Full synthetic formula provides thermal and oxidation stability
SaleBestseller No. 5
Pennzoil Synthetic Blend 5W-30 Motor Oil (5-Quart, Single)
- Synthetic blend 5W-30 engine oil formula that keeps engines clean and responsive
- No leading synthetic blend motor oil provides better wear protection (based on Sequence IVA wear test using SAE 5W-30)
- Helps prevent sludge and other damaging deposits (based on Seq VH Sludge Test)
- Compatible with engine seals and all conventional oils
- Suitable for all car, SUV, light van, and truck gasoline engines under all driving conditions (For vehicles calling for ILSAC GF-6A, API SP-RC and all previous categories; Chrysler MS-6395)
Bestseller No. 6
Castrol Edge High Mileage 5W-30 Advanced Full Synthetic Motor Oil, 5 Quarts
- Titanium Strong For Maximum Engine Performance In Vehicles With Over 75,000 Miles
- Maximizes Short And Long Term Engine Performance On High Mileage Engines
- Boosted With Extra Fluid Titanium Technology To Increase Oil Film Strength And Reduce Film Breakdown
- Reduces Leaks, Oil Burn Off And Power-Robbing Deposits
SaleBestseller No. 7
Pennzoil Platinum Full Synthetic 5W-30 Motor Oil (5-Quart, Single)
- Full synthetic 5W-30 engine oil that is made with natural gas and designed for complete protection for top engine performance
- Helps extend engine life and protects for up to 15 years or 500,000 miles, whichever comes first. Guaranteed* (see Warranty Information in Product Description).
- Provides better fuel economy (based on the latest industry standards)
- Pennzoil Platinum 5W-30 keeps pistons up to 45% cleaner than the toughest industry standard (Based on Sequence IIIH results)
- Provides unsurpassed wear protection (compared to industry standard Sequence IVA test)
Bestseller No. 8
Mobil Full Synthetic High Mileage Motor Oil 5W-30, 1 Quart (6-pack)
- Mobil Full Synthetic High Mileage 5W-30 motor oil is designed for vehicles with over 75,000 miles, upgrading from a conventional or synthetic blend, or requiring full synthetic motor oil
- Provides guaranteed protection that's 1.5X longer than our conventional and synthetic blend oils, up to 7,500 miles between oil changes*
- Helps to prevent oil leaks, sludge, and deposit formation to help reduce engine wear with a balanced additive system formulation and extra seal conditioner
- Provides excellent resistance to oil breakdown, for proven long-lasting protection, and maintains oil viscosity at high operating temperatures
- Recommended for all types of gasoline-powered vehicles, including those with turbocharged engines, and meets API SP resource-conserving
SaleBestseller No. 9
Mobil 1 Extended Performance Full Synthetic Motor Oil 5W-30, 6-pack of 1 quarts
- Mobil 1 Extended Performance full-synthetic motor oil 5W-30 helps protect critical engine parts for up to 20,000 miles between oil changes,* controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
- Utilizes Mobil 1’s Triple Action+ Formula to combine outstanding engine performance, protection, and cleanliness with the added benefit of power
- Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean and helping to improve your fuel economy
- Helps extend engine life by working to prevent damaging deposits and sludge buildup
- Provides excellent internal engine heat protection (up to 500 degrees F) and low temperature protection (to -40 degrees F)
Bestseller No. 10
Castrol GTX High Mileage 5W-30 Synthetic Blend Motor Oil, 5 Quarts
- Phosphorus Replacement Technology to help extend the life of the emission system
- Superior dispersancy that fights sludge build up
- Exceptional oil burn-off protection exceeding industry standards, based on API and ACEA volatility specifications
- Seal conditioners to help reduce leaks
- Advanced additives that minimize engine wear
Last update on 2024-06-01 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
Whas is the TSB #?
15-0161
Have a 2015 F250 6.2. Consuming between 2 and 3 quarts within the ford recommended 5000 mile changes. Have brought this up to the dealer multiple times. they claim its normal. I am having to do all the home work on this.
I am as well! I had to come up with the correct Technical Service Bulletin number before they would even recognize or admit it! They started oil consumption test until it got out of warranty! Now they don’t care and said they couldn’t help! My truck fits the dates but they recommend I fix it and save the receipt. So if my specific Vin number gets recalled they can look at a possible refund!
Have a 450 with a propane engine. It was going thru at least 2 quarts in less than 1000 miles. We just rebuilt the engine and have ran it now for a week. We put 1.5 quarts in it already, in under 1000 miles.
I have this issue with a truck right now, but the Ford Dealer keeps wanting to have unit brought in every 1,000 miles to check oil levels. We have no leaks, just consumption and excess burning at start up each day. Seems dealer is not aware of this diagnosis…
Where is oil going? I see nothing out tailpipe,and why replace 16 sparkplugs? Are the plugs fouled &is there longterm damage?
Excessive oil consumption due to an internally leaking baffle in the right side valve cover.
What is excessive? More than a quart of oil?
One quart for 1500 Miles is considered excessive.
Actually 1 quart over 3000 miles on trucks 2011 and newer. Doesn’t matter Ford will not fix anyway! Dealer asked if I thought about trading? I said yes for a Chevy or Ram with this kind of service!
What is excessive? More than a quart of oil?
One quart for 1500 Miles is considered excessive.
