5.0L – Engine Oil Leak From The Engine Block – 2022-2023 Ford F-150

SEOCONTENT-START

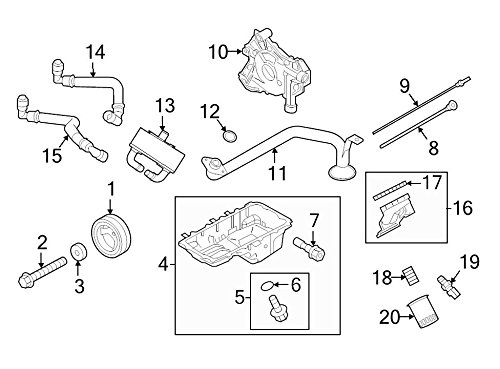

6/26/23, 2:51 PM 2023 F-150 https://www.fordtechservice.dealerconnection.com 1/3 TECHNICAL SERVICE BULLETIN 5.0L – Engine Oil Leak From The Engine Block – Built On 23-Aug-2022 And Through 30-Apr-2023 23-2194 19 June 2023 Model: Ford 2022-2023 F-150 Built on 23-Aug-2022 and through 30-Apr-2023 Engine: 5.0L Issue: Some 2022-2023 F-150 vehicles built on 23-August-2022 and through 30-April-2023 equipped with a 5.0L engine may exhibit an oil leak from the oil filter adaptor to engine block mounting area. This may be due to block porosity just below the oil filter adapter near the main bearing cap outer bolt. To correct the condition, follow the Service Procedure to inspect the engine block for a porosity leak. Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria: • 2022-2023 F-150 • Built on 23-August-2022 and through 30-Apr-2023 • 5.0L engine • Oil leak from the oil filter adapter area Parts Service Part Number Quantity Description Unit of Piece Quantity Note ML3Z-6009-D BR3Z-6A340-A JR3Z-6065-C W714735-S439 JL3Z-6379-A W715211-S439 W713244-S439 7L1Z-4B496-C AA5Z-6714-A ML3Z-6584-B ML3Z-6584-C ML3Z-6051-H ML3Z-6051-G ML3Z-6020-C ML3Z-6020-D ML3Z-6020-E W520514-S440 W716530-S440 W520113-S440 W715618-S437 1 Engine Short Block Assembly 1 1 1 Crankshaft Pulley Bolt And Washer 1 1 20 Cylinder Head Bolt 1 20 2 Engine Mount Bracket-to-Engine Bolt 4 6 8 Flexplate to Crankshaft Bolt 1 8 1 Left Engine Mount Through Bolt 4 1 1 Left Engine Mount-to-Frame Bolt 4 3 2 Front Driveshaft-to-Pinion Flange Bolt and Washer 1 2 Assembly 1 Engine Oil Filter 1 1 1 Right Camshaft and Carrier Assembly Gasket 1 1 1 Left Camshaft and Carrier Assembly Gasket 1 1 1 Right Cylinder Head Gasket 1 1 1 Left Cylinder Head Gasket 1 Front Engine Cover Gasket – Right 1 1 1 Front Engine Cover Gasket – Center 1 1 1 Front Engine Cover Gasket – Left 1 1 4 Catalytic Converter-to-Exhaust Manifold Nut 1 4 1 RH Engine Mount-to-Frame Nut 4 2 1 Stabilizer Bar Bracket Nut 4 4 1 Torque Converter-to-Flexplate Nut 4 4 6/26/23, 2:51 PM 2023 F-150 ML3Z-6A642-C 1 Oil Cooler Assembly 1 1 F1VY-8507-A 1 Coolant Pump O-ring Seal 5 1 JT4Z-9E583-A 1 High Pressure Fuel Pump O-ring Seal 1 1 GK2Z-6700-A 1 Front Crankshaft Oil Seal Assembly 1 1 ML3Z-9J323-B ML3Z-9J323-C ML3Z-3B478-A ML3Z-3B478-B BR3Z-8255-A JR3Z-6701-A W714870-S430 FR3Z-9448-A W714869-S901 W702600-S439 W718644-S439 DL3Z-19B596-B DS7Z-19B596-A BC3Z-8590-F VC-13-G CVC-13-G XO-5W20-Q1SP CXO-5W20- LSP6 PM-20 1 1 1 1 1 1 4 2 4 1 2 1 1 1 As Needed As Needed As Needed As Needed As Needed High Pressure Fuel Pump-to-Fuel Rail Tube 1 1 Assembly High Pressure Fuel Rail-to-Fuel Rail Tube Assembly 1 1 Front Driveshaft CV Joint Boot Clamp 1 1 Rear Driveshaft CV Joint Boot Clamp 1 1 Thermostat Housing Seal 1 1 Rear Crankshaft Seal 1 1 Exhaust Manifold Nut 4 16 Exhaust Manifold Gasket 1 2 Exhaust Manifold Stud 4 16 Steering Shaft Bolt 1 1 Frame to Cab Mounting Bolt 4 6 A/C Compressor O Ring and Gasket 1 1 A/C Compressor Seal 1 1 Lower Radiator to Radiator Hose Seal 1 1 Motorcraft® Yellow Prediluted Antifreeze/Coolant (All Markets Except Canada) Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil (All Markets Except Canada) Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada Only) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid Quantity refers to the amount of the service part number required to repair the vehicle. Unit of Issue refers to the number of individual pieces included in a service part number package. Piece Quantity refers to the total number of individual pieces required to repair the vehicle. As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non- whole numbers, including less than 1. If Needed indicates the part is not mandatory. Parts Parts To Inspect And Replace Only If Necessary Service Part Number Quantity Description Unit of Issue Piece Quantity AA5Z-9C587-A If Needed Fuel Pump Assembly Tappet 1 1 JR3Z-12A227-A If Needed Crankshaft Position Sensor Ring 1 1 JL3Z-9439-A If Needed Intake Manifold Gasket 1 8 Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Service Part Warranty (SPW)/Special Service Part (SSP)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/SPW/SSP/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool. https://www.fordtechservice.dealerconnection.com 2/3 6/26/23, 2:51 PM 2023 F-150 https://www.fordtechservice.dealerconnection.com 3/3 Labor Times Description Operation No. Time 2022-2023 F-150 4X2 5.0L: Inspect And Replace The Engine Short Block Following The Service Procedure (Do Not Use With Any Other Labor Operations) 2022-2023 F-150 4X4 5.0L: Inspect And Replace The Engine Short Block Following The Service Procedure (Do Not Use With Any Other Labor Operations) MT232194A MT232194B Actual Time Up To 18.3 Hrs. Actual Time Up To 18.8 Hrs. Repair/Claim Coding Causal Part: 6009 Condition Code: D1 Service Procedure 1. Inspect the engine block just below the oil filter adapter mounting area near the main bearing cap outer bolt. Does the location show signs of oil leaking at the engine block? (Figure 1) (1). Yes – proceed to Step 2. (2). No – this article does not apply. Refer to Workshop Manual section 300-00, Oil Leak Inspection. 2. Replace the engine short block. Refer to the Workshop Manual (WSM), Section 303-01E, Removal > Disassembly > Engine. © 2023 Ford Motor Company All rights reserved. NOTE: The information in Technical Service Bulletins is intended for use by trained, professional technicians with the knowledge, tools, and equipment to do the job properly and safely. It informs these technicians of conditions that may occur on some vehicles, or provides information that could assist in proper vehicle service. The procedures should not be performed by “do-it-yourselfers”. Do not assume that a condition described affects your car or truck. Contact a Ford or Lincoln dealership to determine whether the Bulletin applies to your vehicle. Warranty Policy and Extended Service Plan documentation determine Warranty and/or Extended Service Plan coverage unless stated otherwise in the TSB article. The information in this Technical Service Bulletin (TSB) was current at the time of printing. Ford Motor Company reserves the right de this information with updates. The most recent information is available through Ford Motor Company’s on-line technical resources.

**************************************************************************************************************

**************************************************************************************************************
