NHTSA ID Number: 10239631
Manufacturer Communication Number: TSB 23-2187
Summary
Some 2022 Explorer vehicles equipped with a 3.3L full hybrid electric vehicle (FHEV) engine and built on 12-Jul-2022 and through 31-Oct-2022 may exhibit a coolant leak at the high voltage (HV) battery coolant cooler outlet hose. This may be due to the HV battery coolant cooler outlet hose contacting the bottom pulley of the accessory drive belt tensioner. To correct the condition, follow the Service Procedure to replace the damaged hose and install a cable tie.
Model:
Issue: Some 2022 Explorer vehicles built on 12-Jul-2022 and through 31-Oct-2022 and equipped with a 3.3L full hybrid electric vehicle (FHEV) engine may exhibit a coolant leak at the high voltage (HV) battery coolant cooler outlet hose. This may be due to the HV battery coolant cooler outlet hose contacting the bottom pulley of the accessory drive belt tensioner. To correct the condition, follow the Service Procedure to replace the damaged hose and install a cable tie.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- 2022 Explorer
- Built on 12-Jul-2022 and through 31-Oct-2022
- 3.3L FHEV engine
- Coolant leak from the HV battery coolant cooler outlet hose
Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |

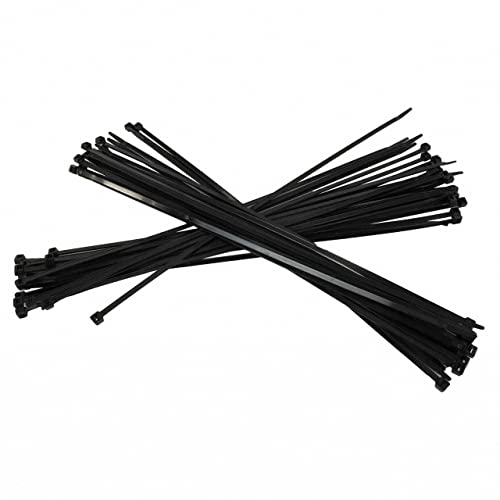

WA-14-SBA  | 1 | Cable Tie | 50 | 1 |
| P1MZ- 8286-B | 1 | High Voltage Battery Coolant Cooler Outlet Hose | 1 | 1 |
HL3Z-19B596-A | 1 | A/C O-ring Kit | 1 | 1 |
| DS7Z-19B596-A | 1 | A/C O-ring Kit | 1 | 1 |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
Service Procedure
1. Remove the cooling module. Refer to Workshop Manual (WSM), Section 303-03D.
2. Replace the HV battery coolant cooler outlet hose.
3. Secure the HV battery coolant cooler outlet hose to the HV battery coolant pump outlet hose using a cable tie to keep hose away from the bottom pulley of the accessory drive belt tensioner. (Figures 1-2)
Figure 1
Figure 2
4. Reassemble the vehicle.
5. Fill and bleed the cooling system. Refer to WSM, Section 303-03D.
1 Affected Product
Vehicle
| MAKE | MODEL | YEAR |
| FORD | EXPLORER | 2022 |
1 Associated Document
Manufacturer Communications
23-2187
17 July 2023
MC-10239631-0001.pdf 152.652KB
