September 8, 2022 NHTSA CAMPAIGN NUMBER: 22V675000
Wheel Lug Nuts Not Tightened Correctly
Incorrectly tightened wheel lug nuts can loosen and result in wheel separation from the vehicle, increasing the risk of a crash.
NHTSA Campaign Number: 22V675
Manufacturer Ford
Motor Company
Components WHEELS
Potential Number of Units Affected 1,519
Summary
Ford Motor Company (Ford) is recalling certain 2022 F-150 Raptor Series vehicles equipped with 37-inch tires. The lug nuts on the wheels may have been incorrectly tightened.
Remedy
Dealers will tighten or replace the wheel lug nuts, as necessary, free of charge. Owner notification letters were mailed September 26, 2022. Owners may contact Ford customer service at 1-866-436-7332. Ford’s number for this recall is 22S59.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.nhtsa.gov.
Check if your Vehicle has a Recall
AFFECTED VEHICLES
| Vehicle | Model Year | Assembly Plant | Build Dates |
| F-150 Raptor | 2022 | Dearborn Assembly | April 19, 2022 through August 11, 2022 |
Note: Some vehicles may be in the process of being repaired at the plant. Monitor OASIS before opening an RO and/or beginning a repair. Parts purchased for an FSA can be returned for credit, if required. See the EXCESS STOCK RETURN details in Attachment II for more information.
REASON FOR THIS SAFETY RECALL
The affected vehicles may have road wheels that were torqued below specification. Improper attachment of the road wheel lug nuts may result in loosening and wheel separation from the vehicle, increasing the risk of a crash.
SERVICE ACTION
Before demonstrating or delivering any new in-stock vehicles involved in this recall, dealers are to inspect for the presence of all lug nuts, if missing or found loose remove the wheel and inspect the wheel and mounting studs for any visual damage. If damage is found replace damaged parts. If the wheel is damaged contact SSSC for an approval code for replacement. This service must be performed on all affected vehicles at no charge to the vehicle owner.
Note: This service action can be performed via mobile repair.
OWNER NOTIFICATION AND MAILING SCHEDULE
Owner letters are expected to be mailed the week of September 19, 2022. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.
PLEASE NOTE:
Federal law requires dealers to complete this recall service before a new vehicle is delivered to the buyer or lessee. Violation of this requirement by a dealer could result in a civil penalty of up to $21,000 per vehicle. Correct all vehicles in your new vehicle inventory before delivery.
MOBILE REPAIR RECOMMENDATIONS
- Confirm with the customer a mobile repair is feasible.
- Check OASIS prior to going to the customerโs home or business to confirm if any other outstanding FSA needs to be completed.
- Transportation โ due to the simplicity of this repair, a specialty vehicle is not required.
MOBILE REPAIR ADDITIONAL INFORMATION
Please ensure the technician brings the following to the mobile repair destination:
- Printed Technical Instructions.
- Printed Repair/Work Order or any other necessary documentation as customer copy(s). o Documents could also be emailed to the customer.
- Shirt/uniform and vehicle graphic with the dealership or Ford logos are recommended.
- Recommended tools and cleaning supplies: Jack stands, Floor jack, Torque wrench, Sockets, Socket Rachet or Breaker bar, and any other tools needed for wheel, and wheel stud removal.
- Parts: Lug nuts, wheel studs.
MOBILE REPAIR QUESTIONS AND ASSISTANCE
- For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web Contact Site. Work with the Dealership warranty administrator to create an SSSC contact ID#.
- Once an SSSC agent responds to the new contact ID#, you may opt to call the SSSC hotline: (800) 325-5621.
SOLD VEHICLES
- Ford has not issued instructions to stop selling/delivering or driving used vehicles under this safety Owners should contact their dealer for an appointment to have their vehicles remedied as soon as practicable. Owners can continue to safely drive their vehicles. Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
- Correct other affected vehicles identified in OASIS which are brought to your dealership.
- Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.
STOCK VEHICLES
- Correct all affected units in your new vehicle inventory before delivery.
- Use OASIS to identify any affected vehicles in your used vehicle inventory.
DEALER-OPERATED RENTAL VEHICLES
The Fixing Americaโs Surface Transportation (FAST) Act law effective June 2016 prohibits a rental company from selling, renting or leasing vehicles subject to a safety or compliance recall. Please consult your legal counsel for legal advice.
TITLE BRANDED / SALVAGED VEHICLES
Affected title branded and salvaged vehicles are eligible for this recall.
OWNER REFUNDS
- This safety recall must still be performed, even if the owner has paid for a previous repair. Claiming a refund will not close the recall on the vehicle.
- Ford Motor Company is offering a refund for owner-paid repairs covered by this recall if the repair was performed prior to the date indicated in the reimbursement plan, which is posted with this bulletin. Owners are directed to seek reimbursement through authorized dealers or, at their option, directly through Ford Motor Company at P.O. Box 6251, Dearborn, MI 481216251.
- Dealers are also pre-approved to refund owner-paid emergency repairs that were performed away from an authorized servicing dealer after the end date specified in the reimbursement plan. Non-covered repairs, or those judged by Ford to be excessive, will not be reimbursed.
- Refunds will only be provided for the cost associated with replacement and or retorque of wheel lug nuts.
RENTAL VEHICLES
Rental vehicles are not approved for this program.
PARTS REQUIREMENTS / ORDERING INFORMATION
| Part Number | Description | Order Quantity | Claim Quantity |
| ML3Z-1007-V | Wheel Assembly | 1 | Up to 4 |
| FCPZ-1107-A | Wheel Stud (1 in pkg up to 24 may be needed) | 1 | Up to 24 |

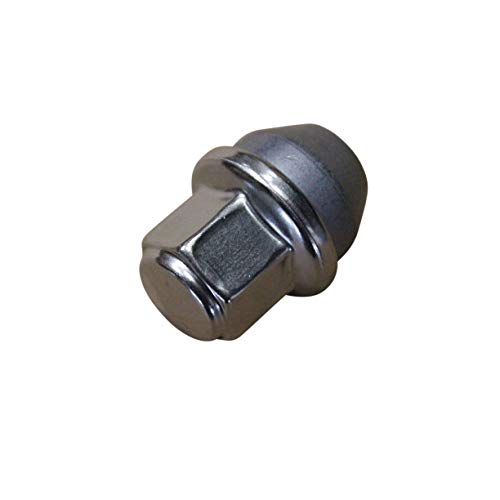

ACPZ-1012-B  | Lug Nut (1 in pkg up to 24 may be needed) | 1 | Up to 24 |
CERTAIN 2022 MODEL YEAR F-150 RAPTOR VEHICLES WITH 37″ TIRES, LOW LUG NUT TORQUE
SERVICE PROCEDURE
WARNING: When jacking or lifting the vehicle, block all wheels remaining on the ground. Set the parking brake if the rear wheels will remain on the ground. These actions help prevent unintended vehicle movement. Failure to follow these instructions may result in serious personal injury.
WARNING: Never get underneath a vehicle that is supported only by a jack. The jack could unintentionally lower. Always support vehicle with floor stands. Failure to follow these instructions may result in serious personal injury.
WARNING: Only raise the vehicle when positioned on a hard, level surface. Attempting to raise the vehicle on an uneven or soft surface may result in vehicle slipping or falling from the jack or jackstand. Failure to follow this instruction may result in serious personal injury.
WARNING: Turn off (disable) the power running boards (if equipped) before jacking, lifting or placing any object under the vehicle. Never place your hand between the power running board and the vehicle. Extended power running boards will retract when doors are closed. Failure to follow these instructions may result in serious personal injury.
NOTICE: When raising a vehicle on a hoist, use care when positioning the hoist adapters prior to lifting the vehicle so that hoist arms do not interfere with the surrounding suspension or steering linkage components.
NOTE: If you suspect that you will not have Internet access at the vehicle’s mobile repair location, then you should print a copy of these instructions (including any required Workshop Manual references) for reference during the mobile repair.
1. Inspect the wheels for the presence of lug nuts. Are all lug nuts present on all 4 wheels?
Yes – Proceed to step 2.
No – Proceed to step 4.
2. Are there any lug nuts that can be loosened by hand?
Yes – Proceed to step 4.
No – Proceed to step 3.
3. Loosen and torque each lug nut to 200 Nm (150 ft lb), using a star pattern. Recall is complete.
4. Remove the tire(s) and wheel(s), please follow Workshop Manual (WSM) Section 204-04A.
5. Inspect the studs for visual damage. Is there any damage present?
Yes – For Front Wheel Studs proceed to step 6. For rear wheel studs proceed to step 11.
No – Install tire(s) and wheel(s). Please follow WSM Section 204-04A. Recall is complete.
NOTICE: Each lug nut MUST be torqued to 200 Nm (150 ft. lb), using a star pattern.
Front Wheel Studs (continued on next page)
Front Wheel Studs
6. Remove caliper and brake disc. Please follow WSM Section 206-03.
NOTE: It is not necessary to remove the brake disc shield to remove the stud(s).
7. Remove and replace damaged wheel stud(s). Please follow WSM Section 204-01A.
NOTE: When replacing more than one wheel stud, re-use one lug nut for the installation procedure and discard when complete.
8. Inspect wheel(s) for damage around lug nut mounting holes. If there is damage to one or more wheels, take pictures of the suspected damage and submit to the Special Service Support Center (SSSC) for approval.
9. To install, reverse removal procedure.
10. Install wheel(s) and tire(s). Please follow WSM Section 204-04A. If no rear wheel studs need to be replaced, recall is complete.
NOTICE: Each lug nut MUST be torqued to 200 Nm (150 ft. lb), using a star pattern. Rear Wheel Studs
11. Remove caliper and brake disc. Please follow WSM Section 206-04.
12. Remove and replace damaged wheel stud(s).
13. Press the wheel stud(s) from the hub flange. Use Special Service Tool: 211-023 C-Frame and Screw. See Figure 1.
14. Install the wheel stud(s):
Tighten the lug nut until the wheel stud is seated against the hub flange. See Figure 2.
NOTE: When replacing more than one wheel stud, re-use one lug nut for the installation procedure and discard when complete.
NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 3 to 4) to allow the wheel stud to fully seat against the hub flange.
15. Inspect wheel(s) for damage around lug nut mounting holes. If there is damage to one or more wheels, take pictures of the suspected damage and submit to the Special Service Support Center (SSSC) for approval.
16. To install, reverse removal procedure.
17. Install wheel(s) and tire(s). Please follow WSM Section 204-04A. Recall is complete.
NOTICE: Each lug nut MUST be torqued to 200 Nm (150 ft. lb), using a star pattern.
Chronology :
August 2022: On August 18, 2022, an issue pertaining to 2022 model year F-150 Raptor vehicles equipped with 37-inch wheels and tires was brought to Fordโs Critical Concern Review Group (CCRG) for review. During a routine inspection, on August 10, 2022, a technician (Ford Employee) had identified low wheel lug nut residual torque on a prototype 2023 model year F-150 Raptor with 37-inch tires and wheels (T&W).
The Dearborn Plant Vehicle Team informed CCRG that a new 37-inch T&W option was introduced for the 2022 model year F-150 Raptor. On April 18, 2022, an automated three-spindle DC lug nut tool replaced a manual process. Manufacturing engineering determined that the new DC lug nut tool was incorrectly set to a nominal torque of 170 Nm instead of the intended 200 Nm. Dearborn Truck Plant audited 477 vehicles and found 236 with low residual torque. CCRG did not identify any reports of loose road wheels or separations.
On August 24, 2022, an off-cadence FRC was scheduled for August 31, 2022.
On August 31, 2022, Fordโs Field Review Committee reviewed the concern and approved a field action.
Ford is not aware of any reports of accident or injury related to this condition.
1 Affected Product
Vehicle
| MAKE | MODEL | YEAR |
| FORD | F-150 | 2022 |
