NHTSA ID Number: 10216465
Manufacturer Communication Number: TSB 22-2297
Summary
Some 2021-2022 Bronco vehicles equipped with base exterior mirrors (does not have integrated puddle lamps and/or turn signal lamps) may have a whistle noise that originates from the left exterior mirror. This may be due to the design of the exterior mirror cover. To correct this condition, follow the Service Procedure to replace both the left and right exterior mirror covers.
This bulletin supersedes 22-2215.
Model:
2021-2022 Bronco
Summary
This article supersedes TSB 22-2215 to update the labor time information.
Issue: Some 2021-2022 Bronco vehicles equipped with base exterior mirrors (does not have integrated puddle lamps and/or turn signal lamps) may have a whistle noise that originates from the left exterior mirror. This may be due to the design of the exterior mirror cover. To correct this condition, follow the Service Procedure to replace both the left and right exterior mirror covers.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- 2021-2022 Bronco
- Equipped with base exterior mirrors (does not have integrated puddle lamps and/or turn signal lamps)
Parts
Service Part Number | Quantity | Description |
M2DZ-17D742-F | 1 | Mirror Cover, Molded In Color, Right |
M2DZ-17D743-H | 1 | Mirror Cover, Molded In Color, Left |
M2DZ-17D742-BBPTM | 1 | Mirror Cover, Painted, Right |
M2DZ-17D743-BCPTM | 1 | Mirror Cover, Painted, Left |
Service Procedure
- Does the left exterior mirror have 3 horizontal fins on the outboard side of the mirror cover? (Figure 1)
Figure 1 – Left side shown, right side similar
(1). Yes – this article does not apply. Refer to Workshop Manual (WSM), Section 100-04 and continue with normal diagnostics.
(2). No – replace both the left and right exterior mirror covers. Refer to WSM, Section 501-09. Both the left and right exterior mirror covers must be replaced to maintain a consistent vehicle appearance.
2 Affected Products
Vehicle
MAKE | MODEL | YEAR |
FORD | BRONCO | 2021-2022 |
1 Associated Document
Manufacturer Communications
22-2297
21 July 2022
https://www.nhtsa.gov/recalls?nhtsaId=10216465
NHTSA ID Number: 10214121
Manufacturer Communication Number: TSB 22-2215
Summary
Some 2021-2022 Bronco vehicles equipped with base exterior mirrors (does not have integrated puddle lamps and/or turn signal lamps) may have a whistle noise that originates from the left exterior mirror. This may be due to the design of the exterior mirror cover. To correct this condition, follow the Service Procedure to replace both the left and right exterior mirror covers.
1 Associated Document
Manufacturer Communications
22-2215
31 May 2022
https://www.nhtsa.gov/recalls?nhtsaId=10214121

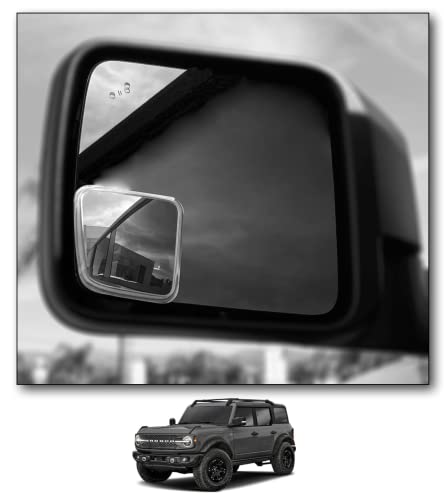

- Extended View blind spot mirrors are custom fit, and compatible with Ford Bronco 6th Gen. The placement and viewing angle are all customized to work with your factory specific BLIS mirrors.
- Premium quality real glass, which is engineered on 9 planes provides clarity and visibility that are far superior to any universal fit blind spot mirrors. Extended View provides the clearest, most distortion free convex mirrors in the world.
- Genuine 3M adhesive is the strongest automotive grade product available. 3M adhesive delivers a strong bond in minutes, yet is easily removable if needed.
- 100% designed and created in the USA, using OEM quality components. Extended view greatly enhances the 6th generation mirrors quickly, easily and cost-effectively without replacing the full mirror housings.
- Works with heated and both dimming and non-dimming mirrors and custom designed to work with BLIS mirrors. Sold as a set of 2 for the left and right side.
- FITMENT - 1980-1996 Fit for Ford F150 F250 F350 F450 Ranger Bronco Explorer Truck Pickup
- MANUAL FOLDING - When the car enters a small space, the side mirrors on both sides are easily damaged. Our products have the function of manual folding. At this time, we can fold the ffor Rame to prevent damage to the side mirror.
- NOTE - The rear view mirror is designed to replace the original mirror with these precise functional options. Please confirm that your original rear view mirror has all the corresponding functions to avoid inconvenience.
- RELIABLE QUALITY -Side view mirror have high quality raw materials and strict quality standards. Please rest assured to buy.
- PACKAGE INCLUDED - a pair of side view mirror.
- 【TOWING MIRRORS FIT】 - 1980-96 For Ford Bronco 1984-90 For Ford Bronco II 1991-94 For Ford Explorer 1980-84 For Ford F100 Truck 1980-96 For Ford F150 Truck 1997 For Ford F250 Truck 1980-96 For Ford F250 Truck 1980-97 For Ford F350 Truck 1988-96 For Ford F450 Truck 1983-92 For Ford Range
- 【BUILT INTO REFLECTOR】 - There are 2 amber Reflectors on the side of the housing
- 【DUAL GLASS】 - The mirror face itself is a manual adjustment, so you do need to just use your hand to adjust it where you need it and if you'll notice the littler mirror here at the bottom, that's a built-in spotter mirror. This will help reduce blind spots. That is also a manual adjustment.
- 【FOLDING FEATURE】 - The entire housing of the mirror conveniently folds toward your vehicle for easy parking or maneuvering in tight spaces.
- 【WHAT INCLUDED】 - A Towing Mirrors (Same on both sides)

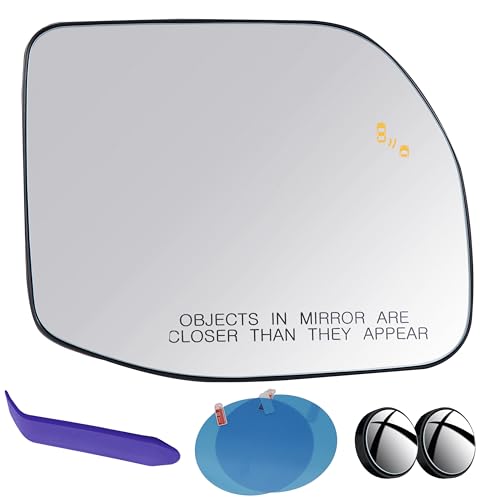

- 【Direct Replacement Design & Fit Without Trimming】This Passenger Side Mirror Replacement Glass is professionally designed as a direct replacement for Ford Bronco 2022 2023 Side View Passenger Mirror Glass Replacement.
- 【Better Glass Quality & Better Visibility】This Side Passenger Mirror Replacement is made of high quality Glass and Acrylonitrile - Butadiene - Styrene (ABS) for clearer visibility, better durability and safety. Better glass brings a fog-free effect.
- 【Right Passenger Side Mirror Glass Replacement With Heated and Blind Spot Detection Function】The glass back of this passenger mirror replacement is designed with heated function, which can eliminate fog and melt ice and snow by heating from the inside out. Note: This glass has heating function, blind spot detection, no signal light, no anti-glare function and no automatic dimming function. (If you need rearview mirror glass with other functions, please check our other styles or contact us.)
- 【Easy Installation & You can complete the replacement in a few minutes】The same mounting point as the factory mirrors glass. Completely suitable for existing wires and interfaces. Before installation, the wiring harness must be unplugged from the existing backplane and inserted into the new backplane. Note: mirror has heating function, blind spot detection function, no automatic dimming function, no signal light and no anti-glare function.
- 【24 Month Warranty & You can buy it with confidence】Order this passenger side mirror glass replacement from LOIYLLEN, we offer 24 month warranty. If you have any questions about our Right Side Rear View Mirror Glass, please feel free to contact us and we will provide you with technical support at any time.
- Unique design: The wide angle mirror is compatible with the 2021-2022 Ford Bronco 2/4 doors Perfect for your car. (Note: Not Fit For Bronco Sport Model.)
- High quality:Made of aluminum alloy, glass, and ABS, it has the characteristics of high scratch resistance, deformation resistance, practicality, and durability.
- High performance:Wide angle mirrors can expand the driver's field of view. Being able to detect vehicles on the opposite side of the curve as early as possible, eliminating dangerous blind spots during driving, and having reliability.
- Easy to install: Wide Angle Mirror for ford bronco easy to install. Installed on the original vehicle, it can be replaced directly without drilling or cutting. (Note: Replace the screws of the original car. Simply replace the screws on one side.)
- What You Get:1 PC Front Engine Hood Sand Board Rearview Mirror.
- 🚙Features- The distance between the two brackets of the mirror is 6.49 inches.
- 🚙REFERENCE NUMBER- E5TZ 17696 B, E5TZ 17696 A, EOTZ 17682 E, EOTZ 17682 D, E5TZ17696A, FO1320236
- 🚙MIRROR FEATURES- A pair of mirror (Same left and right) ,non- heated
- 🚙SUPERIOR QUALITY- All parts are made of high quality raw materials. The design process is fine and meets OEM specifications.
- 🚙VEHICLE COMPATIBILITY- The style and function of the rear view mirror will change in brand and model every year, so you need to ensure that the function of the rear view mirror you purchased is original, and carefully check the link of the parts and the OE reference number to ensure that your vehicle gets the correct replacement of the rear view mirror.

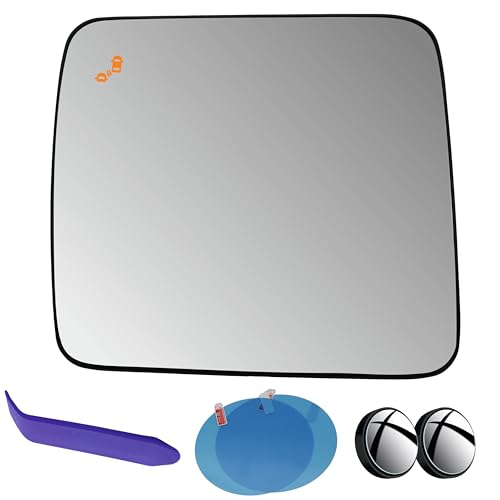

- 【Direct Replacement Design & Fit Without Trimming】This Driver Side Mirror Replacement Glass is professionally designed as a direct replacement for Ford Bronco 2022 2023 Side View Driver Mirror Glass Replacement.
