| TSB 14-0186 | TING/POP/CLICK NOISE – FRONT HALFSHAFT |
| Publication Date: October 6, 2014 | |
FORD : | 2011-2014 Flex 2011-2015 Explorer, Taurus |
| LINCOLN: | 2011-2014 MKS, MKT |
This article supersedes TSB 13-5-14 to update the vehicle model years, Issue Statement and Part List.
ISSUE:
Some 2011-2015 Explorer, Taurus, 2011-2014 Flex, MKT and MKS vehicles may exhibit a noise that could be described as ting, pop or click noise from the front wheel area when accelerating from a stop, on turns or when shifting between drive/reverse and/or reverse/drive.
ACTION:
Follow the Service Procedure Steps to correct the condition.
SERVICE PROCEDURE
- Separate the halfshaft from the wheel hub.
- Do not remove the halfshafts from the transmission or power transfer unit (PTU).
- Install one (1) thrust washer, metal surface first, over the halfshaft splines until the metal ring is flat against the wheel bearing mating surface. The nylon surface should face outward toward the hub/splines. (Figures 1 and 2)
Figure 1
Figure 2
- Install the halfshaft to wheel hub.
| BB5Z-7G273-B | Washer – Thrust |
W712435-S439
Genuine *Nut W712435-S439
| Nut – Wheel Hub |
| W714890-S440
No products found. | Nut – Ball Joint |
W713968-S440
Ford W713-968S440, Suspension Stabilizer Bar Link Nut
| Nut – Sway Bar Link |
| W714890-S440
No products found. | Nut – Tie Rod End |
| W500220-S439 | Bolt – Dynamic Suspension |
| OPERATION | DESCRIPTION | TIME |
| 140186A | 2011-2014 MKT, MKS: Install A Thrust Washer Onto One (1) Front Halfshaft Following The Service Procedure (Do Not Use With Any Other Labor Operations) | 0.8 Hr. |
| 140186B | 2011-2014 MKT, MKS: Install A Thrust Washer Onto Both (2) Front Halfshafts Following The Service Procedure (Do Not Use With Any Other Labor Operations) | 1.2 Hrs. |
| 140186C | 2011-2014 Flex 2011-2015 Taurus: Install A Thrust Washer Onto One (1) Front Halfshaft Following The Service Procedure (Do Not Use With Any Other Labor Operations) | 0.7 Hr. |
| 140186D | 2011-2014 Flex 2011-2015 Taurus: Install A Thrust Washer Onto Both (2) Front Halfshafts Following The Service Procedure (Do Not Use With Any Other Labor Operations) | 1.1 Hrs. |
| 140186E | 2011-2015 Explorer: Install A Thrust Washer Onto One (1) Front Halfshaft Following The Service Procedure (Do Not Use With Any Other Labor Operations) | 0.7 Hr. |
| 140186F | 2011-2015 Explorer: Install A Thrust Washer Onto Both (2) Front Halfshafts Following The Service Procedure (Do Not Use With Any Other Labor Operations) | 1.0 Hr. |
WARRANTY STATUS
Eligible Under Provisions Of New Vehicle Limited Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
DEALER CODING
| BASIC PART NO. | CONDITION CODE |
| 3B436 | 42 |
Bestseller No. 1

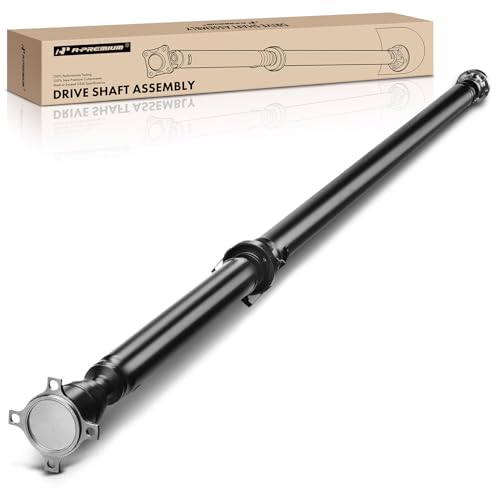

A-Premium Rear Drive Shaft Driveshaft Assembly Compatible with Ford Lincoln
- [Vehicle Fitment-1]: Compatible with Ford Edge 2012-2014 L4 2.0L, Edge 2007-2014 V6 3.5L, Edge 2011-2014 V6 3.7L --- Rear, Only For AWD(All Wheel Drive) & 2 Piece Design Models, Not For 3 Piece Design Models
- [Vehicle Fitment-2]: Compatible with Lincoln MKX 2007-2010 V6 3.5L, MKX 2011-2014 V6 3.7L --- Rear, Only For AWD(All Wheel Drive) & 2 Piece Design Models, Not For 3 Piece Design Models
- [Reference Number]: DT4Z-4R602-A, DT4Z4R602A, 7T4Z4R602A, SK936846, 936-846, 65-2027, 936846, 652027
- [Product Description]: ①Installation Position: Rear Side; ②Extended Shaft Length: 81.81 inch; ③Compressed Shaft Length: 80.04 inch; ④Shaft Material: Steel; ⑤Shaft Length Measurement Method: Measure Overall Length, End to End
- [Direct Replacement]: Engineered for smooth, consistent power delivery to enhance driving performance and ride comfort. Constructed from high-strength, reliable materials for long-lasting durability. Precision-designed for easy, hassle-free installation and exact fit
Bestseller No. 2
HEATFORGE 936-846 Rear Drive Shaft Assembly Axle Driveshaft
- Vehicle Fitment: Rear Drive Shaft compatible with Ford Edge L4 2012-2014, Edge V6 2007-2014, Lincoln MKX V6 2007-2014. For further compatibility information, please refer to Product description. Please verify your vehicle model before purchasing to avoid any unnecessary issues.
- Reference Number: OE# 936-846, 936846, 65-2027, 652027, DT4Z4R602A, 7T4Z4R602A. Please verify the OE number before purchasing to avoid any unnecessary complications.
- Direct Installation: Rear Driveshaft direct replacement with almost no difference from the original in terms of specifications and quality.
- Premium Quality & Safety tested: Drive Shaft Assembly made of precision forged steel and high-strength alloy joints. Can stand dynamic offset and torque transmission requirements under complex road conditions. Each Driveshaft is dynamically balanced to be reliable.
- Attention: Not original equipment manufacturer (OEM) part! Please feel free to contact us any time, we will response within 24 hours.
Bestseller No. 3

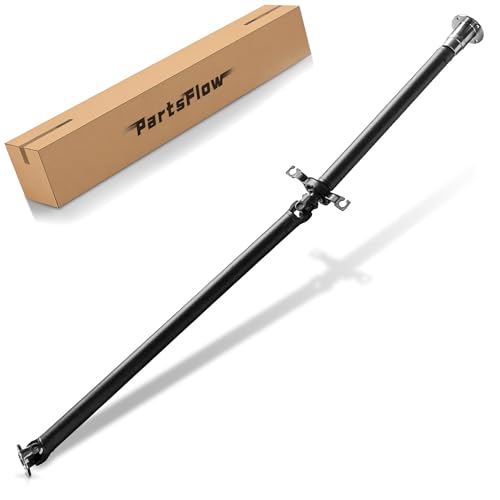

PartsFlow 80.5″ Rear Steel Driveshaft Assembly Drive Shaft Prop Shaft – Compatible with 2007 2008 2009 2010 2011 2012 2013 2014 Ford Edge & Lincoln MKX AWD – Replaces 7T4Z4R602A, 936-846, DT4Z4R602A
