NHTSA ID Number: 10205022
Manufacturer Communication Number: TSB160057
Summary
Torqshift Transmission – Malfunction indicator lamp (MIL) diagnostic trouble codes (DTCS) P0751, P0730 and/or P2700
FORD
:
2009 F-53 Motorhome Chassis
2011-2015 F-53 Motorhome Chassis, F-59 Commercial Stripped Chass
2009-2016 E-Series, F-Super Duty
This article supersedes TSB 12-3-15 to update the vehicle model years, model line, warranty causal part number, Part List and Service Procedure.
ISSUE:
Some 2009-2016 E-Series, F-Super Duty, 2009-2015 F-53 Motorhome and 2011-2015 F-59 Stripped Chassis vehicles equipped with a TorqShift transmission and a transmission built on or before 12/15/2015 may exhibit a MIL with DTCs P0751, P0730 and/or P2700.
ACTION:
Follow the Service Procedure steps to correct the concern.
SERVICE PROCEDURE
1. Connect the Ford Integrated Diagnostic System (IDS) service tool or equivalent scan tool to the data link connector (DLC). Does the vehicle have DTCs P0751, P0730 and/or P2700?
Yes – proceed to Step 2.
No – this article does not apply. Refer to Workshop Manual (WSM), Section 307-01.
2. Check the transmission build date. Refer to WSM, Section 307-01. Was the transmission built on or before 12/15/2015?
Yes – proceed to Step 3.
No – this article does not apply. Refer to WSM, Section 307-01.
3. Remove the transmission assembly. Refer to WSM, Section 307-01.
4. Disassemble the transmission to remove the coast clutch assembly only. Refer to WSM, Section 307-01.
5. Replace the coast clutch cylinder and coast one-way clutch (OWC) mechanical diode assembly.
6. Reassemble the transmission. Refer to WSM, Section 307-01.
7. Install the transmission assembly. Refer to WSM, Section 307-01.
| PART NAME | PART NUMBER |
| Coast Clutch Cylinder | 7C3Z-7G387-B
No products found. |
| Coast One-way Clutch | 7C3Z-7A089-A
No products found. |
| Nut – Torque Converter (6 Req) | 378941-S441
Ford Motor Co. Genuine Transmission Nut - 378941S441
|
| O-ring – Fill Tube | 391308-S102 |

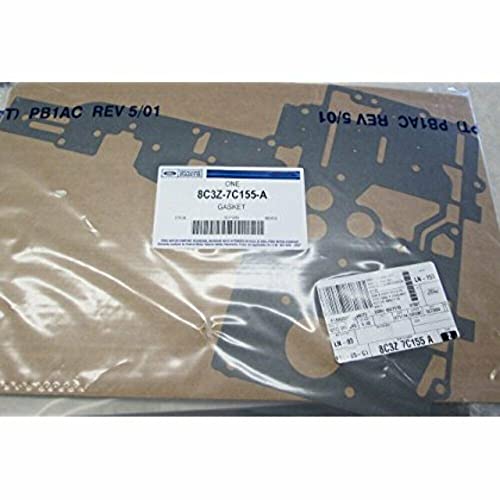

| Gasket – Main Control | 8C3Z-7C155-A
Sale
Ford Gasket
|
| Filter & Seal Assembly | 8C3Z-7A098-D
No products found. |
| Gasket – Pump | 3C3Z-7A136-AA
Ford 3C3Z-7A136-AA - GASKET
|
| Bolt – Pump (9 Req) | 3C3Z-7N134-BA |
| Bolt – Driveshaft (8 Req) | N811880-S100 |
| Motorcraft MERCON LV Automatic Transmission Fluid | XT-10-QLVC
Ford Genuine Ford Fluid XT-10-QLVC MERCON-LV Automatic Transmission Fluid - 1 Quart
|
85 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| FORD | E-150 | 2009-2014 |
| FORD | E-250 | 2009-2016 |
| FORD | E-350 | 2009-2016 |
| FORD | E-450 | 2009-2016 |
| FORD | E-550 | 2009 |
| FORD | F-250 SD | 2009-2016 |
| FORD | F-350 SD | 2009-2016 |
| FORD | F-450 SD | 2009-2016 |
| FORD | F-53 | 2009, 2011-2015 |
| FORD | F-550 SD | 2009-2016 |
| FORD | F-650 SD | 2009-2016 |
| FORD | F-750 SD | 2009-2016 |
1 Associated Document
Manufacturer Communications
TSB 16-0057
MC-10205022-9999.pdf 104.881KB
