NHTSA ID Number: 10081004
Manufacturer Communication Number: TSB-16-0093
Summary
SOME 2016 F-150, EXPEDITION, NAVIGATOR, TRANSIT, EDGE, FLEX AND EXPLORER VEHICLES EQUIPPED WITH A 3.5L TWIN INDEPENDENT VARIABLE CAM TIMING (TI-VCT) OR A 3.5L GASOLINE TURBOCHARGED DIRECT INJECTION (GTDI) ENGINE WITH LESS THAN 3200 KM (2000 MILES) MAY EXHIBIT AN ILLUMINATED MALFUNCTION INDICATOR LAMP (MIL) WITH DIAGNOSTIC TROUBLE CODES (DTCS) P0011, P0015, P0016, P0017, P0018, P0019, P0021 AND/OR P0025 STORED IN THE POWERTRAIN CONTROL MODULE (PCM) MEMORY.
FORD
:
2016 Edge, Expedition, Explorer, F-150, Flex, Transit
2016 Navigator
This article supersedes TSB 16-0038 to update the vehicle model years, model lines and Service Procedure.
ISSUE:
Some 2016 F-150, Expedition, Navigator, Transit, Edge, Flex and Explorer vehicles equipped with a 3.5L twin independent variable cam timing (Ti-VCT) or a 3.5L gasoline turbocharged direct injection (GTDI) engine with less than 3200 Km (2000 miles) may exhibit an illuminated malfunction indicator lamp (MIL) with diagnostic trouble codes (DTCs) P0011, P0015, P0016, P0017, P0018, P0019, P0021 and/or P0025 stored in the powertrain control module (PCM) memory.
ACTION:
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
- Check the vehicle mileage. Does the vehicle have less than 3200 Km (2000 miles) on the odometer?
- Yes – proceed to Step 2.
- No – this article does not apply. Refer to Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnosis.
- Connect the Ford Integrated Diagnostic System (IDS) service tool or equivalent scan tool and check for DTCs. Are any of the following DTCs stored in the PCM memory: P0011, P0015, P0016, P0017, P0018, P0019, P0021 and/or P0025?
- Yes – replace the affected solenoid for the stored DTC. Refer to Workshop Manual (WSM), Section 303-14.
- No – this article does not apply. Refer to PC/ED manual for normal diagnosis.
| PART NUMBER | PART NAME |

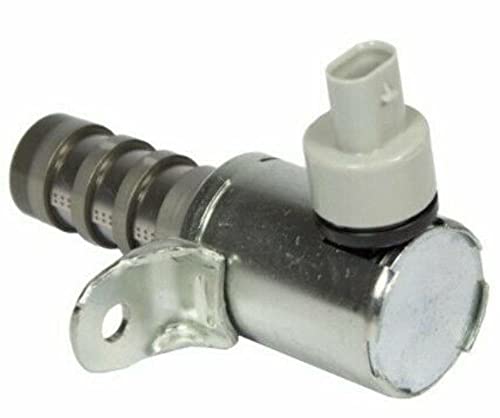

AT4Z-6M280-A
Ford Solenoid - ENGI
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | VCT Solenoid – Left Side Exhaust Or Right Side Intake |
| AT4Z-6M280-C | VCT Solenoid – Right Side Exhaust |
AT4Z-6M280-B
Ford Solenoid - ENGI
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | VCT Solenoid – Left Side Intake |
| DL3Z-6584-B | Gasket – Right Side Camshaft Cover – (F-150/Transit/Navigator/Expedition) |
| BL3Z-6584-A
Sale
Ford BL3Z-6584-A Gasket
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | Gasket – Left Side Camshaft Cover – (F-150/Transit/Navigator/Expedition) |
BR3Z-6C535-A
Genuine Engine Valve Cover Washer Seal BR3Z-6C535-A
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API | Seal – VCT Cover |
BR3Z-6C535-B
Ford BR3Z-6C535-B - Seal - Valve
Last update on 2026-06-10 / Affiliate links / Images from Amazon Product Advertising API | Seal – Spark Plug Tube |
TA-357
SEALANT - SILICONE
Last update on 2026-06-10 / Affiliate links / Images from Amazon Product Advertising API | Motorcraft High Performance Engine RTV Silicone |
ZC-30-A
Genuine Ford Fluid ZC-30 Silicone Gasket Remover - 12 oz.
Last update on 2026-06-18 / Affiliate links / Images from Amazon Product Advertising API | Motorcraft Silicone Gasket Remover |
ZC-31-B
Motorcraft - Towelette-Metal C (ZC31B)
Last update on 2026-06-18 / Affiliate links / Images from Amazon Product Advertising API | Motorcraft Metal Surface Prep Wipes |
| BR3Z-6584-C | Gasket – Left Side Camshaft Cover – (Edge/Flex/Explorer) |
BR3Z-6584-B
Ford Gasket
Last update on 2026-06-18 / Affiliate links / Images from Amazon Product Advertising API | Gasket – Right Side Camshaft Cover – (Edge/Flex/Explorer) |
| AT4Z-9H486-A No products found. | Gasket – Intake – (Edge/Flex/Explorer) |
7 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| FORD | EDGE | 2016 |
| FORD | EXPEDITION | 2016 |
| FORD | EXPLORER | 2016 |
| FORD | F-150 | 2016 |
| FORD | FLEX | 2016 |
| FORD | TRANSIT | 2016 |
| LINCOLN | NAVIGATOR | 2016 |
1 Associated Document
Service Bulletin Document
TSB 16-0093
SB-10081004-7690.pdf 105.934KB
NHTSA ID Number: 10205003
Manufacturer Communication Number: TSB160038
Summary
3.5L GKTDI Illuminated MIL – DTC p0011, p0015, p0016, p0017, p0018, p0019, p0021 And or p0025 – Under 3200 KM (2000Miles)
1 Associated Document
Manufacturer Communications
TSB 16-0038
MC-10205003-9999.pdf 104.057KB
