6.7L Diesel Engine Runs Rough Misfire During Exhaust Regeneration Process – 2011-2014 Ford F-Super Duty F-250 F-350 F-450

TSB 15-0124

PICKUP – 6.7L DIESEL ENGINE – RUNS ROUGH/MISFIRE DURING EXHAUST REGENERATION PROCESS



FORD:

2011-2014 F-250, F-350, F-450



This article supersedes TSB 13-9-15 to update the vehicle model years, vehicle line application and Service Procedure.



ISSUE:

Some 2011-2014 F-Super Duty pickup truck vehicles equipped with a 6.7L diesel engine may exhibit a runs rough/misfire condition only during the exhaust regeneration process.

This condition typically occurs on light throttle tip in between 64-113 Km/h (40-70 MPH), and will not set diagnostic trouble codes (DTCs).

The concern may be intermittent and a knocking noise may be present during the concern.



ACTION:

Follow the Service Procedure steps to correct the condition.



SERVICE PROCEDURE

1. Did the customer indicate the message center displayed a Cleaning Exhaust Filter message prior to the concern?
   1. Yes – proceed to Step 2.
   2. No – this article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) Manual for normal diagnosis.
2. Using Integrated Diagnostic System (IDS) or equivalent, retrieve DTCs from the powertrain control module (PCM). Are DTCs present?
   1. Yes – this article does not apply. Refer to the PC/ED Manual for normal diagnosis.
   2. No – proceed to Step 3.
3. Remove the left cylinder head. Refer to Workshop Manual (WSM), Section 303-01.
4. Replace all eight (8) exhaust valves and valve seals. Refer to WSM, Section 303-01. (Figure 1)







   Figure 1 – 15-0124
5. Install the left cylinder head. Refer to WSM, Section 303-01.
6. Provide the customer with a copy of the Customer Information Sheet. (Figure 2)



BC3Z-9439-C	Upper Intake Gasket
BC3Z-9439-A	Upper Intake Gasket – (Inlet Large)
BC3Z-9439-B	Upper Intake Gasket – (Inlet Small)
BC3Z-6N640-A	Turbo Inlet Gasket Left Hand
W711402-S900	Exhaust Manifold Nut

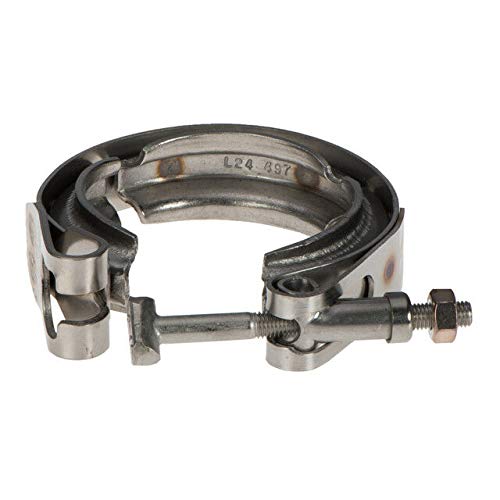

BC3Z-8287-A	Inlet Pipe Clamp (2 Req)

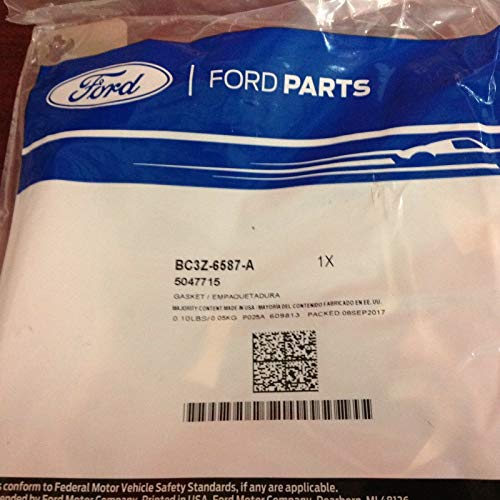

BC3Z-6587-A	Turbo Gasket
W713535-S900	Bolts

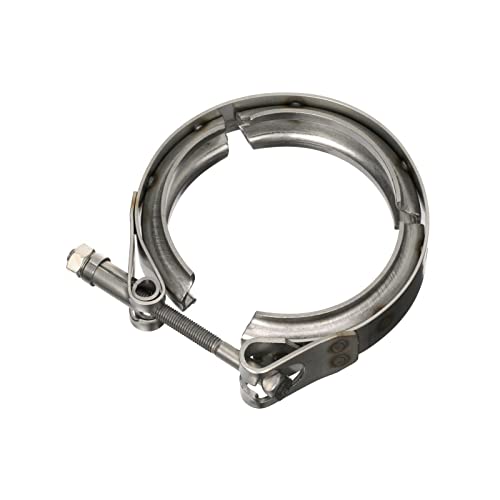

BC3Z-8287-B	Down Pipe Clamp
BC3Z-9E464-B	Bypass Pipe Gasket
BC3Z-8527-A	Oil Separator O-Ring
BC3Z-6A632-A	Oil Separator Gasket
BC3Z-9448-A	Exhaust Manifold Gasket
W701706-S440	Nut (8 Req)
BC3Z-8C387-B	RH Coolant Manifold Gasket
BC3Z-8C387-A	LH Coolant Manifold Gasket

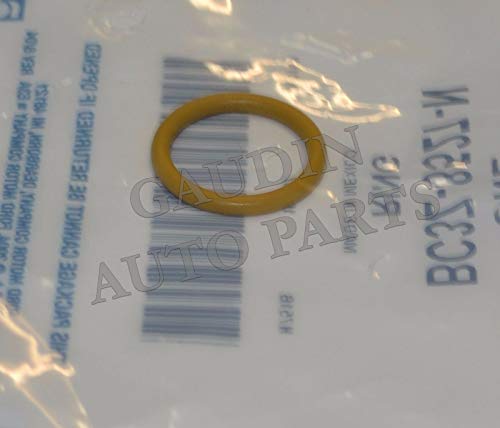

BC3Z-8527-N	Heater Tube O-Ring
BC3Z-6065-B	Cylinder Head Bolts
F7DZ-6A008-AA	Cylinder Head Dowels
BC3Z-6051-D	Cylinder Head Gasket
BC3Z-6571-A	Valve Seal

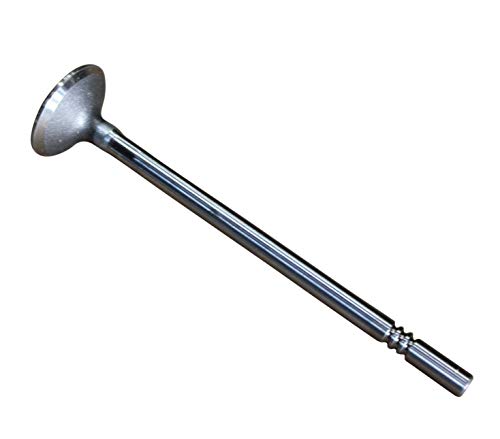

CC3Z-6505-B	Exhaust Valve (8 Req)

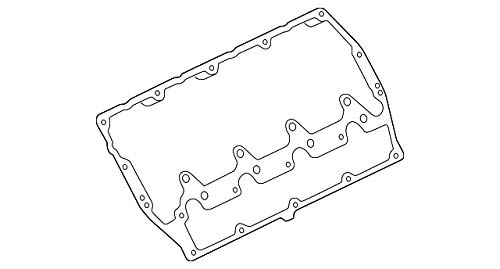

BC3Z-6584-C	LH Valve Cover Gasket
BC3Z-6C535-A	Injector to Valve Cover Seal (4 Req)
BC3Z-9E964-A	Fuel Rail Supply Tube
BC3Z-8527-D	Fuel Supply O-rings
BC3Z-8527-E	Fuel Supply O-rings
BC3Z-9229-A	Injector Seal Kit (2 Req)
BC3Z-9229-B	Injector Seal Kit (2 Req)
BC3Z-9E464-B	EGR Outlet Gasket (2 Req)
W714852-S900	EGR Outlet Tube Bolt (4 Req)



OPERATION	DESCRIPTION	TIME
150124A	2011-2014 F-Super Duty 250-450 Pickup 6.7L: Check DTCs Replace Eight (8) Exhaust Valves In The Left Cylinder Head Includes Time To Remove And Install The Left Cylinder Head (Do Not Use With Any Other Labor Operation Outside Of This Article)	14.7 Hrs.
150124B	2011-2014 F-Super Duty 250-450 Pickup 6.7L: If Required, Additional Time To Remove And Install Fuel Shield To Access Lifting Point (Can Be Claimed With Operation A)(Do Not Use With Any Other Labor Operation Outside Of This Article)	0.1 Hr.
150124C	2011-2014 F-Super Duty 250-450 Pickup (FX4 Model) 6.7L: If Required, Additional Time To Remove And Install Fuel Shield To Access Lifting Point (Can Be Claimed With Operation A)(Do Not Use With Any Other Labor Operation Outside Of This Article)	0.3 Hr.



WARRANTY STATUS

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.



DEALER CODING

BASIC PART NO.	CONDITION CODE
6505	42



Figure 2 – 15-0124
