NHTSA ID Number: 10232579
Manufacturer Communication Number: 22N01 S1
Summary
Certain 2011-2017 Model Year Explorer Vehicles Rear Wheel Knuckle Replacement
REASON FOR THIS SUPPLEMENT
Program Terms: added 21R01 and 21R02
REASON FOR PROVIDING A NO-COST, ONE-TIME REPAIR: added 21R01 and 21R02
OWNER NOTIFICATION MAILING SCHEDULE: added mailing schedule for 21R01 and 21R02
OASIS ACTIVATION: added 21R01 and 21R02
February 7, 2023
Customer Satisfaction Program 22N01 – Supplement #1
Certain 2011-2017 Model Year Explorer Vehicles
Rear Wheel Knuckle Replacement
REASON FOR THIS SUPPLEMENT
- Program Terms: added 21R01 and 21R02
- REASON FOR PROVIDING A NO-COST, ONE-TIME REPAIR: added 21R01 and 21R02
- OWNER NOTIFICATION MAILING SCHEDULE: added mailing schedule for 21R01 and 21R02
- OASIS ACTIVATION: added 21R01 and 21R02
PROGRAM TERMS
This program provides a no-cost, one-time repair (if needed) to the rear wheel knuckles for six (6) months from the Repair Order (RO) opening date for field service actions 21S32, 21S43, 21R01 or 21R02 provided that the RO opening date occurs on or before July 31, 2023.
This is a one-time repair program.
Coverage is automatically transferred to subsequent owners.
Note: It will take 3-4 business days after 21S32, 21S43, 21R01 or 21R02 claim submission for 22N01 to show as an active program in OASIS.
VEHICLES COVERED BY THIS PROGRAM
Vehicle | Model Year | Assembly Plant | Build Dates |
Explorer | 2011-2017 | Chicago | May 17, 2010 through September 30, 2017 |
Elabuga | January 28, 2013 through July 28, 2017 |
REASON FOR PROVIDING A NO-COST, ONE-TIME REPAIR
In some of the affected vehicles exposed to a corrosive environment where road salt is used during winter months, the rear toe link ball joint located in the rear knuckle could seize. A seized toe link ball joint could wear out and develop a knocking noise after installation of the updated toe links in FSAs 21S32, 21S43, 21R01 or 21R02.
For peace of mind, Ford is providing a one-time repair for customers who have FSA 21S32, 21S43, 21R01 or 21R02 performed before July 31, 2023 and experience an undesirable noise within six (6) months of the RO date of FSA 21S32, 21S43, 21R01 or 21R02.
SERVICE ACTION
If an affected vehicle exhibits an undesirable noise associated with the rear toe link ball joint, dealers are to replace both rear wheel knuckles. This service must be performed at no charge to the vehicle owner.
OWNER NOTIFICATION AND MAILING SCHEDULE
Owner Letters were mailed the week of March 7, 2022 for programs 21S32 and 21S43. Owner Letters for programs 21R01 and 21R02 were mailed the week of November 28, 2022. Dealers should repair any affected vehicles that experience an undesirable toe link ball joint noise after FSA 21S32, 21S43, 21R01 or 21R02 whether or not the customer has received a letter.
SOLD VEHICLES
- Only owners with affected vehicles that exhibit the covered condition will be directed to dealers for repairs.
- Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.
STOCK VEHICLES
- Do not perform this program unless the affected vehicle exhibits the covered condition.
TITLE BRANDED / SALVAGED VEHICLES
Affected title branded and salvaged vehicles are eligible for this service action.
OWNER REFUNDS
Refunds are not approved for this program.
RENTAL VEHICLES
The use of rental vehicles is not approved for this program.
PARTS REQUIREMENTS / ORDERING INFORMATION SSSC Web Contact Site:
To place an order for both rear wheel knuckles submit a VIN-specific Part Order contact via the SSSC Web Contact Site.
Part Number | Description | Order Quantity | Claim Quantity |
DB5Z-5B759-B | Left Rear Knuckle | 1 | 1 |
DB5Z-5B758-B | Right Rear Knuckle | 1 | 1 |
Part Number | Description | Order Quantity | Claim Quantity |
-W712435-S439 | Wheel Hub Nut (1 nut per side, 2 nuts per package) –
AWD ONLY |
1 | 2 |
-W710681-S439 | Brake Caliper Bolts (2 bolts per side, 2 bolts per package) | 2 | 4 |
-W708733-S439 | Brake Disk Retainer Bolt (1 bolt per side, 4 bolts per package) | 1 | 2 |
-W520213-S440 | Rear Stabilizer Link Nut (1 nut per side, 2 nuts per package) | 1 | 2 |
-W714033-S439 | Shock Absorber Bolt (1 bolt per side, 4 bolts per package) | 1 | 2 |
-W715419-S439 | Trailing Arm, Toe Link Bolt (2 bolt per side, 4 bolts per package) | 1 | 4 |
-W520516-S441 | Trailing Arm, Toe Link Nut (2 nut per side, 1 nut per package) | 4 | 4 |
-W715127-S439 | Upper Control Arm, Lower Control Arm Bolt (2 bolts per side, 4 bolts per package) | 1 | 4 |
-W520517-S440 | Upper Control Arm, Lower Control Arm Nut (2 nuts per side, 4 nuts per package) | 1 | 4 |
-W714516-S439 | Wheel Hub Bolts (4 bolts per side, 4 bolts in a package) | 2 | 8 |
-W715179-S439 | Toe Link Bolt (1 bolt per side, 4 Bolts in each package) | 1 | 2 |
CERTAIN 2011-2017 MODEL YEAR EXPLORER VEHICLES — REAR WHEEL KNUCKLE REPLACEMENT
SERVICE PROCEDURE
NOTE: This procedure should only be used when a rear suspension noise has been identified as coming from the rear knuckle toe link connection.
1. Position the vehicle on a hoist. Please follow the Workshop Manual (WSM) procedures in Section 100-02.
2. Replace both rear wheel knuckles. Please follow the WSM procedures in Section 204-02.
IMPORTANT NOTE: Federal law prohibits selling motor vehicle parts or components that are under safety, compliance, or emissions recall. Unless a part is requested to be returned to Ford, all parts replaced under this FSA must be scrapped in accordance with all applicable local, state and federal environmental protection and hazardous material regulations. Refer to the Parts Retention, Return, & Scrapping section of the FSA dealer bulletin for further information.
7 Affected Products
Vehicle
MAKE | MODEL | YEAR |
FORD | EXPLORER | 2011-2017 |
1 Associated Document
Manufacturer Communications
February 7, 2023
Customer Satisfaction Program 22N01 – Supplement #1
https://www.nhtsa.gov/recalls?nhtsaId=10232579
MC-10232579-0001.pdf 394.738KB
NHTSA ID Number: 10208271
Manufacturer Communication Number: 22N01
Summary
This program provides a no-cost, one-time repair (if needed) to the rear wheel knuckles for six (6) months from the Repair Order (RO) opening date for field service actions 21S32 or 21S43 provided that the RO opening date occurs on or before July 31, 2023. This is a one time repair.
In some of the affected vehicles exposed to a corrosive environment where road salt is used during winter months, the rear toe link ball joint located in the rear knuckle could seize. A seized toe link ball joint could wear out and develop a knocking noise after installation of the updated toe links in the FSAs 21S32 or 21S43
1 Associated Document
Manufacturer Communications
Customer Satisfaction Program 22N01
February 18, 2022
https://www.nhtsa.gov/recalls?nhtsaId=10208271
MC-10208271-0001.pdf 184.833KB
NHTSA ID Number: 10222507
Manufacturer Communication Number: 22N01
Summary
Certain 2011-2017 Model Year Explorer Vehicles Rear Wheel Knuckle Replacement
Ref 21S32
Submitting Owner Letter
1 Associated Document
Manufacturer Communications
March 2022
Customer Satisfaction Program 22N01
Owner Letter
https://www.nhtsa.gov/recalls?nhtsaId=10222507
MC-10222507-0001.pdf 184.361KB
- WHEEL BEARING PULLER SET: This wheel bearing tool kit by Orion Motor Tech provides everything you need to let you quickly and easily remove and install your wheel bearings without hammering and front-end alignment
- UNIVERSAL COMPATIBILITY: Our versatile wheel bearing press kit offers multiple sleeves and bushings in most common sizes to work with nearly any front wheel drive automobile or light truck, whether foreign or domestic
- QUICK & EASY OPERATION: Two 8.8 grade sliding screws with precision threading firmly hold your bearings and let you smoothly pop them out without damage, leaving the steering knuckle and strut assembly untouched
- DURABLE CONSTRUCTION: Made of premium stainless steel, this wheel bearing removal tool set provides strong and dependable long-lasting service; the sliding screws are heat treated and blackened for superior strength and corrosion resistance
- COMPACT & PORTABLE: This 24 piece front wheel bearing press tool set comes with a blow-molded storage case, keeping everything organized and easy to carry from home garage to workshop
- UNIVERSAL SIZING: This Orion Motor Tech bushing removal tool kit includes 50 interchangeable discs to build 2,450 custom bushing driver variations so you always have the right size for the job.
- COMPLETE SET: The discs sizes range from 18mm (0.7 inches) all the way to 65mm (2.51 inches) in 1mm increments plus 74mm (2.91 inches). All discs are connected with a 12mm (0.47 inches) shaft and screw which quickly connects to a 180mm (7.08 inch) handle, making for a complete and effective wheel bearing driver set.
- EASY OPERATION: This auto tool kit includes a long handle shaft to simplify bearing race and seal replacement and help you remove or install wheel bearings quickly and professionally.
- HEAVY-DUTY DURABILITY: With ultra-strong carbon-steel construction and black anodic oxidation coating for rust-resistance, this mechanic toolset will stand up to years of heavy use.
- PROTECTIVE CARRYING CASE: Includes a heavy-duty, blow-molded case with precision-sized compartments for every piece - great for storage and transport while lengthening the life of the tool set.
- 1. Superior Durability: Our front wheel drive bearing removal tool is constructed from high-quality stainless steel and undergoes heat treatment and blackening for ultimate rust-resistant performance and a long service life.
- 2. Effortless Operation: Our wheel bearing tool kit comes with all the necessary accessories for easy removal and installation of front wheel drive bearings without the need for hammering or front-end alignment. With a precisely threaded sliding screw, the bearing stays securely in place without causing any damage.
- 3. Universal Compatibility: Our wheel bearing press tool kit includes a variety of sizes of sleeves and bushings, making it compatible with most front wheel drive cars and light trucks.
- 4. Portable Convenience: Our 24-piece kit comes with a plastic carrying case that has pre-sized slots for each item, ensuring they stay in place and can be easily transported wherever you go.
- 5. Comprehensive Package: Our front wheel drive bearing removal and press tool kit contains everything you need, including 13 bushings of different sizes, 4 sleeves, 2 sleeve plates, 2 sliding screws, 1 nut, and 2 steel washers. For any concerns about the product, please don't hesitate to contact our customer service team at any time.
- INSTALL AND REMOVE BEARINGS AND BUSHINGS QUICKLY: Use the ABN Bearing Driver Set – 23 Piece SAE Removal & Installation Bushing Kit on your vehicles and farm equipment; Use to remove bearings without removing the entire knuckle, or to install bushings during a transmission rebuild; The bearing press kit can be used as a seal driver set, but is not recommended as a control arm bushing tool or for other suspension parts
- PERFECT SIZES: Includes 17 SAE bushing drivers – 13⁄16” x 15⁄16”, 7⁄8” x 1”, 15⁄16” x 1-1⁄16”, 1” x 1-1⁄8”, 1-1⁄16” x 1-3⁄16”, 1-1⁄8” x 1-1⁄4”,1-3⁄16” x 1-5⁄16”, 1-1⁄4” x 1-3⁄8”, 3⁄4” x 7⁄8”, 9⁄16” x 11⁄16”, 5⁄8” x 11⁄16”, 5⁄8” x 3⁄4”, 11⁄16” x 13⁄16”, 3⁄8” x 7⁄16”, 7⁄16” x 1⁄2”, 15⁄32” x 17⁄32”, 1⁄2” x 5⁄8”; These interchangeable internal bearing puller tools allow you to build the perfect size for your job
- BUILT TO LAST: Constructed of heavy-duty steel, the front wheel bearing puller set is designed for strength and durability; Each bushing removal tool features black oxide finish to resist rust and corrosion; Heavy-duty 10.1 x 6.8 x 2.4-inch (25.7 x 17.3 x 6.1 cm) plastic blow-molded carrying case for easy transportation, safe storage, and quick organization; Each piece in this set is permanently marked with sizing and corresponds to labeled carrying case compartments for fast identification
- EASY TO USE: Simply select a bushing driver with an inner diameter that is smaller than the sleeve that you are installing and attach to the appropriate handle; Align and begin tapping the end of the handle gently with a hammer to insert the bushing, sleeve bearing, needle bearing, or some ball bearings; Cheaper and faster than hydraulic press
- CONTENTS: Front wheel bearing removal kit includes (17) SAE standard bushing, (3) driver handle rods, and a locking ring for each handle - 1/2"-20, 5/16”-24, 1/4"-28; Features large 7-inch (17.8 cm), medium 6-inch (15.2 cm), and small 5-inch (12.7 cm) driver handles with knurled ends for secure grip
- Bushing driver tool set allows you to build your own custom bushing driver. Choose the required size and assemble your drive tool.
- This bearing and seal driver set can remove or install bushings that are flush with the housing, ideal for removing seal, bush or bearing job. All 50 pieces are interchangeable with each other so you get 2450 different size variations
- The discs goes from 18mm (25/32") all the way to 65mm (2-9/16") in 1mm increments plus (2-29/32") 74mm. All discs are connected with a 12mm shaft and screw which quickly connects to a 180mm 7-1/2" handle
- This seal driver set includes a long handle shaft to simplify bearing race and seal replacement and help you remove or install wheel bearings quickly and professionally
- The bushing driver set is made from carbon-steel construction and black anodic oxidation coating for rust-resistance, this mechanic tool set will stand up to years of heavy use.
- 【APPLICABLE】This bushing driver set makes it easy to insert wheel bearing races and seals without damage to the race and axle housing. Also useful for driving small bushes.Suitable for motorbikes or others that have bearings or seals.
- 【MATERIAL】The bearing race and seal driver set is of aluminum construction for strength and durability as well as rust resisting.
- 【INCLUDING】 3 sizes of drivers/handles: small (4-1/2" long x 7/16" diameter), medium (5-1/2" long x 5/8" diameter) , and large (6-1/4" long x 7/8" diameter), with knurled surface finish for extra grip when using. 14 Adapters (Small end diameter x Large end diameter) 10x12mm, 12x14mm, 14x16mm, 15x17mm, 16x18mm, 18x20mm, 20x22mm, 22x24mm, 25x27mm, 28x30mm, 30x34mm, 32x36mm, 35x40mm, 38x42mm.
- 【EASY STORAGE】This bearing and seal driver set comes with a storage case for safe & easy transport and storage.
- 【EASY TO USE】The bearing race and seal driver set can be easily inserted into wheel bearing races and seals, only suitable for small bearings with a light press fit suitability: E.G. bicycle, wheels, alternator, washing machine, electric motors etc motorcycles. Not applicable for cars.
- Wheel bearing press kit is for fast & effective front-wheel drive bearing removal and installation. Easily replaces wheel bearings while keeping the steering knuckle and strut assembled on the vehicle.
- Wheel bearing removal tool is designed to work with the steering knuckle and strut assembly still on the vehicle, eliminating the need for front end alignment after service while reducing damage to the hub and bearings.
- This set includes 12 bushing adapters, 4 sleeves with sleeve plates, a wheel hub installer and more. Different sizes and specifications meet your diversified needs
- Heavy-duty carbon steel construction with black anodic oxidation coating for ultimate rust-resistant performance
- Bearing press kit works for most front-wheel-drive American domestic and imported cars and small pickup trucks.
- [Package Includes] The kit contains 13 X Bushings (55mm, 59mm, 63mm, 66.5mm, 70mm, 71.5mm, 73mm, 73.5mm, 75mm, 78mm, 81.5mm, 83mm, 88mm); 4 X Sleeves (76mm, 86mm, 91mm, 102mm); 2 X Sleeve Plates (86mm, 102mm); 1 X 8.3" Sliding Screw; 1 X Nut; 2 X 1.5" Steel Washers.
- [Function] All in one Set. Enables quick and effective disassembly and installation of front-wheel drive vehicle hub bearings; facilitates easy replacement of hub bearings while preserving the integrity of the steering knuckle and strut assembly on the vehicle. Compatible with most FWD cars and samll trucks.
- [Premium Materia And Durable] Constructed with solid steel material, it features a heavy-duty structure for robust durability. The smooth surface undergoes oxidation treatment, providing resistance to rust and corrosion.
- [Convenient Operation] The tool can work with the steering knuckle and strut assembly still on the vehicle, eliminating the need for front end alignment after service work.
- [Easy Storage] Includes a box made of ABS with specially designed grooves on the inside, where tools can be perfectly embedded for easy organization and transportation.
- 【Ideal for】23 pcs FWD Front Wheel Drive Bearing Puller Kit is ideal for front-wheel drive bearing removal and installation. Suitable for front wheel drive cars and small trucks
- 【Useful】Replacing wheel bearings while keeping the steering knuckle and strut assembled on the vehicle, able to be assisted by a ratchet wrench, but an electric drill cannot be used.
- 【Application】FWD Front Wheel Drive Bearing Puller Hub Removal works with the steering knuckle and strut assembly still on the vehicle, reducing damage to the hub and bearings.
- 【High Quality】Durable adapters made of steel for ultimate rust-resistant performance.
- 【Easy to Carry】Packaged in a custom case for easy storage and transportation.

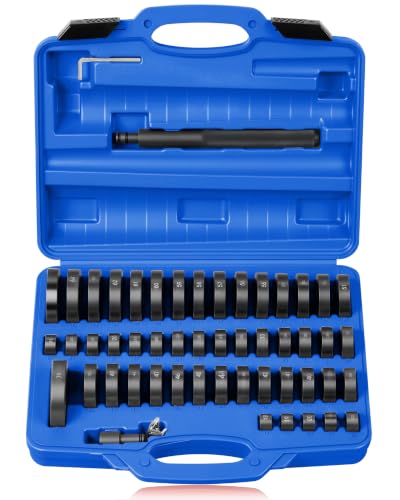

- Master Bushing Tool Set ---- deluxe custom driver kit, assist in the bearing race and seal replacement on your car, truck transmission, axle, wheel hub when installing new bearing seal back into your vehicles
