| TSB 14-0059 | MIL ON WITH DTCS – P0351, P0352, P0353, P0354, P0355, AND/OR P0356 – BUILT ON OR BEFORE 3/1/2008 |
FORD : | 2006-2008 Fusion 2007-2008 Edge 2008 Taurus, Taurus X |
| LINCOLN: | 2006 Zephyr 2007-2008 MKX, MKZ |
| MERCURY: | 2006-2008 Milan 2008 Sable |
This article supersedes TSB 13-4-17 to update the Service Procedure and Part List.
ISSUE:
Some 2006 Zephyr, 2006-2008 Fusion, Milan, 2007-2008 MKZ, Edge, MKX, and 2008 Taurus, Taurus X and Sable vehicles built on or before 3/1/2008 and equipped with a 3.0L or 3.5L engine may exhibit a malfunction indicator lamp (MIL) on with diagnostic trouble codes (DTCs) P0351, P0352, P0353, P0354, P0355 and/or P0356 present in the Powertrain Control Module (PCM) and with one or more damaged ignition coil-on-plug(s).
ACTION:
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
- Using the IDS scan tool, retrieve continuous memory DTCs. Are DTCs P035X present in the PCM?
- No – this article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnostics.
- Yes – proceed to Step 2.
- Remove only the spark plug(s) and ignition coil-on-plug(s) from the affected cylinder(s). Refer to Workshop Manual (WSM), Section 303-07.
- Inspect the ignition coil-on-plug(s) that have been removed for cracks and/or signs of heat related damage. Refer to Figures 1-3 at the end of this procedure for examples of damage. Does the ignition coil-on-plug(s) inspected show signs of damage?
- Yes – proceed to Step 4.
- No – replace only the spark plug(s) from the cylinders(s) associated with the P035X DTCs and do not continue with this article. Refer to the PC/ED manual for normal diagnostics.
- Review the Online Automotive Service Information System (OASIS) repair history to determine if a PCM with an RM part number suffix has been installed previously. Has a PCM with an RM part number suffix been installed previously? (e.g. XXXX-12A650-XXRM)
- No – proceed to step 5.
- Yes – replace only the ignition coil-on-plug(s) and the spark plug(s) for the affected cylinder(s) and do not continue with this article. Refer to the PC/ED manual for normal diagnostics.
- Replace the ignition coil-on-plug(s) and the spark plug(s) for the affected cylinder(s). Refer to WSM, Section 303-07.
- Replace the PCM. Refer to WSM, Section 303-14A.
AGSF-32W-M

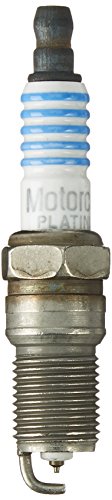

Genuine Ford Parts SP432 Spark Plug
| 3.0L Spark Plug |
| AYFS-22F-M
No products found. | 3.5L Spark Plug |
6E5Z-12029-BA

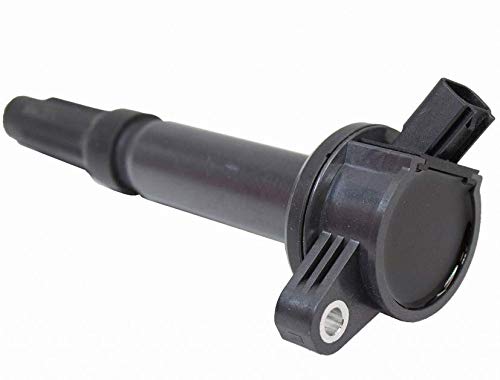

Ford Coil ASY - IGNI
| 3.0L Coil On Plug |
| 7T4Z-12029-E
No products found. | 3.5L Coil On Plug |

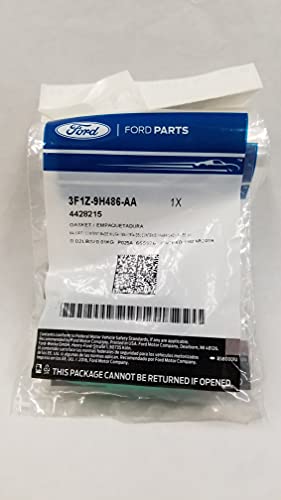

3F1Z-9H486-AA
Ford Gasket
| 3.0L Upper Intake Gasket |
7T4Z-9H486-DA
Genuine 2007-2012 Ford - Gasket 7T4Z-9H486-DA
| 3.5L Upper Intake Gasket |
| 12A650 | See Parts Catalog |
| OPERATION | DESCRIPTION | TIME |
|---|---|---|
| 140059A | 2007-2008 Edge/MKX: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) | 0.9 Hr. |
| 140059A | 2008 Taurus/Sable/Taurus X: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) | 0.9 Hr. |
| 140059A | 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) | 1.4 Hrs. |
| 140059A | 2007-2008 MKZ: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) | 0.8 Hr. |
| 140059B | 2007-2008 Edge/MKX: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) | 1.1 Hrs. |
| 140059B | 2008 Taurus/Sable/Taurus X: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) | 1.1 Hrs. |
| 140059B | 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) | 1.6 Hrs. |
| 140059B | 2007-2008 MKZ: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) | 1.1 Hrs. |
| 140059C | 2007-2008 Edge/MKX: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) | 0.4 Hr. |
| 140059C | 2008 Taurus/Sable/Taurus X: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) | 0.4 Hr. |
| 140059C | 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) | 0.5 Hr. |
| 140059C | 2007-2008 MKZ: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) | 0.4 Hr. |
| 140059D | 2007-2008 Edge/MKX: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) | 0.6 Hr. |
| 140059D | 2008 Taurus/Sable/Taurus X: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) | 0.6 Hr. |
| 140059D | 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) | 0.7 Hr. |
| 140059D | 2007-2008 MKZ: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) | 0.6 Hr. |
| 140059E | 2007-2008 Edge/MKX: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) | 0.3 Hr. |
| 140059E | 2008 Taurus/Sable/Taurus X: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) | 0.7 Hr. |
| 140059E | 2006 Zephyr 2006-2008 Milan/Fusion 2007-2008 MKZ: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) | 0.6 Hr. |
WARRANTY STATUS
Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
DEALER CODING
| BASIC PART NO. | CONDITION CODE |
| 12A650 | 42 |

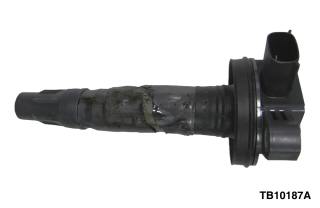

Figure 1 – 14-0059
Figure 2 – 14-0059
Figure 3 – 14-0059
