NHTSA ID Number: 10214126
Manufacturer Communication Number: TSB 22-2229
Summary
Some 2015-2018 Edge and 2017-2019 Fusion/MKZ/Escape/MKC vehicles equipped with a 2.0L EcoBoost engine may exhibit a low coolant level, white exhaust smoke and/or a runs rough condition with or without an illuminated malfunction indicator lamp (MIL). Diagnostic trouble codes (DTCs) may include P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To correct the condition, follow the Service Procedure to replace the long block engine assembly.
Escape
This bulletin supersedes 22-2133.
Model:
2015-2018 Edge
2017-2019 Escape
Built on or before 16-May-2019
2017-2019 Fusion
Built on or before 8-Apr-2019
2017-2019 MKC
Built on or before 18-Apr-2019
2017-2019 MKZ
Built on or before 8-Apr-2019
Summary
This article supersedes TSB 22-2133 to update the Parts List.
Issue: Some 2015-2018 Edge and 2017-2019 Fusion/MKZ/Escape/MKC vehicles equipped with a 2.0L EcoBoost engine may exhibit a low coolant level, white exhaust smoke and/or a runs rough condition with or without an illuminated malfunction indicator lamp (MIL). Diagnostic trouble codes (DTCs) may include P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To correct the condition, follow the Service Procedure to replace the long block engine assembly.
Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:
- One of the following vehicles:
-
- 2015-2018 Edge
-
- 2017-2019 Fusion/MKZ built on or before 8-Apr-2019
-
- 2017-2019 Escape built on or before 16-May-2019
-
- 2017-2019 MKC built on or before 18-Apr-2019
- 2.0L EcoBoost engine
- Presence of coolant in the engine cylinders, white exhaust smoke and/or a runs rough condition (with or without an illuminated MIL)
Parts
Edge – Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| 6006 | 1 | Engine Long Block – Refer To The Parts Catalog For The VIN Specific Application | 1 | 1 |
| KX6Z-8678-A | 1 | Accessory Drive Belt Idler Pulley | 1 | 1 |
| J2GZ-6079-C | 1 | Engine Long Block Service Kit | 1 | 1 |
W520214-S440  | 1 | Ball Joint Pinch Nut | 2 | 2 |
| W704474-S437 | 1 | Turbo Stud | 4 | 4 |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) | ||
| XO-5W30-Q1SP | As Needed | Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada) | ||
| CXO-5W30-LSP6 | As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | ||
| TA-26 | As Needed | Motorcraft® Threadlock 262 |
Parts
Edge – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| 1S7Z-6375-D | If Needed | Flexplate | 1 |
| 1S7Z-6B752-AA | If Needed | Crankcase Oil Vent Separator Gasket | 1 |

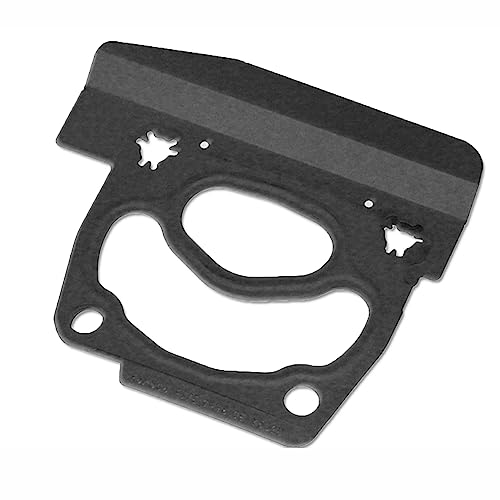

| 3M4Z-8255-A | If Needed | Thermostat Gasket | 1 |
| AA5Z-9C587-A | If Needed | High Pressure Pump Roller Tappet | 1 |
| BB5Z-2A572-B | If Needed | Brake Vacuum Pump Gasket | 1 |
| CJ5Z-8255-A | If Needed | Coolant Outlet Adapter O-ring | 1 |

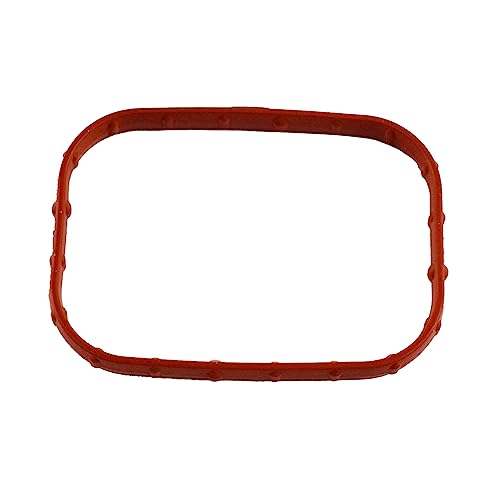

| CJ5Z-9439-A | If Needed | Intake Manifold Gasket | 4 |
| CM5Z-12029-K | If Needed | Ignition Coil | 1 |
| EJ7Z-9276-B | If Needed | High Pressure Pump Drive Gasket | 1 |
| F2GZ-63600A58-A | If Needed | Intermediate Shaft Bushing (AWD Only) | 1 |
| W712458-S900 | If Needed | Turbo To Exhaust Stud | 4 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
NOTE: In the event that an Engine Long Block Service Kit is not available or temporarily on backorder, refer to the applicable Long Block Service Kit parts list in this article to order parts individually.
Parts
Edge – Information Only – The Following Individual Parts Are Contained In Long Block Service Kit J2GZ-6079-C
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity | Note |
| BE8Z-6731-AD | – | Engine Oil Filter | 1 | 1 | |
| EJ7Z-9J323-B | – | High Pressure Fuel Tube | 1 | 1 | |
| W718059-S442 | – | High Pressure Fuel Pump Fasteners | 2 | 2 | |
| AA5Z-9E583-A | – | High Pressure Fuel Pump O-ring | 1 | 1 | |
| W500313-S437 | – | Fuel Rail Fasteners | 4 | 5 | |
| BG9Z-9229-A | – | Fuel Injector Teflon Seals/O-rings | 1 kit | Part number will service 4 fuel injectors | |
| DS7Z-19B596-A | – | A/C Compressor Gasket And O-Ring | 1 | 1 | |
| 9W7Z-19B596-A | – | A/C Compressor Gasket And O-Ring | 1 | 1 | |
| W714265-S442 | – | Catalytic Converter Fastener | 4 | 2 | |
| EJ7Z-9448-B | – | Turbocharger Gasket | 1 | 1 | |
| EJ7Z-6L612-A | – | Turbocharger To Catalytic Converter Gasket | 1 | 1 | |
| FT4Z-6N652-D | – | Turbocharger Coolant Tube O-Ring | 1 | 5 | |
| W713212-S300 | – | Turbocharger Coolant Tube Washers | 2 | 2 | |
| F2GZ-6K679-A | – | Turbocharger Oil Supply Tube Washers | 1 | 1 | |
| W715323-S300 | – | Turbocharger Oil Supply Tube Washers | 2 | 2 | |
| BB5Z-6C683-A | – | Turbocharger Oil Supply Filter | 1 | 1 | |
| FT4Z-6N652-E | – | Turbocharger Oil Return Tube O-ring | 1 | 1 | |
| EJ7Z-6N652-A | – | Turbocharger Oil Return Tube Gasket | 1 | 1 | |
| W713095-S450 | – | Turbocharger Heat Shield Nuts | 4 | 4 | |
| W520214-S440 | – | Engine Mount Nut | 2 | 3 | |
| W717674-S439 | – | Engine Mount Bolt | 4 | 2 | |
| W710807-S442 | – | Engine Mount Nut | 4 | 1 | |
| 4S4Z-3N324-AA | – | Halfshaft Retaining Strap | 1 | 1 | |
| W520102-S442 | – | Halfshaft Retaining Strap Nut | 4 | 2 | |
| W790063-S900 | – | Driveshaft Rear Flange Bolts And Washer | 3 | 3 | |
| CV6Z-9450-E | – | Tailpipe Gasket | 1 | 1 | |
| CCPZ-3B477-B | – | Wheel Bearing Hub Nut | 1 | 1 | |
| W520216-S440 | – | Shock Mount Nut | 4 | 4 | |
| W715295-S439 | – | Shock Mount Bolt | 4 | 4 | |
| W715618-S437 | – | Torque Converter Nuts | 4 | 4 | |
| 1L5Z-6379-AA | – | Flex Plate Fasteners | 4 | 6 | |
| W500545-S439 | – | Ball Joint Pinch Bolt | 4 | 1 | |
| W712503-S440 | – | Stabilizer Bar Fastener | 1 | 2 | |
| W712961-S450B | – | Steering Column Fastener | 1 | 1 | |
| W715623-S439 | – | Front Brake Caliper Bolts | 4 | 4 | |
| W716457-S439 | – | Subframe Bolts | 4 | 4 | |
| W716841-S900 | – | Engine Dowel (Engine To Transmission Interface) | 4 | 2 | |
| 9L8Z-6G004-E | – | CHT2 Sensor | 1 | 1 | |
| CN1Z-7H424-B | – | Intermediate Shaft Seal (AWD Only) | 1 | 1 | |
| CV6Z-7086-B | – | PTU Compression Seal (AWD Only) | 1 | 1 | |
| F2GZ-4682-B | – | RDU Bolt And Washer Assembly (AWD Only) | 1 | 3 | |
| W712154-S439 | – | Center Bearing Fastener (AWD Only) | 4 | 2 | |
| W718250-S439 | – | Upper PTU Bolt (AWD Only) | 5 | 5 |
Unit of Issue in the above section refers to the number of individual pieces included if ordering a service part number package (not applicable to the contents of the long block service kit).
Piece Quantity refers to the total number of individual pieces required to repair the vehicle (what is included in the long block service kit)
Parts
Escape – Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| 6006 | 1 | Engine Long Block – Refer To The Parts Catalog For The VIN Specific Application | 1 | 1 |
| KX6Z-8678-A | 1 | Accessory Drive Belt Idler Pulley | 1 | 1 |
| J2GZ-6079-A | 1 | Engine Long Block Service Kit | 1 | 1 |
| W704474-S437 | 1 | Turbo Stud | 4 | 4 |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) | ||
| XO-5W30-Q1SP | As Needed | Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada) | ||
| CXO-5W30-LSP6 | As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | ||
| TA-26 | As Needed | Motorcraft® Threadlock 262 |
Parts
Escape – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| 1S7Z-6375-C | If Needed | Flexplate | 1 |
| 1S7Z-6B752-AA | If Needed | Crankcase Oil Vent Separator Gasket | 1 |
| 3M4Z-8255-A | If Needed | Thermostat Gasket | 1 |
| AA5Z-9C587-A | If Needed | High Pressure Pump Roller Tappet | 1 |
| BB5Z-2A572-B | If Needed | Brake Vacuum Pump Gasket | 1 |
| CJ5Z-8255-A | If Needed | Coolant Outlet Adapter O-ring | 1 |
| CJ5Z-9439-A | If Needed | Intake Manifold Gasket | 4 |
| CM5Z-12029-K | If Needed | Ignition Coil | 1 |
| EJ7Z-9276-B | If Needed | High Pressure Pump Drive Gasket | 1 |
| F2GZ-63600A58-A | If Needed | Intermediate Shaft Bushing (AWD Only) | 1 |
| W712458-S900 | If Needed | Turbo To Exhaust Stud | 4 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
NOTE: In the event that an Engine Long Block Service Kit is not available or temporarily on backorder, refer to the applicable Long Block Service Kit parts list in this article to order parts individually.
Parts
Escape/MKC – Information Only – The Following Individual Parts Are Contained In Long Block Service Kit J2GZ-6079-A
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity | Note |
| BE8Z-6731-AD | – | Engine Oil Filter | 1 | 1 | |
| EJ7Z-9J323-B | – | High Pressure Fuel Tube | 1 | 1 | |
| W718059-S442 | – | High Pressure Fuel Pump Fasteners | 2 | 2 | |
| AA5Z-9E583-A | – | High Pressure Fuel Pump O-ring | 1 | ||
| BG9Z-9229-A | – | Fuel Injector Teflon Seals/O-rings | 1 kit | Part number will service 4 fuel injectors | |
| W500313-S437 | – | Fuel Rail Fasteners | 4 | 5 | |
| DL3Z-19B596-B | – | A/C Compressor Gasket And O-Ring | 1 | 1 | |
| DS7Z-19B596-A | – | A/C Compressor Gasket And O-Ring | 1 | 1 | |
| EJ7Z-6N652-A | – | Turbo Oil Return Tube Gasket | 1 | 1 | |
| W714265-S442 | – | Catalytic Converter Fastener | 4 | 2 | |
| EJ7Z-6L612-A | – | Turbocharger To Catalytic Converter Gasket | 1 | 1 | |
| EJ7Z-9448-B | – | Turbocharger Gasket | 1 | 1 | |
| FT4Z-6N652-D | – | Turbocharger Coolant Tube O-Ring | 1 | 5 | |
| W713212-S300 | – | Turbocharger Coolant Tube Washers | 2 | 2 | |
| BB5Z-6C683-A | – | Turbocharger Oil Supply Filter | 1 | 1 | |
| W715323-S300 | – | Turbocharger Oil Supply Tube Washers | 2 | 2 | |
| FT4Z-6N652-E | – | Turbocharger Oil Return Tube O-ring | 1 | 1 | |
| W713095-S450 | – | Turbocharger Heat Shield Nuts | 4 | 4 | |
| YS4Z-3N324-AA | – | Halfshaft Retaining Strap | 1 | 1 | |
| W520102-S442 | – | Halfshaft Retaining Strap Nut | 4 | 2 | |
| CCPZ-3B477-C | – | Wheel Bearing Hub Nut (Escape AWD) | 1 | 1 | |
| CCPZ-3B477-G | – | Wheel Bearing Hub Nut (Escape FWD/All MKC) | 1 | 1 | |
| W520103-S403 | – | Tailpipe Fastener | 4 | 2 | Kit includes this item for both Escape and MKC even though the parts catalog may have another part number for MKC |
| CV6Z-9450-E | – | Tailpipe Gasket | 1 | 1 | |
| 7N5Z-00812-A | – | Subframe Bolts | 1 | 2 | |
| W520113-S442 | – | Sway Bar Link Nut (M10 x 1.5 mm) (Escape Only) | 4 | 2 | |
| W520415-S442 | – | Ball Joint Pinch Nut | 4 | 1 | |
| W711137-S442 | – | Steering Column Fastener | 4 | 1 | |
| W714753-S442 | – | Front Brake Caliper Bolts | 4 | 4 | |
| W715135-S440 | – | Stabilizer Bar Fastener (M10 x 1.25 mm) | 4 | 2 | |
| W715490-S442 | – | Shock Mount Bolt | 4 | 2 | |
| W715618-S437 | – | Torque Converter Nuts | 4 | 4 | |
| 1L5Z-6379-AA | – | Flex Plate Fasteners | 4 | 6 | |
| W520204-S442 | – | Engine Mount Nut | 4 | 3 | |
| W520214-S440 | – | Engine Mount Nut (Escape Only) | 2 | 3 | |
| W716136-S442 | – | Engine Mount Bolt | 4 | 2 | |
| W716516-S442 | – | Engine Mount Bolt/Stud Assembly Fastener (MKC Only) | 4 | 2 | |
| W716841-S900 | – | Engine Dowel (Engine To Transmission Interface) | 4 | 2 | |
| 9L8Z-6G004-E | – | CHT2 Sensor | 1 | 1 | |
| W718250-S439 | – | Upper PTU Bolt (AWD Only) | 5 | 5 | |
| 5F9Z-4682-AA | – | PTU Bolt And Washer Assembly (AWD Only) | 1 | 3 | |
| CN1Z-7H424-B | – | Intermediate Shaft Seal (AWD Only) | 1 | 1 | |
| CV6Z-7086-B | – | PTU Compression Seal (AWD Only) | 1 | 1 | |
| W716075-S442 | – | Ball Joint Pinch Bolt (AWD Only) | 4 | 1 |
Unit of Issue in the above section refers to the number of individual pieces included if ordering a service part number package (not applicable to the contents of the long block service kit).
Piece Quantity refers to the total number of individual pieces required to repair the vehicle (what is included in the long block service kit)
Parts
MKC – Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| 6006 | 1 | Engine Long Block – Refer To The Parts Catalog For The VIN Specific Application | 1 | 1 |
| KX6Z-8678-A | 1 | Accessory Drive Belt Idler Pulley | 1 | 1 |
| J2GZ-6079-A | 1 | Engine Long Block Service Kit | 1 | 1 |
| W704474-S437 | 1 | Turbo Stud | 4 | 4 |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) | ||
| XO-5W30-Q1SP | As Needed | Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada) | ||
| CXO-5W30-LSP6 | As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | ||
| TA-26 | As Needed | Motorcraft® Threadlock 262 |
Parts
MKC – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| 1S7Z-6375-C | If Needed | Flexplate | 1 |
| 1S7Z-6B752-AA | If Needed | Crankcase Oil Vent Separator Gasket | 1 |
| 3M4Z-8255-A | If Needed | Thermostat Gasket | 1 |
| AA5Z-9C587-A | If Needed | High Pressure Pump Roller Tappet | 1 |
| BB5Z-2A572-B | If Needed | Brake Vacuum Pump Gasket | 1 |
| CJ5Z-8255-A | If Needed | Coolant Outlet Adapter O-ring | 1 |
| CJ5Z-9439-A | If Needed | Intake Manifold Gasket | 4 |
| CM5Z-12029-K | If Needed | Ignition Coil | 1 |
| EJ7Z-9276-B | If Needed | High Pressure Pump Drive Gasket | 1 |
| F2GZ-63600A58-A | If Needed | Intermediate Shaft Bushing (AWD Only) | 1 |
| W712458-S900 | If Needed | Turbo To Exhaust Stud | 4 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
Parts
Fusion – Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| 6006 | 1 | Engine Long Block – Refer To The Parts Catalog For The VIN Specific Application | 1 | 1 |
| KX6Z-8678-A | 1 | Accessory Drive Belt Idler Pulley | 1 | 1 |
| J2GZ-6079-B | 1 | Engine Long Block Service Kit | 1 | 1 |
| W520214-S442 | 2 | Lower Ball Joint Nut | 1 | 2 |
| W520214-S442 | 3 | Engine Mount Nut | 1 | 3 |
| W704474-S437 | 1 | Turbo Stud | 4 | 4 |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) | ||
| XO-5W30-Q1SP | As Needed | Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada) | ||
| CXO-5W30-LSP6 | As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | ||
| TA-26 | As Needed | Motorcraft® Threadlock 262 |
Parts
Fusion – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| 1S7Z-6375-D | If Needed | Flexplate | 1 |
| 1S7Z-6B752-AA | If Needed | Crankcase Oil Vent Separator Gasket | 1 |
| 3M4Z-8255-A | If Needed | Thermostat Gasket | 1 |
| AA5Z-9C587-A | If Needed | High Pressure Pump Roller Tappet | 1 |
| BB5Z-2A572-B | If Needed | Brake Vacuum Pump Gasket | 1 |
| CJ5Z-8255-A | If Needed | Coolant Outlet Adapter O-ring | 1 |
| CJ5Z-9439-A | If Needed | Intake Manifold Gasket | 4 |
| CM5Z-12029-K | If Needed | Ignition Coil | 1 |
| EJ7Z-9276-B | If Needed | High Pressure Pump Drive Gasket | 1 |
| W712458-S900 | If Needed | Turbo To Exhaust Stud | 4 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
NOTE: In the event that an Engine Long Block Service Kit is not available or temporarily on backorder, refer to the applicable Long Block Service Kit parts list in this article to order parts individually.
Parts
Fusion/MKZ – Information Only – The Following Individual Parts Are Contained In Long Block Service Kit J2GZ-6079-B
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity | Note |
| BE8Z-6731-AD | – | Engine Oil Filter | 1 | 1 | |
| EJ7Z-9J323-B | – | High Pressure Fuel Tube | 1 | 1 | |
| W718059-S442 | – | High Pressure Fuel Pump Fasteners | 2 | 2 | |
| AA5Z-9E583-A | – | High Pressure Fuel Pump O-ring | 1 | 1 | |
| BG9Z-9229-A | – | Fuel Injector Teflon Seals/O-rings | 1 kit | Part number will service 4 fuel injectors | |
| W500313-S437 | – | Fuel Rail Fasteners | 4 | 5 | |
| DL3Z-19B596-B | – | A/C Compressor Gasket And O-Ring | 1 | 1 | |
| DS7Z-19B596-A | – | A/C Compressor Gasket And O-Ring | 1 | 1 | |
| W714265-S442 | – | Catalytic Converter Fastener | 4 | 2 | |
| EJ7Z-6L612-A | – | Turbocharger To Catalytic Converter Gasket | 1 | 1 | |
| EJ7Z-6N652-A | – | Turbocharger Oil Return Tube Gasket | 1 | 1 | |
| FT4Z-6N652-E | – | Turbocharger Oil Return Tube O-ring | 1 | 1 | |
| BB5Z-6C683-A | – | Turbocharger Oil Supply Filter | 1 | 1 | |
| W715323-S300 | – | Turbocharger Oil Supply Tube Washers | 2 | 2 | |
| FT4Z-6N652-D | – | Turbocharger Coolant Tube O-Ring | 1 | 5 | |
| W713212-S300 | – | Turbocharger Coolant Tube Washers | 2 | 2 | |
| EJ7Z-9448-B | – | Turbocharger Gasket | 1 | 1 | |
| W713095-S450 | – | Turbocharger Heat Shield Nuts | 4 | 4 | |
| W520103-S442 | – | Tailpipe Fastener | 4 | 2 | |
| CV6Z-9450-E | – | Tailpipe Gasket | 1 | 1 | |
| W520214-S440 | – | Engine Mount Nut | 2 | 3 | |
| W710807-S442 | – | Engine Mount Nut | 4 | 1 | |
| W717674-S439 | – | Engine Mount Bolt | 4 | 2 | |
| W716841-S900 | – | Engine Dowel (Engine To Transmission Interface) | 4 | 2 | |
| CCPZ-3B477-B | – | Wheel Bearing Hub Nut | 1 | 1 | |
| W712503-S440 | – | Stabilizer Bar Fastener | 1 | 2 | |
| W712961-S450B | – | Steering Column Fastener | 1 | 1 | |
| W714878-S439 | – | Steering Shaft Bolt | 4 | 1 | |
| W715618-S437 | – | Torque Converter Nuts | 4 | 4 | |
| 1L5Z-6379-AA | – | Flex Plate Fasteners | 4 | 6 | |
| W715623-S439 | – | Front Brake Caliper Bolts | 4 | 4 | |
| W500545-S439 | – | Ball Joint Pinch Bolt | 4 | 1 | |
| W716457-S439 | – | Subframe Bolts | 4 | 4 | |
| 4S4Z-3N324-AA | – | Halfshaft Retaining Strap | 1 | 1 | |
| W520102-S442 | – | Halfshaft Retaining Strap Nut | 4 | 2 | |
| DG9Z-7G273-B | – | Halfshaft Washer | 1 | 2 | |
| 9L8Z-6G004-E | – | CHT2 Sensor | 1 | 1 | |
| W718250-S439 | – | Upper PTU Bolt (AWD Only) | 5 | 5 | |
| CN1Z-7H424-B | – | Intermediate Shaft Seal (AWD Only) | 1 | 1 | |
| CV6Z-7086-B | – | PTU Compression Seal (AWD Only) | 1 | 1 | |
| W712154-S439 | – | Center Bearing Fastener (AWD Only) | 4 | 2 | |
| 5F9Z-4682-AA | – | PTU Bolt And Washer Assembly (AWD Only) | 1 | 6 |
Unit of Issue in the above section refers to the number of individual pieces included if ordering a service part number package (not applicable to the contents of the long block service kit).
Piece Quantity refers to the total number of individual pieces required to repair the vehicle (what is included in the long block service kit)
Parts
MKZ – Required Parts
| Service Part Number | Quantity | Description | Unit of Issue | Piece Quantity |
| 6006 | 1 | Engine Long Block – Refer To The Parts Catalog For The VIN Specific Application | 1 | 1 |
| KX6Z-8678-A | 1 | Accessory Drive Belt Idler Pulley | 1 | 1 |
| J2GZ-6079-B | 1 | Engine Long Block Service Kit | 1 | 1 |
| W704474-S437 | 1 | Turbo Stud | 4 | 4 |
| VC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13-G | As Needed | Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only) | ||
| XO-5W30-Q1SP | As Needed | Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada) | ||
| CXO-5W30-LSP6 | As Needed | Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only) | ||
| TA-26 | As Needed | Motorcraft® Threadlock 262 |
Parts
MKZ – Parts To Inspect And Replace Only If Necessary
| Service Part Number | Quantity | Description | Unit of Issue |
| 1S7Z-6375-D | If Needed | Flexplate | 1 |
| 1S7Z-6B752-AA | If Needed | Crankcase Oil Vent Separator Gasket | 1 |
| 3M4Z-8255-A | If Needed | Thermostat Gasket | 1 |
| AA5Z-9C587-A | If Needed | High Pressure Pump Roller Tappet | 1 |
| BB5Z-2A572-B | If Needed | Brake Vacuum Pump Gasket | 1 |
| CJ5Z-8255-A | If Needed | Coolant Outlet Adapter O-ring | 1 |
| CJ5Z-9439-A | If Needed | Intake Manifold Gasket | 4 |
| CM5Z-12029-K | If Needed | Ignition Coil | 1 |
| EJ7Z-9276-B | If Needed | High Pressure Pump Drive Gasket | 1 |
| W712458-S900 | If Needed | Turbo To Exhaust Stud | 4 |
Quantity refers to the amount of the service part number required to repair the vehicle.
Unit of Issue refers to the number of individual pieces included in a service part number package.
Piece Quantity refers to the total number of individual pieces required to repair the vehicle.
As Needed indicates the amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
If Needed indicates the part is not mandatory.
Service Procedure
For repairs covered by the New Vehicle Limited Warranty, completion of the procedure outlined in this TSB does not require completion of a Cost Cap.
NOTE: In the event that an Engine Long Block Service Kit is not available or temporarily on backorder, refer to the applicable Long Block Service Kit parts list in this article to order parts individually.
1. For Edge/Escape vehicles, proceed to Step 3. For Fusion/MKZ/MKC vehicles, inspect the engine code information label located on the end of the cam cover. Refer to Figure 1 Callout 1 for the engine part number. Verify that the engine base part number matches the following requirements:
(1). Fusion/MKZ – engine base part number is 910
Figure 1
| Item | Description |
|---|---|
| 1 | Engine part number |
(2). MKC – engine base part number is 206
Figure 2
2. Does the engine base part number match the requirements listed in Step 1?
(1). Yes – proceed to Step 3.
(2). No – this article does not apply. Refer to the Powertrain Control/Emission Diagnosis (PC/ED) Manual for normal diagnostics.
3. With the engine at normal operating temperature, pressurize the cooling system to 138 kPa (20 psi) and hold for 5 hours. Refer to the coolant pressure test in Workshop Manual (WSM), Section 303-03A and check for cooling system combustion gases.
4. Did coolant system pressure drop more than 27.57 kPa (4 psi) after 5 hours?
(1). Yes – proceed to Step 5.
(2). No – this article does not apply. Refer to the PC/ED Manual for normal diagnostics.
5. Remove the spark plugs. Using a borescope or equivalent, inspect and determine if coolant has entered the cylinders.
6. Is coolant present in any cylinder?
(1). Yes – remove the engine and replace the long block. Refer to WSM, Section 303-01.
NOTE: Advise the customer that some odor may be present after the repair has been completed until the residual coolant dissipates from the exhaust.
(2). No – this article does not apply. Refer to WSM, Section 303-01 for normal diagnostics.
25 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| FORD | EDGE | 2015-2018 |
| FORD | ESCAPE | 2017-2019 |
| FORD | FUSION | 2017-2019 |
| FORD | FUSION ENERGI | 2017-2019 |
| FORD | FUSION HYBRID | 2017-2019 |
| LINCOLN | MKC | 2017-2019 |
| LINCOLN | MKZ | 2017-2019 |
| LINCOLN | MKZ HYBRID | 2017-2019 |
1 Associated Document
Manufacturer Communications
22-2229
09 June 2022
MC-10214126-0001.pdf 208.197KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10210391
Manufacturer Communication Number: TSB 22-2133
Summary
Some 2015-2018 Edge and 2017-2019 Fusion/MKZ/Escape/MKC vehicles equipped with a 2.0L EcoBoost engine may exhibit a low coolant level, white exhaust smoke and/or a runs rough condition with or without an illuminated malfunction indicator lamp (MIL). Diagnostic trouble codes (DTCs) may include P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To correct the condition, follow the Service Procedure steps to replace the long block engine assembly.
1 Associated Document
Manufacturer Communications
22-2133
14 April 2022
MC-10210391-0001.pdf 207.013KB
Loading...
NHTSA ID Number: 10169807
Manufacturer Communication Number: TSB 19-2346
Summary
Some 2015-2018 Edge and 2017-2019 Fusion/MKZ/Escape/MKC vehicles equipped with a 2.0L EcoBoost engine may exhibit a low coolant level, white exhaust smoke and/or a runs rough condition with or without an illuminated malfunction indicator lamp (MIL). Diagnostic trouble codes (DTCs) may include P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To correct the condition, follow the Service Procedure steps to replace the long block engine assembly.
1 Associated Document
Manufacturer Communications
19-2346
19 December 2019
MC-10169807-0001.pdf 292.281KB
Loading...
NHTSA ID Number: 10162071
Manufacturer Communication Number: TSB 19-2208
Summary
Some 2015-2018 Edge and 2017-2019 Fusion/MKZ/Escape/MKC vehicles equipped with a 2.0L EcoBoost engine may exhibit a low coolant level, white exhaust smoke and/or a runs rough condition with or without an illuminated malfunction indicator lamp (MIL). Diagnostic trouble codes (DTCs) may include P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To correct the condition, follow the Service Procedure steps to replace the long block engine assembly.
1 Associated Document
Manufacturer Communications
19-2208
26 June 2019
Loading...
NHTSA ID Number: 10162062
Manufacturer Communication Number: TSB 19-2172
Summary
Some 2015-2018 Edge and 2015-2019 Fusion/MKZ/Escape/MKC vehicles equipped with a 2.0L EcoBoost engine may exhibit a low coolant level, white exhaust smoke and/or a runs rough condition with or without an illuminated malfunction indicator lamp (MIL). Diagnostic trouble codes (DTCs) may include P0300, P0301-P0304, P0316, P0217, P1285 and/or P1299 stored in powertrain control module (PCM). This may be due to coolant intrusion into the cylinder. To correct the condition, follow the Service Procedure steps to replace the long block engine assembly.
1 Associated Document
Manufacturer Communications
19-2172
12 June 2019
MC-10162062-0001.pdf 109.024KB
Loading...
- Yellow-colored, longer-life, ethylene glycol-based antifreeze/coolant for use in gasoline and diesel engines
- Provides year-round antifreeze, anti-boil and corrosion protection
- Ready-to-use; no need to add water - the 50/50 mixture of coolant and treated (purified) water provides freeze protection down to -34°F (-37°C) and boiling protection up to 265°F (129°C)
- Do not mix different colors or types of coolant in your vehicle
- Contains a bittering agent
- Yellow-colored, longer-life, ethylene glycol-based antifreeze/coolant for use in gasoline and diesel engines
- Provides year-round antifreeze, anti-boil and corrosion protection
- 50/50 mixture of coolant and distilled water provides freeze protection down to -34°F (-37°C) and boiling protection up to 265°F (129°C)
- Do not mix different colors or types of coolant in your vehicle
- Contains a bittering agent
- PREDILUTED ANTIFREEZE AND COOLANT: Engineered to support any vehicle's engine cooling system to enhance performance and provide protection. This item contains a bittering agent called Denatonium Benzoate.
- PROPRIETARY BLEND: Contains 10X the scale-fighting inhibitors to ensure maximum cooling performance while protecting against scale, corrosion, and other damage
- SUPERIOR CHEMISTRY: Free from 2-EHA, silicate, nitrite, borate, and amines to keep your vehicle functioning in prime condition
- UNIVERSAL FORMULA: Compatible with any color or type of existing antifreeze and coolant in your car's system
- LONG-LASTING: Offers 2X the average warranty coverage, cooling your engine system for over 10 years or 300,000 miles of service
- Unsurpassed freeze protection and anti-boil performance outperforms industry standards
- Organic acid technology resists rust, scale & corrosion while protecting all cooling system metals (including aluminum)
- High-quality additives protect against leaks and won’t harm gaskets, hoses, plastics or original vehicle finish
- Orange concentrate formula should be mixed with clean tap water or demineralized water at 50/50 ratio for temperatures -34 to 265F; 60/40 for -62 to 270F; and 70/30 for -84 to 267F
- 5 year/150,000 mile guarantee protects against engine failure caused by freeze-ups or boil-overs
- 1 GALLON ENGINE ANTIFREEZE/COOLANT: Fully compatible with other extended life antifreeze/coolants. This item contains a bittering agent called Denatonium Benzoate.
- PROTECTS: Advanced formulation prevents rust & corrosion protecting all engine cooling system components
- DESIGNED FOR NORTH AMERICAN VEHICLES: Recommended for use with Ford, Chrysler, and GM vehicles that require an orange organic acid technology formula
- GUARANTEED: When installed as part of a complete flush and fill, PEAK guarantees this coolant will provide service life protection of up to 150,000 miles or 5 years.
- CONCENTRATED FORMULA: Ideal for flushing, filling, or topping off your cooling system
- Yellow-colored, longer-life, ethylene glycol-based antifreeze/coolant for use in gasoline and diesel engines
- Provides year-round antifreeze, anti-boil and corrosion protection
- A 50/50 mixture of coolant and distilled water provides freeze protection down to -34°F (-37°C) and boiling protection up to 265°F (129°C)
- Do not mix different colors or types of coolant in your vehicle
- Contains a bittering agent
- Unsurpassed freeze protection and anti-boil performance outperforms industry standards
- Hybrid organic acid technology fights rust, scale & corrosion while protecting all cooling system metals (including aluminum)
- High-quality additives protect against leaks and won’t harm gaskets, hoses, plastics or original vehicle finish
- Yellow concentrate formula should be mixed with clean tap water or demineralized water at 50/50 ratio for temperatures -34 to 265F; 60/40 for -62 to 270F; and 70/30 for -84 to 267F
- 5 year/150,000 mile guarantee protects against engine failure caused by freeze-ups or boil-overs
- Part number: VC5DIL
- Country of Origin: United States
- Package Weight: 4.15 kilograms
- "This product contains bittering agent"
- Contains Alugard Plus for compatibility with all ethylene glycol-based coolants in automobiles and light duty trucks
- Fights corrosion, scaling and rust while protecting all cooling system metals (including aluminum)
- High-quality additives protect against leaks and won’t harm gaskets, hoses, plastics or original vehicle finish
- Pre-mixed yellow formula is ready-to-use in a 50/50 ratio with deionized water to protect all modern engine components from winter freezing (-34F) and summer boiling (265F).
- Contains 30 – 50 ppm of denatonium benzoate as a bittering agent
SEOCONTENT-START
Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Emissions Warranty/Service Part Warranty (SPW)/Special Service Part (SSP)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/Emissions Warranty/SPW/SSP/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool. For repairs covered by the NVLW, completion of the procedure outlined in this TSB does not require obtaining Prior Approval or completion of a Cost Cap. Labor Times Description Operation No. Time 2017-2019 MKC AWD 2.0L EcoBoost: Diagnose And Replace The Engine Long Block (Do Not Use With Any Labor Operations Outside Of This Article) 222229A 14.8Hrs. 2017-2019 MKC FWD 2.0L EcoBoost: Diagnose And Replace The Engine Long Block (Do Not Use With Any Labor Operations Outside Of This Article) 222229B 13.7Hrs. 2017-2019 Escape 4X4 2.0L EcoBoost: Diagnose And Replace The Engine Long Block (Do Not Use With Any Labor Operations Outside Of This Article) 222229C 15.5Hrs. 2017-2019 Escape 4X2 2.0L EcoBoost: Diagnose And Replace The Engine Long Block (Do Not Use With Any Labor Operations Outside Of This Article) 222229D 13.7Hrs. 2015-2018 Edge AWD 2.0L EcoBoost: Diagnose And Replace The Engine Long Block (Do Not Use With Any Labor Operations Outside Of This Article) 222229E 15.2Hrs. 2015-2018 Edge FWD 2.0L EcoBoost: Diagnose And Replace The Engine Long Block (Do Not Use With Any Labor Operations Outside Of This Article) 222229F 13.4Hrs. 2017-2019 Fusion/MKZ AWD 2.0L EcoBoost: Diagnose And Replace The Engine Long Block(Do Not Use With Any Labor Operations Outside Of This Article) 222229G 15.0Hrs. 2017-2019 Fusion/MKZ FWD 2.0L EcoBoost: Diagnose And Replace The Engine Long Block(Do Not Use With Any Labor Operations Outside Of This Article) 222229H 13.0Hrs. Vehicles Without Lane Departure: Additional Time To Check And Correct Front Toe (Can be Claimed With Operation A-H Only) 222229J 0.6Hrs. Vehicles With Lane Departure: Additional Time To Check And Correct Front Toe (Can be Claimed With Operation A-H Only) 222229K 0.8Hrs. Repair/Claim Coding Causal Part: 6009 Condition Code: D8
SEOCONTENT-END
Last update on 2025-05-06 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
Should this be the cause of the rough running of the motor, what’s a ballpark on the replacement cost with parts and labor? I’m assuming astronomical given the list of parts, the fact that the motor is being pulled and that it’s only the BLOCK…
